DBA 201
Technical Highlights
- Power: 440W peak, 220W RMS, Impedance: 0.4 Ohm.
- Housing: Double passive radiator, voice coil: Ø 38.6 mm.
- Frequency response: 32-400 Hz, Magnet: High Density Flux Ferrite.
- More technical details
Availability for pickups could not be loaded.
Shipping cost calculator
Shipping cost calculator
Rob
Max
Unsure if this product fits your car?
We help you – quickly, personally, and without obligation.
Fill out the form and we'll send you a personalised offer
This product is not universally compatible. Send us your vehicle details and we will check fitment for your model free of charge.
Compatible with DBA 201

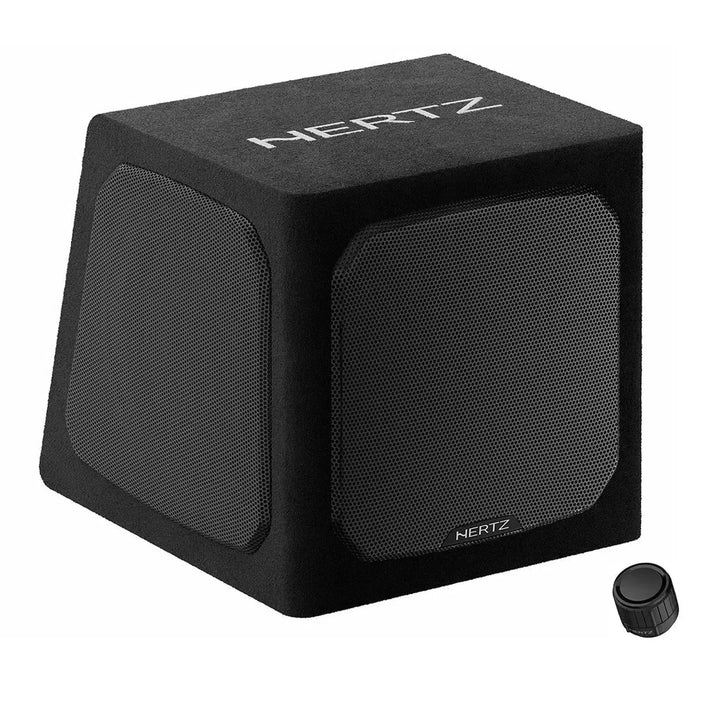

DBA 201 by Hertz
The Hertz DBA 201 is an 8-inch (20 cm) active enclosure subwoofer with 220 W RMS and 440 W peak power. The design utilizes a dual passive radiator in the enclosure and an integrated low-pass filter. An automatic power-on and standby mode is available. The construction includes a high-density flux ferrite magnet, a cone made of pressed paper, and a copper voice coil with a diameter of 38.6 mm. The frequency response ranges from 32 to 400 Hz with an impedance of 0.4 Ohm. The operating voltage is between 6.5 to 18 VDC with a 15 A fuse and a 6 VDC start-stop voltage. The magnet size is 115 x 47 x 25 mm, and the weight is 6.7 kg. The PRE input signal turn-on is at 10 mV VRMS, remote IN power-on at 4 VDC (1 mA), and SPK input DC power-on at 2 VDC. Plug & play connection is available.
- 8-inch (20 cm) active enclosure subwoofer
- RMS power 220 W
- Peak power 440 W
- Impedance 0.4 Ohm
- Design: dual passive radiator in the enclosure
- Integrated low-pass filter
- Automatic power-on and standby mode
- Plug & play connection
- Magnet: high-density flux ferrite
- Cone: pressed paper
- Voice coil: copper
- Speaker size 200 mm
- Voice coil diameter 38.6 mm
- Frequency response 32–400 Hz
- Magnet size 115 x 47 x 25 mm
- Weight 6.7 kg
- Operating voltage 6.5–18 VDC
- Fuse 15 A
- Start-stop voltage 6 VDC
- Max. current draw at 14.4 VDC (music power) 8.5 A
- Remote IN power-on 4 VDC (1 mA)
- PRE input signal turn-on 10 mV VRMS
- SPK input DC power-on 2 VDC
