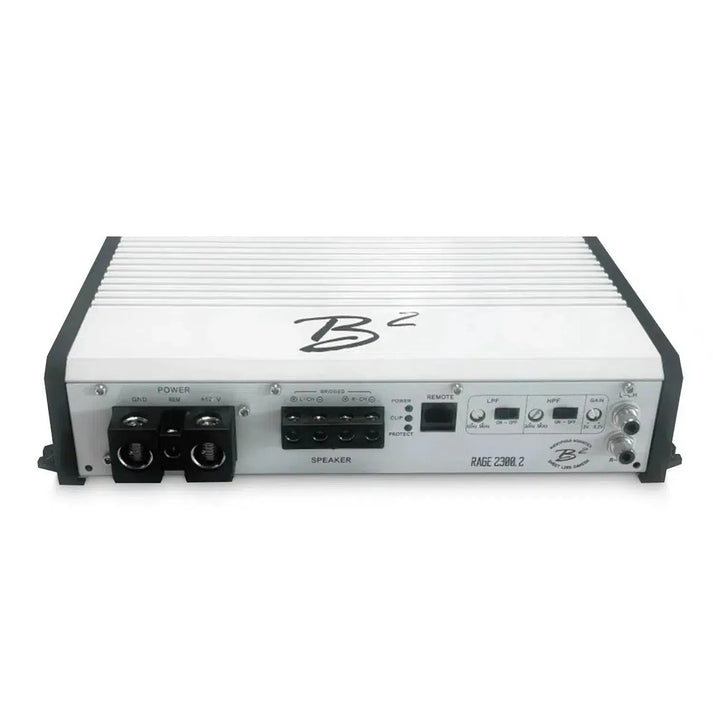

B2 Audio Rage 2300.2 2-Channel Amplifier
SKU:  RAGE2300.2
1150 Watt

Rage 2300.2

SKU:  RAGE2300.2

Technical Highlights

  • Power of 2 x 650 WRMS at 4 Ω, 1 x 2300 WRMS at 4 Ω bridge.
  • Damping factor over 200, frequency response from 10 Hz to 27 KHz.
  • Signal-to-noise ratio over 95 dB, input 5 V to 0.2 V.
  • More technical details
€699,00
€699,00 €699,00
5% discount with credit card
inkl. VAT , possibly plus shipping
Delivery
Jun 8, - Jun 12,
x piece
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €58,25 with Klarna .

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours
B2 AudioRage 2300.4
B2 Audio-Rage 2300.4-4-Kanal Verstärker-masori-kaufen
B2 Audio-Rage 12 V4 D2-12" (30cm) Subwoofer-masori-kaufen
B2 AudioRage 12 V3 D1
B2 Audio-Rage 2300.2-2-Kanal Verstärker-masori-kaufen
€699,00
€699,00 €699,00

Rage 2300.2 by B2 Audio

The Rage 2300.2 is a 2-Channel Amplifier from B2 Audio in Class D. The output power is 2 x 650 WRMS at 4 Ω 14.4 V, 2 x 1150 WRMS at 2 Ω 14.4 V, and 1 x 2300 WRMS bridged at 4 Ω 14.4 V. The frequency response ranges from 10 Hz to 27 KHz. The signal-to-noise ratio is greater than 95 dB, and the damping factor is greater than 200. The input sensitivity ranges from 5 V to 0.2 V. A low-pass filter of 24 dB/Oct.: 50 Hz to 5 KHz and a high-pass filter of 24 dB/Oct.: 30 Hz to 5 KHz are integrated. The power supply is via a 70 mm² input, and the fuse rating is 250 A. The operating voltage is between 9 V and 16 V, and the dimensions are 305 x 200 x 70 mm.

Features
  • 2-Channel Amplifier
  • Class D
  • Power at 4 Ω 14.4 V: 2 x 650 WRMS
  • Power at 2 Ω 14.4 V: 2 x 1150 WRMS
  • Power at 4 Ω 14.4 V Bridge: 1 x 2300 WRMS
  • Frequency response: 10 Hz ~ 27 KHz
  • Signal-to-noise ratio: > 95 dB
  • Damping factor: >200
  • Dimensions: 305 x 200 x 70 mm
Technical Specifications
  • Input power supply: 70 mm²
  • Input sensitivity: 5 V ~ 0.2 V
  • Low-pass filter 24 dB/Oct.: 50 Hz ~ 5 KHz
  • High-pass filter 24 dB/Oct.: 30 Hz ~ 5 KHz
  • Fuse rating: 250 A
  • Operating voltage: 9 V ~ 16 V

Your benefits at Masori

B2 Audio Rage 2300.2 Datasheet

Open datasheet

Frequently Asked Questions about Rage 2300.2

How much power does the Rage 2300.2 Amplifier provide at 4 Ω?

The Rage 2300.2 from B2 Audio delivers impressive power ratings at an impedance of 4 Ω. You get 2 times 650 Watts RMS at a voltage of 14.4 V. This means that each channel is capable of consistently delivering 650 Watts, which is particularly suitable for applications that require high continuous power. In bridged mode, the power increases to 2300 Watts RMS under the same conditions. This significant power capability makes the Rage 2300.2 an ideal choice for enthusiasts looking for a powerful audio amplifier.

What features define the sound quality of the Rage 2300.2?

The sound quality of the Rage 2300.2 from B2 Audio is defined by several factors. With a signal-to-noise ratio of over 95 dB, this amplifier ensures clear and detailed audio output. The frequency response of 10 Hz to 27 kHz supports a wide range of audio frequencies, providing detailed sound reproduction. The high input sensitivity of 5 V to 0.2 V offers flexibility in system adjustment. Additionally, the good damping factor of over 200 allows for better control over the speaker diaphragm, minimizing distortion.

What role does the damping factor play in the Rage 2300.2 Amplifier?

The damping factor of the Rage 2300.2 from B2 Audio is very high at over 200, which is essential for controlling the speaker diaphragm at low frequencies. A high damping factor indicates that the amplifier can efficiently control the movements of the diaphragm, significantly reducing distortion in the bass range. This is particularly important when full bass frequencies need to be reproduced without distortion. Thus, the damping factor ensures that the amplifier maintains clean and precise sound output to uphold audio quality.

How does the Class D property affect the efficiency of the Rage 2300.2?

The Class D property of the Rage 2300.2 Amplifier significantly affects its efficiency. Class D amplifiers, like the one from B2 Audio, are known to be extremely energy-efficient as they deliver power in pulses and do not require continuous energy. This leads to lower heat generation and thus a more efficient use of the energy budget. The high efficiency results in improved power output while maintaining lower thermal stress, making it more durable and capable of reliably delivering high power.

What is the significance of the frequency response from 10 Hz to 27 KHz in the Rage 2300.2?

The frequency response from 10 Hz to 27 KHz in the B2 Audio Rage 2300.2 Amplifier defines the spectrum of frequencies that the amplifier can process. For audio enthusiasts, this means that the amplifier can efficiently reproduce both very low and very high frequencies. Deep bass around 10 Hz and clear highs up to 27 KHz contribute to delivering a full, detailed sound image. This is particularly important for applications that require both rich bass and clear, precise highs to achieve a complete and rich audio experience.

How do low-pass and high-pass filters affect the sound tuning of the Rage 2300.2?

The Rage 2300.2 from B2 Audio features both low-pass and high-pass filters that provide basic functions for sound tuning. The low-pass filter operates at 24 dB/octave between 50 Hz and 5 KHz, while the high-pass filter also works at 24 dB/octave between 30 Hz and 5 KHz. These filters allow for the amplification or attenuation of specific frequency ranges to shape the overall sound quality according to personal preferences. With these adjustment options, both the highs and lows can be controlled precisely and with high quality.

What are the dimensions of the Rage 2300.2 and how do they facilitate installation?

The Rage 2300.2 Amplifier from B2 Audio has compact dimensions of 305 x 200 x 70 mm. These size characteristics are particularly advantageous as they facilitate flexible installation in various vehicle models without taking up much space. Moreover, such dimensions can often fit into standardized installation spaces. When installing in a car, it is important to ensure that there is sufficient space available and that appropriate ventilation options are provided for smooth heat dissipation to ensure optimal performance and safety of the amplifier.

Why is a signal-to-noise ratio of over 95 dB important in amplifiers like the Rage 2300.2?

A signal-to-noise ratio (SNR) of over 95 dB is very important in audio amplifiers like the Rage 2300.2 from B2 Audio because it reflects the clarity of the audio signal. A high SNR value means that the strength of the useful signal is very high compared to the background noise, resulting in minimal unwanted sounds or distortions. Practically speaking, such a ratio ensures that even at high volumes, a clean sound can be heard without unwanted interference, significantly enhancing the listening experience, especially when used in high-quality audio systems.

What input sensitivity does the Rage 2300.2 offer and why is this relevant?

The input sensitivity of the Rage 2300.2 from B2 Audio ranges from 5 V to 0.2 V. This wide range allows the amplifier to be easily adapted to a variety of audio sources. A higher input voltage requires less amplification from the amplifier itself, which can lead to reduced distortion. This flexibility allows you to optimally configure the amplifier depending on which audio signal is being fed in. Especially when using different source devices, this adaptability is crucial to achieve the best possible sound quality without loss.

What operating voltage does the Rage 2300.2 amplifier require?

The Rage 2300.2 amplifier from B2 Audio operates within an operating voltage range of 9 V to 16 V. This flexibility allows the amplifier to be safely operated in various vehicles, as it is compatible with most common car battery voltages. This voltage range ensures that the amplifier operates reliably even with voltage fluctuations, which is particularly important when used in a car. Additionally, it reduces the risk of interference in situations where the power supply is not constant, thus ensuring stable performance.
