Rage 8CXP

Name: B2 Audio Rage 8CXP 8 Inch Coaxial Speaker | Masori
Brand: B2 Audio
Price: 106.25 EUR
Availability: InStock

250 Watt

Rage 8CXP

Technical Highlights

250 W RMS, 98 dB sensitivity, 70 Hz 20 kHz frequency.
8" mid-woofer, compression driver, 4 ohm impedance.
Compact size, ideal for space-saving audio setups.
More technical details

€106.25

-15% ~~€125.00~~ €106.25

2% discount with credit card

including VAT

Free shipping for this item!

Delivery & availability

The selected variant is in stock at Masori. The delivery estimate above applies to the shown selection and destination country.

Orders ship together based on the item with the longest lead time. If you need something sooner, ask by email about a possible partial shipment beforehand.

Shipping costs and options depend on the destination. Check the shipping calculator; final costs are shown before placing the order.

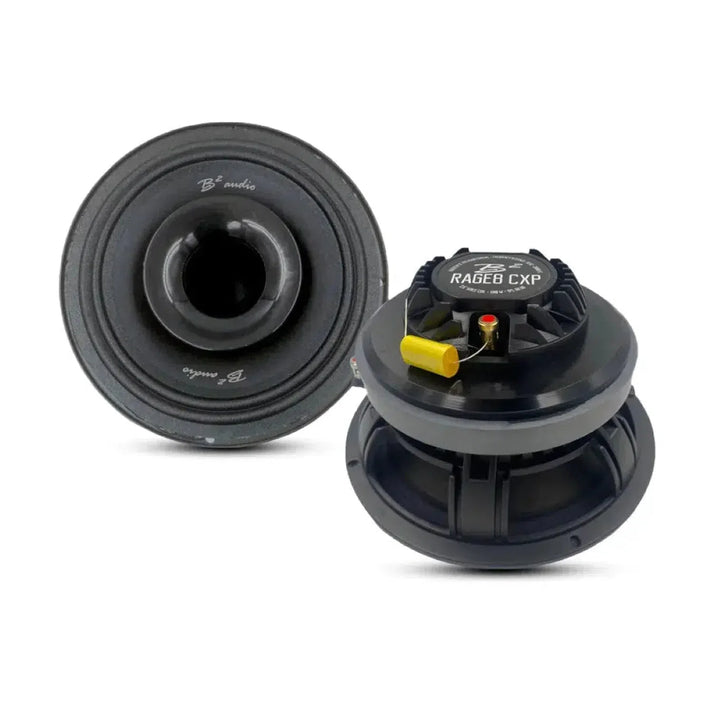

Side view of a B2 Audio Rage 8CXP 8″ coaxial speaker, showing magnet, frame, and terminals, isolated on white background.

€106.25

~~€125.00~~ €106.25

The B2 Audio Rage 8CXP is an 8 inch (20 cm) coaxial speaker with a compression driver and a frequency range of 70 Hz to 20 kHz. It is specified with 250 W RMS and 500 W maximum power at 4 Ohm. The sensitivity is 98 dB. The mounting depth is 120 mm with a cutout diameter of 184 mm. Relevant parameters include Fs 69.4 Hz, Vas 11.16 liters, Qts 0.639, Mms 25.71 g, Xmax 4 mm, Sd 213 cm², Le 0.766 mH (1 kHz), and SPL 92.2 dB.

Features

8 inch (20 cm) coaxial speaker
Manufacturer: B2 Audio
Compression driver
Frequency range: 70 Hz – 20 kHz
Sensitivity: 98 dB
RMS power: 250 W
Maximum power: 500 W
Impedance: 4 Ohm
Mounting depth: 120 mm
Cutout diameter: 184 mm

Technical specifications

Re: 3.6 Ohm
Fs: 69.4 Hz
Vas: 11.16 liters
Qts: 0.639
Qms: 5.320
Qes: 0.726
Mms: 25.71 g
Xmax: 4 mm
Sd: 213 cm²
Le (1 kHz): 0.766 mH
SPL: 92.2 dB
Voice coil: 63.5 mm / 44.45 mm

Frequently Asked Questions about Rage 8CXP

What technical features does the B2 Audio Rage 8CXP have?

The Rage 8CXP from B2 Audio is a coaxial speaker with an 8-inch mid-bass driver and an integrated compression driver. The speaker has a sensitivity of 98dB and can handle 250 Watts RMS power, making it ideal for dynamic and powerful sound profiles. With a frequency range of 70Hz to 20kHz, it effectively covers both high and low tones. The installation depth is 120 mm, allowing for flexible installation. The impedance is 4 Ohms, the voice coil measures 2.5 inches and 1.75 inches, while the maximum power is 500 Watts. The T/S parameters are specific: Re: 3.6 Ohms, Fs: 69.4 Hz, Vas: 11.16 liters.

How does the frequency response of the Rage 8CXP differ from other speakers?

The B2 Audio Rage 8CXP features an extended frequency response of 70Hz to 20kHz, which is particularly due to the integrated compression driver. Compared to other coaxial speakers, the Rage 8CXP offers remarkable coverage in both the low and high frequency spectrum. The lower frequency range allows for powerful bass reproduction, while the upper range up to 20kHz ensures clear highs. This bandwidth is well-suited for a variety of music genres that demand full sound depth. Especially in loud and dynamic soundscapes, the Rage 8CXP demonstrates its strength in spatial and tonal representation.

What installation depth is required for the Rage 8CXP?

The Rage 8CXP from B2 Audio requires an installation depth of 120 mm. This compact size allows for flexible integration into versatile audio setups, especially where space is limited, without compromising on performance. Before installation, you should ensure that the selected enclosure or intended position in the vehicle can accommodate this depth. Due to the standardized design, the speaker can be well used in typical applications, but susceptibility for specific adjustments such as enlarging the installation hole to 184 mm will be crucial in some scenarios.

How is the B2 Audio Rage 8CXP mounted in the car?

Installing the B2 Audio Rage 8CXP in the vehicle requires attention to the installation depth of 120 mm and a cutout size of 184 mm. Before installation, it is important to ensure that there is enough space in the designated area. The speaker should be placed in a housing with adequate rear support to optimize acoustic performance. When installing, it is advisable to use high-quality cable connections to achieve the maximum power of 250 Watts RMS and minimize any signal loss. The speaker can be adapted to most standardized vehicle mounts.

What are the T/S parameters of the Rage 8CXP?

The Thiele/Small parameters for the B2 Audio Rage 8CXP are crucial for fine-tuning the installation and sound quality. The DC resistance, Re, is 3.6 Ohms, which affects electrical compatibility. The resonance frequency, Fs, is 69.4 Hz, allowing for efficient reproduction of lower bass frequencies. The Vas is 11.16 liters, which can influence the required enclosure size. The quality factor, Qts, is 0.639 and indicates the balance between mechanical and electrical damping. The moving mass, Mms, is 25.71 g. The mechanical compliance, Sd, is 213 cm². The inductance at 1 kHz, Le, is 0.766 mH.

What impedance does the B2 Audio Rage 8CXP speaker have?

The Rage 8CXP from B2 Audio has a nominal impedance of 4 Ohms, a common value used in many modern audio systems. This impedance allows for effective power draw from most commercially available amplifiers. The 4-Ohm impedance provides a good balance between electrical resistance and output, which is ideal for use in vehicles where power supply can often be variable. When connecting multiple speakers, the total impedance must be monitored to ensure compatibility with the amplifier. This helps to effectively avoid overloading the sound system.

How efficient is the B2 Audio Rage 8CXP speaker?

The B2 Audio Rage 8CXP has a high efficiency of 98 dB. This efficiency means that the speaker can produce impressively clear and loud sound even at relatively low power. Particularly relevant in mobile applications, high sensitivity reduces the need for powerful amplifiers, making the Rage 8CXP a flexible choice for various applications where energy saving is crucial. Even with moderate power inputs, an intense listening experience is achieved, which is advantageous in loud environments or with music that requires powerful expression.

What is the load capacity of the B2 Audio Rage 8CXP?

The load capacity of a speaker refers to the maximum power it can handle without damage. The B2 Audio Rage 8CXP has an RMS load capacity of 250W and a maximum power of 500W. These power ratings are essential for achieving realistic audio levels in various environments. At 250W RMS, the Rage 8CXP can operate continuously without distortion, while 500W is considered the upper limit for short periods. These values are crucial for sizing Amplifiers and ensure the longevity of the system under any acoustic demands.

Is the Rage 8CXP compatible with all common car brands?

The compatibility of the Rage 8CXP from B2 Audio primarily depends on the physical installation dimensions. With a mounting depth of 120 mm and a cutout diameter of 184 mm, it can be installed in many common vehicles. If these dimensions match the cutouts, usually in the doors or dashboards, installation should be straightforward. While the 8-inch coaxial speaker is suitable for vehicles from various manufacturers, it is advisable to check compatibility for specific models in advance. Some vehicles may require modifications to create the conditions for perfect sound projection.

How does the compression driver of the Rage 8CXP enhance the sound?

The integrated compression driver in the B2 Audio Rage 8CXP is responsible for extending the frequency response up to 20kHz, providing the listening experience with remarkable clarity and presence in the high frequencies. Compression drivers are known for their ability to efficiently reproduce high sound levels, and the Rage 8CXP stands out with its dynamic high-frequency reproduction, which is notably balanced and detailed. Whether in enclosed spaces or outdoor applications, the compression driver ensures that even the finest sound nuances remain audible, which is particularly beneficial in high-fidelity audio applications where precision and transparency are priorities.
