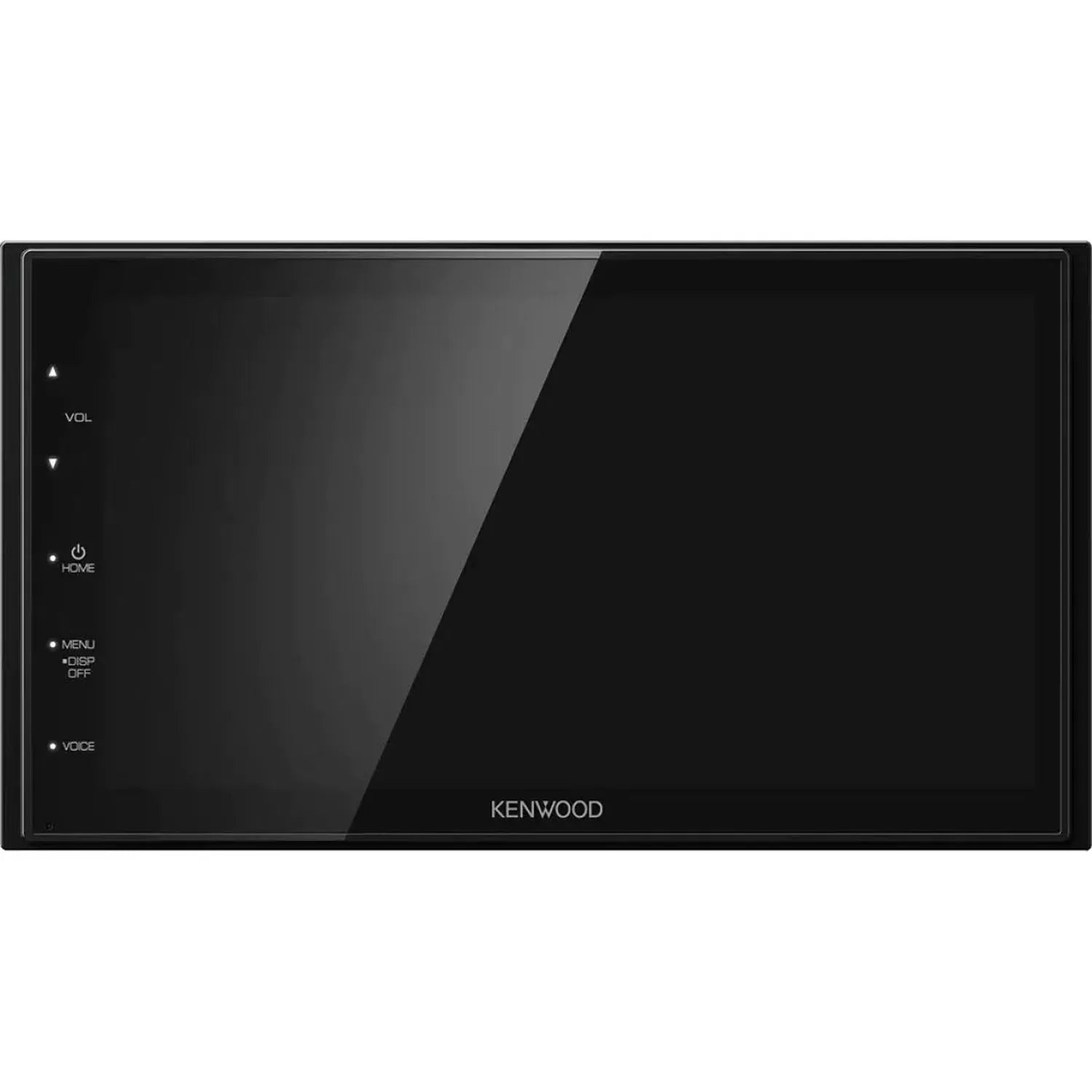

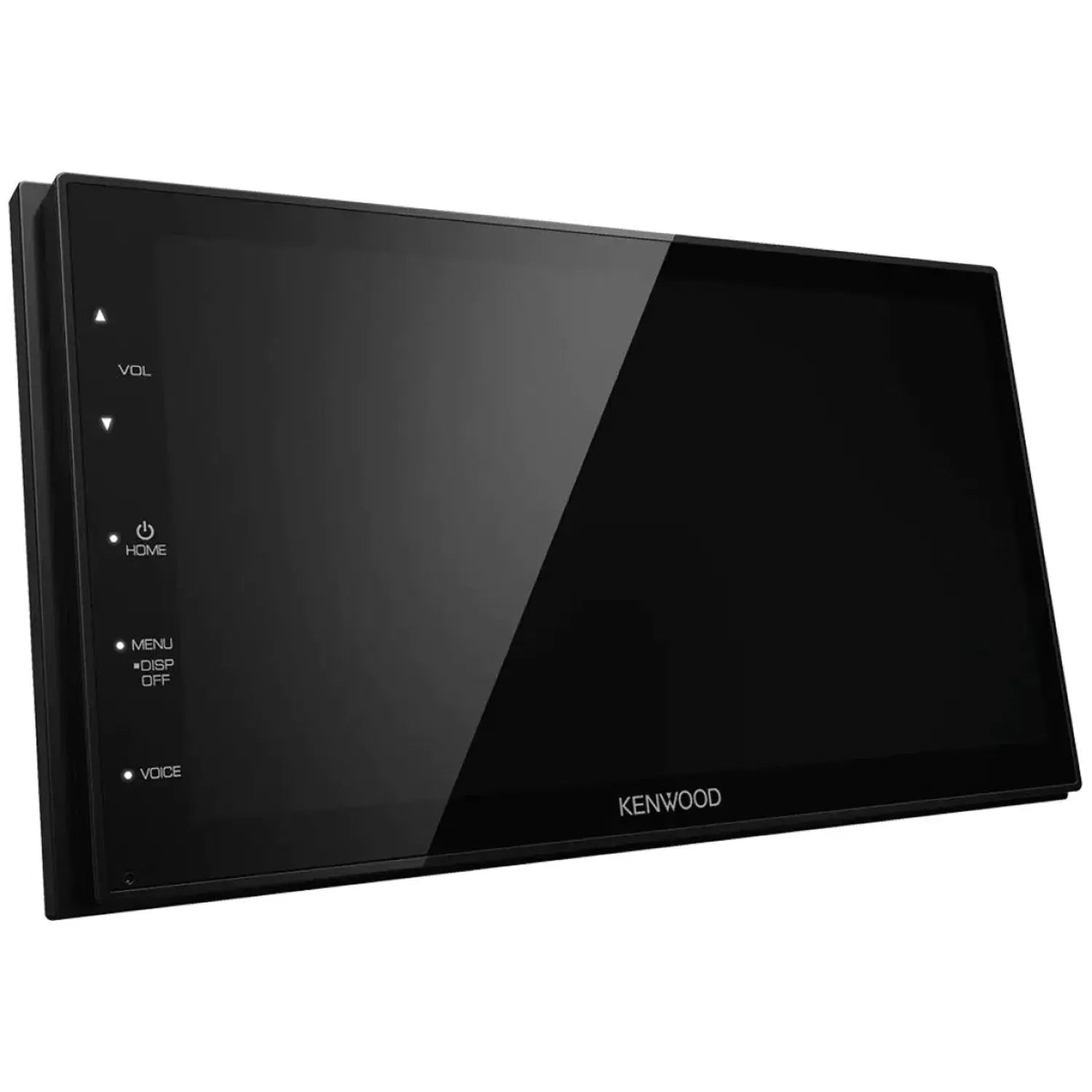

DMX5020DABS

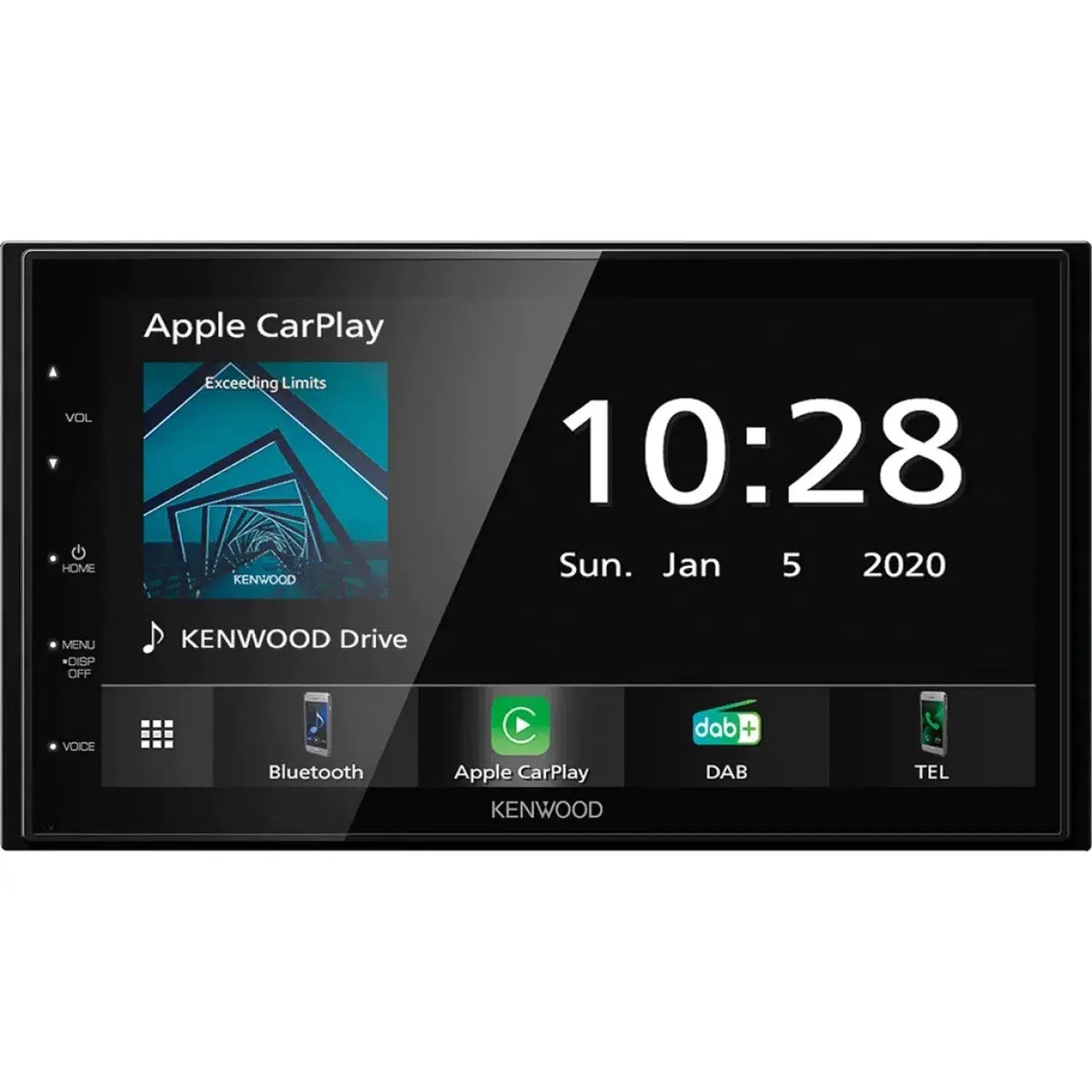

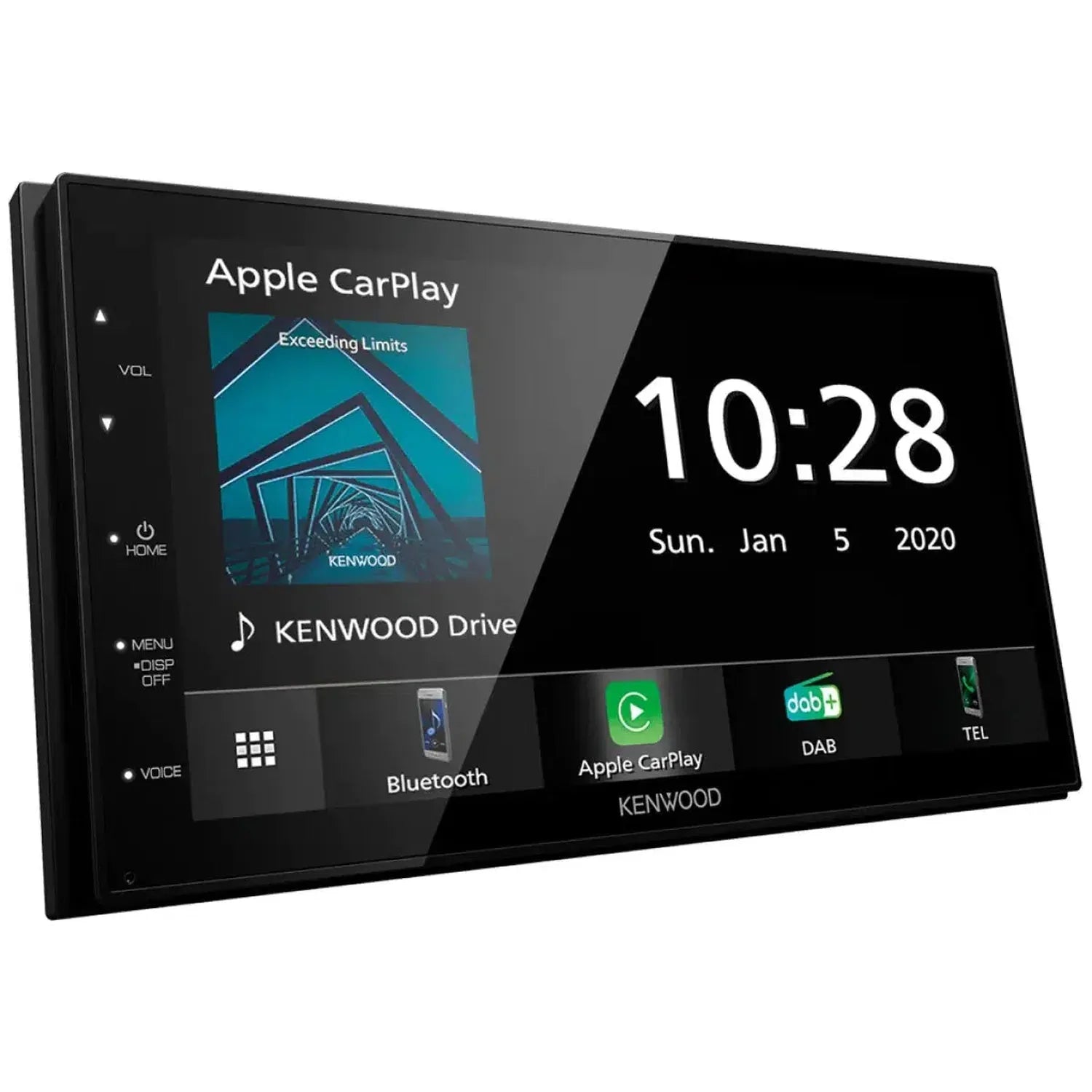

Discover the DMX5020DABS, a state-of-the-art 2-DIN car radio from Kenwood. It impresses with its top-notch features such as an integrated Bluetooth module and the built-in DAB+ tuner. It also supports Apple CarPlay and Android Auto. Thanks to the clear GUI menu and customizable button lighting, this radio is exceptionally user-friendly. With its wide range of supported audio and video file formats, the DMX5020DABS opens up a new dimension of entertainment in your car. To further enhance the user experience, this device also offers an update option.

Specifications

• General Equipment Features
• DIN size 2 DIN
• Clear GUI menu Yes
• Selectable GUI background display Yes
• Key illumination White
• Level reduction with linear volume fade-in Yes
• Beep-Ton Ja
• Prepared for IR remote control Yes, (KNA-RCDV331)
• Digital time (24H) Yes
• ISO connection Yes
• Integrated Bluetooth module Yes
• Integrated DAB+ tuner Yes
• Made for iPod Ja
• Supports Apple CarPlay Yes
• Supports Android Auto Yes
• Android USB Mirroring Yes
• Update option Yes
• Display features
• Display size 17.3 cm WVGA Clear Resistive Touch Panel
• Display mode 4 modes (Full/Zoom/Normal/Auto)
• Image settings
• Brightness
• Tint
• Color
• Contrast
• Switching of Day/Night Display Manual Synchronization
• Dimming function Yes
• Video sources Mirroring / CarPlay / Android Auto.
• Display type anti-glare effect
• Display film Anti Fingerprint
• Capacitive Display Panel
• Display mechanism non-removable
• Automatic NTSC/PAL switching automatically
• Switchable display indicator Yes
• Features of the GUI
• OSDC-Type Graphic
• Text 14 Languages ► English (UK) ► English (US) ► Spanish ► French ► German ► Italian ► Danish ► Russian ► Portuguese ► Hebrew ► Greek ► Polish ► Czech ► Hungarian
• Firmware Update (SoC)
• Demonstration mode Yes
• Individual Main Menu Yes
• Opening Screen Type Standard
• Individual background setting 6 x presets + 2 x user set
• Automatic rearview camera display (R-CAM Interrupt) Yes
• Rearview camera parking assistance lines Yes
• Tuner Features
• Sender selection Manual / Default setting (List)
• UKW reception Yes
• UKW Stereo/Mono switch Yes
• AM (MW/LW) reception Yes
• Sender configuration (Auto 1 / Auto 2 / Manual) Auto1 / Auto2 / Manual
• Up/Down Sender search run Yes
• Station storage (FM/MW) 20 storage (15FM / 15MW)
• Automatic channel storage (AME) Yes
• Radio Data System Yes
• Radio Text Plus Yes
• Traffic information yes
• Local Search Yes
• AR Regional Selectable: AF/AF Reg/OFF
• Enhanced Other Networks Yes
• Program Type Identification (PTY) Yes
• Features DAB
• Integrated DAB+ tuner Yes
• Certification by Digital Radio Tick Mark Yes
• Automatic channel search Yes
• Sender search Auto1 / Auto2 / Manual
• Number of station storage spaces 15 bands * 1 storage space
• Sender list in alphabetical order Yes
• Sender storage list Yes
• Alphabetical channel search Yes
• DAB-RDS incl. TI Yes
• Traffic information yes
• Automatic DAB-FM Switching Yes
• DLS (Dynamic Label) - Text information that is broadcast in addition to the audio signal by the respective sender. Yes
• PTY (Programme Type) Search Yes
• Issue of messages (ASW-Select) Yes
• Soft linking Yes
• On/Off switch for external antenna power supply Yes
• Features Bluetooth: General
• Maximum number of registered smartphones for hands-free and audio streaming function 7 mobile phones
• Hands-Free Profile (HFP) V1.6
• Hands Free Profile with high sound quality HFP V1.6
• Audio data transmission A2DP (Advanced Audio Distribution Profile) Yes, (SBC/AAC)
• Serial data transmission (SPP - Serial Port Profile) Yes
• Simple secure pairing yes
• Access to Phonebook (PBAP) Yes
• Number of telephone directory entries Up to 1000 telephone directory entries
• Number of entries Call history Up to 20 entries of dialed, received and missed calls
• GAP (Generic Access Profile) Yes
• Service Discovery Profile (SDP) Ja
• AVRCP Profile Yes, V1.5
• Phone search function Yes
• Private Mode Yes
• Alphabetical Search (Phone Book) Yes
• Voice control Yes
• Noise suppression Yes
• Echo compensator Yes
• Signal strength Yes
• Battery charge status Yes
• Bluetooth Pairing Display Yes
• High-quality microphone with noise cancellation included
• Firmware update Yes, in conjunction with system updates
• Playable audio files
• AAC files are playable USB
• Playback of MP3 files USB
• Playback of WMA files USB
• Playback of WAV files USB
• Playback of FLAC files USB
• Playable video files
• Playback of MPEG1/2 video files USB
• Playback of MPEG4 video files USB
• Playback of WMV video files USB
• Playback of H.264 video files USB
• Playback of mkv files USB
• Playback of JPEG image files USB
• Equipment features USB
• USB - Connection Yes, rear / 1 m cable / fixed
• USB Standard 2.0 High speed
• Apple CarPlay Yes
• Supports Apple CarPlay Yes
• USB Mirroring for Android "Mirroring OA for KENWOOD" App in the Play Store
• Repeat function Folder/Files/All
• Shuffle Folder
• Category search Yes
• Link Search Yes
• Resume Play Yes
• Playtime display Yes
• 1.5 A Charging Function Yes
• Audio features
• Max. output power (MOSFET power IC) 4 x 45W
• Preamp output 2 RCA: FRONT/REAR + SUB(mono)
• Output level of the preamplifier output 2V
• Volume Offset Yes
• Sound setting Yes
• Level reduction (-20dB) with linear volume fade-in Yes
• Integrated Equalizer Yes, 13 Band graphic EQ
• Integrated DSP Yes
• Runtime correction Yes
• Buzzer On/Off Yes
• Features DSP
• Loudness Yes
• Bass boost function Yes
• Vehicle model setting ► Off ► Compact ► Sedan ► Station wagon ► Minivan ► SUV ► Minibus
• Speaker size setting Yes
• Crossover 2-Way X'over / HPF / LPF
• Setting listening position / runtime correction Yes
• Equalizer Type Graphic
• Integrated 13-Band Equalizer
• Equalizer Profile / User Profile 7 Presets / 4 Individual Profiles
• Balance & Fader Control Yes
• Volume adjustment adjustable independently of audio source
• Audio Setup Memory Ja
• Equipment features video
• Audio Video Output Yes, Only Video (RCA)
• Audio/Video Input Yes, AV-input or Camera input (selectable)
• Video input for rear view camera Separate video input (Cinch)
• Recognition of the video signal of the rearview camera interface for parking sensors
• Display of parking lines Yes

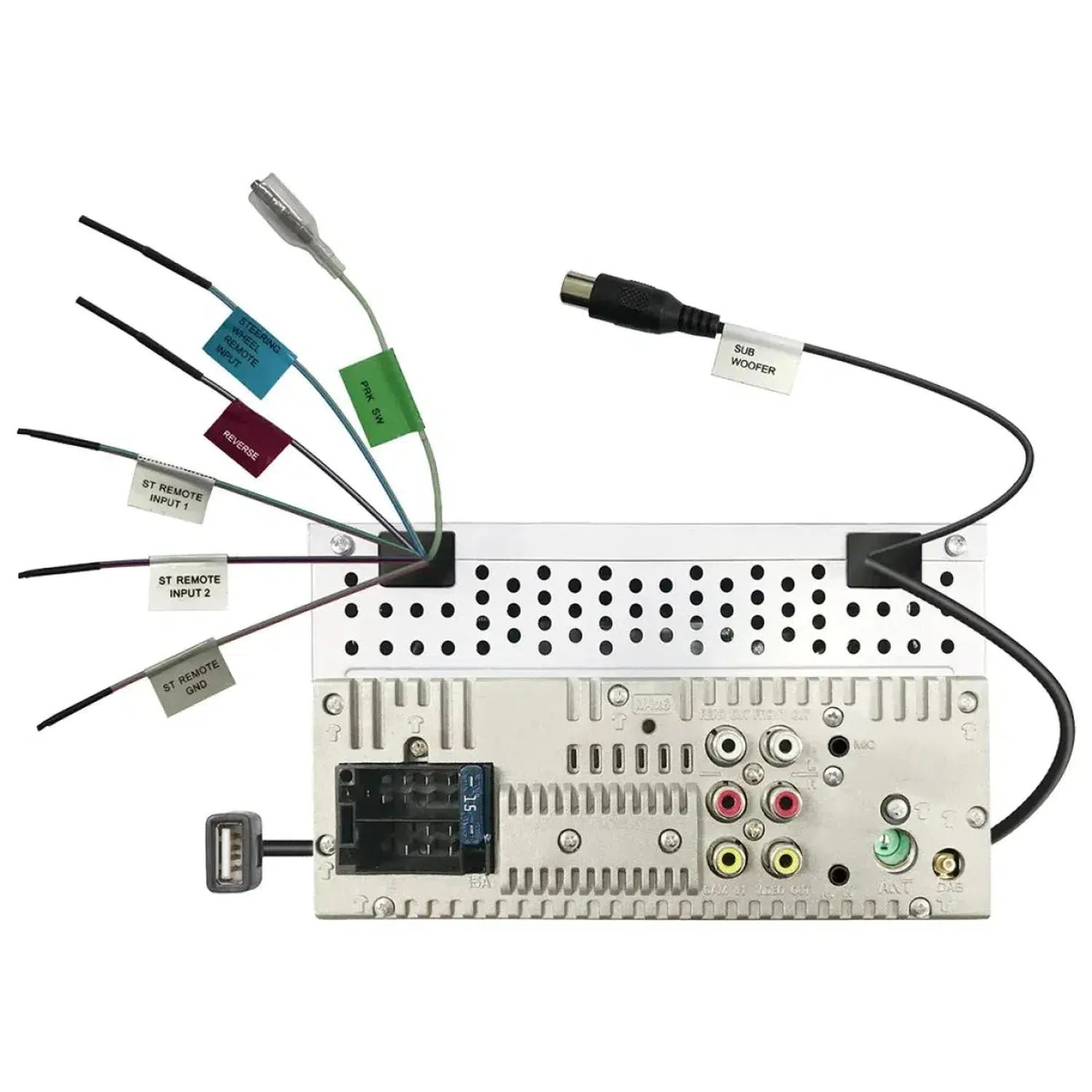

• connection option
• Connection for OEM steering wheel remote control Yes, optional interface is required
• Yes
• Park sensor cable Yes
• Switching voltage connection (P. CON.) Yes
• Manual brightness adjustment (dimmer) Yes
• Pre-amplifier outputs 2 x RCA (Front/rear) + Sub (mono)
• AV Input (Non-swappable) (Mini-jack) audio & video
• Video output 1 x RCA
• Connection for reverse current line Yes
• Separate connection for rear view camera special Cinch video input (RCA)
• UKW/AM antenna connection JASO connection
• DAB antenna connection SMB
• Connection for hands-free microphone 3.5mm mini-jack
• Technical Data Tuner
• FM range: 87.5 MHz - 108 MHz (in 50 kHz steps) Yes
• UKW input sensitivity 1.8μV/75 Ohm (S/N 30 dB)
• UKW transmission range 30 Hz ~ 14 kHz (± 3 dB)
• UKW Signal-to-Noise Ratio (Mono) 50 dB
• UKW channel separation (1 kHz) 35 dB
• MW range: 531 kHz - 1611 kHz (in 9 kHz steps) Yes
• MW input sensitivity 99 μV
• Technical Data DAB
• Band III - Frequency range 174.928 MHz - 239.2 MHz
• DAB-Modi I, II, III, IV
• Sensitivity - 98 dBm
• Signal-to-noise ratio 82 dB
• Audio format MPEG1 Audio Layer II, MPEG4 HE-AAC V2
• DAB antenna connection type SMB
• Output voltage 14V (10.5V to 16V allowable)
• Maximum current < 100 mA
• Technical Data Bluetooth
• Standard Bluetooth V4.1
• Transmission frequencies 2.402 - 2.48 GHz
• Output power +8dBm(max), power class 1
• Max. range about 10 meters
• HFP (Hands Free Profile) Yes, V 1.6
• Serial data transmission (SPP - Serial Port Profile) Yes
• Audio data transmission A2DP (Advanced Audio Distribution Profile) Yes
• Audio formats SBC/AAC
• PBAP (Phonebook Access Profile) Ja
• Technical Data USB
• Compatibility of USB version USB 2.0 High Speed
• File system FAT 16/32, exFAT
• Max. current consumption 1500 mA
• D/A converter 24bit
• Video formats MPEG1/2/4, WMV, H.264, mkv
• Audio formats MP3, WMA, AAC, WAV, FLAC
• Technical Data Audio
• Maximum power 45 W x 4
• Output power (DIN45324, +B=14.4 V) 21 W x 4
• Frequency range 20 Hz ~ 20 kHz
• Output level 2000 mV / 10 kOhm
• Impedance of the preamplifier output 1400 Ohm
• Speaker impedance 4 Ohm ~ 8 Ohm
• Technical Data DSP
• Frequency band: Front 62.5 Hz ~ 16 kHz
• Equalizer: Level Gain –9 dB ~ +9 dB
• 2-Way X'over / Front/Rear (HPF) / Frequency trough/30/ ... /220/250Hz
• 2-Way X'over / Front/Rear (HPF) / Slope -6/-12/-18/-24 (dB/oct)
• 2-Way X'over / Subwoofer (LPF) / Frequency 30/40/...250Hz/Through
• 2-Way X'over / Subwoofer (LPF) / Slope -6/-12/-18/-24 (dB/oct)
• Position: 2-Way (Front/Rear/Sub) Delay 0cm ~ 610cm (1cm steps)
• Subwoofer Level -40dB ~ 6dB
• Equalizer Type Graphic
• Frequency band 13 bands
• Technical Data Video
• Color system of the external video input NTSC/PAL
• Max. level for video input (mini-jack) 1 Vss / 75 Ohm
• Max. audio input level (RCA) 1.5 V / 25 kOhm
• Technical Data Monitor
• Screen diagonal 6.75 inches wide
• Screen size (WxH) 151.8 x 79.7 mm
• Display-System Transparent TN LCD Panel
• Drive system TFT Active Matrix display
• Number of pixels 1152000 pixels (800 (H) x 480 (V) x RGB
• Visible pixels 99.99%
• Pixel arrangement RGB stripe arrangement
• LED backlighting (Light Emitting Diode)
• Technical Data General

• Operating voltage 14.4 V (10.5 ~ 16 V permissible)
• Dimensions (W x H x D) 178 x 100 x 75 mm
• Weight 1.1 g.
• Weight (including cover plate & installation frame) 1.3 kg
• Scope of delivery
• Expansion tool 2 pieces
• Cover frame Yes
• Mounting frame Yes
• Hands-free microphone with 3 m long connection cable
• Multilingual operating instructions included
