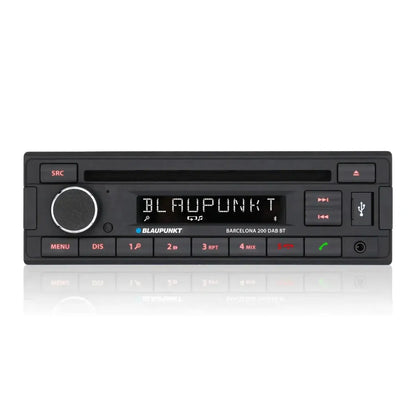

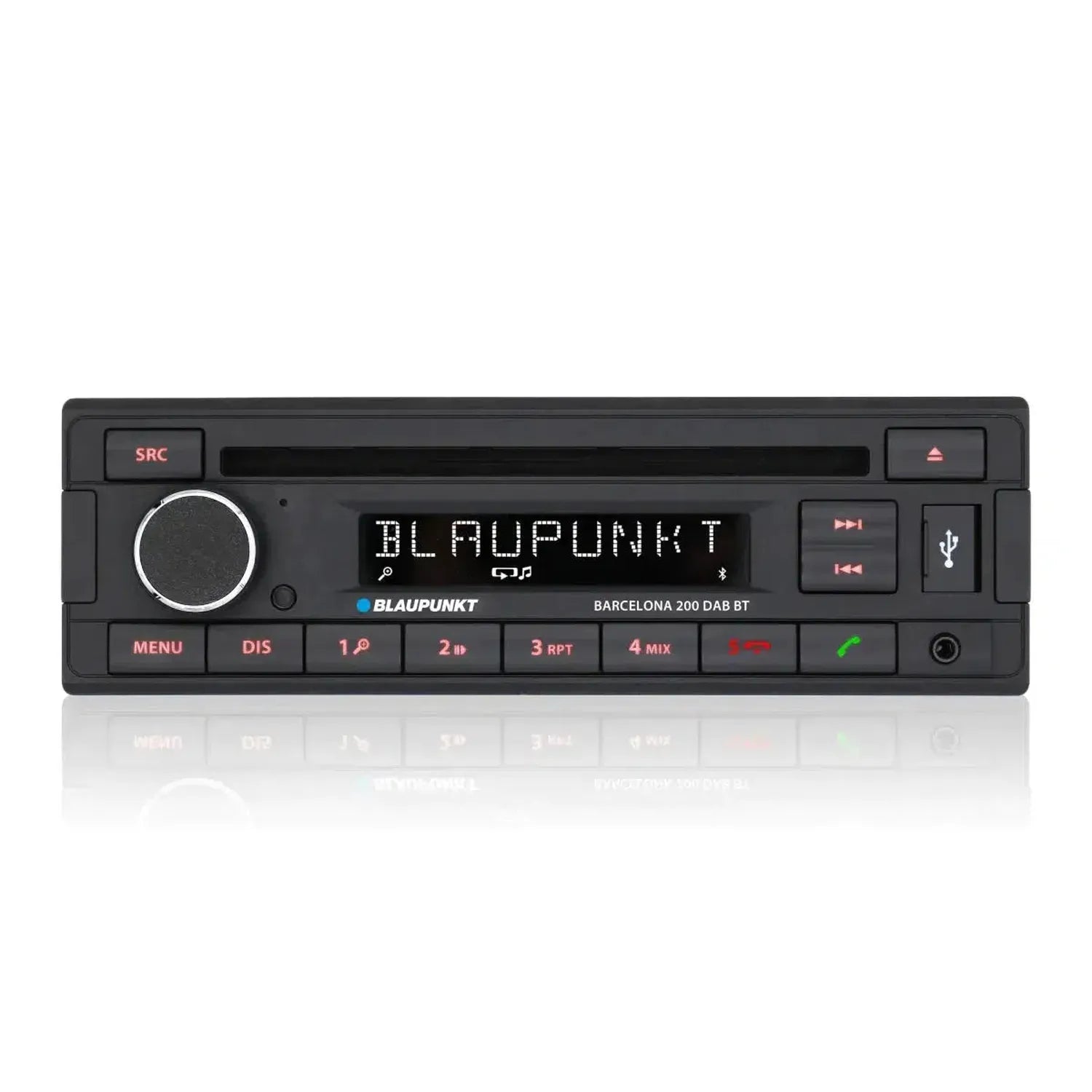

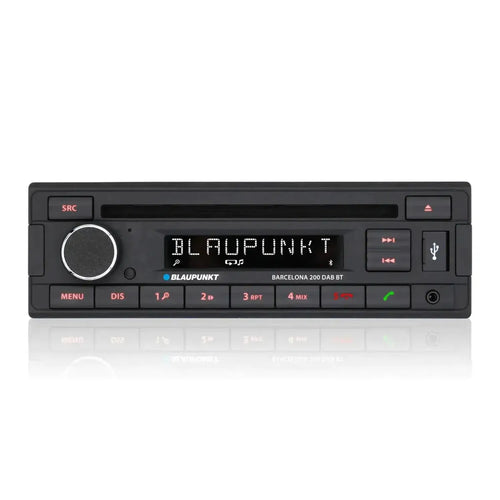

Barcelona 200DAB BT

Discover the Barcelona 200DAB BT, a 1-DIN car radio from the renowned manufacturer Blaupunkt. This device impresses with its wide range of functions, including an RDS tuner, a DAB+ tuner and the ability to receive both FM (RDS) and AM. With its 9-digit display and integrated Bluetooth, it is extremely user-friendly. It also supports various playback formats, including MP3 and WMA, and offers selectable display modes. Equipped with a sound preset function that covers various music styles, an integrated microphone and the ability to perform software updates via USB, the Barcelona 200DAB BT brings functionality and convenience directly to your vehicle.

• RDS tuner
• DAB+ tuner
• FM (RDS), AM
• 9-digit display
• Bluetooth integrated (HFP, A2DP)
• Integrated microphone
• Playback format: MP3, WMA
• Selectable display modes (File, Folder, Title, Artist, Album & Time)
• CD-DA, CD-R, CD-RW, USB
• Front USB
• front aux-in
• Sound presets (flat, rock, pop, classical)
• X-Bass
• 4×40 Watt Max.
• 2-channel preamplifier
• Software update via USB
• key illumination red

Technical data

• analog radio
• Tuner Type:  RDS tuner
• Frequency bands: 3×FM / 2×AM
• Radio Data System (RDS): Alternative Frequency (AF), Clock Time (CT), Program Service Name (PS), Regional Program (REG), Traffic Announcement (TA), Traffic Program (TP)
• Travelstore: yes (FMT)
• Band scan / preset scan: yes / no
• Station memory: 15 FM / 15 AM
• Sensitivity: lo / dx
• Noise suppression: yes
• Frequency response (Hz) -3 dB:  20 – 18,000
• DAB features
• DAB/DAB+: yes/ yes
• Service Update: no
• Service Scan (service search): yes
• station memory: yes
• Ensemble / Program browsing: no / yes
• Program Scan: no
• Service link DAB-DAB: no
• Service link DAB-FM: no
• Service link DAB-DAB-FM: no
• Radio Text: no
• PTY programs: no
• Frequency response (Hz) +/- 3 dB:  20-18,000 Hz
• Bluetooth
• Supported profiles: HFP,A2DP
• Audio streaming: yes
• Pairing (number of devices): 1
• Hands-free phone: yes
• Microphone: integrated
• Core functions: Answer, end, reject, redial
• Access mobile phone book:  yes (up to 100 contacts per phone)
• data carrier
• CD: CD-DA, CD-R, CD-RW
• Drive type: Automatic loading
• USB:  1 × front
• media player
• Playback formats: MP3, WMA
• Title display: ID tag, folder / file
• Folder & file selection: no
• Display modes: yes (file, folder, title, artist, album, playing time)
• Mix (random play) / Repeat / Scan: yes / yes / yes
• Bitrate (kBit/s):  32 -320
• CD player
• Shock Proof Memory: yes
• Frequency response (Hz) –1 dB:  20 – 20.000
• Audio / Equalizer
• Bass / Treble: yes / yes (+/- 7 steps)
• Balance / Fader: yes / yes (+/- 9 steps)
• X-Bass: yes
• Sound Presets:  Flat, Rock, Pop, Classical
• amplifier
• Number of channels: 4
• Max. power: 4 x 40 watts
• Sinusoidal power at 14.4 V:  4 x 20 watts
• display
• Type / Positions: 1-line / 9
• Color: negative, black and white
• Clock display:  24 / 12 hours

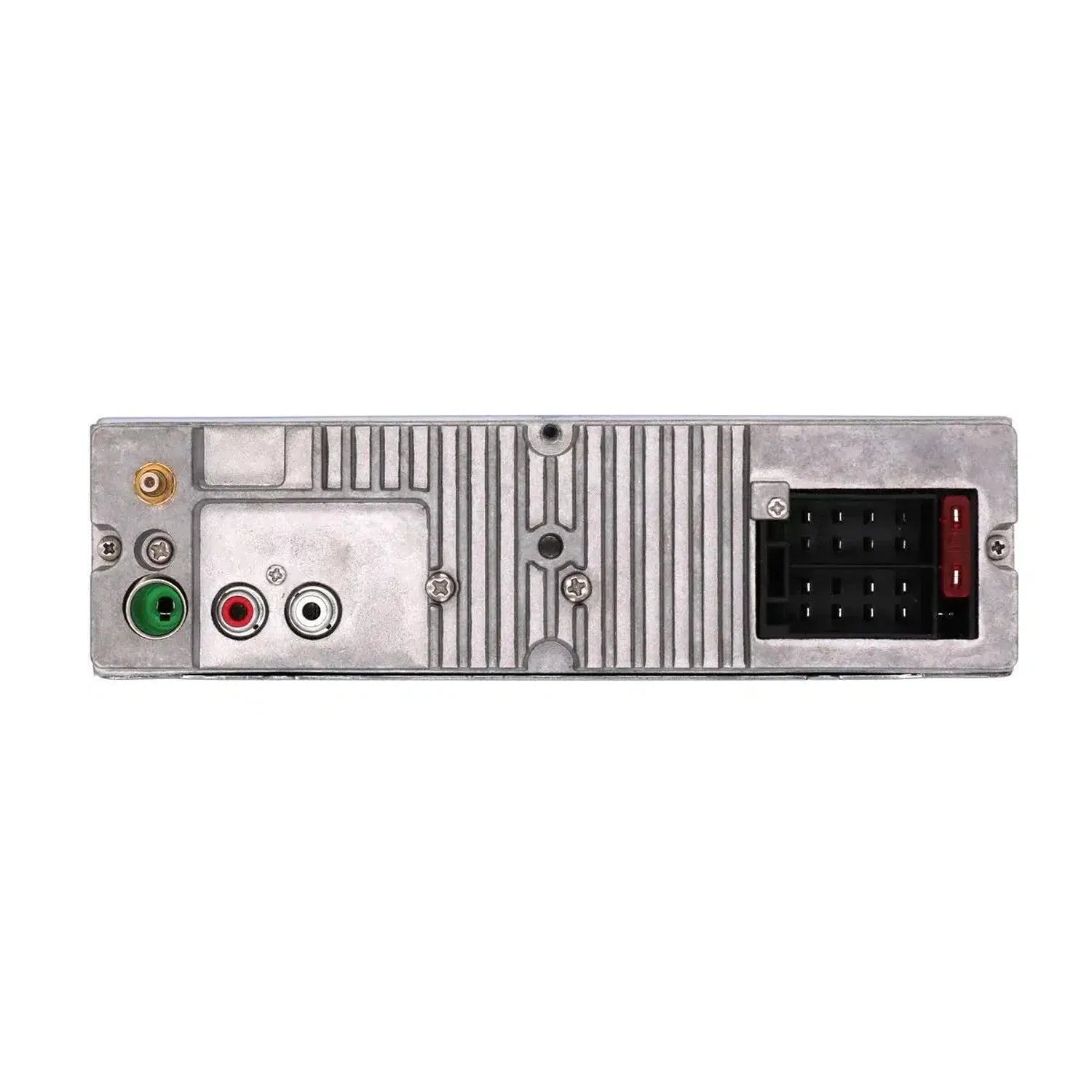

• entrances
• Antenna (number): 2 (FM ISO / DAB SMB 12V Phantom)
• USB (number / type): 1 (front)
• Aux-In (number / type): 1 front (3.5 mm jack)
• outputs
• Speakers (number): 4
• Preamplifier (channels): 2-channels (RCA)
• Preamplifier (voltage):  1.5 V (rms)
• Generally
• Software update: via USB
• Confirmation beep: yes
• Menu language: English
• Control panel type: Fix Panel
• Key illumination: Red
• Permanent storage after voltage loss:  Yes
• ignition logic: yes
• Weight (kg): approx. 1.4
• Dimensions (mm): 188 × 58 × 165

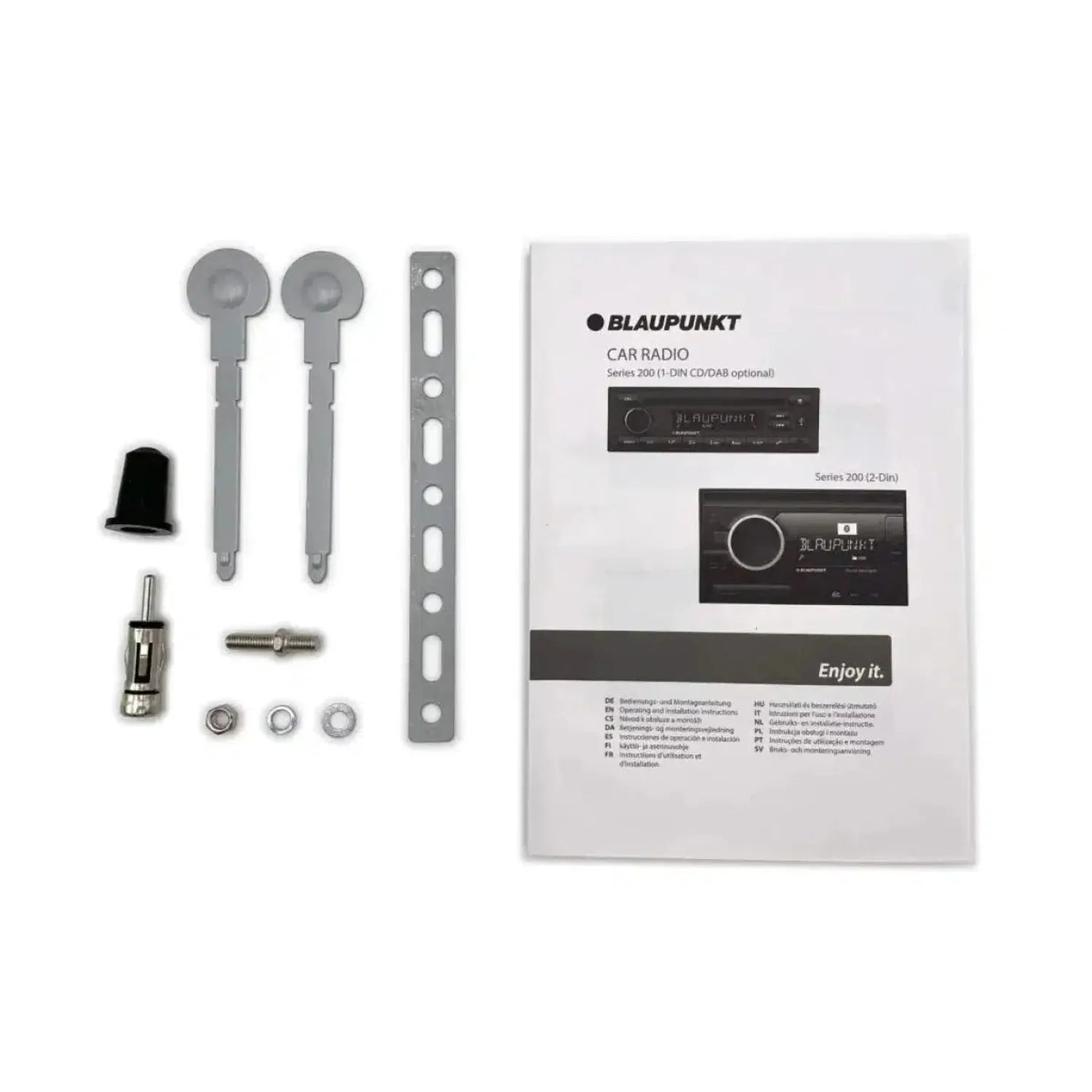

• DAB window antenna: Optional
• ISO Connector cable set: no
• Instruction manual: yes
• Jewelry packaging: yes
• Antenna adapter: yes
