Edge Car Audio DBX EDBX2200.1D-E4 1-Channel Amplifier

Name: Edge Car Audio DBX EDBX2200.1D-E4 1-Channel Amplifier
Brand: Edge Car Audio
Price: 380.0 EUR
Availability: InStock
Rating: 5.0 (1 reviews)

1 Review

Max, Mikael and 53k+ customers already with Masori sound upgrade

Edge Car Audio DBX EDBX2200.1D-E4 1-Channel Amplifier

1 Review

RMS power at 1 ohm mono: 2200 watts, max. 4400 watts.
4AWG power connectors, integrated bass remote control.
Class D, Crossover: LPF/Subsonic, Frequency response 10-180 Hz.
Mehr technische Details

€380,00

~~€380,00~~ €380,00

5% Rabatt mit Vorkasse

inkl. VAT , possibly plus shipping

Bequem in 12 zinsfreien Raten à €31,66 mit Klarna zahlen.

Jetzt mit kostenlosem Versand ab 50€!

Shipping cost calculator

Land/Region

PLZ

Garantie & zusätzlicher Geräteschutz für dein HiFi-System

3 Jahre Masori Garantie Kostenlos 48 Monate Plusgarantie €34,99 60 Monate Plusgarantie Am beliebtesten €44,99

Deshalb wählen uns 100.000+ Kunden

3 Jahre Garantie

Sicher & sorglos
Blitzversand

mit DHL Express
Tiefpreisschutz

Nie zu viel zahlen

Rob

Max

Unsicher, ob dieses Produkt zu deinem Auto passt?

Wir helfen dir – schnell, persönlich und unverbindlich.

Antwort on weekdays within 24h

Deaf BonceApocalypse Atom 2.5K Pro

Soundigital1200.1 EVO5

DBX EDBX2200.1D-E4 by Edge Car Audio

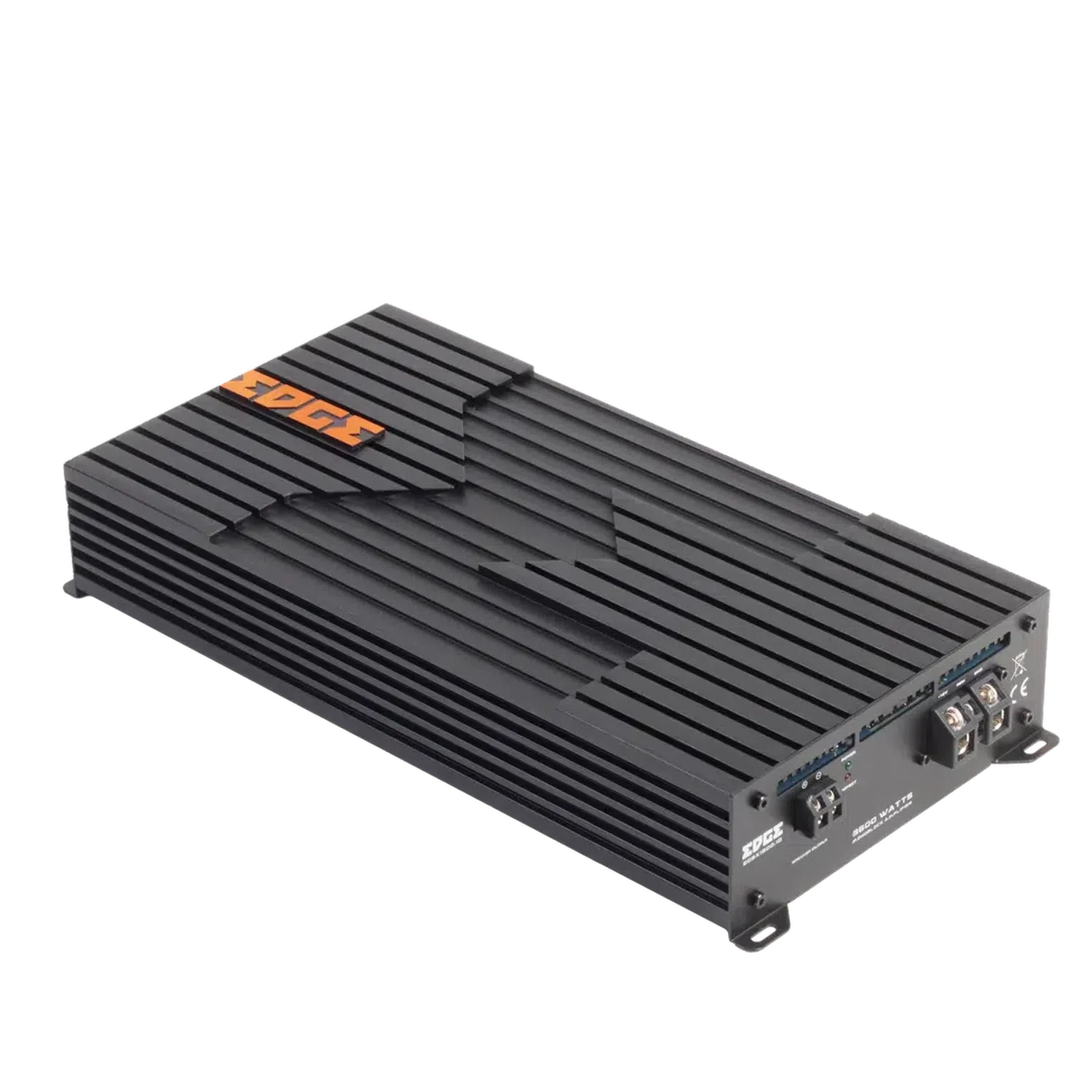

The DBX EDBX2200.1D-E4 from Edge Car Audio is a 1-channel amplifier from the latest "The Big E" series. This Class D monoblock amplifier features an extruded aluminum housing with thick side ribs for heat dissipation and a distinctive E engraving. Equipped with solid 4AWG power and ground connections, two speaker terminals, and a bass remote control, it allows for fine-tuning of audio settings. Additional features include an active crossover with LPF and subsonic filters, a parametric bass boost circuit, and RCA inputs and outputs. The amplifier delivers an RMS power of 850 watts at 4 ohms mono, 1600 watts at 2 ohms mono, and 2200 watts at 1 ohm mono, with a maximum power of 4400 watts.

Features

1-Channel Amplifier
RMS at 4 Ohm Mono: 1 x 850 Watt
RMS at 2 Ohm Mono: 1 x 1600 Watt
RMS at 1 Ohm Mono: 1 x 2200 Watts
Maximum power: 4400 watts
Frequency response: 10 Hz - 180 Hz
Crossover Type: LP / Subsonic
Transition range: 0 Hz – 180 Hz
Recommended fuse: 220 A (external fuse)
Topology: Class D

Edge Car Audio DBX EDBX2200.1D-E4 Datenblatt

Datenblatt öffnen

Frequent questions about DBX EDBX2200.1D-E4

Wie viel Leistung bietet der DBX EDBX2200.1D-E4 Verstärker bei unterschiedlichen Impedanzen?

The DBX EDBX2200.1D-E4 amplifier offers impressive RMS power that varies depending on impedance: at 4 ohms mono, it delivers 850 watts RMS, at 2 ohms mono 1600 watts RMS, and at 1 ohm mono an impressive 2200 watts RMS. The maximum power of this amplifier is 4400 watts. This power capability makes it ideal for demanding car audio installations. Its flexibility allows it to be configured to work optimally in various audio setups. Such high power values are particularly advantageous when you are thinking of a powerful audio experience with punchy bass.

Welche Crossover-Funktionen bietet der DBX EDBX2200.1D-E4?

The amplifier DBX EDBX2200.1D-E4 features an active crossover with two crossover functions: the low-pass filter (LPF) and a subsonic filter. The transition range extends from 0 Hz to 180 Hz. These filters allow you to optimally fine-tune your audio system by eliminating unwanted frequencies and ensuring that only the desired frequencies are sent to your speakers. Such functions are crucial for minimizing distortion and significantly improving the sound quality of your system. Especially in the field of car audio, these crossover options offer significant advantages.

Welches Design-Feature trägt zur Wärmeableitung des DBX EDBX2200.1D-E4 bei?

The DBX EDBX2200.1D-E4 amplifier from Edge Car Audio uses an extruded aluminum housing with thick side ribs for effective heat dissipation. This design is particularly useful for dissipating the heat generated during operation, which increases the performance and lifespan of the amplifier. This not only improves efficiency but also reduces the risk of overheating, which in turn minimizes failures or downtime. Such a housing is crucial for high-performance amplifiers to ensure stability and reliability under load.

Welche Anschlussmöglichkeiten bietet der DBX EDBX2200.1D-E4?

The DBX EDBX2200.1D-E4 offers solid 4AWG power and ground connections that ensure stability and high current transfer. Additionally, it features two speaker connections for flexible audio applications. The amplifier's RCA inputs and outputs facilitate integration into existing audio systems. A special highlight is the included bass remote control, which allows for fine-tuning of the bass settings. These connection options make the DBX EDBX2200.1D-E4 a versatile component in any car audio setup.

Welche Frequenzbereich deckt der DBX EDBX2200.1D-E4 ab?

The frequency response of the DBX EDBX2200.1D-E4 ranges from 10 Hz to 180 Hz. This range allows for the coverage of the lowest bass notes as well as higher frequencies that are necessary for a full and rich sound image. Especially for music lovers seeking an intense audio experience in their vehicle, this wide frequency range is ideal. The fidelity and precision in playback are supported by the amplifier, ensuring that every sound, both deep bass and higher frequencies, is played with astonishing clarity and power.

Welche Sicherheitsvorkehrungen sollte man bei der Installation des DBX EDBX2200.1D-E4 treffen?

When installing the DBX EDBX2200.1D-E4, it is important to take appropriate safety precautions. Recommendations include using a 220 A external fuse to prevent sudden surges from damaging your amplifier. Proper wiring for power and grounding connections is also crucial to ensure safe operation. Choosing the right position to ensure adequate air circulation can minimize overheating issues. Be sure to pay attention to the amplifier's specifications, especially the dimensions, to ensure it fits in the designated space in the vehicle.

Wie ermöglicht der DBX EDBX2200.1D-E4 eine Feinanpassung des Basses?

The DBX EDBX2200.1D-E4 features a remote control for fine-tuning the bass, allowing you to adjust the bass to your preferences. Additionally, the amplifier uses a parametric bass boost circuit that enables precise audio adjustments, optimizing low-frequency performance. Such features are particularly valuable if you want to personalize your listening experience, especially when playing deep frequencies, to not only hear them but actually feel them. The bass boost circuit helps you effectively control and adjust the bass frequencies.

Ist der DBX EDBX2200.1D-E4 mit meinem Auto kompatibel?

For the compatibility of the DBX EDBX2200.1D-E4 with vehicles, it is important to consider the dimensions of the amplifier. The compact design and the design with the 4AWG connections indicate a wide range of applications in various vehicle models. In addition to the connection options, care should be taken during installation to ensure there is enough space for installation as well as good air circulation. A specific mention of car brands is not made, as integration into various car manufacturer brands is possible. The technical specifications should always be compared with those of the vehicle manufacturer.

Welche Topologie verwendet der DBX EDBX2200.1D-E4 und was bedeutet das für das Audioerlebnis?

The DBX EDBX2200.1D-E4 operates with a Class-D topology, which is characterized by high efficiency. This type of amplifier is particularly energy-efficient, as it produces less heat and minimizes losses when converting electrical power into audio output. For the audio experience, this means you can expect clear and powerful performance with minimal distortion, even at high volumes. This makes this amplifier ideal for applications where powerful bass and clean audio quality are required, such as in high-level concentrations in the car audio sector.

Wie unterscheiden sich die Stromanschlüsse des DBX EDBX2200.1D-E4 von anderen Verstärkern?

The DBX EDBX2200.1D-E4 is equipped with 4AWG power and ground connections, allowing for solid power transmission. Compared to amplifiers with thinner cable connections, the DBX EDBX2200.1D-E4 can efficiently handle larger amounts of current, which is particularly important in high-performance scenarios. This type of connection enables you to make the power supply more stable and secure, reducing the risk of voltage drops or overheating. This robustness meets the demands often placed on high-end car audio amplifiers to ensure consistent performance.
