DD Audio ATC-250 1-Channel Amplifier

Name: DD Audio ATC-250 1-Channel Amplifier | Masori
Brand: DD Audio
Price: 143.65 EUR
Availability: InStock
Rating: 5.0 (1 reviews)

1 Review

CYBER -15%

Max, Mikael and 53k+ customers already with Masori sound upgrade

DD Audio ATC-250 1-Channel Amplifier

1 Review

Continuous power: 250W at 1 Ohm, 175W at 2 Ohm, 100W at 4 Ohm.
Frequency ranges: SUB 30-80 Hz, FR 80 Hz-25 KHz, low pass filter 80 Hz.
Operating voltage: 8-16V, max. current consumption: 25A, 1-channel output.
Mehr technische Details

00

€143,65

~~€169,00~~ €143,65

5% Rabatt mit Vorkasse

inkl. VAT , possibly plus shipping

Bequem in 12 zinsfreien Raten à €11,97 mit Klarna zahlen.

Jetzt mit kostenlosem Versand ab 50€!

Shipping cost calculator

Land/Region

PLZ

Garantie & zusätzlicher Geräteschutz für dein HiFi-System

3 Jahre Masori Garantie Kostenlos 48 Monate Plusgarantie €14,99 60 Monate Plusgarantie Am beliebtesten €19,99

Deshalb wählen uns 100.000+ Kunden

3 Jahre Garantie

Sicher & sorglos
Blitzversand

mit DHL Express
Tiefpreisschutz

Nie zu viel zahlen

Rob

Max

Unsicher, ob dieses Produkt zu deinem Auto passt?

Wir helfen dir – schnell, persönlich und unverbindlich.

Antwort on weekdays within 24h

GladenMosconi BPS

NakamichiN10

ATC-250 by DD Audio

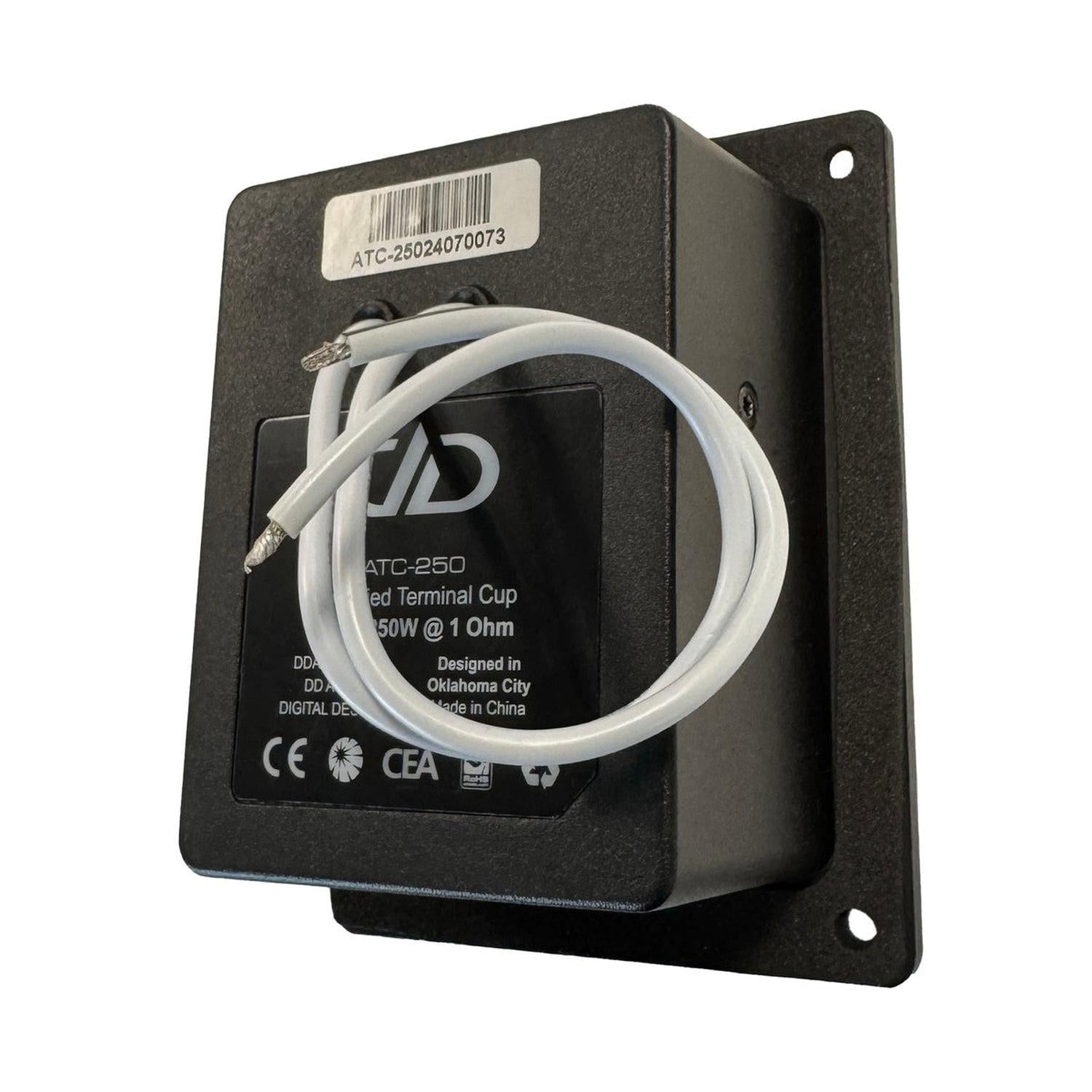

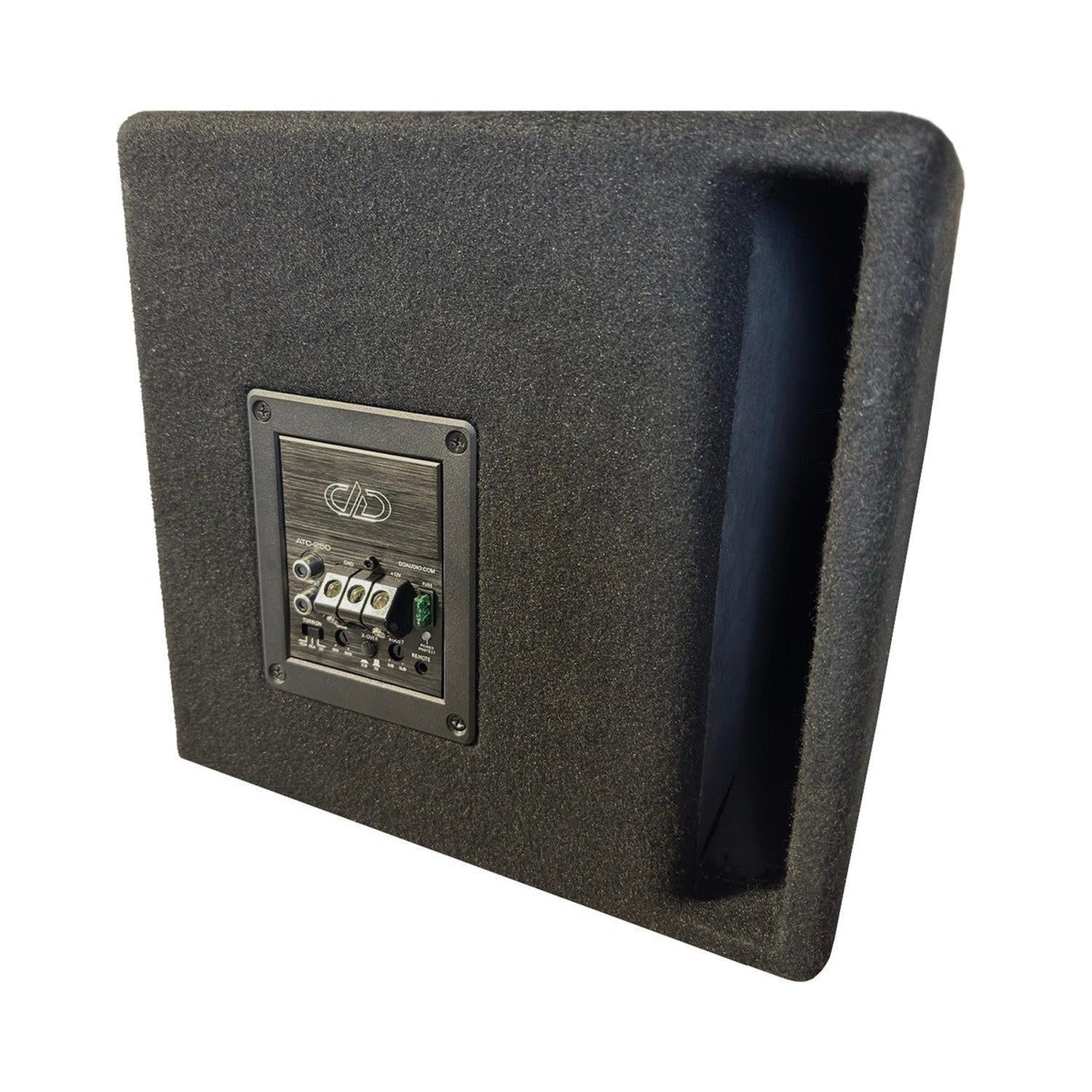

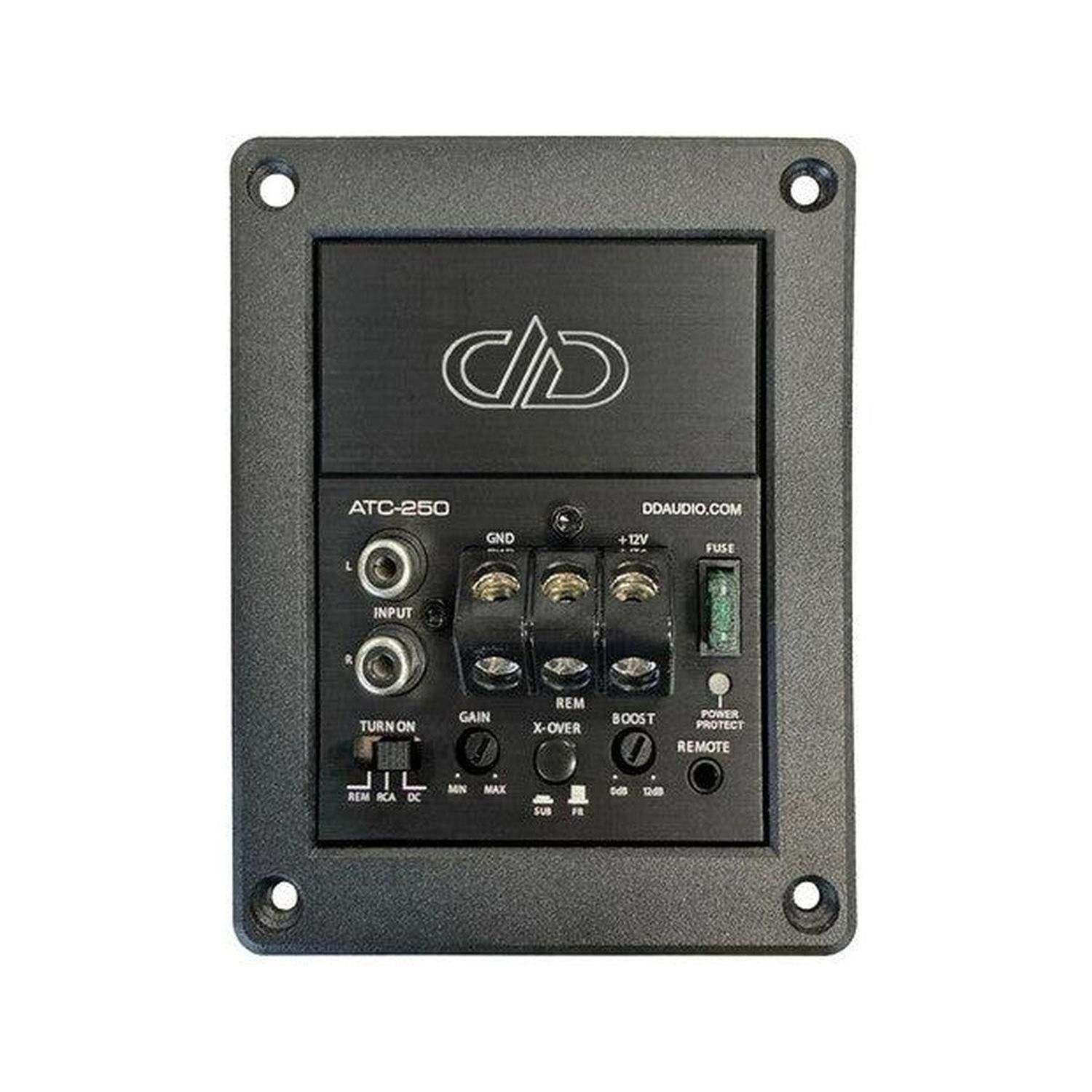

The ATC-250 from DD Audio is a 1-channel amplifier specifically designed as a replacement for the original terminal of the DD Audio LE series enclosures. With easy installation and a remote switch that supports both REM and RCA settings, the amplifier offers flexibility and user comfort. The ATC-250 features two crossovers: a SUB setting for frequencies from 30-80 Hz and a FR setting for frequencies from 80 Hz to 25 KHz. Features include an operating voltage of 8-16V, a continuous power output of up to 250W at 1 Ohm, and a low-pass filter at 80 Hz. A remote control for the subwoofer is also included. With its compact installation dimensions and a front panel, the amplifier fits into many enclosures and delivers reliable audio performance.

features

Operating voltage: 8 - 16 V
Test voltage: 14.4 V
Input channels: 1
Output channels: 1
Continuous power at 4 Ohms: 100 W
Continuous power at 2 ohms: 175 W
Continuous power at 1 ohm: 250 W
Max. current consumption (Amperes): 25
Amplification level (dB): 12
Frequency response SUB: 30 - 80 Hz
Frequency response FR: 80 Hz - 25 KHz
Low-pass filter: 80 Hz

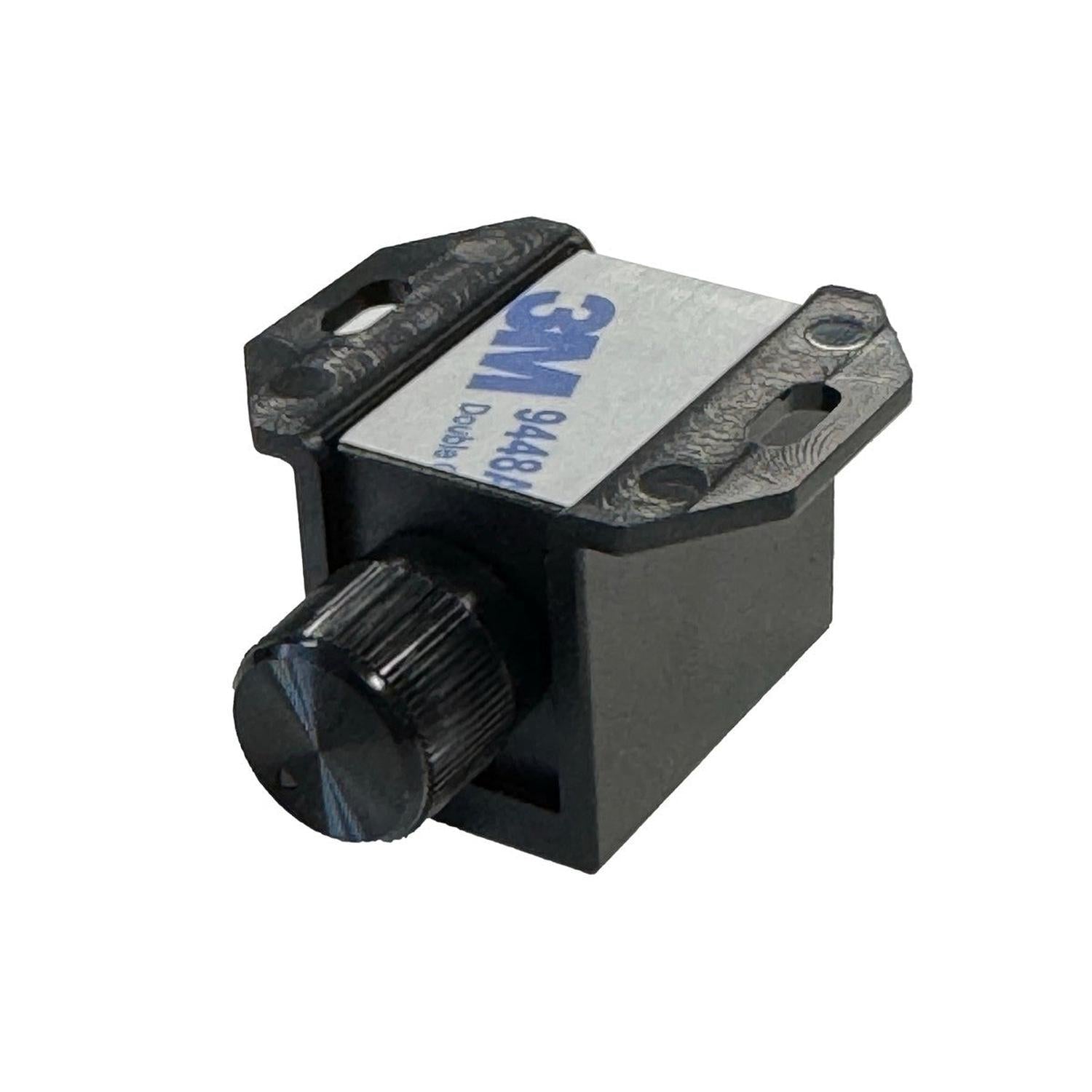

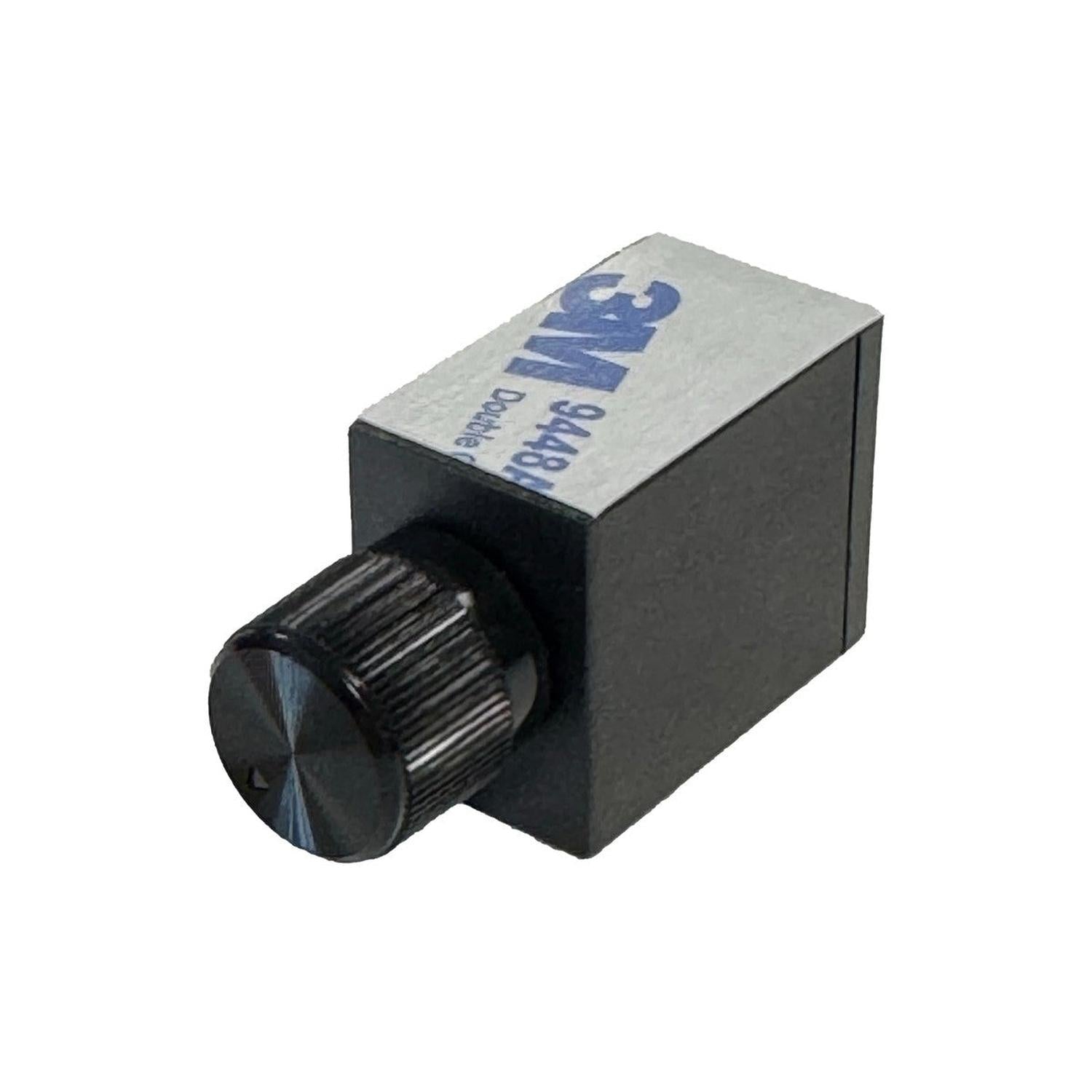

Remote control for subwoofer included
Installation dimensions: 74.5 x 95.5 x 52.2 mm
Dimensions front panel: 96 x 122 mm

Frequent questions about ATC-250

Welche technischen Merkmale hat der ATC-250 Verstärker?

The DD Audio ATC-250 is a 1-channel amplifier designed for the LE series enclosures. It operates with a supply voltage of 8 to 16 volts and reaches a test voltage of 14.4 volts. The continuous power output is 100 watts at 4 ohms, 175 watts at 2 ohms, and 250 watts at 1 ohm. The maximum current consumption is 25 amperes. The amplifier features a frequency response of 30-80 Hz for SUB and 80 Hz to 25 kHz for FR, as well as a low-pass filter at 80 Hz. A remote control for the subwoofer is also included.

Wie erfolgt die Installation des ATC-250?

The installation of the ATC-250 amplifier is quite straightforward thanks to its compact dimensions of 74.5 x 95.5 x 52.2 mm. The front panel measures 96 x 122 mm, allowing it to fit into many enclosures. The installation location should be dry and free from vibrations to ensure optimal performance. The connection is made via a simple remote switch that supports both REM and RCA settings. The installation does not require special tools, but correct wiring is important to ensure maximum efficiency and a long lifespan of the device.

Welche Frequenzweichen sind im ATC-250 integriert?

The ATC-250 amplifier features two specific crossovers. A SUB setting covers frequencies from 30 to 80 Hz, ideal for deep bass sounds. The FR setting is designed for frequencies from 80 Hz to 25 KHz, allowing for precise reproduction of mid to high tones. These crossovers enable precise sound tuning, ensuring a perfect listening experience, especially when you listen to different music genres. Along with the integrated low-pass filter, the ATC-250 thus offers flexibility and adaptability for various applications.

Welche Funktion hat die Fernbedienung beim ATC-250?

The remote control included with the ATC-250 is designed for the convenient control of the subwoofer. It allows you to adjust the volume and sound characteristics of the subwoofer from a distance, without having to make adjustments directly on the amplifier itself. This functionality is particularly useful when the amplifier is installed in hard-to-reach places. The remote control is compact and user-friendly, ensuring that you can enjoy the best sound quality at any time by controlling the audio settings spontaneously and flexibly.

Mit welchen Automodellen ist der ATC-250 kompatibel?

The ATC-250 from DD Audio is generally flexible enough to be integrated into a variety of vehicle models. Due to its compact dimensions of 74.5 x 95.5 x 52.2 mm and the front panel of 96 x 122 mm, the amplifier can be easily installed in many modern and compact cars. However, no specific car brands or models are mentioned in the description, so the final compatibility depends on the individual installation conditions and space available in the respective vehicle.

Wie beeinflusst der ATC-250 die Klangqualität im Auto?

The ATC-250 improves sound quality through its precise control of frequencies thanks to the integrated crossovers and low-pass filter. With a continuous power output of up to 250 watts at 1 ohm, the amplifier unleashes the full dynamics of your audio system. Especially when you like to listen to music loudly, the ATC-250 delivers powerful bass and clear highs. The operating voltage of 8 to 16 volts ensures consistent performance even during voltage drops in the vehicle, resulting in a stable and high-quality sound.

Welche Anschlussarten unterstützt der ATC-250?

The DD Audio ATC-250 amplifier supports both REM and RCA connections, allowing for flexible integration into various audio setups. The REM connection is used for remote control, while RCA connections ensure high-quality signal transmission from the audio system to the amplifier. This variety of connection options makes the ATC-250 a versatile solution for integration into different vehicles and audio systems, regardless of their type or brand. This way, you can ensure that the amplifier is compatible with almost all systems.

Welche Rolle spielt die Betriebsspannung beim ATC-250?

The operating voltage of the ATC-250 from DD Audio ranges between 8 and 16 volts, with the ideal test voltage set at 14.4 volts. This voltage range allows the amplifier to operate stably in various electrical environments. A stable voltage is essential to minimize power fluctuations and ensure consistent audio quality. Even at low voltage, the ATC-250 delivers reliable performance, making it ideal for vehicles with different electrical requirements. Therefore, voltage flexibility is one of the greatest technical advantages of this amplifier.

Welche Lautsprecherleistung unterstützt der ATC-250?

The ATC-250 is designed to deliver an impressive continuous power of up to 250 watts at 1 ohm. At 2 ohms, the power is 175 watts, and at 4 ohms, it is 100 watts. This power range allows the amplifier to drive a variety of speakers with different impedances. Thus, the amplifier is not only flexible in terms of the type of connected speakers but also delivers consistent power across different impedances. This makes the ATC-250 ideal for users seeking maximum flexibility in designing their audio system.

Wie beeinflusst das Frequenzspektrum die Audiowiedergabe des ATC-250?

The frequency spectrum of the ATC-250 amplifier ranges from 30 Hz to 25 kHz, divided into SUB with 30-80 Hz and FR with 80 Hz to 25 kHz. This range allows for detailed and comprehensive audio coverage from deep bass to high tones. The amplifier is capable of reproducing fine nuances in music, resulting in a rich and dynamic sound image. Especially at volumes that require intense audio playback, the wide frequency spectrum ensures clarity and fidelity, resulting in unadulterated music reproduction.
