Audison Voce II AVCX 3P Crossover

Audison Voce II AVCX 3P Crossover

Technical Highlights

  • Tiefpassfilter,250Hz,12dB/Okt.,Bandpassfilter,50Hz-2,5kHz,12dB/Okt.
  • Hochpassfilter,2,5kHz,12dB/Okt.,Hochtönerpegel,+2/0/-2dB,Mitteltönerpegel.
  • Mitteltönerpegel einstellbar,0/-3dB,Erweiterte Filteroptionen.
  • More technical details
€399,00
€399,00 €399,00
5% discount with prepayment
inkl. VAT , possibly plus shipping
Delivery
Mar 22, - Mar 25,
x Set
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €33,25 with Klarna .

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours
AudisonVoce II AVBX 12 D4 II
Audison-Voce II AVBX 12 D4 II-12" (30cm) Gehäusesubwoofer-masori-kaufen
Audison-Voce II AVK 6 P II-6.5" (16,5cm) Lautsprecherset-masori-kaufen
AudisonVoce II AVK 6 P II
Audison-Voce II AVCX 3P-Frequenzweiche-masori-kaufen
€399,00
€399,00 €399,00

Voce II AVCX 3P by Audison

Discover the Voce II AVCX 3P from Audison, a crossover distinguished by precise filter specifications. The unit offers a low pass filter at 250 Hz and a high pass filter at 2.5 kHz, both with 12 dB/octave. A special feature is the bandpass filter with a range of 50 Hz to 2.5 kHz. Additionally, you can individually adjust the level for the tweeter (+2/0/-2 dB) and midrange (0/-3 dB) to optimally tune the listening experience.

Filter Specifications

  • Low Pass Filter: 250 Hz with 12 dB/Oct.
  • Bandpass Filter: 50 Hz – 2.5 kHz with 12 dB/Oct.
  • High Pass Filter: 2.5 kHz with 12 dB/Oct.

Level Adjustment (Level Controls)

  • Tweeter Level: Adjustable (+2 / 0 / -2 dB)
  • Midrange Level: Adjustable (0 / -3 dB)

System Configuration & Flexibility

  • Bi-Amping Support: Separate connections for woofer and tweeter via high-current switch selectable.
  • Customizable 2-Way System: Optimal tuning for AV 6.5 P II, AV 3.0 II, and AV 1.1 II.
  • Mid-Contour Control: 2-position knob for frequency response optimization depending on installation location.
  • Hi-Contour Control: 2-position selection of the high-pass crossover point for high-frequency integration.

Sound Tuning & Precision

  • 3-Stage High Frequency Level: Fine-tuning of balance in 2 dB steps (+2 / 0 / -2 dB).
  • Hi-Boost Function: Activates linear boost above 10 kHz to compensate for positioning.
  • Precision Resistors: Aluminum housing for thermal stability and low high-frequency losses.

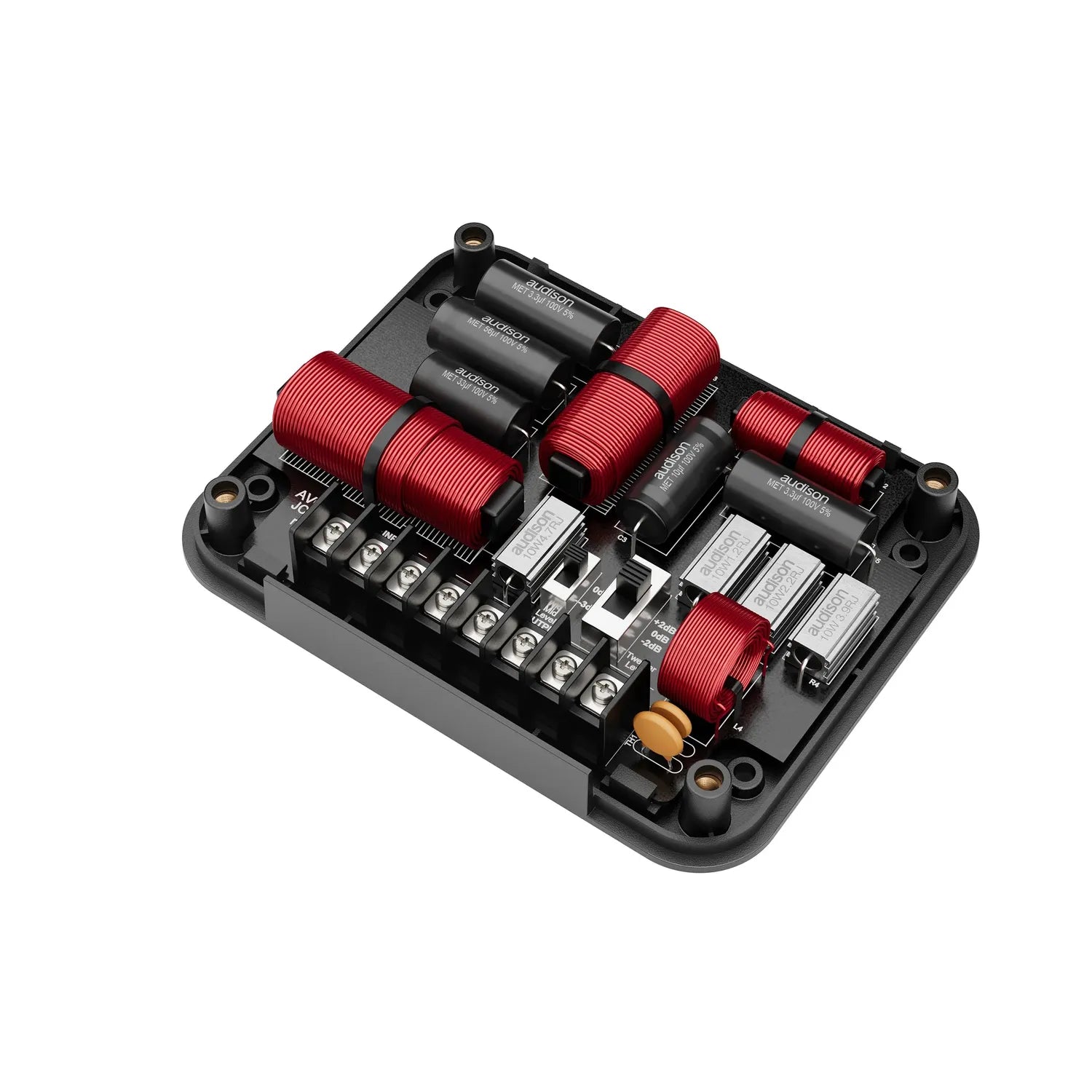

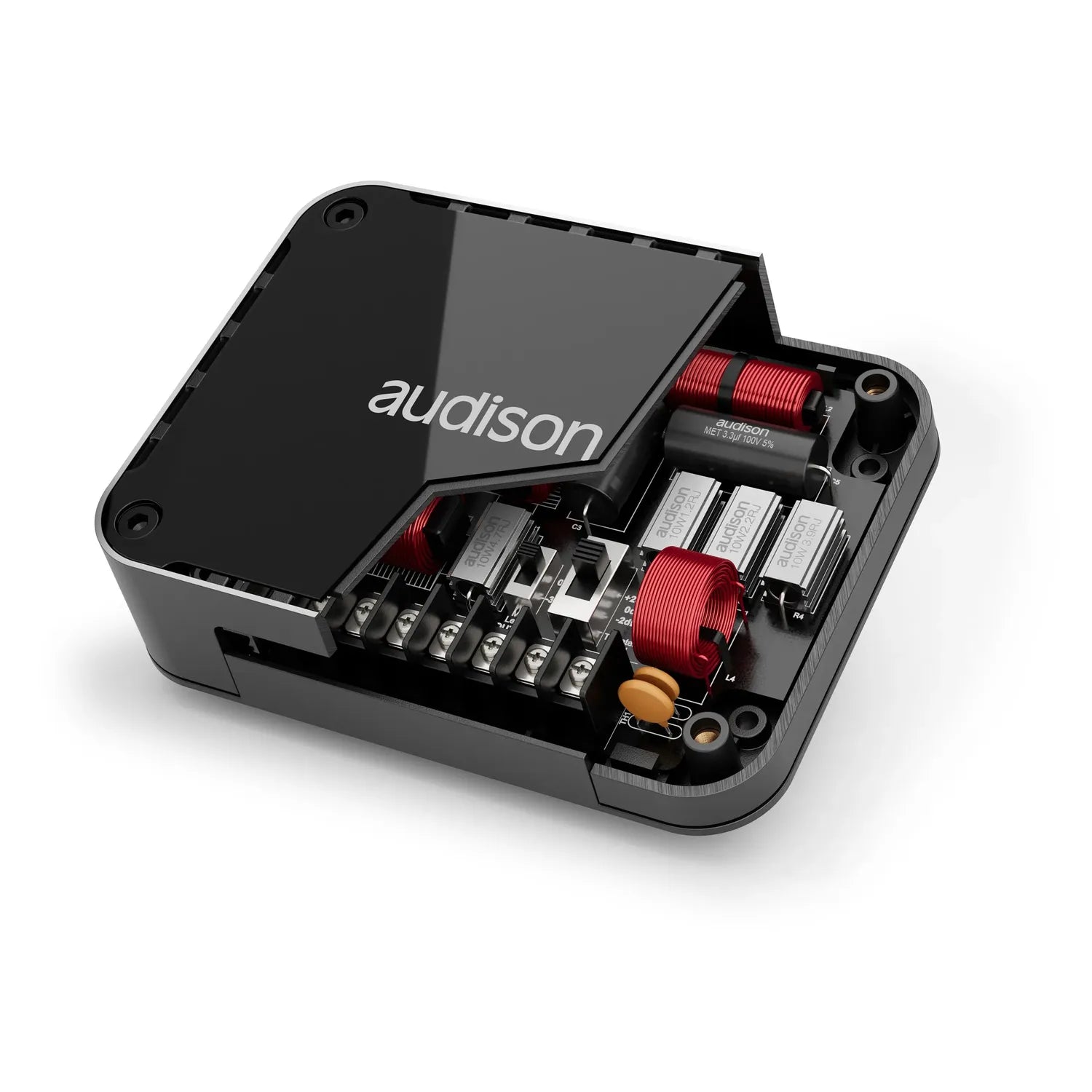

High-Quality Components

  • Premium Capacitors: 160V polyester film with low loss factor for sound transparency.
  • Air-Cooled Inductors: Pure copper wire up to 1 mm in diameter for high saturation thresholds.
  • High-Current Design: All components designed for high power loads and reliability.

Your benefits at Masori

Frequently Asked Questions about Voce II AVCX 3P

What filter specifications does the Voce II AVCX 3P have?

The Voce II AVCX 3P features a low-pass filter with a cutoff frequency of 250 Hz and a slope of 12 dB/octave. For broader sound spectra, a bandpass filter is implemented, covering a frequency range from 50 Hz to 2.5 kHz, also with a slope of 12 dB/octave. A high-pass filter cuts off unwanted low-frequency signals at 2.5 kHz, again with a slope of 12 dB/octave. These precise filter settings optimize crossover control for balanced sound reproduction.

How are the level adjustments designed for the Voce II AVCX 3P?

The Voce II AVCX 3P offers flexible level adjustments for different acoustic environments. The tweeter level is adjustable in three steps: +2 dB, 0 dB, and -2 dB, allowing the highs to be optimally tailored to personal listening preferences. The midrange level supports adjustment with a reduction of -3 dB or a neutral position. These adjustable levels enable you to fine-tune the sound profile and adapt it to individual preferences or different room acoustics.

What advantages do the filters of the Voce II AVCX 3P offer for sound reproduction?

The Voce II AVCX 3P, with its three integrated filters, including low-pass, bandpass, and high-pass filters, provides an exceptional means of sound enhancement. The low-pass filter effectively reduces low-frequency disturbances, allowing only frequencies up to 250 Hz to pass through. The bandpass filter, in turn, enables targeted transmission of midrange frequencies and prevents extreme highs and lows from being unintentionally emphasized. Additionally, the high-pass filter eliminates low-frequency noise above 2.5 kHz, resulting in clearer and more precise music reproduction. These filters help you fine-tune the crossover in a more detailed and refined manner.

How can I integrate the Voce II AVCX 3P into my vehicle?

Integrating the Voce II AVCX 3P into your vehicle requires knowledge of the system's dimensions and placement in the vehicle. Secure the system near your speakers to keep the cable runs as short as possible, optimizing signal strength. The exact measurements are not specified in the product description, so it is important to measure the available space and plan for any necessary adjustments to the installation. A correct installation is essential for the proper functioning of the filters and level adjustments to achieve optimal sound quality.

What role do the adjustable levels play in the sound of the Voce II AVCX 3P?

The adjustable levels of the Voce II AVCX 3P are crucial for fine-tuning the sound. The tweeter can be adjusted by +2 dB or -2 dB, allowing you to emphasize or de-emphasize high frequencies according to your listening preference. The midrange level is designed for a reduction of 0 dB or -3 dB, enabling more nuanced mid-frequency reproduction. Such adjustments are particularly useful for optimizing sound balance and tailoring it to specific music genres or personal preferences.

To what extent does the bandpass filter affect the sound quality of the Voce II AVCX 3P?

The bandpass filter in the Voce II AVCX 3P has a significant impact on sound quality by allowing a specific frequency range of 50 Hz to 2.5 kHz to pass through while reducing extreme frequencies in both the high and low ranges. This results in a balanced and clear sound image, as disruptive frequencies are effectively eliminated. The transition slope of 12 dB/oct ensures that the desired mid-frequency comes through unobstructed and clean, enhancing the listening experience with clearer and more detailed sound.

Why are the filter settings of the Voce II AVCX 3P important for car audio systems?

The filter settings of the Voce II AVCX 3P are crucial for optimizing a car audio system, as they enable the correct separation and processing of frequencies. The low-pass filter cuts off low frequencies at 250 Hz to focus on bass reproduction, while the high-pass filter cuts off frequencies above 2.5 kHz to keep the high tones clear and undistorted. In combination with the bandpass filter, precise control of the entire frequency spectrum is possible, resulting in a harmonious and balanced sound image. This is particularly important in vehicle environments, where the acoustics are more complex and challenging.

How do the level options of the Voce II AVCX 3P affect the audio experience?

The level options of the Voce II AVCX 3P give you the ability to specifically customize your audio experience. Adjustments to the tweeter level, which can vary in steps from +2 dB to -2 dB, allow for detailed control of high-frequency representation. The choice for the midrange at 0 dB or -3 dB determines how prominent the mid frequencies should be. Especially in acoustically challenging vehicle environments, it is beneficial to make these adjustments to modify and enhance the sound balance according to individual preferences.

What sound improvements can I expect with the high-pass filter of the Voce II AVCX 3P?

The high-pass filter of the Voce II AVCX 3P reduces frequencies below 2.5 kHz, resulting in a significant clarity in the high-frequency range. This effectively eliminates low sounds that can cause disturbances in the mid and high frequencies. This leads to sharper and more precise high-frequency reproduction, with the harmonic details of the music becoming clearly and faithfully audible. The 12 dB/octave roll-off ensures a smooth transition, allowing for clearly defined highs and reproducing a full audio spectrum.

What makes the Voce II AVCX 3P particularly effective as a crossover in audio systems?

The Voce II AVCX 3P from Audison offers enhanced flexibility in frequency separation through its specific filter settings. The precisely defined filtering with low-pass, band-pass, and high-pass allows for meticulous separation of the frequency spectrum, which is crucial for harmonizing sound output. Especially in the car audio sector, where space constraints and reflective surfaces can affect frequency dispersion, the ability to direct frequency ranges purposefully proves to be particularly valuable. This technical sophistication optimizes sound balance, leading to a more immersive listening experience.
