SFC
Technical Highlights
-
Operating voltage: 11–15 VDC, low power consumption: 0.1 A.
Remote control input/output: 7-15 VDC, pass-through signal.
Digital inputs: coaxial/optical, input rate: 32 kHz–192 kHz. - More technical details
Availability for pickups could not be loaded.
Shipping cost calculator
Shipping cost calculator
Rob
Max
Unsure if this product fits your car?
We help you – quickly, personally, and without obligation.
Fill out the form and we'll send you a personalised offer
This product is not universally compatible. Send us your vehicle details and we will check fitment for your model free of charge.

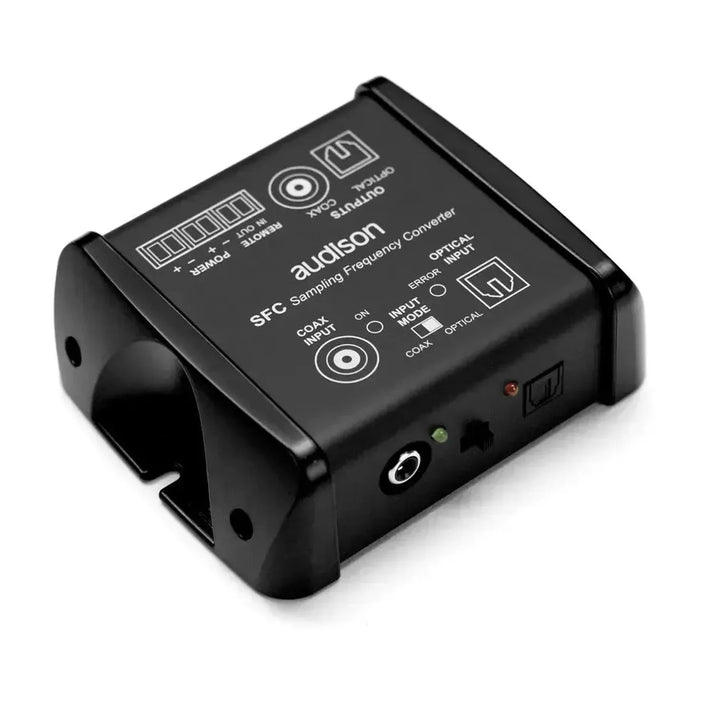

SFC by Audison
The Audison SFC is an S/PDIF Toslink converter designed for use as Amplifier Accessories. The device features a digitally switchable input between coaxial and optical S/PDIF connections. The input sampling rate supports a range from 32 kHz/16 Bit to 192 kHz/24 Bit. The signal output is provided through coaxial and optical outputs with a fixed sampling rate of 48 kHz. For system integration, there is a remote control input and a remote control output. The power consumption during operation is 0.1 A. The compact design has dimensions of 86 x 37 x 80 mm.
- Amplifier Accessories
- Digital S/PDIF Toslink converter
- Switchable input between coaxial and optical
- Coaxial and optical digital outputs
- Housing dimensions of 86 x 37 x 80 mm
- Weight of 0.14 kg
- Remote IN and Remote OUT functionality
- Operating voltage: 11 – 15 VDC
- Power consumption: 0.1 A
- Input sampling rate: 32 kHz/16 Bit to 192 kHz/24 Bit
- Output sampling rate: 48 kHz fixed
- Remote voltage range: 7 – 15 VDC
- Remote OUT type: Pass-Through signal
