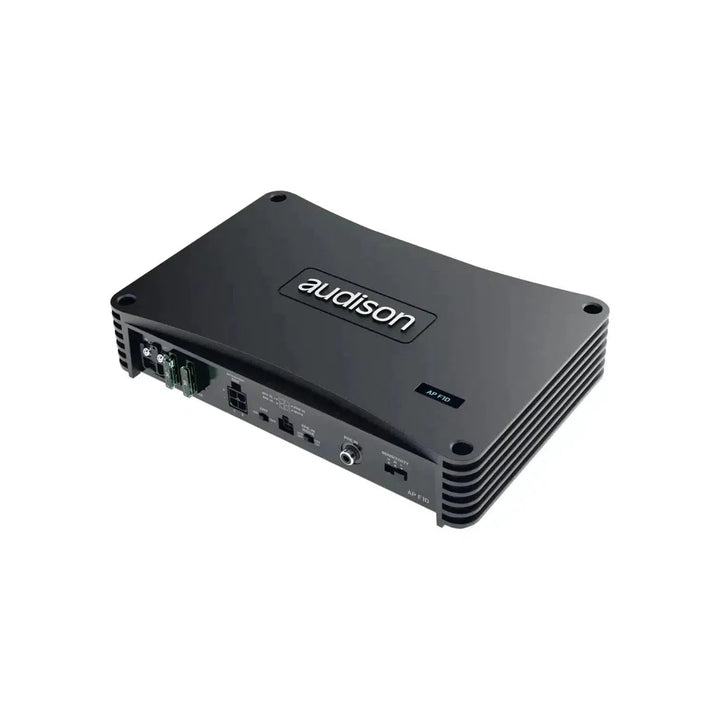

Audison Prima AP F1D 1-Channel Amplifier
SKU:  AP-F1D
EAN:  8018823126960
1000 Watt

Prima AP F1D

SKU:  AP-F1D
EAN:  8018823126960

Technical Highlights

  • 1-channel amplifier, 1000 W power, 1 Ohm stable.
  • Compact dimensions, ideal for demanding subwoofers.
  • Excellent sound, Audison AP F8.9 bit extension.
  • More technical details
00 d
00 h
00 m
00 s
€426,55
-5% €449,00 €426,55
5% discount with credit card
inkl. VAT , possibly plus shipping
Delivery
Jun 6, - Jun 9,
x piece
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €35,54 with Klarna .

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours
AudisonSR 5,600
Audison-SR 5.600-5-Kanal Verstärker-masori-kaufen
Audison-Prima AP 690-6"x9" Tiefmitteltöner-masori-kaufen
AudisonPrima AP 690
Audison-Prima AP F1D-1-Kanal Verstärker-masori-kaufen
€426,55
€449,00 €426,55

Prima AP F1D by Audison

The Audison Prima AP F1D is a 1-channel amplifier in D-Class design. It is stable at 1 Ohm and delivers a total power of 1000 W RMS with 500 W x 1 at 4 Ohm, 800 W x 1 at 2 Ohm, and 1000 W x 1 at 1 Ohm. Hi Level and Low Level inputs are available, Pre-In is via RCA, and there is also a wired Speaker-In. The supply voltage is 11–15 VDC with 2 x 30 A Fuse, and the operating voltage of the power supply is 6.5–17 VDC; the idle current is 1.3 A, the idle current when off is 0.05 mA, and the power consumption is 50 A at 14.4 VDC, 2 Ohm, maximum music power. Remote IN operates with 6.5–15 VDC (1 mA), ART allows for automatic on and off with OUTPUT BTL speakers (selectable 2–7 VDC). The distortion is at 0.1% (100 Hz, 4 Ohm, 70% rated power), the bandwidth is from 10 Hz to 500 Hz, the S/N ratio is 110 dBA, and the damping factor is 140. The input sensitivity is selectable: Pre-In 0.6–2.0–6.0 VRMS and Speaker-In 2.0–6.5–20 VRMS; an adjustable Crossover is not available. CEA specifications: 500 W at 4 Ohm at 1% THD+N and 14.4 V, as well as an S/N ratio of 81.5 dB; the ambient temperature range is 0–55 °C, and the weight is 1.92 kg.

Features
  • 1-channel amplifier
  • Amplifier class: D-Class
  • Stable at 1 Ohm
  • Total power RMS: 1000 W
  • Output power @ 4 Ohm: 500 W x 1
  • Output power @ 2 Ohm: 800 W x 1
  • Output power @ 1 Ohm: 1000 W x 1
  • Hi Level Input
  • Low Level Input
  • Pre-In: RCA
  • Speaker-In: wired
  • ART automatic on/off selectable 2–7 VDC
  • Adjustable Crossover: No
  • Extension of the AP F8.9 bit
  • Designed for the operation of demanding Subwoofers
  • Weight: 1.92 kg
  • Ambient temperature range: 0–55 °C
Technical Specifications
  • Channels: 1
  • Supply voltage / Fuse: 11–15 VDC / 2 x 30 A
  • Operating voltage of the power supply: 6.5–17 VDC
  • Idle current: 1.3 A
  • Idle current when off: 0.05 mA
  • Power consumption @ 14.4 VDC, 2 Ohm, max. music power: 50 A
  • Remote IN: 6.5–15 VDC (1 mA)
  • ART automatic on/off with OUTPUT BTL speakers (selectable): 2–7 VDC
  • Distortion THD @ 100 Hz, 4 Ohm, 70% rated power: 0.1%
  • Bandwidth (-3 dB, 2 VRMS, 4 Ohm): 10 Hz – 500 Hz
  • S/N ratio (A-weighted @ 1 V): 110 dBA
  • Damping factor (100 Hz, 4 Ohm, 2 VRMS): 140
  • Input sensitivity Pre-In selectable: 0.6 – 2.0 – 6.0 VRMS
  • Input sensitivity Speaker-In selectable: 2.0 – 6.5 – 20 VRMS
  • Minimum impedance: 1 Ohm
  • Total power RMS: 1000 W
  • Output power RMS @ 14.4 VDC, 1% THD, 4 Ohm: 500 W x 1
  • Output power RMS @ 14.4 VDC, 1% THD, 2 Ohm: 800 W x 1
  • Output power RMS @ 14.4 VDC, 1% THD, 1 Ohm: 1000 W x 1
  • CEA output power @ 4 Ohm, 1% THD+N, 14.4 V: 500 W
  • CEA S/N ratio (ref. 1 W output): 81.5 dB
  • Inputs Pre-In: RCA
  • Inputs Speaker-In: wired
  • Energy Saving Control: Mute, wired (active to ground)

Your benefits at Masori

Audison Prima AP F1D Datasheet

Open datasheet

Frequently Asked Questions about Prima AP F1D

What power does the Audison Prima AP F1D Amplifier provide?

The Audison Prima AP F1D Amplifier delivers a stable 1000 watts RMS power at 1 ohm. It also has the following output powers: 500 W at 4 ohms and 800 W at 2 ohms, each at 14.4 VDC and 1% THD. This makes it ideal for operating demanding Subwoofers. Especially if you enjoy listening to music loudly, this power capability ensures that even deep bass frequencies are reproduced richly and powerfully.

How compact is the Audison Prima AP F1D?

The Audison Prima AP F1D is characterized by its extremely compact dimensions. This makes it the perfect addition for vehicles with limited space. Weighing only 1.92 kg, it can be easily installed in almost any car interior without taking up much space. However, this compactness in no way compromises its performance; on the contrary, it significantly increases flexibility for use in various installation scenarios.

What types of inputs does the Audison Prima AP F1D support?

The Audison Prima AP F1D supports both Hi-Level and Low-Level inputs. It features Pre-In RCA Inputs and Speaker-In Inputs with wired filter pass-through. The input sensitivity is selectable and offers flexible adjustment options: Pre-In can be chosen between 0.6 - 2.0 - 6.0 VRMS and Speaker-In between 2.0 - 6.5 - 20 VRMS. This versatility allows for seamless integration into existing audio systems.

How energy efficient is the Audison Prima AP F1D?

The Audison Prima AP F1D features a standby current of 1.3 A and consumes a minimal 0.05 mA when turned off. The power consumption at maximum music output is 50 A at 14.4 VDC and 2Ω. The supply voltage ranges from 11 - 15 VDC, protected by 2 x 30A fuses. With the mute function, which actively switches to ground for energy saving, the amplifier can optimize its power consumption and save energy.

Is the Audison Prima AP F1D compatible with my car?

The Audison Prima AP F1D can be integrated into most vehicles due to its compact dimensions. The dimensions are particularly important to consider during installation. Although no specific car brands are mentioned in the description, the universal design of the amplifier speaks for its broad applicability, ensuring that it is compatible with any vehicle models. The installation is ideally done in combination with the Audison AP F8.9 bit.

What technical details of the Audison Prima AP F1D are unique?

A standout feature of the Audison Prima AP F1D is its distortion - THD, which is only 0.1% at 100 Hz, 4Ω, 70% rated power. The bandwidth of 10 Hz to 500 Hz allows for impressively clear sound reproduction across the entire frequency spectrum. The damping factor of 140 at 100 Hz and 4Ω contributes to sound precision, while the S/N ratio of 110 dBA (A weighted @ 1 V) maximizes signal quality and minimizes background noise.

Are there specific installation instructions for the Audison Prima AP F1D?

When installing the Audison Prima AP F1D, the supply voltage of 6.5 - 17 VDC must be considered. The Remote IN requires 6.5 - 15 VDC with a minimum current of 1 mA. The ART function allows for automatic on and off switching via selectable BTL speaker outputs with 2 - 7 VDC. It is advisable to use high-quality cables when wiring the amplifier to avoid power losses and to place the amplifier in a well-ventilated area to prevent potential overheating.

How does the Audison Prima AP F1D perform in different temperature ranges?

The Audison Prima AP F1D is designed for an ambient temperature range of 0 °C to 55 °C, which corresponds to 32 °F to 131 °F. This ensures that the amplifier operates reliably in varying climatic conditions. Whether in cold environments or summer heat, the design ensures that heat is efficiently dissipated without affecting the amplifier's performance. Consistent cooling guarantees a long lifespan and consistent audio quality.

What fuses does the Audison Prima AP F1D use?

The Audison Prima AP F1D uses two 30A fuses to protect the power supply. The supply voltage at which these fuses provide protection is in the range of 11 - 15 VDC. This dual fuse system ensures that the amplifier is shut down in the event of unforeseen electrical issues that could jeopardize normal operation, before any internal damage occurs. For optimal performance and protection, it is essential to ensure that the fuses are properly installed and maintained in good condition.

What are the sound advantages of the Audison Prima AP F1D?

The Audison Prima AP F1D offers a distinctive sound, characterized by its ability to drive demanding Subwoofers with up to 1000 W at 1 Ohm. With a bandwidth of 10 Hz to 500 Hz, it delivers deep, powerful bass and clear mids. Its damping factor of 140 ensures precise control of the speaker diaphragm, while an S/N ratio of 110 dBA provides crystal-clear sound quality, especially important for audiophiles who value every detail of their listening experience.
