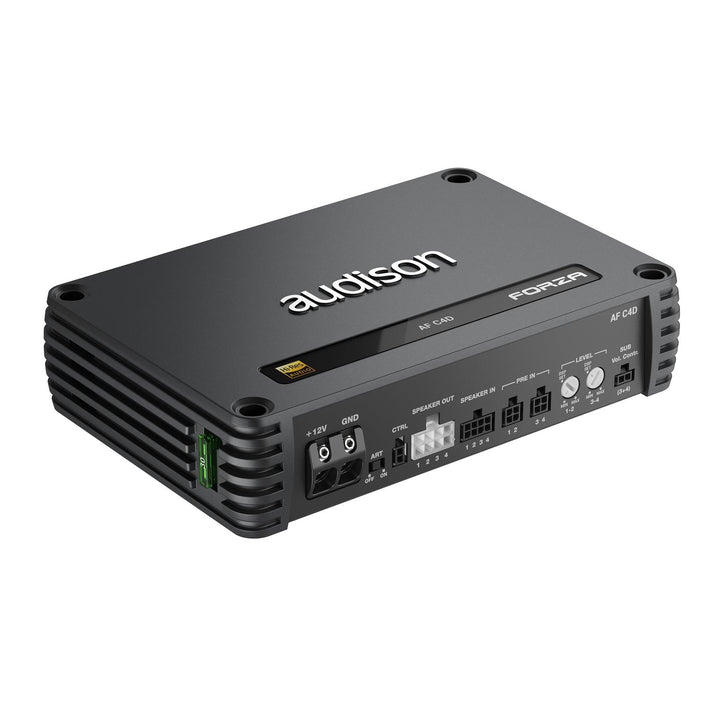

Audison Forza AF C4D 4-Channel Amplifier

150 Watt

Audison Forza AF C4D 4-Channel Amplifier

Technical Highlights

  • Power: 600 W, THD at 70% power: 0.03% at 4Ω, 100 Hz.
    Bandwidth: 10Hz-40kHz, Impedance: min. 2Ω, max. 4 channels.
    Efficiency: 84%, Damping factor: 95 at 1kHz, 4Ω, 2 VRMS
  • More technical details
€499,00
€499,00 €499,00
5% discount with prepayment
inkl. VAT , possibly plus shipping
Delivery
Mar 22, - Mar 25,
x Piece
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €41,58 with Klarna .

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours
AudisonSR6,600
Audison-SR 6.600-6-Kanal Verstärker-masori-kaufen
Audison-Prima AP 2 MV-Breitbänder-masori-kaufen
AudisonPrima AP 2 MV
Audison-Forza AF C4D-4-Kanal Verstärker-masori-kaufen
€499,00
€499,00 €499,00

Forza AF C4D by Audison

The Forza AF C4D from Audison is a compact 4-channel amplifier known for its powerful audio performance. Thanks to modern Class-D technology, it delivers sound with high efficiency of 84% and a total power output of 600 watts RMS. Its "Straight-Wire" architecture offers clear sound quality without analog preamplifier functions, ideal for use with external processors. With a bandwidth of up to 40 kHz, the amplifier is High-Resolution certified. Plug-and-play signal input cables make it easy to connect to AF-Bit processor amplifiers, and the ability to bridge channel pairs provides flexibility in your audio system.

The AF companion amplifiers were designed to add powerful amplifier channels to AF Bit processor amplifiers. A plug-and-play signal input cable is included to simplify connection to the AF Bit amplifiers. AF companion amplifiers are also perfect for use in systems controlled and managed by a standalone Bit processor, such as a bit One HD Virtuoso. AF companion amplifiers feature a "straight-wire" architecture without analog preamplifier functions like crossover filtering and are intended for use with external processors. The AF M4D offers four amplified high-fidelity channels (90W x 4 @4Ω*, 150W x 4 @2Ω*) with the audiophile sound of the latest generation of Audison D-Class technology. Higher switching frequencies, steeper filtering, and higher tolerance components deliver a sound that exceeds expectations for Class D – all in an amazingly compact housing! The bandwidth has been extended up to 40 kHz, enabling the coveted High-Resolution certification. Bridging channel pairs results in 300W x 2 @4Ω*, guaranteeing flexible and powerful performance. *Continuous power output (RMS) @14.4 VDC, 1% THD, all channels driven.

Technical Features

Channels 4
Amplifier Class D-Class
Efficiency 84%
Hi Level Input Yes
Low Level Input Yes
Digital Input No
Supply voltage / fuse 11 ÷ 15 VDC
Operating voltage of the power supply 6.5 ÷ 17.5 VDC
Idle current 0.004 A
Idle current in the switched-off state 0.6 mA
Power consumption @ 14.4 VDC, 2Ω, Max music power 25 A
Remote OUT 6.5 ÷15 VDC (150 mA)
Remote IN 4 ÷15 VDC (1 mA)
ART - Automatic On and Off with OUTPUT BTL Speaker (selectable) 1.5 VDC



Amplifier Section

Distortion - THD @ 100 Hz, 4Ω, 70% rated power 0.03%
Bandwidth A (-3 dB, 2 VRMS, 4 Ω): 10Hz ÷ 40kHz
S/N ratio A (A weighted @ 1 V): 102 dBA
Damping factor A (1 kHz, 4Ω, 2 VRMS): 95
Input Sensitivity Pre-In 0.6 ÷ 6 VRMS
Input Sensitivity Speaker-In 2.2 ÷ 22 VRMS
Total RMS Power 600 W
Minimal Impedance 2Ω:
Output power (RMS) @14.4 VDC, 1% THD 4Ch @ 4Ω: 90 W x 4

4Ch @ 2Ω: 150 W x 4

2Ch (bridge) @ 4Ω: 300 W x 2
Adjustable Crossover No


Dimensions

AF C4D
Dimension A 200 mm
Dimension B 47 mm
Dimension C 134 mm

Your benefits at Masori

Frequently Asked Questions about Forza AF C4D

What power does the Audison Forza AF C4D Amplifier provide?

The Forza AF C4D delivers an impressive total power of 600 Watts RMS. With its four channels, the amplifier provides 90 Watts per channel at 4 Ohms and 150 Watts per channel at 2 Ohms. When bridged, it reaches 300 Watts at 4 Ohms. This power is achieved through efficient D-Class technology, which boasts an efficiency of 84%. Audison technology maximizes energy output while reducing heat generation, ensuring crystal-clear sound quality at all volume levels. The amplifier is also High-Resolution certified, making it ideal for demanding audio playback.

What are the dimensions of the Forza AF C4D?

The compact dimensions of the Forza AF C4D allow for flexible installation in various vehicle interiors. The amplifier measures 200 mm in length, 47 mm in height, and 134 mm in width. These measurements facilitate installation in tight spaces and ensure discreet integration into your existing car audio system. Thanks to its compact size, the amplifier is excellent for vehicles where space is limited, without compromising on power or sound quality.

How efficient is the D-Class technology in the Audison Forza AF C4D?

The D-Class technology of the Audison Forza AF C4D features a high efficiency of 84%. This efficiency ensures that the amplifier consumes less energy and generates less heat while delivering excellent sound quality. Another advantage is the minimized distortion, which is only 0.03%. The D-Class technology of the Audison Forza AF C4D enables exceptional sound reproduction across a wide frequency range without losing dynamics or precision. Thus, the amplifier offers audiophile sound that exceeds expectations for Class-D amplifiers.

What signal connections does the Forza AF C4D support?

The Audison Forza AF C4D supports both Hi Level and Low Level inputs, making it versatile and compatible with various audio sources. With these input options, you can seamlessly integrate the amplifier into existing audio systems, whether it's an aftermarket installation or a factory-installed audio system. The amplifier features a plug-and-play signal input cable that significantly simplifies the connection with AF Bit processor amplifiers. It offers high flexibility, allowing you to easily adjust to the different requirements of your audio setup.

Is the Forza AF C4D equipped with High-Resolution certification?

Yes, the Forza AF C4D from Audison is High-Resolution certified. This allows for an extended bandwidth of up to 40 kHz, which is necessary for the playback of high-resolution audio content. The High-Resolution certification ensures that the amplifier is capable of reproducing the finest acoustic details, which is particularly important for music lovers and audiophiles who value the best possible sound quality. Thanks to its high-resolution capability, the amplifier delivers a particularly accurate and vibrant sound image that authentically reproduces the musical performance.

How does channel bridging work on the Forza AF C4D?

Channel bridging on the Forza AF C4D amplifier allows you to pair channels together to achieve higher single-channel power. When you switch the amplifier's channels to bridge mode, you can get two channels with higher power instead of four channels with lower power. In bridged operation, the Forza AF C4D reaches 300 watts at 4 ohms over two channels. This flexibility allows you to tailor your installation to your specific audio requirements and fully utilize the amplifier's capabilities.

Can the Forza AF C4D be used in combination with external processors?

Yes, the Forza AF C4D from Audison has been specifically designed for use with external processors like the bit One HD Virtuoso. The 'Straight-Wire' architecture of the Amplifier deliberately omits analog preamplifier functions, making it ideal for integration into systems controlled by standalone processors. This architecture allows for direct and unaltered signal processing, which is particularly evident when combined with high-quality external processors. You can easily integrate the Amplifier into existing high-end sound systems.

What are the voltage requirements for the Forza AF C4D?

The Forza AF C4D Amplifier from Audison operates with a supply voltage of 11 to 15 VDC, while the operating voltage of the power supply ranges between 6.5 and 17.5 VDC. The Amplifier is designed to consume low current, with a quiescent current of only 0.004 A and a quiescent current in the off state of 0.6 mA. These robust voltage parameters ensure reliable performance even with voltage fluctuations in the vehicle. It is important to consider these requirements during installation to make optimal use of the Amplifier.

What sound quality does the Forza AF C4D offer?

The Forza AF C4D offers exceptional sound quality, particularly highlighted by its high signal-to-noise ratio (S/N ratio) of 102 dBA. This feature guarantees precise audio reproduction with minimal background noise. The distortion (THD) of the Amplifier is limited to only 0.03% at 100 Hz, 4Ω, and 70% rated power, ensuring nearly unaltered sound reproduction. The Audison D-Class technology with high switching frequencies and steep filters also contributes to the outstanding sound quality that exceeds the expectations of traditional Amplifiers.

How do I install the Forza AF C4D in the vehicle?

Installing the Forza AF C4D is relatively straightforward thanks to its compact dimensions. The Amplifier must be placed to ensure adequate ventilation to avoid overheating. With dimensions of 200 mm in length, 47 mm in height, and 134 mm in width, the Amplifier can be well accommodated even in tight spaces within the vehicle. The installation should be within reach of the power supply and ideally near the audio system. Connection with other components is made via the plug-and-play signal input cables to achieve seamless integration into your audio system.
