HX 165 SQ EM Evo 3
Technical Highlights
- Speaker impedance: 3 ohms, power: 130/110 watts.
- High-quality 165 mm neodymium drivers, ventilated chassis.
- 25 mm soft tweeter, ferrofluid cooling, 4 ohm impedance.
- More technical details
Pay conveniently in 12 interest-free installments at €27,00 with Klarna .
Availability for pickups could not be loaded.
Shipping cost calculator
Shipping cost calculator
Rob
Max
Unsure if this product fits your car?
We help you – quickly, personally, and without obligation.
Fill out the form and we'll send you a personalised offer
This product is not universally compatible. Send us your vehicle details and we will check fitment for your model free of charge.
HX 165 SQ EM Evo 3 by Audio System

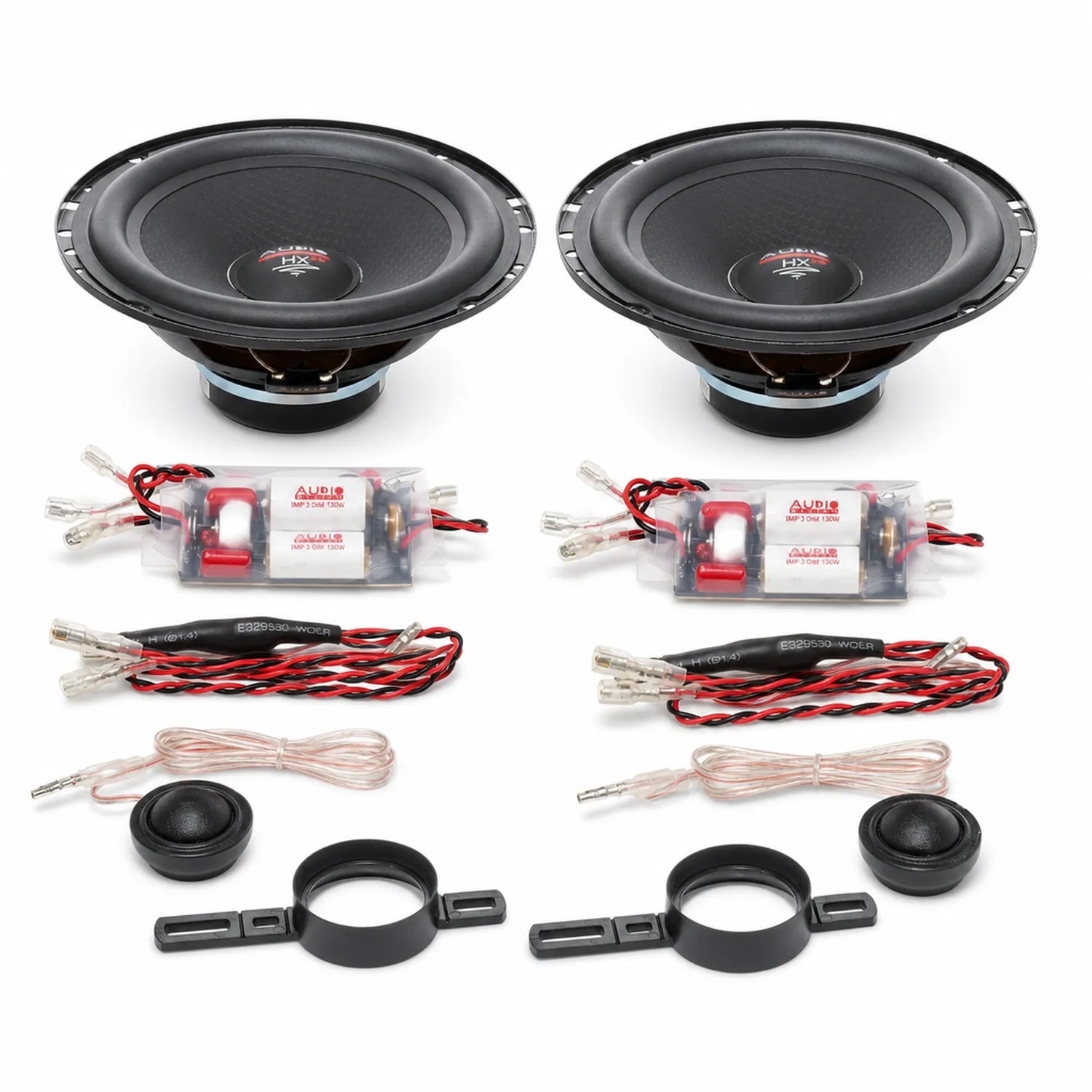

The HX 165 SQ EM Evo 3 from Audio System is a 6.5 inch Speaker Set. The 165 mm high-end neodymium woofer and midrange driver features a ventilated basket as well as an ultra-light and stable NAWI paper cone with fiberglass and Nomex spider. The impedance of the mid-woofer is 3 Ohms with a power rating of 130/110 Watts. The set also includes a 25 mm fabric neodymium tweeter with an impedance of 4 Ohms, equipped with a protective grille and ferrofluid cooling. The package includes plug and play crossovers as well as universal mounts for the tweeter.
- 6.5 inch (16.5 cm) Speaker Set
- 165 mm high-end neodymium speaker with ventilated basket
- NAWI paper cone with fiberglass and Nomex spider
- 25 mm fabric neodymium tweeter
- Protective grille and ferrofluid cooling for the tweeter
- Plug and play crossovers for high and midrange drivers
- HS 25 INSTALL EVO2+ universal mount
- Power of mid-woofer: 130 Watts
- Power of mid-woofer: 110 Watts
- Impedance of mid-woofer: 3 Ohms
- Outer diameter of mid-woofer: 166 mm
- Mounting depth of mid-woofer: 63 mm
- Mounting dimensions of mid-woofer: 143 mm
- Resonance frequency (Fs) of tweeter: 960 Hz
- Impedance of tweeter: 4 Ohms
- Outer diameter of tweeter: 53.5 mm (with mount) / 44 mm (without mount)
- Mounting depth of tweeter: 16 mm (with mount) / 21 mm (without mount with grille)
- Mounting dimensions of tweeter: 47.5 mm (with mount) / 44 mm (without mount)
- Height of tweeter housing: 28 mm
