Audio System HX 120 SQ Evo 3 5" (13cm) Speaker Set
SKU:  HX-120-SQ-EVO-3
EAN:  4251834507951
80 Watt

HX 120 SQ Evo 3

SKU:  HX-120-SQ-EVO-3
EAN:  4251834507951

Technical Highlights

  • 5" speaker set, neodymium speaker, 3 ohm impedance, 110/80 watts.
  • NAWI-HPPC paper cone, Nomex spider, deep reproduction.
  • 2-way crossover, 64-way acoustic adjustment, high-quality components.
  • More technical details
00 d
00 h
00 m
00 s
€374,00
€375,00 €374,00
5% discount with credit card
inkl. VAT , possibly plus shipping
Delivery
Jun 5, - Jun 8,
x set
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €31,16 with Klarna .

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours

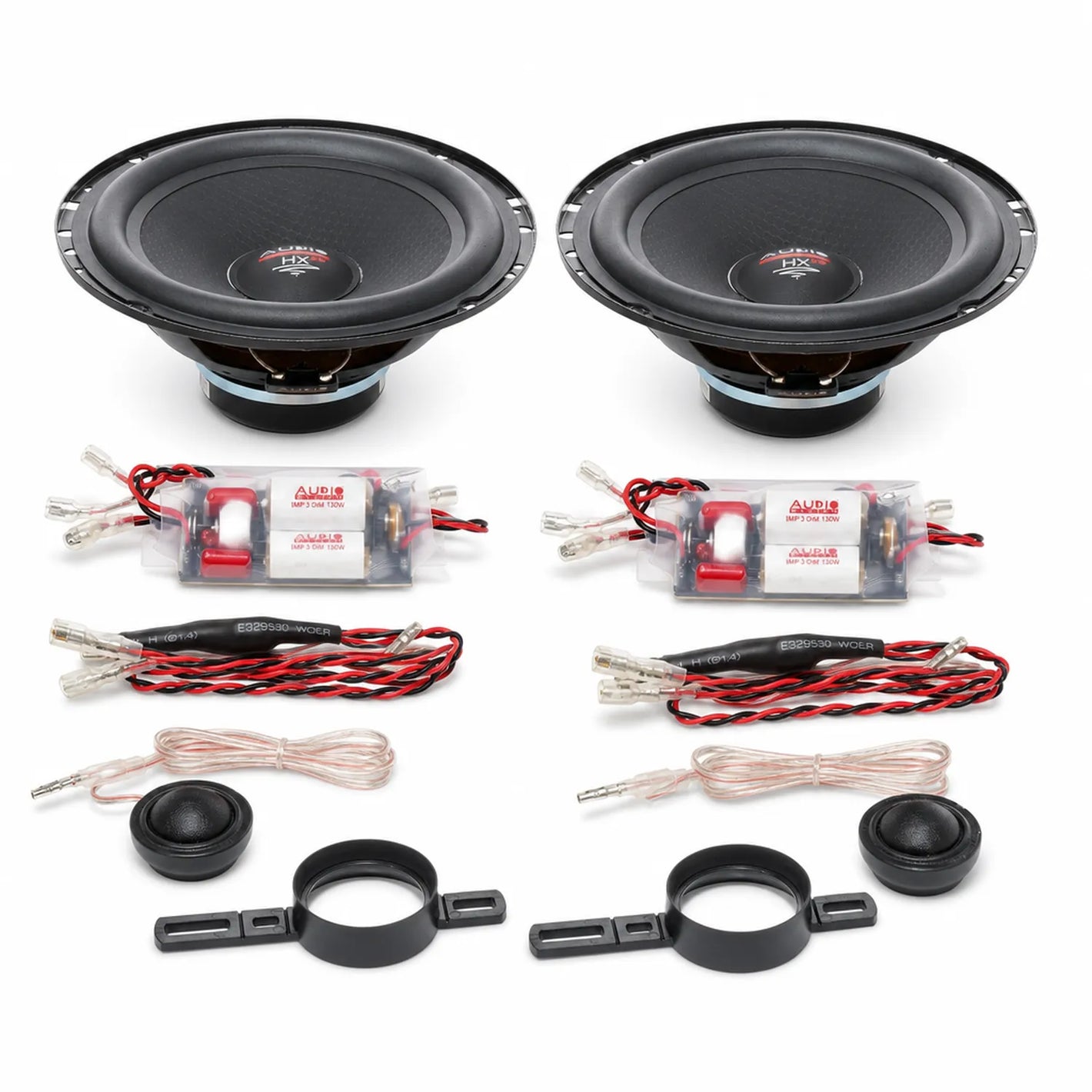

Audio SystemHX 165 SQ EM Evo 3
Audio System-HX 165 SQ EM Evo 3-6.5" (16,5cm) Lautsprecherset-masori-kaufen
Audio System-HX 100 SQ Evo 3-4" (10cm) Lautsprecherset-masori-kaufen
Audio SystemHX 100 SQ Evo 3
Audio System-HX 120 SQ Evo 3-5" (13cm) Lautsprecherset-masori-kaufen
€374,00
€375,00 €374,00

HX 120 SQ Evo 3 by Audio System

The HX 120 SQ Evo 3 from Audio System is a 5-inch Speaker Set based on 120 mm high-end neodymium speakers with a ventilated basket structure. The woofers feature a lightweight NAWI-HPPC paper cone with fiberglass insert, as well as a Nomex spider and an EPN38 neodymium magnet. The system has an impedance of 3 ohms and achieves a power handling of 80 watts RMS and 110 watts maximum. The set also includes 25 mm fabric neodymium tweeters with ferrofluid cooling and a resonance frequency of 960 Hz. Signal distribution is handled by 2-way high-end crossovers with 64-fold acoustic adjustment and high-quality capacitors. The set includes two tweeters, crossovers, and mid-woofers each.

Features
  • 5-inch (13 cm) Speaker Set
  • 120 mm neodymium speakers with ventilated basket
  • Lightweight NAWI-HPPC paper cone with fiberglass insert
  • Nomex spider and EPN38 neodymium magnet
  • 25 mm fabric neodymium tweeters with ferrofluid cooling
  • 2-way high-end crossover with 64-fold acoustic adjustment
  • 12 dB crossover with high audiophile capacitors
  • Power: 80 watts RMS
  • Power: 110 watts Max
  • Impedance: 3 ohms
  • Tweeter impedance: 4 ohms
Technical Specifications
  • Outer diameter of mid-woofer: 118 mm
  • Mounting depth of mid-woofer: 46 mm
  • Mounting dimensions of mid-woofer: 109 mm
  • Dimensions of crossover: 84x129x38 mm
  • Outer diameter of tweeter: 53.5 mm (with holder) / 44 mm (without holder)
  • Mounting depth of tweeter: 16 mm (with holder) / 21 mm (without holder with grille)
  • Mounting dimensions of tweeter: 47.5 mm (with holder) / 44 mm (without holder)
  • Height of tweeter housing: 28 mm
  • Resonance frequency (Fs) of tweeter: 960 Hz

Your benefits at Masori

Audio System HX 120 SQ Evo 3 Datasheet

Open datasheet

Frequently Asked Questions about HX 120 SQ Evo 3

What techniques and materials are used in the HX 120 SQ Evo 3 Speaker Set?

The HX 120 SQ Evo 3 Speaker Set from Audio System integrates state-of-the-art materials and techniques, including 120 mm neodymium speakers with an innovative vented basket structure. The use of NAWI-HPPC paper cone with fiberglass insert ensures a lightweight yet stable material for outstanding vibration properties. The Nomex spider contributes to a uniform suspension of the cone. Particularly noteworthy is the use of the newly developed EPN38 neodymium magnet, which is crucial for deep reproduction. These elements, in combination, provide precise and powerful sound reproduction, especially for discerning listeners.

What acoustic adjustment options does the Crossover of the HX 120 SQ Evo 3 offer?

The Crossover of the HX 120 SQ Evo 3 Speaker Set features an impressive 64-fold acoustic adjustment. This allows for comprehensive specification of the frequency distribution to precisely tune the sound balance to the room or acoustic environment. The 12 dB crossover is equipped with high-audiophile capacitors that contribute to precise transition strength. A built-in impedance linearization ensures that the system can operate stably and efficiently with a variety of devices with different impedances, specifically 2, 4, and 8 ohms. This elevates sound customization to a high level.

What role does impedance play in the HX 120 SQ Evo 3 Speaker Set?

The HX 120 SQ Evo 3 Speaker Set from Audio System operates with an impedance of 3 ohms, which facilitates a special adjustment of the electrical parameters to the amplifier's requirements. The lower impedance allows for higher current intake, resulting in a commanding output power of 110/80 watts. This low impedance is ideal to ensure that the amplifier can reach high output levels when needed while maintaining consistent audio quality. It is essential to ensure the amplifier's compatibility with this impedance for optimal sound performance.

What are the dimensions for installing the HX 120 SQ Evo 3 Speaker Set?

When installing the HX 120 SQ Evo 3 Speaker Set, specific measurements must be considered to ensure the optimal fit. The speakers have an outer diameter of 118 mm, with a mounting depth of 46 mm and a mounting size of 109 mm. Additionally, the outer diameter of the tweeter with bracket is 53.5 mm and the mounting depth is 16 mm. Without the bracket, the mounting size varies slightly. These measurements are crucial for determining the installation location and ensuring a smooth integration into existing audio systems, especially in limited space within the vehicle.

How does the EPN38 neodymium magnet affect the sound quality of the HX 120 SQ Evo 3 Speaker Set?

The EPN38 neodymium magnet plays a crucial role in the tonal performance of the HX 120 SQ Evo 3 Speaker Set from Audio System. This type of magnet is known for its strong magnetic field strength, allowing for clean and deep bass even at low frequencies. It also improves the response speed of the membranes, contributing to a more detailed sound reproduction and ensuring that all subtle nuances in the audio range are preserved. This results in an overall more precise acoustic performance, which is particularly beneficial for bass-intensive music genres.

What high-frequency features does the fabric neodymium tweeter of the HX 120 SQ Evo 3 offer?

The fabric neodymium tweeter of the HX 120 SQ Evo 3, equipped with a 25 mm diameter, provides remarkable high-frequency reproduction through the integrated ferrofluid cooling. This technology stabilizes and reduces distortion at high levels, resulting in a clean and clear sound. The tweeter has an exceptionally low resonance frequency of 960 Hz, allowing for extended coverage of lower frequencies. The design and sleek construction allow for flexible positioning within the vehicle, positively impacting the acoustic stage and spatial imaging.

What makes the NAWI-HPPC paper membrane of the HX 120 SQ Evo 3 Speaker Set so special?

The NAWI-HPPC paper membrane of the HX 120 SQ Evo 3 Speaker from Audio System stands out due to its exceptional combination of lightness and stability. The material uses an innovative fiberglass insert that provides structural strength without compromising flexibility. This results in exceptionally fast response times and fine detail reproduction, leading to a detailed and dynamic sound spectrum. This membrane demonstrates excellent performance at mid to low frequencies, aiming to reproduce the full range of musical details accurately and clearly, providing an immersive sound experience.

What are the power specifications of the HX 120 SQ Evo 3 and how do they affect the sound?

The HX 120 SQ Evo 3 Speaker Set from Audio System offers a maximum power consumption of 110 watts and an RMS nominal power of 80 watts. These specifications are crucial for the dynamic capabilities of the system, allowing loud and powerful sound events to be reproduced without distortion and with stability. The sound precision is supported by the carefully tuned performance parameters, which guarantee consistent audio quality even at higher levels. This means that listeners benefit from a balanced and consistent audio experience at both low and high volumes, adding color and depth to the music.

How is the compatibility of the HX 120 SQ Evo 3 Speaker Set with various car brands?

The HX 120 SQ Evo 3 Speaker Set is designed to fit into numerous vehicle models without requiring specific modifications. With a compact outer diameter of 118 mm and a mounting depth of 46 mm, the speaker allows for smooth integration into existing speaker cutouts in many automobiles. Additionally, the multiple adjustable crossover provides flexibility with different electrical audio systems. This allows for broad compatibility with common car models, ensuring that no major alterations are necessary while still delivering a powerful sound experience.

What advantages does the ventilated basket structure offer in the HX 120 SQ Evo 3 speaker from Audio System?

The ventilated basket structure in the HX 120 SQ Evo 3 speaker from Audio System provides several acoustic benefits. It facilitates heat dissipation and prevents overheating during intense use. This not only reduces the risk of failures but also improves the stability of audio playback under high power pressure. The open design of the basket reveals the full frequency range of the diaphragm and minimizes unwanted sound reflections, leading to a purer and more direct sound image. Such technical adjustments ensure a consistently clear and undistorted listening experience, even at high volume levels.
