Musway MWS822 8" (20cm) Subwoofer
SKU:  MWS822
EAN:  4251476404656
250 Watt

MWS822

SKU:  MWS822
EAN:  4251476404656

Technical Highlights

  • Power 250 watts RMS, maximum 500 watts, impedance 2 + 2 ohms.
  • 50 mm voice coil, robust steel construction, 1.13 kg magnet.
  • Resonance frequency 39.7 Hz, SPL 86 dB, Xmax +/15 mm.
  • More technical details
€129,00
€129,00 €129,00
5% discount with credit card
inkl. VAT , possibly plus shipping
Delivery
Jun 5, - Jun 8,
x piece
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €10,75 with Klarna .

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours
GladenRS 08

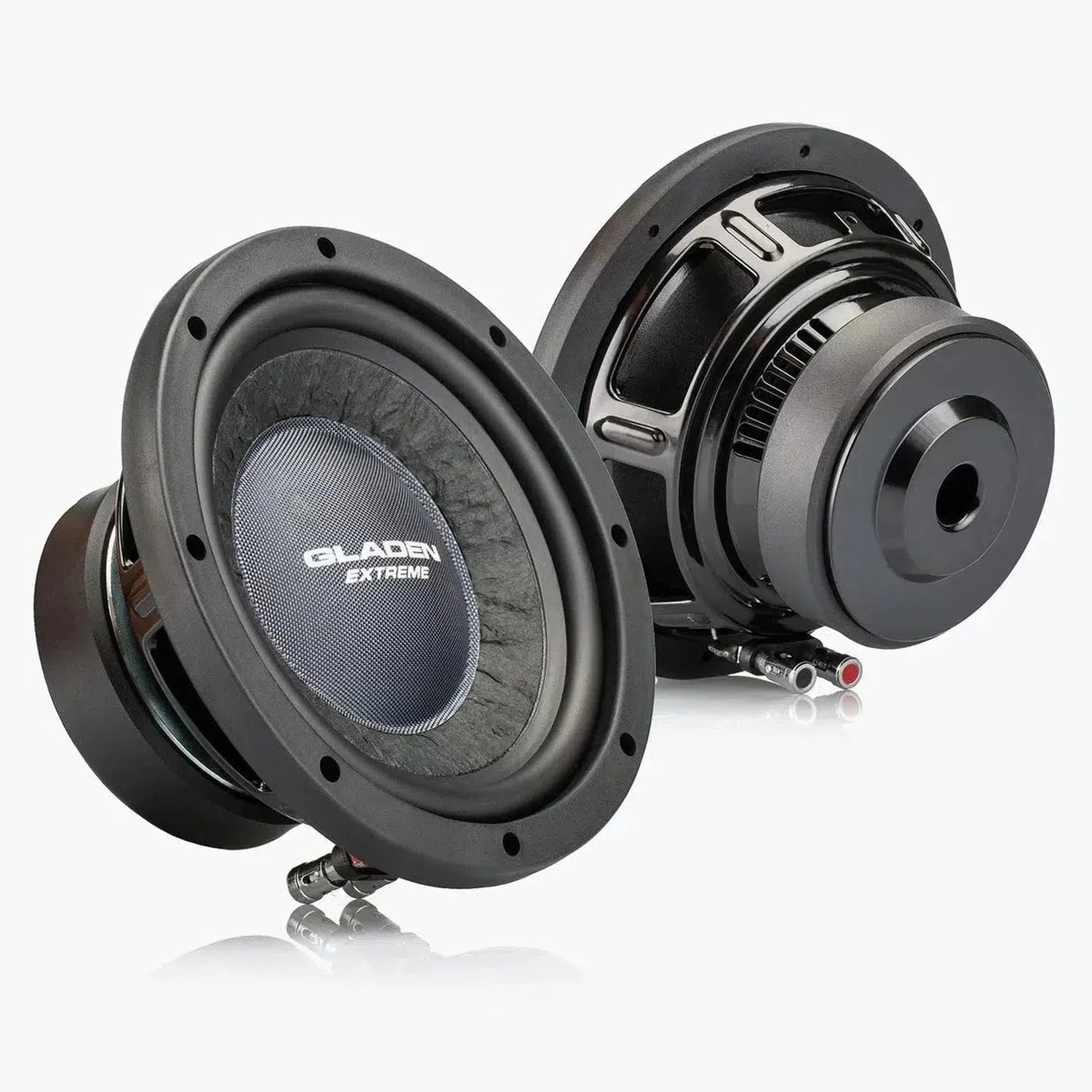

Gladen-RS 08-8" (20cm) Subwoofer-masori-kaufen
B2 Audio-Rage 8 V3-8" (20cm) Subwoofer-masori-kaufen
B2 AudioRage 8 V3
Musway-MWS822-8" (20cm) Subwoofer-masori-kaufen
€129,00
€129,00 €129,00

MWS822 by Musway

The Musway MWS822 is an 8-inch (20 cm) Subwoofer with 250 Watts RMS and 500 Watts maximum. It features an impedance of 2 + 2 Ohms, a 50 mm voice coil, and a robust steel basket. A magnet weighing 1.13 kg and a sound pressure level of 86 dB/2.83 V/1 m are specified. The resonance frequency is at 39.7 Hz, the total Q factor is 0.575, and the equivalent volume is 10.9 L. The maximum linear excursion is +/- 15 mm, the installation depth is 78 mm, and the cutout diameter is 182 mm.

Features
  • 8-inch (20 cm) Subwoofer
  • 250 Watts RMS
  • 500 Watts maximum
  • Impedance 2 + 2 Ohms
  • 50 mm voice coil
  • Robust steel basket
  • Magnet 1.13 kg (40 ounces)
  • Sound pressure level 86 dB/2.83 V/1 m
  • Xmax +/- 15 mm
  • Installation depth 78 mm
  • Cutout diameter 182 mm
Technical Specifications
  • Resonance frequency (Fs) 39.7 Hz
  • Total Q factor (Qts) 0.575
  • Equivalent volume (VAS) 10.9 L

Your benefits at Masori

Musway MWS822 Datasheet

Open datasheet

Frequently Asked Questions about MWS822

What is the power output of the Musway MWS822 Subwoofer?

The Musway MWS822 Subwoofer has an impressive output power of 250 watts RMS. This power allows for deep bass frequencies to be reproduced powerfully and precisely. At maximum load, it even delivers up to 500 watts, making it excellent for dynamic and powerful music styles like electronic music or rock. Even during long playtimes at high levels, the technology behind the subwoofer ensures stable and consistent sound reproduction. The Musway MWS822 is designed to create intense bass experiences in a variety of application scenarios. Especially if you enjoy listening to music loudly, you will benefit from this power capability.

What impedance does the Musway MWS822 offer?

The Musway MWS822 Subwoofer is equipped with a dual impedance of 2 + 2 ohms. This configuration allows for flexible adaptation to various amplifier setups, as it can be connected either in parallel or in series to achieve the desired total impedance. The 2 + 2 ohm configuration increases compatibility with different power amplifiers, which is particularly useful if you want to operate specific power amplifier setups to optimize musical performance. Thus, the dual impedance offers a harmonious mix of power and versatility.

What is the installation depth of the Musway MWS822?

The Musway MWS822 Subwoofer has an installation depth of 78 mm. This relatively compact installation depth ensures that the subwoofer fits into a variety of enclosures and installation locations. Depending on the vehicle, it is important to measure the available depth for installation to ensure that the subwoofer fits in the intended area and functions optimally. This not only facilitates installation but also guarantees that the full potential of the subwoofer can be realized in the selected enclosure without compromising sound quality.

What is the resonance frequency of the Musway MWS822?

The resonance frequency (Fs) of the Musway MWS822 Subwoofer is 39.7 Hz. This frequency describes when the Subwoofer vibrates most efficiently. A low Fs value like 39.7 Hz indicates that the Subwoofer is particularly well-suited for deep bass sounds. This technical feature especially supports the reproduction of powerful, deep bass tones across various music genres. Therefore, this Subwoofer is ideal for enthusiasts of music styles with pronounced bass lines, as it minimizes sound distortion and authentically reproduces low frequencies.

What is the size of the voice coil of the Musway MWS822?

The Musway MWS822 Subwoofer is equipped with a 50 mm (2") voice coil. This voice coil ensures efficient conversion of electrical energy into sound waves and significantly contributes to the high sound quality and performance of the Subwoofer. Larger voice coils like this one can withstand higher temperatures and loads, which increases the durability and stability of the Subwoofer. This type of voice coil is advantageous for audio systems that regularly need to handle high loads, as it ensures sustainable and consistent sound results.

What sound pressure level (SPL) does the Musway MWS822 Subwoofer reach?

The sound pressure level (SPL) of the Musway MWS822 Subwoofer is 86 dB/2.83 V/1m. This value indicates how loud the Subwoofer responds to a specific input power. An SPL of 86 dB is a good average that ensures an intense and powerful volume output without distortion. With this SPL value, the Subwoofer achieves remarkable efficiency, delivering a clear and powerful bass reproduction in both smaller and larger sound setups. This makes the MWS822 ideal for use in both car audio and home audio systems.

What are the dimensions of the installation opening of the Musway MWS822?

The installation opening of the Musway MWS822 Subwoofer measures 182 mm. This size is crucial for accurately integrating the Subwoofer into a housing or installation. For optimal performance, it is essential to match the installation opening precisely. If the dimensions do not fit exactly, unwanted vibrations or losses in sound quality may occur. The measurement facilitates positioning in different vehicle types or housing constructions, ensuring a rich and powerful sound that sets the Musway MWS822 apart from other Subwoofers.

What is the maximum linear excursion (Xmax) of the Musway MWS822?

The Musway MWS822 Subwoofer offers a maximum linear excursion (Xmax) of +/- 15 mm. This means that the diaphragm of the subwoofer can move up to 15 mm in both directions without unwanted distortion of sound or damage to the subwoofer. A larger Xmax value allows for deeper and more voluminous bass playback. This feature is particularly important for music lovers who value precise and full bass sounds, as it elevates the dynamic capabilities of the speaker to a very high level, thus maximizing the enjoyment of music.

What materials are used in the Musway MWS822?

The Musway MWS822 Subwoofer uses high-quality and durable materials that ensure long-lasting performance and reliability. The subwoofer is made with a robust steel basket that reinforces the structure and increases stability. Additionally, it features a 1.13 kg (40 oz) heavy magnet, which is crucial not only for the weight but especially for the stability and performance of the three-way system. This combination of materials ensures that the subwoofer meets the highest acoustic and mechanical standards and functions reliably over a long period.

What do the Thiele/Small parameters mean for the Musway MWS822?

The Thiele/Small parameters of the Musway MWS822 include important values such as the resonance frequency (Fs) of 39.7 Hz, the total quality factor (Qts) of 0.575, and the equivalent volume (VAS) of 10.9 L. These parameters are crucial for optimizing the enclosure design and predicting the performance of the subwoofer in various configurations. A low Fs value indicates suitability for low frequencies, while Qts and VAS provide insights into efficiency in the low-frequency range and enclosure volume. They help shape the acoustic output to ideally match the characteristics of the music genre.
