Axton A601 6-channel amplifier

1 Review

Output power: 6 x 100 W at 4 ohms, 6 x 160 W at 2 ohms.
Ultra-compact Class-D design, aluminum heatsink.
12 dB/oct. high-pass and low-pass filters, auto-turn-on function.
Mehr technische Details

00

€260,10

~~€289,00~~ €260,10

5% Rabatt mit Vorkasse

inkl. VAT , possibly plus shipping

Bequem in 12 zinsfreien Raten à €21,67 mit Klarna zahlen.

Jetzt mit kostenlosem Versand ab 50€!

Shipping cost calculator

Land/Region

PLZ

Garantie & zusätzlicher Geräteschutz für dein HiFi-System

3 Jahre Masori Garantie Kostenlos 48 Monate Plusgarantie €24,99 60 Monate Plusgarantie Am beliebtesten €34,99

Deshalb wählen uns 100.000+ Kunden

3 Jahre Garantie

Sicher & sorglos
Blitzversand

mit DHL Express
Tiefpreisschutz

Nie zu viel zahlen

Rob

Max

Unsicher, ob dieses Produkt zu deinem Auto passt?

Wir helfen dir – schnell, persönlich und unverbindlich.

Antwort on weekdays within 24h

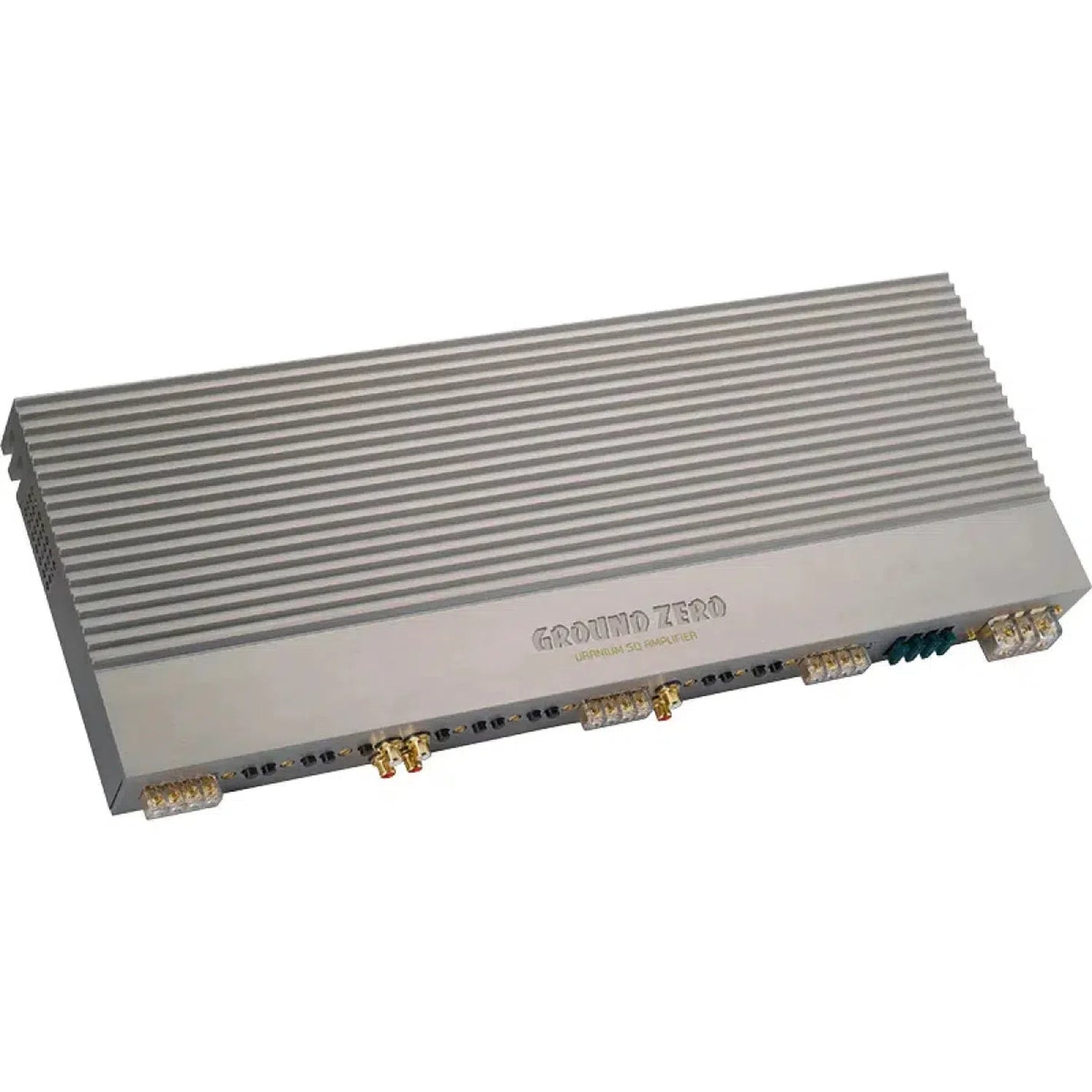

Ground ZeroUranium GZUA 6SQ

CrunchGravity GTX2600.6D

A601 by Axton

The A601 from Axton is a powerful 6-channel amplifier that fits in any vehicle with its ultra-compact dimensions. Equipped with an aluminum heat sink, it ensures optimal heat dissipation. The amplifier features 12 dB/oct. high-pass and low-pass filters (40 – 400 Hz) and offers both high-level and low-level inputs. Thanks to the auto-turn-on function, the amplifier can be automatically switched on by DC offset or music signal. It is also fully compatible with vehicles that have a start/stop automatic system. The output power is 6 x 100 W at 4 ohms and 6 x 160 W at 2 ohms, while in bridged mode it delivers 3 x 320 W. With a signal-to-noise ratio of 85 dB and a variable input sensitivity of 0.4 – 10 V, this amplifier impresses with excellent performance values. The dimensions are 282 mm in width, 40 mm in height, and 105 mm in depth.

HighLights

Ultracompact Class-D Amplifier
Aluminum heat sink for optimal heat dissipation
12 dB/oct. high-pass and low-pass filters (40 – 400 Hz)
High-Level/Low-Level Input
Auto-Turn-On via DC Offset or Music Signal
Fully suitable for vehicles with start/stop automatic system

Specifications

Output power @ 4 Ohm 6 x 100 W
Output power @ 2 Ohm 6 x 160 W
Output power @ 4 Ohm bridged 3 x 320 W
Frequency response 10 Hz – 35 kHz
Integrated electronic frequency crossovers 12 dB/oct. High-pass and low-pass filters (40 - 400 Hz)
Signal-to-noise ratio 85 dB
Variable input sensitivity 0.4 – 10 V
Dimensions (W x H x D) 282 x 40 x 105 mm

Axton A601 Datenblatt

Datenblatt öffnen

Frequent questions about A601

Wie viel Leistung bietet der Axton A601 Verstärker?

The Axton A601 is a 6-channel amplifier with an output power of 6 x 100 W at 4 Ohms, 6 x 160 W at 2 Ohms, and can deliver 3 x 320 W in bridged mode. The considerable power ensures that even the most demanding speaker systems can be optimally operated. With these power values, the A601 meets the requirements for powerful audio applications in vehicles. It is particularly well-suited for use in complex sound systems where multiple channels need to be precisely controlled.

Welche Abmessungen hat der Axton A601?

The Axton A601 is designed to be ultra-compact with dimensions of 282 mm in width, 40 mm in height, and 105 mm in depth. These dimensions allow for easy integration into almost any type of vehicle, especially where space is a crucial factor. The low height allows the amplifier to be installed in tight conditions, for example, under the seat. The compact design is optimal for users who want to combine performance with minimal space requirements.

Welche Filterfunktionen bietet der Axton A601?

The Axton A601 is equipped with 12 dB/octave high-pass and low-pass filters that operate in the range of 40 Hz to 400 Hz. These filters allow for fine adjustment of the frequency response to tailor the audio output to the specific requirements of different speakers. This is particularly useful for adjusting sound preferences or protecting the speakers from potentially harmful frequencies. With these filters, the A601 can significantly enhance the listening experience in the vehicle.

Ist der Axton A601 kompatibel mit Fahrzeugen mit Start/Stopp-Automatik?

Yes, the Axton A601 is fully compatible with vehicles that have a start/stop automatic system. This functionality ensures that the amplifier can be seamlessly integrated into modern vehicle systems without interruptions in the audio experience. It remains stable and powerful, even when the engine is automatically turned off during a stop and needs to restart, resulting in consistent sound quality.

Wie funktioniert die Auto-Turn-On Funktion beim Axton A601?

The Axton A601 features an auto turn-on function that can automatically switch on the amplifier either through a DC offset or a music signal. This intelligent feature enhances usability by minimizing the need for additional control cables or manual intervention. It ensures that the amplifier is activated automatically as soon as an audio signal is detected, significantly increasing user comfort.

Welche Eingänge unterstützt der Axton A601?

The Axton A601 offers both high-level and low-level inputs. This versatility allows the amplifier to be used in various audio system configurations, regardless of whether they are equipped with high-quality aftermarket systems or OEM audio systems. The two types of inputs enable easy integration into almost any audio system and enhance user-friendliness, especially when existing systems are to be upgraded.

Wie ist der Frequenzgang des Axton A601 Verstärkers?

The Axton A601 has a wide frequency response of 10 Hz to 35 kHz. This specification allows for the reproduction of a wide spectrum of audio tones, from deep bass notes to high frequencies with great detail fidelity. This is particularly valuable for audiophiles who value natural and precise sound reproduction. The large frequency range ensures that all audio signals are reproduced with high quality.

Wie unterscheidet sich der Axton A601 von anderen Verstärkern?

The Axton A601 stands out due to its ultra-compact design, 6-channel output flexibility, and the combination of high-level and low-level inputs. The aluminum heat sink ensures efficient heat dissipation, which improves the amplifier's lifespan and performance. The auto turn-on function and compatibility with start/stop systems provide additional convenience. These technical features define the A601 as a versatile and powerful amplifier for various applications.

Welche Eingangsempfindlichkeit bietet der Axton A601?

The Axton A601 offers a variable input sensitivity of 0.4 to 10 V. This flexibility allows the user to adapt the amplifier to a variety of audio sources, from factory-installed audio units to retrofit solutions. Adjusting the input sensitivity is crucial for properly tuning the amplifier to the audio system in use, ensuring optimal signal transmission without distortion or loss.

Können technische Audioparameter des Axton A601 optimiert werden?

Yes, with the integrated high-pass and low-pass filters of 12 dB/octave, the Axton A601 can be precisely configured for different audio requirements. These filters allow for the optimization of audio output by adjusting the frequency response to individually drive both low-frequency and high-frequency speakers. Adding specific filter settings results in finely tuned sound reproduction, which can be particularly significant for enthusiasts with advanced audio applications.
