Axton ATX165S 6.5" (16.5cm) coaxial speaker
SKU:  ATX165S
EAN:  7612309103967

3 Reviews

90 Watt

ATX165S

SKU:  ATX165S
EAN:  7612309103967

3 Reviews

Technical Highlights

  • Power 90 Wrms, 4 Ohm impedance, frequency 65Hz-22kHz.
  • Sensitivity 90 dB, neodymium magnet, Mylar dome tweeter.
  • Polypropylene cone, NOMEX spider, composite basket.
  • More technical details
00 d
00 h
00 m
00 s
€61,06
-23% €79,00 €61,06
5% discount with credit card
inkl. VAT , possibly plus shipping
Delivery
Jun 5, - Jun 8,
x pair
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €5,08 with Klarna .
Expert Image

Rob

Expert Image

Max

Avoid a bad purchase? We check your setup!

Rob & Max check your project: So you are guaranteed to get the maximum performance for your budget.

Response on weekdays within 24 hours

Your benefits at Masori

MB QuartASC116
MB Quart-ASC116 (B-Ware)-6.5" (16,5cm) Koaxial-Lautsprecher-masori-kaufen
JBL-Stage2 624-6.5" (16,5cm) Koaxial-Lautsprecher-masori-kaufen
JBLStage2 624
Axton-ATX165S-6.5" (16,5cm) Koaxial-Lautsprecher-masori-kaufen
€61,06
€79,00 €61,06

More power than ATX165S here!

Show all
  • A round black honeycomb mesh grille for the Deaf Bonce GDB-65 features faint EDB letters across its center.

    GDB-65

    €9,00
    €9,00 €9,00
    Delivery
    Delivered automatically as soon as available from the supplier.
  • Deaf Bonce-Apocalypse AP-X69A-6"x9" Koaxial-Lautsprecher-masori-kaufen
    200 Watt

    Apocalypse AP-X69A

    €140,40
    €150,00 €140,40
    Delivery
    Jun 8, - Jun 12,
  • Ai-Sonic-S2-C6.2-6.5" (16,5cm) Lautsprecherset-masori-kaufen
    90 Watt

    S2-C6.2

    €199,00
    €199,00 €199,00
    Delivery
    Jun 9, - Jun 14,
  • DD Audio-GR-MR Grill 5-8 Zoll-Lautsprechergitter-masori-kaufen

    GR-MR Grill 5-8 inch

    From €10,00
    €10,00 From €10,00
    In stock
    Jun 5, - Jun 6,
  • DD Audio-DC6.5a-6.5" (16,5cm) Lautsprecherset-masori-kaufen
    75 Watt

    DC6.5a

    €199,00
    €199,00 €199,00
    Delivery
    Jun 19, - Jun 24,
DSC01014_2

This could also look like this for you!

A speaker is only as good as its construction. While mass-produced products often sound flat, brands like DD Audio focus on precision and Deaf Bonce on uncompromising dynamics. We have filtered out the systems that technically get more out of your budget and open up a new league in sound quality for you.

Discover now

ATX165S by Axton Description

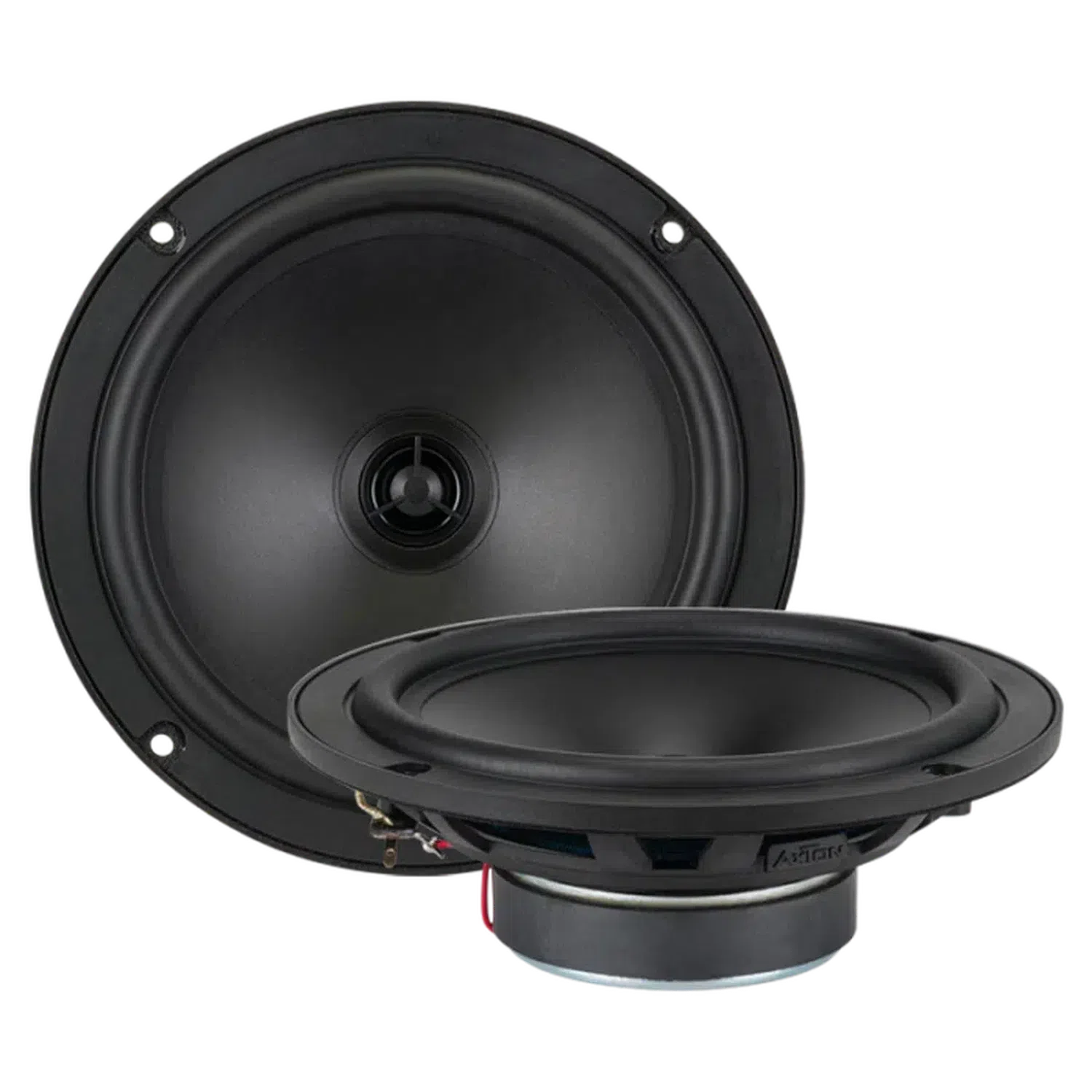

The ATX165S from Axton is a 6.5-inch coaxial speaker, featuring a 2-way coaxial system designed as a point sound source. With a 13 mm tweeter, Mylar dome, and neodymium magnet, it offers precise music reproduction. The speaker is equipped with a strontium ferrite magnet for the mid-woofer and a low-resonance polypropylene cone. Additional features include a precision composite basket, NBR nitrile rubber surround, and a ventilated NOMEX spider. It also stands out with hard gold-plated, corrosion-resistant terminals and a frequency response from 65 Hz to 22 kHz. Sensitivity is 90 dB at a nominal impedance of 4 ohms, with a rated power handling of 90 Wrms. The mounting diameter is 144 mm and the mounting depth is 47 mm. A speaker grille is included.

Highlights

  • 6.5-inch 2-way coaxial system
  • 2-way coaxial system designed as a point sound source for realistic music reproduction
  • 13 mm tweeter with Mylar dome and neodymium magnet
  • Precision-manufactured composite basket
  • Strontium ferrite magnet for the mid-woofer
  • Low-resonance polypropylene cone
  • NBR nitrile rubber surround
  • Ventilated NOMEX spider
  • Polyimide voice coil former
  • Hard gold-plated, corrosion-resistant terminals
  • Speaker grille included

Specifications

  • Frequency response 65 Hz – 22 kHz
  • Nominal impedance 4 ohms
  • Sensitivity (1 W/1 m) 90 dB
  • Rated power handling 90 Wrms
  • Mounting diameter 144 mm
  • Mounting depth 47 mm

Frequently Asked Questions about ATX165S

Welche technischen Merkmale machen den Axton ATX165S Koaxial-Lautsprecher aus?

The Axton ATX165S is a 6.5" coaxial speaker with a 2-way system. The tweeter features a Mylar dome and a neodymium magnet, while the mid-bass driver uses a strontium ferrite magnet. The diaphragm is made of low-resonance polypropylene and the surround is made of NBR nitrile rubber. The basket is precision-engineered from composite materials and the ventilated NOMEX centering spider ensures stability. Additionally, it has hard gold-plated, corrosion-resistant connectors for optimal signal transmission. The speaker offers a frequency response of 65 Hz to 22 kHz, with a sensitivity of 90 dB at 4 ohm impedance and a nominal power handling of 90 Wrms.

Wie ist die Klangqualität des Axton ATX165S?

The sound quality of the Axton ATX165S is characterized by its ability to reproduce music with precision and realism. The use of a 13 mm tweeter with a Mylar dome and neodymium magnet allows for detailed reproduction of high frequencies. The mid-bass driver with strontium ferrite magnet and polypropylene diaphragm ensures clean midrange and bass reproduction. The combination of these materials and the 2-way system as a point sound source enables harmonious sound dispersion with clear highs and strong bass. A frequency response of 65 Hz to 22 kHz covers a wide spectrum, while the sensitivity of 90 dB ensures high volume levels.

Welche Materialien werden im Aufbau des Axton ATX165S verwendet?

The Axton ATX165S uses a variety of high-quality materials that contribute to the excellent performance of the speaker. The tweeter features a Mylar dome, known for its durability and clarity, combined with a neodymium magnet for high magnetic strength in compact dimensions. The mid-bass driver uses a strontium ferrite magnet, which ensures high heat resistance and stability. The diaphragm is made of resonance-dampening polypropylene, which minimizes distortion, while the NBR nitrile rubber surround provides flexibility and durability. Additionally, the ventilated NOMEX voice coil and the precision composite basket positively influence stability and sound.

Welche Einbaudimensionen hat der Axton ATX165S?

The Axton ATX165S has a mounting diameter of 144 mm and a mounting depth of 47 mm. These dimensions allow for universal compatibility with a variety of vehicle models. When planning the installation, it is important to consider the mounting depth to ensure that there is enough space available. The speaker is designed to fit seamlessly into most standard speaker grilles, and a speaker grille is also included in the package to ensure an appealing aesthetic. These dimensions make the speaker versatile and suitable for a wide range of installation locations in the vehicle.

Welche Frequenzreaktion bietet der Axton ATX165S?

The Axton ATX165S offers a frequency response of 65 Hz to 22 kHz, covering a wide sound spectrum. This bandwidth ensures impressive depth in the bass range as well as clarity in the highs. The lower frequency range at 65 Hz ensures that deep tones are reproduced powerfully, while the upper range at 22 kHz makes even the finest accents in the music clearly audible. The combination of a Mylar dome in the tweeter and the resonance-optimized polypropylene membrane in the mid-bass driver optimizes frequency reproduction for a perfect sound balance.

Wie unterscheidet sich das 2-Wege-Koaxialsystem des Axton ATX165S?

The 2-way coaxial system of the Axton ATX165S enables a point sound source, where both drivers, the tweeter and the mid-bass, are optimally matched. This arrangement leads to an even sound distribution and improves the spatiality of the playback. The use of a 13 mm tweeter with a Mylar dome in combination with a neodymium magnet delivers brilliant highs, while the strontium ferrite magnet in the midrange driver reproduces deep bass and powerful mids. This ensures a seamless integration of sound worlds, perfect for the concert experience in the vehicle.

Welche Bedeutung hat der Strontium-Ferrit-Magnet im ATX165S?

In the Axton ATX165S, a strontium ferrite magnet is used in the mid-bass driver. This magnet offers excellent thermal stability and high magnetic flux, which enhances the speaker's performance. A strontium ferrite magnet is known for its durability and heat resistance, ensuring consistent performance over a long period. Furthermore, it allows for precise control of the polypropylene diaphragm to reduce unwanted distortions and increase sound clarity across all frequency ranges. The result is improved playback quality and transmission of musical content.

Kann der Axton ATX165S bei hohen Lautstärken betrieben werden?

Yes, the Axton ATX165S is suitable for operation at high volumes, with a nominal load capacity of 90 Wrms. This means it can be continuously operated at a power of 90 watts without the risk of damage. Additionally, it offers a sensitivity of 90 dB, allowing for high levels to be achieved with relatively low amplifier power. The choice of materials, including the Mylar dome and the resonance-optimized polypropylene membrane, supports a sonically consistent reproduction even at maximum volume, while the ventilated NOMEX voice coil ensures thermal stability.

Wie wirkt sich der Polypropylen-Membran des ATX165S auf die Klangqualität aus?

The polypropylene membrane of the Axton ATX165S significantly contributes to the improvement of sound quality. This resonance-free membrane minimizes sound distortions and ensures a smooth frequency response. Since polypropylene is known for its stiffness and low mass, it allows for improved motion control, which in turn enhances the dynamics and precision of the sound. Furthermore, it is insensitive to moisture and temperature fluctuations, which increases the durability and longevity of the speaker in both physical and acoustic aspects.

Wie werden hohe Frequenzen im ATX165S wiedergegeben?

High frequencies in the Axton ATX165S are reproduced using a 13 mm tweeter with a Mylar dome and neodymium magnet. This combination offers fine resolution and clarity in the high tones. Mylar is lightweight, which allows the dome to respond quickly to audio impulses, resulting in detailed and precise reproduction. The neodymium magnet provides a high magnetic density, which improves efficiency and enhances the performance of the tweeter. This leads to a dynamic and vibrant sound image that clearly reveals even the finest details in the highs.
