S2-A60.4 by Ai-Sonic

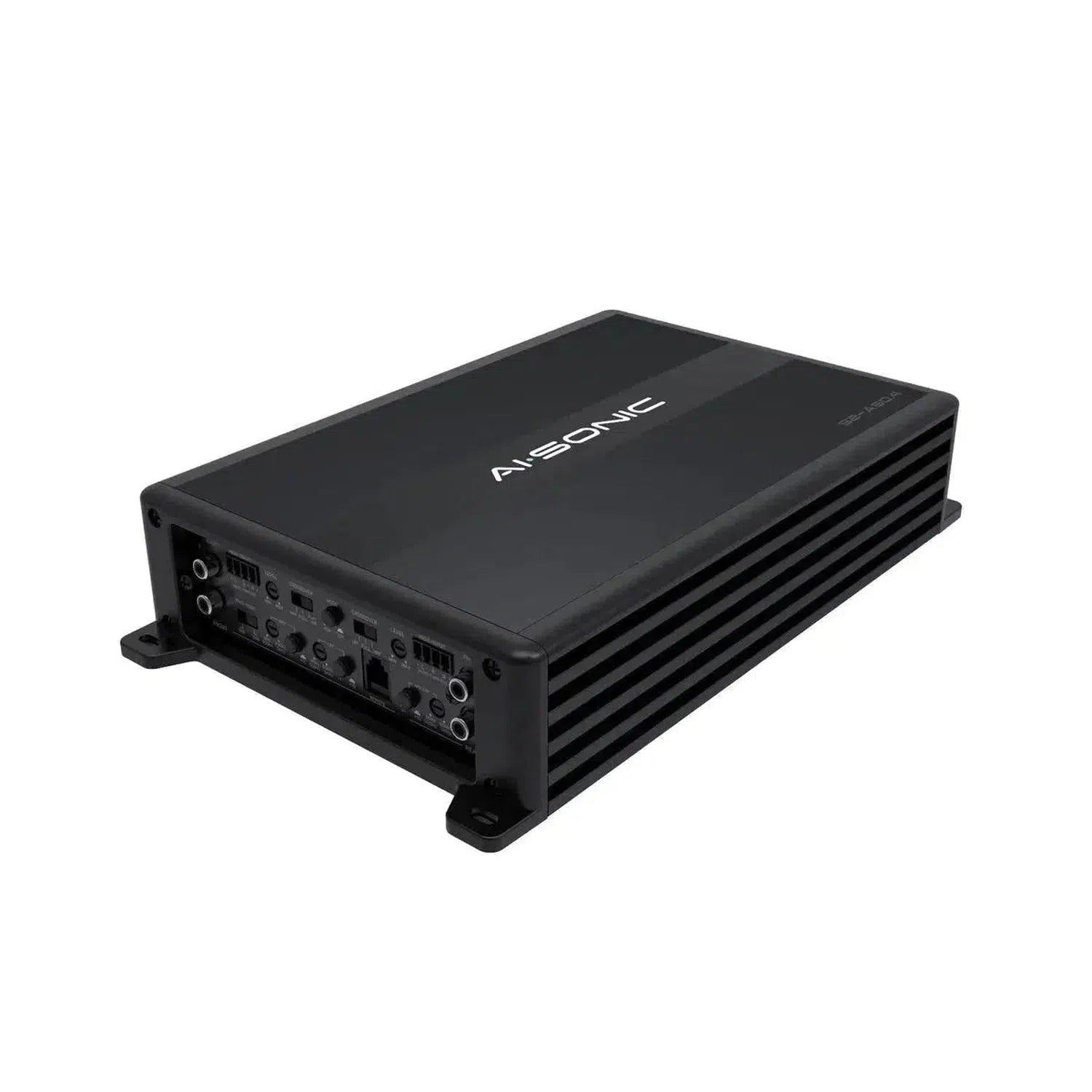

The Ai-Sonic S2-A60.4 is a 4-channel AB-class amplifier for users who want to experience pure sound quality. The amplifier offers more power than specified in the technical data. The finish includes dark covers, and the profile is made of brushed black aluminum. When the amplifier is turned on, the Ai-Sonic logo lights up! The Ai-Sonic S2-A60.4 optionally includes a remote control that has three different indicator LEDs (Protection, Power, and Clipping). The bass level controller is available separately.

Features

Ai-Sonic S2-A60.4 4-Channel Amplifier
Operating voltage 10 - 16V
Effective power (2 Ohm) at 12V: 4x105 Watts RMS
Effective power (4 Ohm) at 12V: 4x70 Watts RMS
Bridged power (4 Ohm) at 12V: 2x210 Watts RMS
THD < 0.02% 4ohm < 0.04% 2 Ohm
Frequency range 10Hz-40kHz
S/N ratio (A-weighted) > 105dB
Channel separation > 45dB
Input sensitivity 0.5-6 V
Input impedance 13kOhm
Low-pass filter settings

x1: 50 Hz - 500 Hz
x10: 500 Hz - 5 kHz

High-pass filter settings

x1: 12 Hz - 250 Hz (front)
x2: 250 Hz - 5 kHz (front)
x1: 50 Hz - 500 Hz (back)
x10: 500 Hz - 5 kHz (back)

Bandpass (front) 12 Hz - 5 kHz
Frequency crossover slope 12dB/oct.
Bass boost 0/6 dB (@45 Hz)
Network protection 2x25 A
Dimensions
B: 183mm
H: 60mm
L: 304mm

Ai-Sonic S2-A60.4 Datenblatt

Datenblatt öffnen

Frequent questions about S2-A60.4

Welche Leistung bringt der Ai-Sonic S2-A60.4 Verstärker im Auto?

The Ai-Sonic S2-A60.4 4-channel amplifier delivers an effective power of 4x105 watts RMS at 12V with an output impedance of 2 ohms, while it provides 4x70 watts RMS at 4 ohms. Additionally, it can achieve a bridged power of 2x210 watts RMS at 4 ohms. With a THD value of less than 0.02% at 4 ohms, the amplifier guarantees high sound purity. Furthermore, its frequency range of 10Hz to 40kHz ensures a wide reproduction of audio signals. Especially for installation in cars, the S2-A60.4 offers above-average performance in compact dimensions.

Wie installiere ich den Ai-Sonic S2-A60.4 Verstärker im Auto?

When installing the Ai-Sonic S2-A60.4 in the vehicle, the dimensions of 183 mm width, 60 mm height, and 304 mm length must be considered to find a suitable installation location. The amplifier operates with a supply voltage between 10 and 16V, which most vehicles can provide without any issues. The separate bass level control is possible via an optional cable, while the remote control with LED indicators for protection, power, and clipping can be positioned flexibly. Required wiring should be laid out correctly to ensure power supply and audio connections.

Welche Filtereinstellungen bietet der Ai-Sonic S2-A60.4?

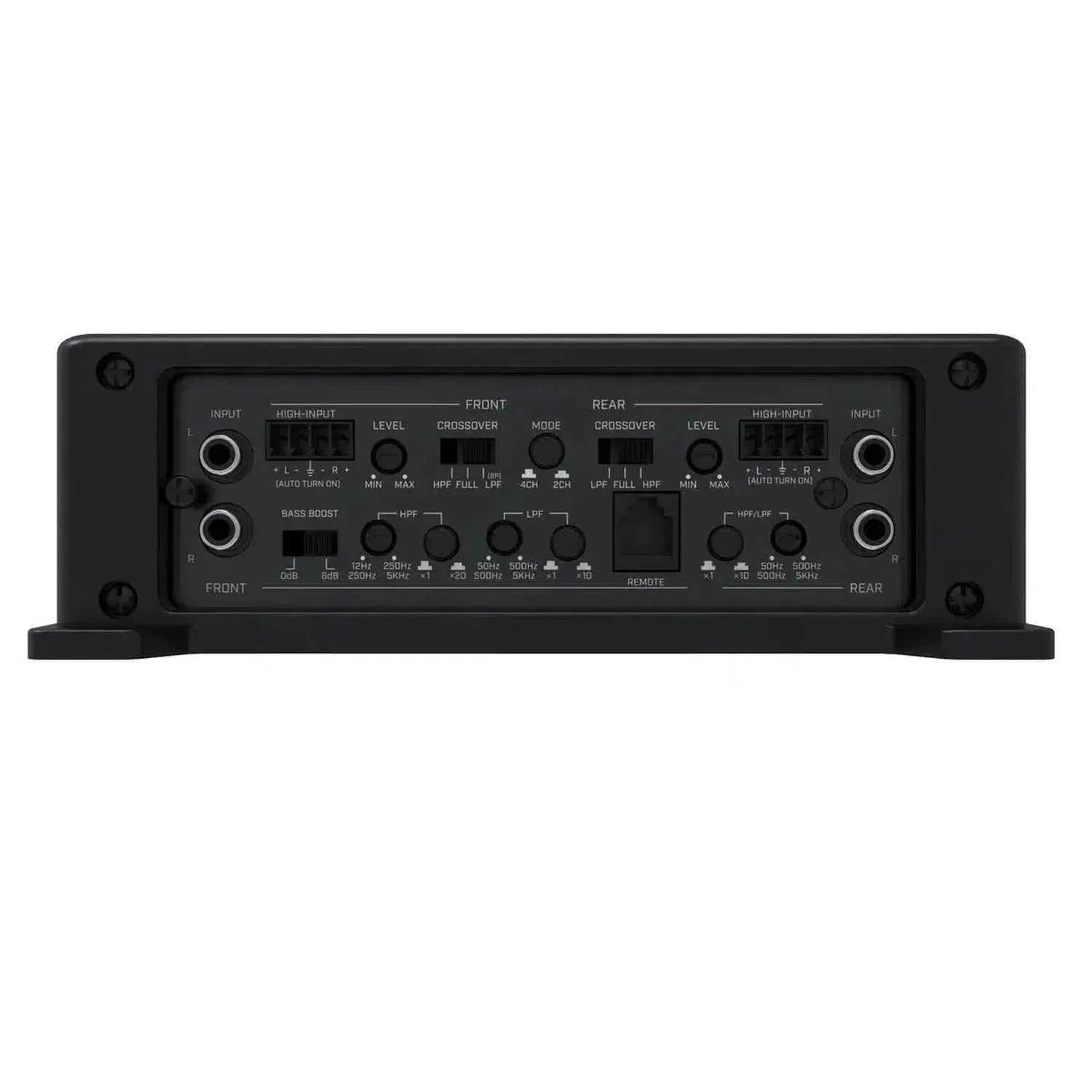

The Ai-Sonic S2-A60.4 amplifier offers precisely adjustable high-pass and low-pass filters. For the low-pass filter, settings are available from 50 Hz to 500 Hz in the x1 configuration and from 500 Hz to 5 kHz in the x10 configuration. The high-pass filter provides front options of 12 Hz - 250 Hz in x1 mode and 250 Hz - 5 kHz in x2 mode, and rear options of 50 Hz - 500 Hz in x1 and 500 Hz - 5 kHz in x10. The crossover slope is 12dB/octave. These filter options allow for optimal sound adjustment to the respective speaker types.

Wie optimiert der Ai-Sonic S2-A60.4 das Klangbild im Auto?

The Ai-Sonic S2-A60.4 optimizes the sound image through various technical features. With a signal-to-noise ratio of over 105dB, the amplifier ensures particularly clear audio output, while the channel separation of more than 45dB supports excellent stereo imaging. Thanks to the adjustable filter settings and the separate bass boost of 0 or 6 dB at 45 Hz, the sound image can be finely tuned. Additionally, the high input sensitivity of 0.5-6V helps to optimally adapt the system to the preamplifier signals of the car radio.

Wann leuchtet das Ai-Sonic-Logo auf dem S2-A60.4?

The Ai-Sonic logo on the S2-A60.4 amplifier lights up as soon as the amplifier is in operation. This feature not only provides a visual check of the amplifier's operational status but also adds an appealing visual highlight to the setup. Especially during nighttime drives, the illuminated logo can be a stylish addition to the vehicle's lighting. The elegant finish with brushed black aluminum and dark covers is further accentuated by the illuminated brand, enhancing the overall appearance in the trunk setup or in the HiFi rack.

Wie sicher ist der Betrieb des Ai-Sonic S2-A60.4 Verstärkers?

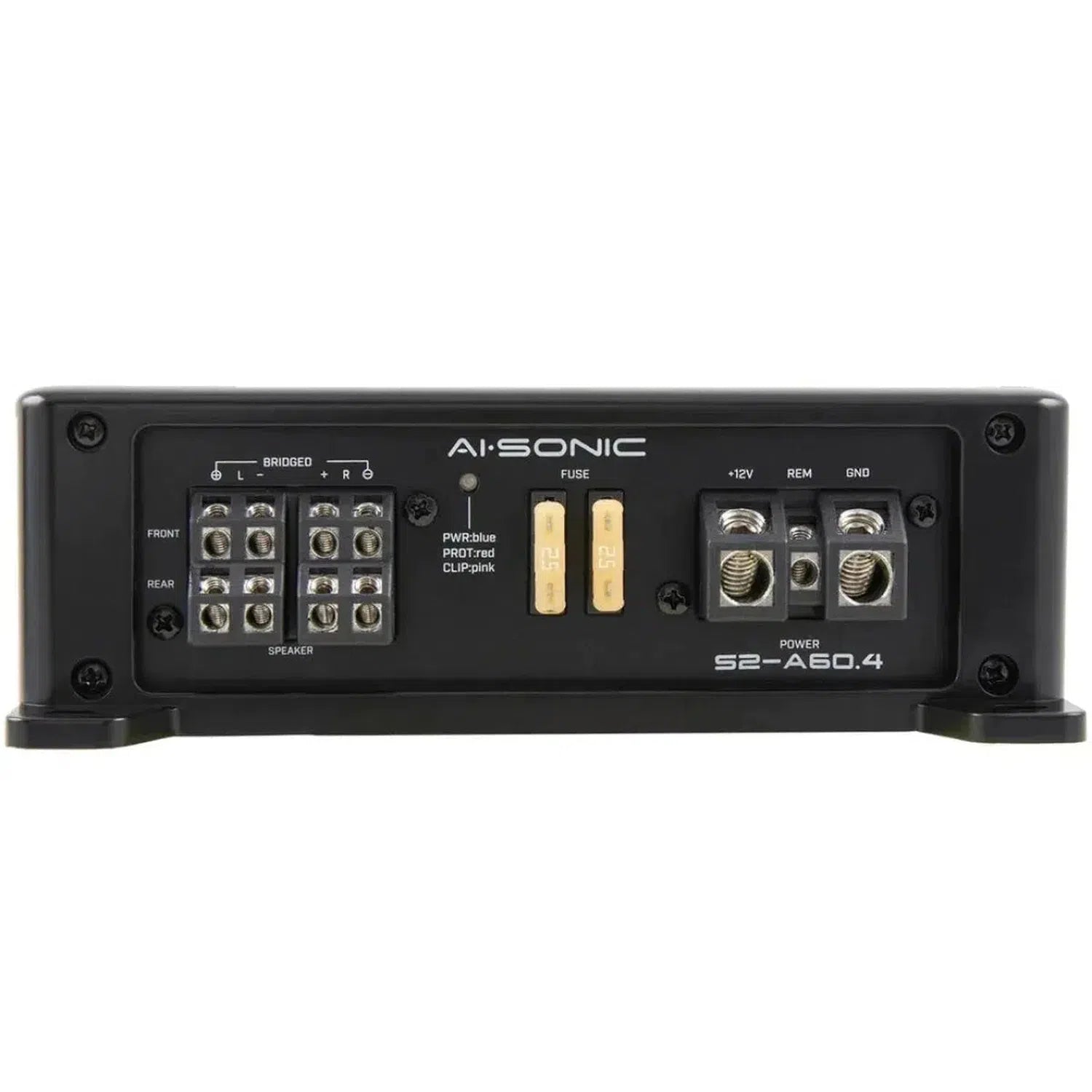

The Ai-Sonic S2-A60.4 offers versatile safety mechanisms to ensure reliable operation. The included 2x25A fuses help protect against overloads and safeguard the amplifier as well as the entire car audio system from electrical damage. The optional remote control displays the status of protection, power, and clipping via special indicator LEDs, allowing for quick responses to potential operational disturbances. These safety measures are crucial for maximizing the amplifier's lifespan while ensuring safe use in the vehicle.

Ist der Ai-Sonic S2-A60.4 Verstärker mit meinem Auto kompatibel?

The compatibility of the Ai-Sonic S2-A60.4 amplifier with your car mainly depends on the installation options and power supply options. With its compact dimensions of 183mm width, 60mm height, and 304mm length, this amplifier can be easily stored in many vehicles without taking up much space. It is crucial that your vehicle can provide an operating voltage of 10-16V, which is the case for most modern cars. While no specific car brands are mentioned, the universal design allows for broad compatibility.

Wie beeinflussen die technischen Werte den Klang des S2-A60.4?

The technical values of the Ai-Sonic S2-A60.4 significantly influence the sound. A THD value of less than 0.02% at 4 ohms guarantees minimal distortion, while the signal-to-noise ratio of >105dB ensures clear audio output. The input sensitivity of 0.5-6V allows for adjustment to various source devices. Additionally, the frequency range of 10Hz to 40kHz provides a comprehensive bandwidth that accurately reproduces both low and high frequencies, resulting in a full and detailed sound image that satisfies even discerning listeners.

Was zeichnet das Finish des Ai-Sonic S2-A60.4 aus?

The Ai-Sonic S2-A60.4 impresses with its high-quality finish, made of brushed black aluminum and equipped with dark covers. This choice of material not only gives the amplifier an elegant appearance but also a robust construction that withstands daily demands. The illuminated Ai-Sonic logo on the surface serves as a visual status symbol that emphasizes the exclusive character of the amplifier. These design aspects ensure that the amplifier is both functional and aesthetically pleasing, seamlessly integrating into various vehicle interiors.

Welche Anpassungsmöglichkeiten bietet der Ai-Sonic S2-A60.4 für den Bass?

The Ai-Sonic S2-A60.4 offers targeted bass adjustment with a bass boost of 0 or 6 dB at 45 Hz. This feature allows for individual adjustment of the bass level to personal preferences or the acoustic conditions in the car. Additionally, a separate bass controller can be purchased, allowing for even more differentiated settings. With the versatile bandpass filter from 12 Hz to 5 kHz, frequencies can also be precisely adjusted to achieve the ideal bass reproduction. These features provide significant added value, especially for bass enthusiasts.
