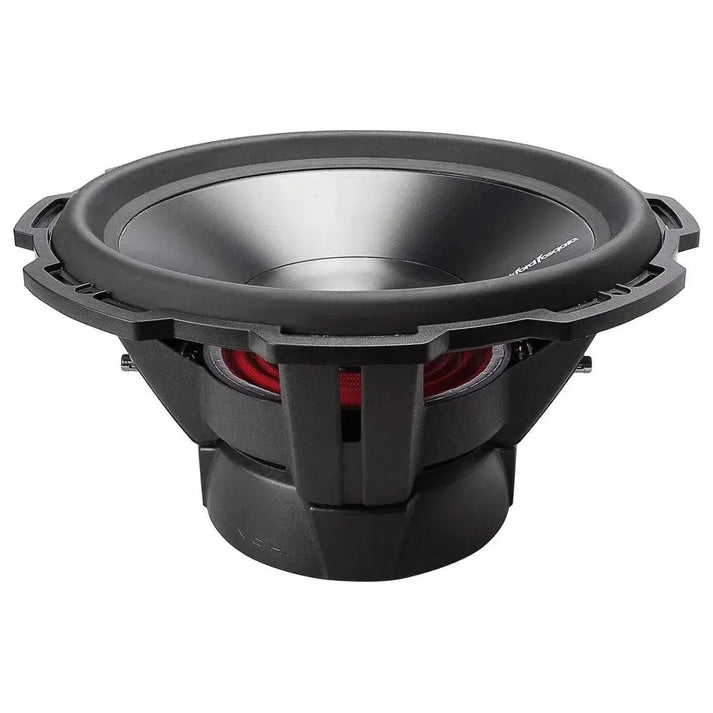

Rockford Fosgate Punch P3D2-15 / P3D4-15 15" (38cm) Subwoofer
SKU:  P3D2-15
EAN:  4251950323442
600 Watt

Punch P3D2-15 / P3D4-15

SKU:  P3D2-15
EAN:  4251950323442

Technical Highlights

  • Max power 1200 watts, RMS 600 watts, double voice coil.
  • D2 Dual 2-Ohm, D4 Dual 4-Ohm, Xmax 15.2mm/15.9mm.
  • Anodized aluminum cone, 15", Vas 155.8 L.
  • More technical details
€399,00
€399,00 €399,00
5% discount with credit card
inkl. VAT , possibly plus shipping
Impedance: D2 (2x2 Ohm)
Delivery
Jun 5, - Jun 8,
x piece
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €33,25 with Klarna .

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours
Sundown AudioZv7 15
Sundown Audio-Zv7 15-15" (38cm) Subwoofer-masori-kaufen
Side view of the Ground Zero Nuclear GZNW 38NEO-SPL, a large black and yellow 15 SPL subwoofer with aluminum cast frame and exposed wiring.
Ground ZeroNuclear GZNW 38NEO-SPL
Rockford Fosgate-Punch P3D2-15 / P3D4-15-15" (38cm) Subwoofer-masori-kaufen
€399,00
€399,00 €399,00

Punch P3D2-15 / P3D4-15 by Rockford Fosgate

Rockford Fosgate Punch P3D2-15 / P3D4-15 is a 15 inch (381 mm) Subwoofer from the Punch P3 series. Anodized aluminum cone and dust cap, a unique spider ventilation, VAST technology to increase the diaphragm area by up to 25%, a FlexFit basket, and a hybrid stamped basket are among the construction features. The nominal power handling is 600 watts RMS, with a maximum power of 1,200 watts. The mounting depth is 192.5 mm, the cutout diameter is 353 mm, the displacement is 4.2 liters, and the voice coil diameter is 65.5 mm. Available as D2 (2x2 Ohm) and D4 (2x4 Ohm) with dual voice coil. Additional details include custom 4 mm² nickel-plated push terminals, rubberized overmolding, extended pole shoe, compact and ventilated back plate, protective textured PVC magnet cover, diamond-cut trim ring made of aluminum die-cast with optional grille, as well as a StampCast basket with integrated spider ventilation. Specific parameters include Fs 21.7 Hz or 22.4 Hz, Vas 155.8 liters, SPL 86 dB @ 1 W/1 m, Xmax up to 15.9 mm, and Sd 894 cm². The shipping weight is 10.5 kg, and the magnet weight is 2.73 kg.

Features
  • 15 inch (381 mm) Subwoofer
  • RMS power 600 watts
  • Maximum power 1,200 watts
  • Anodized aluminum cone and dust cap
  • Unique spider ventilation
  • VAST technology to increase the diaphragm area by up to 25%
  • FlexFit basket
  • Hybrid stamped basket
  • StampCast basket with integrated spider ventilation
  • Custom 4 mm² nickel-plated push terminals
  • Rubberized overmolding
  • Extended pole shoe and compact, ventilated back plate
  • High-temperature voice coil with spun Nomex reinforcement collar
  • Protective, textured PVC magnet cover
  • Diamond-cut trim ring made of aluminum die-cast, optional grille
  • Available in D2 (2x2 Ohm) and D4 (2x4 Ohm)
  • Mounting depth 192.5 mm
  • Cutout diameter 353 mm
  • Voice coil diameter 65.5 mm
  • Displacement of the woofer 4.2 liters
  • Magnet weight 2.73 kg
  • Shipping weight 10.5 kg
Technical specifications
  • D2 (2x2 Ohm) variant:
    • Nominal impedance dual 2 Ohm
    • Voice coil type dual voice coil
    • Fs 21.7 Hz
    • Qts 0.54
    • Qes 0.58
    • Qms 7.20
    • Vas 155.8 liters
    • Le 4.06 mH
    • Re 3.20 Ohm
    • SPL 86 dB @ 1 W/1 m
    • Xmax 15.2 mm
    • Sd 894 cm²
    • Bass reflex enclosure volume (Vb) 75.3 liters
    • Closed enclosure volume (Vb) 44.7 liters
  • D4 (2x4 Ohm) variant:
    • Nominal impedance dual 4 Ohm
    • Voice coil type dual voice coil
    • Fs 22.4 Hz
    • Qts 0.57
    • Qes 0.64
    • Qms 4.90
    • Vas 155.8 liters
    • Le 6.45 mH
    • Re 6.40 Ohm
    • SPL 86 dB @ 1 W/1 m
    • Xmax 15.9 mm
    • Sd 894 cm²
    • Bass reflex enclosure volume (Vb) 75.3 liters
    • Closed enclosure volume (Vb) 44.7 liters

Your benefits at Masori

Frequently Asked Questions about Punch P3D2-15 / P3D4-15

What are the main technical features of the Rockford Fosgate Punch P3D2-15 Subwoofer?

The Rockford Fosgate Punch P3D2-15 Subwoofer is a 15-inch (38 cm) model from the powerful Punch series. It features an anodized aluminum cone and a matching dust cap that provide durability and rigidity. The mounting depth is 192.5 mm, while the cutout diameter is 353 mm. Thanks to VAST technology, the diaphragm area is increased by up to 25%. The voice coils have a diameter of 65.5 mm and are available in dual 2-ohm configurations. Additional features include custom 4 mm² nickel-plated push terminals and vibration damping through the stamped, vented hybrid stamped basket.

What is the power handling of the Rockford Fosgate P3D2-15 Subwoofer?

The Rockford Fosgate P3D2-15 Subwoofer has an impressive maximum power handling of 1200 watts, while the RMS power handling is 600 watts. This allows it to deliver excellent sound quality at high power levels. The subwoofer is specifically designed for demanding applications where strong bass performance is required. The optimized voice coil with spun Nomex® reinforcement collar ensures high temperature resistance, which is crucial for consistent performance under extreme conditions. The combination of these features provides reliable and powerful audio performance.

How do the Thiele-Small parameters of the Punch P3D2-15 affect performance?

The Thiele-Small parameters of the Rockford Fosgate Punch P3D2-15 include a Qts value of 0.54, Qes of 0.58, and Qms of 7.20. The Vas is 155.8 liters and the resonance frequency (Fs) is 21.7 Hz. The high SPL value of 86 dB @ 1w/1m indicates the efficiency of the subwoofer, while the Xmax of 15.2 mm allows for significant diaphragm displacement, resulting in deep and powerful bass. These parameters are responsible for the high precision and impactful bass that the subwoofer delivers even in demanding audio systems.

What are the mounting depth requirements for the Punch P3D2-15?

The installation depth of the Punch P3D2-15 is 192.5 mm, which must be taken into account during installation. Its cutout diameter is 353 mm, so there should be adequate space in the enclosure or installation location. Due to the size of 15 inches (38 cm), the available space in the vehicle should be generously sized. This Subwoofer is ideal for users who desire deep and powerful bass in their audio system; however, precise planning of the installation position is critical to ensure full performance and functionality.

What distinguishes the VAST technology in the Rockford Fosgate Punch P3D2-15?

The VAST technology (Vertical Attach Surround Technique) of the Rockford Fosgate Punch P3D2-15 increases the diaphragm area by up to 25%. This is achieved through a special design of the diaphragm edge, which allows for better efficiency and higher sound density. With this technology, the Subwoofer can produce a stronger and more voluminous bass without changing the installation size. This feature is particularly advantageous when maximum sound volume is sought in a limited vehicle space. The innovative spider ventilation also contributes to the efficiency and longevity of the system.

What advantages does the hybrid stamped basket of the P3D2-15 offer?

The hybrid stamped basket of the Punch P3D2-15 plays a key role. It combines the strength of cast metal with the weight and resonance minimization of stamped materials. This combination ensures a stable suspension of the diaphragm and reduces distortions that could arise from vibrations. The integrated spider ventilation also improves motor cooling, which enhances the performance and longevity of the Subwoofer. Particularly at high volumes and in demanding environments, this innovative basket demonstrates its effectiveness through even sound distribution and high load capacity.

How does the D2 variant differ from the D4 variant of the Punch P3D2-15?

The main difference between the D2 and D4 variants of the Punch P3D2-15 lies in the nominal impedance of the voice coils: The D2 version has dual 2-ohm voice coils, while the D4 version offers dual 4-ohm voice coils. Both variants use the same 15-inch diaphragm size and aluminum components. The D2 version has a slightly lower inductance (Le) of 4.06 mH compared to 6.45 mH of the D4 version. These differences are crucial as they provide the ability to adapt the Subwoofer to different amplifier configurations, depending on the desired sound profile and setup.

What enclosure volumes are optimal for the Punch P3D2-15?

For optimal performance of the Rockford Fosgate Punch P3D2-15, enclosures with specific volumes are used: A bass reflex enclosure with a volume of 75.3 liters ensures deep bass and high efficiency, while a sealed enclosure with a volume of 44.7 liters allows for more precise sound reproduction with tight bass. These volume recommendations help the Subwoofer deliver a balanced sound profile according to the user's preferences. For both types of enclosures, attention must be paid to good sealing and proper insulation to avoid unwanted resonances.

What is the maximum displacement (Xmax) of the Punch P3D2-15 Subwoofer?

The maximum displacement (Xmax) of the Punch P3D2-15 Subwoofer is 15.2 mm for the D2 variant and 15.9 mm for the D4 variant. These displacement values are crucial for producing deep and powerful bass notes without causing distortion. They also indicate how far the Subwoofer can operate at maximum without damage. The high Xmax supports the Subwoofer's ability to move large volumes of air, resulting in deep and resonance-free bass at high volume.

How does the spider ventilation work in the Rockford Fosgate Punch P3D2-15?

The spider ventilation in the Rockford Fosgate Punch P3D2-15 is an innovative feature designed for cooling the Subwoofer motor. This special ventilation improves air circulation within the basket, optimizing the cooling of the motor even during long and intense sessions. This is particularly important for reducing thermal stress and increasing the reliability of the Subwoofer. The ventilation helps maintain performance even at high volume, thus enabling consistent and durable bass reproduction in any application.
