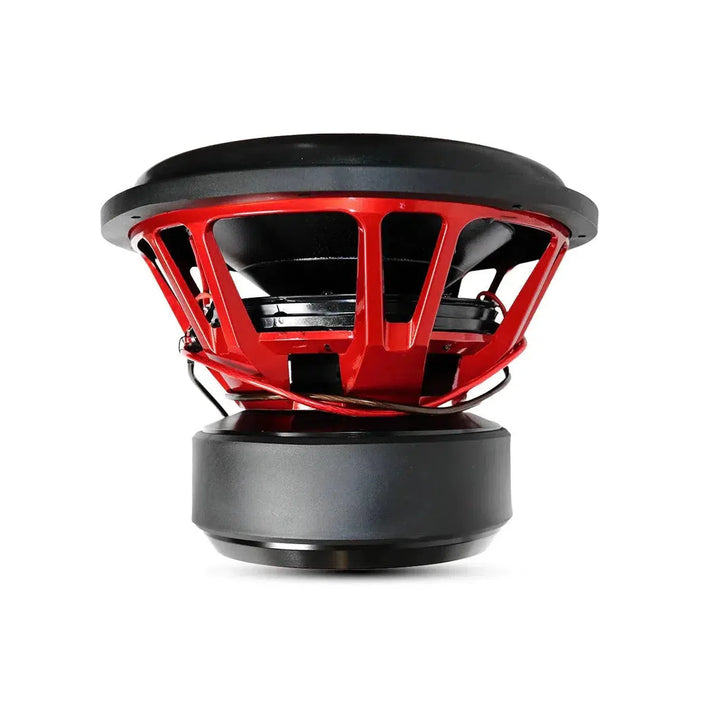

Audio System Italy ASX-15 15" (38cm) Subwoofer

Name: Audio System Italy ASX-15 15 Inch Subwoofer | Masori
Brand: Audio System Italy
Price: 1099.0 EUR
Availability: InStock

Max, Mikael and 53k+ customers already with Masori sound upgrade

Audio System Italy ASX-15 15" (38cm) Subwoofer

3500W RMS power, 2+2 Ohm impedance, SPL 86 dB 1W/m.
Carbon membrane, cast aluminum basket, ventilated air gap.
Installation depth 244mm, diameter 394mm, weight 32kg.
Mehr technische Details

€1.099,00

~~€1.099,00~~ €1.099,00

5% Rabatt mit Vorkasse

inkl. VAT , possibly plus shipping

Bequem in 12 zinsfreien Raten à €91,58 mit Klarna zahlen.

Jetzt mit kostenlosem Versand ab 50€!

Shipping cost calculator

Land/Region

PLZ

Garantie & zusätzlicher Geräteschutz für dein HiFi-System

3 Jahre Masori Garantie Kostenlos 48 Monate Plusgarantie €124,99 60 Monate Plusgarantie Am beliebtesten €149,99

Deshalb wählen uns 100.000+ Kunden

3 Jahre Garantie

Sicher & sorglos
Blitzversand

mit DHL Express
Tiefpreisschutz

Nie zu viel zahlen

Rob

Max

Unsicher, ob dieses Produkt zu deinem Auto passt?

Wir helfen dir – schnell, persönlich und unverbindlich.

Antwort on weekdays within 24h

Reiss AudioRS-VQ15

Rockford FosgatePunch P2D2-15 / P2D4-15

ASX-15 by Audio System Italy

The ASX-15 15-inch subwoofer from Audio System Italy is an advanced subwoofer that redefines sound with its impressive 3500W RMS. Equipped with a carbon diaphragm and an aluminum die-cast basket, it offers an unforgettable listening experience thanks to its ventilated air gap and pole core vent. With an exceptional SPL of 86 dB 1W/m and a frequency rating of 30 Hz, the ASX-15 delivers unique sounds. Note its impressive installation depth of 244mm and its recommendation for an enclosure of more than 100 liters. Its weight of 32kg and a diameter of 394mm attest to its robust construction.

Technical Data

15 inch 38cm SPL subwoofer 2+2 Ohm
3500W RMS
Fo: 30 Hz
QMS: 3.83
QES: 0.45
QTS: 0.40
VAS: 47L
SPL: 86 dB 1W/m
Re: 2+2 Ohm
Xmax: +/-21mm
100mm voice coil
Aluminum die-cast basket
Carbon diaphragm
Ventilated air gap, pole core vent
Outer diameter 394mm
ED: 353mm
Installation depth: 244mm
32kg!
Enclosure recommendation: Bass reflex: from 100 liters

Frequent questions about ASX-15

Welche Leistung hat der ASX-15 Subwoofer von Audio System Italy?

The ASX-15 subwoofer from Audio System Italy impresses with an impressive continuous power of 3500W RMS. This high-grade power allows for a vivid experience of deep bass. With a carbon membrane and a robust aluminum die-cast basket, it creates a strong sound backdrop that eliminates distortion pain. Especially if you enjoy listening to music loudly, this power ensures that the sound remains clean. The SPL (Sound Pressure Level) of the ASX-15 is 86 dB 1W/m, which allows for efficient volume development. The frequency-specific design suits a wide music repertoire with a resonance frequency of 30 Hz. This makes it perfect for sound enthusiasts seeking performance and precision.

Welche Membran- und Korbmaterialien werden im ASX-15 verwendet?

In the ASX-15 from Audio System Italy, a carbon membrane is used, known for its strength and lightness. This membrane allows for fast and precise movements without distortion, while also withstanding extreme loads. The aluminum die-cast basket complements the membrane with its robust structure, which minimizes vibrations and ensures a stable attachment. The combination of these high-quality materials significantly contributes to the overall performance and sound quality of the subwoofer. The materials used are optimally coordinated and enable consistent and reliable performance, which is of great importance to audiophiles.

Welche Abmessungen hat der ASX-15 und worauf muss ich bei der Installation achten?

The ASX-15 subwoofer has an outer diameter of 394mm and a mounting depth of 244mm. These specifications are crucial for correctly integrating the subwoofer into the enclosure or vehicle space. When installing, one should also consider the weight of 32 kg, which requires a stable mounting. It is also important to note the recommended enclosure volume of at least 100 liters in a bass reflex design, so that the subwoofer can fully unleash its sound potential. Therefore, the exact installation position, the statics of the installation, and the resonance characteristics should be carefully planned and implemented to ensure the best possible sound quality.

Welche Rolle spielen die Thiele-Small-Parameter beim ASX-15 Subwoofer?

The Thiele-Small parameters of the ASX-15, including QMS (3.83), QES (0.45), QTS (0.40), and VAS (47L), are crucial for predicting the acoustic behavior within a cabinet. QTS combines mechanical and electrical damping factors, essential for cabinet design. The QMS value indicates the mechanical Q-factor damping, while QES represents the electrical damping. A low QES value improves the efficiency of low-frequency reproduction. The VAS value determines the compression volume that is reproduced and is directly related to cabinet dimensions. These parameters help ensure the best cabinet fit and optimize bass reproduction.

Welche Frequenzcharakteristika bietet der ASX-15 Subwoofer?

The ASX-15 offers a resonance frequency of 30 Hz, which allows for excellent reproduction of low tones. This frequency specification is crucial when it comes to the definition and clarity of bass reproduction. Users can rely on the precision and depth of the bass, which is often required in bass-heavy music genres. Such a resonance frequency is particularly well-suited for a wide range of music repertoire, from classical to rock and electronic music, and is also beneficial in films for impressive sound effects. To achieve optimal sound, the right enclosure choice is important to fully utilize the frequency characteristics.

Wie beeinflusst der belüftete Luftspalt des ASX-15 die Klangqualität?

The ventilated air gap of the ASX-15 plays a crucial role in controlling the temperature of the voice coil, which reduces heat generation under high load. This design prevents distortions and performance drops that could arise from overheating. Thanks to the ventilation mechanisms, the subwoofer remains stable at the highest performance level even during intense use. This feature increases the lifespan of the device and allows for optimal utilization of the impressive 3500W RMS power. The ventilated air gap ensures uniform air circulation, which also improves linearity and response speed in sound production.

Was bedeutet die SPL Angabe von 86 dB 1W/m beim ASX-15?

The SPL (Sound Pressure Level) specification of 86 dB 1W/m for the ASX-15 is a measure of the efficiency in converting electrical energy into sound energy. This value provides insight into how loud the subwoofer sounds with one watt of power at a distance of one meter. An SPL of 86 dB indicates that the ASX-15 is capable of producing a strong sound intensity with relatively small power amplifiers. This SPL specification is important for assessing performance in various applications and significantly influences the overall dynamics of the sound system, especially in vehicles or small rooms.

Wie wirkt sich die Schwingspulen-Konfiguration des ASX-15 auf die Leistung aus?

The ASX-15 uses a 100mm voice coil with a configuration of 2+2 ohms, providing flexibility when connecting to different amplifiers. This arrangement allows for series or parallel wiring to meet different impedance requirements, which in practice means that the amplifier's output power can be optimally adjusted. A larger voice coil also means more thermal capacity, which supports cooling at high power levels and stabilizes operation at maximum power. This advanced voice coil technology improves bass quality and ensures clearer sound reproduction, even at high volumes.

Welche Gehäuseempfehlung gibt es für den ASX-15 Subwoofer?

For the ASX-15 subwoofer, Audio System Italy recommends a bass reflex enclosure with a volume of at least 100 liters. This enclosure design allows the subwoofer to efficiently utilize the air pressure inside to powerfully amplify low frequencies. The correct enclosure volume significantly influences bass reproduction, as it helps to tune the resonance frequency and achieve the best possible sound quality. By adhering to these enclosure specifications, an ideal soundstage is created, which demonstrates impressive performance both in enclosed spaces and open environments. This maximizes the full potential of the subwoofer.

Wie sieht es mit der Kompatibilität des ASX-15 mit Fahrzeugen aus?

The ASX-15 subwoofer fits in many vehicles as long as there is enough space. With an outer diameter of 394mm and a mounting depth of 244mm, installation requires both precise planning and sufficient room for a housing volume of over 100 liters in a bass reflex format. Vehicles with a spacious trunk or specially adapted car hi-fi setups are ideally suited. Installation can be easier if the available space in the car is optimally utilized, thereby achieving maximum sound performance. The overall vehicle acoustics should also be considered during installation to achieve the best performance.
