  3. Xcelsia Competition XXM650
Xcelsus Xcelsia Competition XXM650 6.5" (16,5cm) Mid-Woofer
SKU:  XXM650
150 Watt

Xcelsia Competition XXM650

SKU:  XXM650

Technical Highlights

  • Power 150 watts RMS, impedance 4 ohms, frequency 55-6000 Hz.
  • 6.5 inch diameter, carbon fiber blend cone.
  • Installation diameter 139 mm, outer diameter 165 mm, 2'' voice coil.
  • More technical details
00 d
00 h
00 m
00 s
€371,52
-6% €396,90 €371,52
5% discount with credit card
inkl. VAT , possibly plus shipping
Delivery
Jun 2, - Jun 7,
x pair
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €30,96 with Klarna .

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours

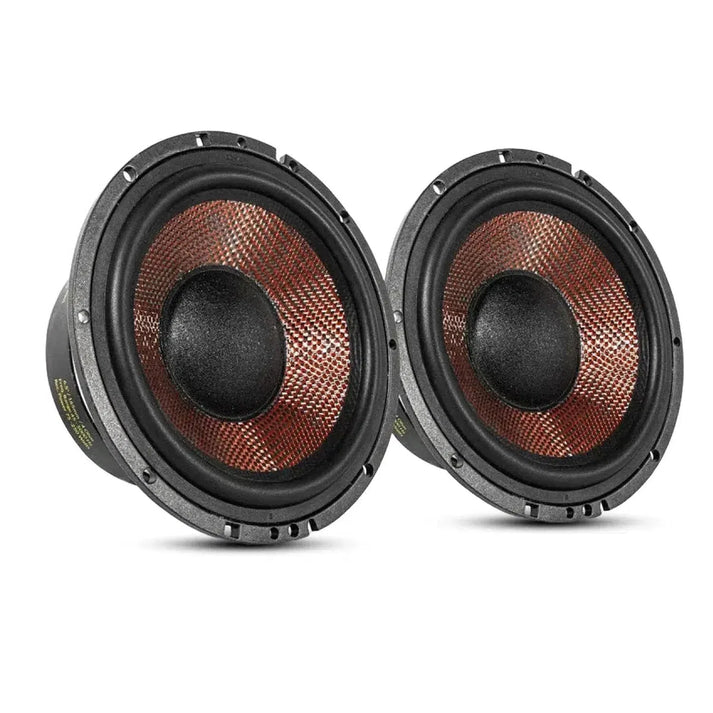

Two round, black Xcelsus Xcelsia Competition XXM650 car speakers with 6.5 woofers and carbon-glass fiber cones, angled towards each other on a white background.
€371,52
€396,90 €371,52

Xcelsia Competition XXM650 by Xcelsus

The Xcelsia Competition XXM650 is a 6.5 inch (16.5 cm) mid-bass driver from Xcelsus. It features a 2 inch (50.8 mm) voice coil and operates in the frequency range of 55 to 6000 Hz. The diaphragm is made from a composite of carbon and fiberglass. The power handling is 150 Watts RMS and 300 Watts MAX at 4 Ohms. The outer diameter is 165 mm, and the cutout diameter is 139 mm. Other specifications include Fs 57.27 Hz, Vas 11.945 liters, Qts 0.591, Qes 0.627, Qms 10.387, as well as Mmd 13.463 and Mms 14.264.

Features
  • 6.5 inch (16.5 cm) mid-bass driver
  • Diaphragm: Carbon-fiberglass composite
  • Voice coil: 50.8 mm (2 inch)
  • Power handling RMS: 150 Watts
  • Power handling MAX: 300 Watts
  • Impedance: 4 Ohms
  • Frequency range: 55–6000 Hz
  • Outer diameter: 165 mm
  • Cutout diameter: 139 mm
Technical Specifications
  • Fs: 57.27 Hz
  • Vas: 11.945 liters
  • Qts: 0.591
  • Qes: 0.627
  • Qms: 10.387
  • Mmd: 13.463
  • Mms: 14.264

Your benefits at Masori

Frequently Asked Questions about Xcelsia Competition XXM650

What technical features does the Xcelsia Competition XXM650 offer?

The Xcelsia Competition XXM650 features a 6.5" mid-bass driver with a 2'' voice coil. It has a power handling capacity of 150 Watts RMS and 300 Watts MAX. The frequency range is between 55 and 6000 Hz with an impedance of 4 Ohms. The cutout diameter is 139 mm, while the outer diameter measures 165 mm. The cone is made from a carbon-fiber composite for excellent sound. Other parameters include Mmd 13.463, Mms 14.264, Fs 57.27 Hz, Vas 11.945 liters, as well as Qts 0.591, Qes 0.627, Qms 10.387.

How does the cone of the Xcelsia Competition XXM650 differ from others?

The cone of the Xcelsia Competition XXM650 is made from an innovative blend of carbon and fiberglass, allowing for exceptional clarity and precision of sound. This material combination not only enhances sound quality but also improves the stiffness and durability of the cone, leading to better control of frequency radiation. Compared to traditional paper or plastic cones, the carbon-fiberglass cone offers a significant optimization in terms of detail fidelity and high-frequency resolution, which is particularly beneficial for music rich in acoustic details.

What is the RMS power of the Xcelsia Competition XXM650?

The Xcelsia Competition XXM650 has an RMS power handling capacity of 150 Watts. This continuous power capacity ensures reliable sound reproduction over extended periods without overheating or distortion. Especially if you enjoy listening to music at high volumes, the RMS power provides a consistent and robust audio experience. The performance in the RMS range is crucial for long-term sound quality and guarantees that the speaker maintains the demanded levels even under intense use.

In which frequency range does the Xcelsia Competition XXM650 operate?

The Xcelsia Competition XXM650 midrange driver operates in a frequency range of 55 to 6000 Hz. This range is optimal for a 2-way system, as it confidently covers deep mids and highs. The broad frequency range ensures harmonious reproduction of various music genres. Especially if you are an audio enthusiast, you will appreciate the ability to cover both bass and distinct mids as well as certain highs. This leads to a cohesive sound experience that supports both musical nuances and rich bass lines.

What are the installation requirements for the Xcelsia Competition XXM650?

The installation requirements for the Xcelsia Competition XXM650 include a mounting diameter of 139 mm and an outer diameter of 165 mm. Precision is important during installation to ensure optimal acoustics. In vehicles where these dimensions fit, the speaker can be easily integrated. The exact installation is crucial for acoustic performance and minimizes vibrations. Additionally, regarding the impedance of 4 ohms, the sound system should be matched to achieve the best sound results.

What is the size of the voice coil of the Xcelsia Competition XXM650 and what does that mean?

The voice coil of the Xcelsia Competition XXM650 is 2 inches in size. This size allows for improved control of the diaphragm movement and contributes to excellent sound reproduction at higher power levels. The larger voice coil also supports more effective cooling of the speaker and increases its durability. This is particularly advantageous if you want to use the speaker in power-intensive audio applications. A larger voice coil also means more stable handling of strong audio signals, resulting in less distortion and more precise vibrations.

What Thiele-Small parameters does the Xcelsia Competition XXM650 have?

The Xcelsia Competition XXM650 features specific Thiele-Small parameters such as Mmd 13.463, Mms 14.264, Fs 57.27 Hz, Vas 11.945 liters, Qts 0.591, Qes 0.627, and Qms 10.387. These parameters are crucial for determining the sound reproduction characteristics of the speaker. They help you simulate and optimize the speaker's behavior in different enclosures. For example, Fs determines the resonance frequency, while the Q factors measure the electrical, mechanical, and overall quality. Vas indicates the equivalent air suspension volume, essential for enclosure design.

What impedance does the Xcelsia Competition XXM650 have?

The Xcelsia Competition XXM650 has an impedance of 4 ohms. This impedance is common and compatible with many standardized car audio amplifiers and systems. The 4-ohm impedance allows for efficient power transfer, contributing to improved sound clarity and optimizing the overall performance of the system. When using an amplifier, it is important to select or tune it in accordance with the speaker impedance to achieve peak performance without distortion and to fully utilize the sound potential.

What is the maximum power handling of the Xcelsia Competition XXM650?

The Xcelsia Competition XXM650 has a maximum power handling of 300 watts. This power handling indicates the peak value the speaker can process for a short time without damage. Especially for dynamic music passages that temporarily require higher energy, the maximum power handling provides enough headroom. This ensures that even at high volumes, the music playback remains detailed and distortion-free. When operating speakers in a high-output system, the maximum power handling is a crucial factor in avoiding overload.

What are the application possibilities for the Xcelsia Competition XXM650?

The Xcelsia Competition XXM650 is suitable for use in high-quality 2-way systems, as its frequency range of 55 to 6000 Hz is optimal for mid-bass reproduction. Its robust construction with a 2'' voice coil and a nominal impedance of 4 ohms is suitable for versatile installation options, both in car audio installations and home audio systems. With its carbon-fiber cone construction, the speaker is particularly well-suited for environments where outstanding audio quality and durability are a priority.
