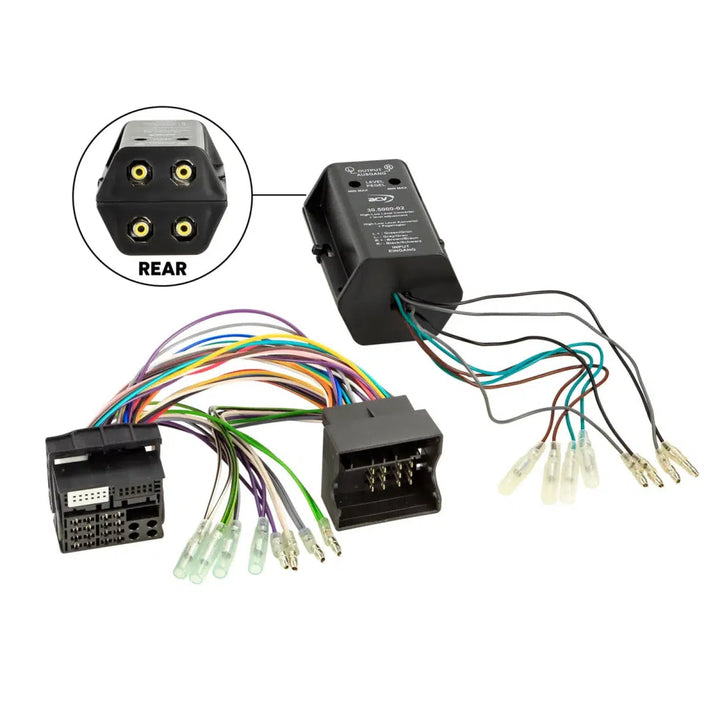

T-cable Quadlock/High-Low adapter by ACV Description

The ACV T-Cable Quadlock/High-Low Adapter is a T-Adapter with connection via 40 Pin (m/f) Quadlock. Connections for speakers as loose cables Asia as well as High-Low Adapter 2-channel galvanically as loose cables Asia > RCA(f). Includes 2 x High-Low Adapter 2-channel galvanically (Item 30.5000-02). T-cable sets allow tapping of the power and/or speaker wiring from the vehicle-side radio wiring harness. Reversible integration into the vehicle-specific radio connection wiring harness. In vehicles with factory-installed active sound systems, only limited or no use is possible. Optional: Amp Remote Relay electronic 2V-12V/1.5A max (40-AD-REMOTE).

Features
  • T-Adapter
  • Manufacturer: ACV
  • Connection: 40 Pin (m/f) Quadlock
  • Connection: Speaker loose cables Asia
  • Connection: High-Low Adapter 2-channel galvanically, loose cables Asia > RCA(f)
  • Includes: 2 x High-Low Adapter 2-channel galvanically (Item: 30.5000-02)
  • Reversible integration into the vehicle-specific radio connection wiring harness
  • Optional: Amp Remote Relay electronic 2V-12V/1.5A max (40-AD-REMOTE)
Technical Data
  • Notes
    • In vehicles with factory-installed active sound systems, T-cable sets can only be used to a limited extent or not at all.
    • Vehicles without OEM device with digital amplifier
    • Vehicles without OEM device with impedance monitoring
    • Vehicles Mercedes with Audio 20 2-DIN OEM device
    • Vehicles Mercedes with Audio 50 APS Comand NTG2.5 OEM Navigation
    • Vehicles Mercedes Sprinter (W907/W910) with radio preparation / with Browse 1-DIN OEM device
    • Vehicles Mercedes Citan 420 (W420) with radio preparation / with Browse 1-DIN OEM device
  • Suitable for the following vehicles
    • Audi
      • Audi A1 2010 - 2019*
      • Audi A3 2003 - 2013
      • Audi A4 2000 - 2009
      • Audi A5 2007 - 2010
      • Audi R8 2007 - 2015
      • Audi Q5 2008 - 2016
      • Audi TT 2006 - 2014
    • BMW
      • BMW 1 Series (E81/E82/E87/E88) 03/2004 - 10/2013
      • BMW 3 Series (E46) 07/1998 - 02/2007*
      • BMW 3 Series (E90/E91/E92/E93) 03/2005 - 10/2013
      • BMW 5 Series (E39) 09/2000 - 05/2004*
      • BMW 5 Series (E60/E61) 07/2003 - 07/2010
      • BMW 6 Series (E63/E64) 09/2004 - 11/2010
      • BMW 7 Series (E65/E66) 08/2001 - 11/2008
      • BMW X3 (E83) 02/2004 - 08/2010
      • BMW X5 (E53) 03/2000 - 11/2006
      • BMW Z4 (E85) 03/2002 - 08/2008
      • BMW Z4 (E89) 09/2008 - 08/2016
      • BMW X1 (E84) 10/2009 - 06/2015
      • BMW X5 (E70) 03/2007 - 09/2013
      • BMW X6 (E71/E72) 05/2008 - 06/2014
      • BMW Mini (R50/R53) 06/2001 - 11/2006
      • BMW Mini (R52) 07/2004 - 08/2008
      • BMW Mini (R55/R56/R57/R58/R59) 11/2006 - 05/2015
    • Citroën
      • Citroën C1 (1G) 2012 - 6/2014
      • Citroën C2 2005 - 2010
      • Citroën C3 2005 - 2016
      • Citroën C4 2004 -2010
      • Citroën C5 09/2004 - 2008
      • Citroën C6 9/2004 - 2012
      • Citroën C8 2008 - 2014
      • Citroën Berlingo II 2008 - 2018
      • Citroën DS3 2010 - 2016
      • Citroën DS4 2011 - 2015
      • Citroën Jumpy 2007 - 2016
    • Fiat
      • Fiat Scudo (IIGen) 2007 - 2016
    • Ford
      • Ford C-Max (DM2) 2003 - 09/2010
      • Ford Fiesta (JH1/JD3) 10/2005 - 09/2008
      • Ford Focus (DA3) 11/2004 - 11/2010
      • Ford Fusion (JU2) 10/2005 - 07/2012
      • Ford Galaxy (WA6) 03/2006 - 05/2015
      • Ford Kuga (DM2) 06/2008 - 12/2012
      • Ford Mondeo (B4Y/B5Y/BWY/BA7) 06/2003 - 08/2014
      • Ford S-Max (WA6) 06/2006 - 05/2015
      • Ford Transit 07/2006 - 03/2014
      • Ford Transit Connect (PH2) 06/2006 - 07/2013
    • MAN
      • MAN TGA 2007 -2020*
      • MAN TGL 2007 - 2020*
      • MAN TGM 2007 -2020*
      • MAN TGS 2007 - 2020*
      • MAN TGX 2007 - 2020*
    • Mercedes
      • Mercedes A-Class (C169/W169) 10/2004 - 04/2008
      • Mercedes A-Class (C169/W169) 06/2008 - 06/2012
      • Mercedes B-Class (T245) 07/2005 - 04/2008
      • Mercedes B-Class (T245) 04/2008 - 09/2011
      • Mercedes C-Class (CL203/S203/W203) 02/2004 - 09/2007
      • Mercedes C-Class (C204/S204/W204) 08/2007 - 01/2011
      • Mercedes C-Class (C204/S204/W204) 03/2011 - 10/2015
      • Mercedes Citan 420 (W420) 10/2021 - 2023
      • Mercedes CLC-Class (CL203) 06/2008 - 02/2011
      • Mercedes CLK-Class (W209) 04/2005 - 01/2010
      • Mercedes CLS-Class (C219) 04/2008 - 09//2010
      • Mercedes E-Class (S211/W211) 03/2008 - 01/2009
      • Mercedes E-Class (A212/C212/S212/W204) 02/2009 - 03/2013
      • Mercedes G-Class (W463) 04/2007 - 06/2008
      • Mercedes G-Class (W164) 09/2008 - 06/2012
      • Mercedes GL-Class (X164) 09/2006 - 05/2009
      • Mercedes GL-Class (X164) 05/2009 - 07/2012
      • Mercedes M-Class (W164) 07/2005 - 04/2008
      • Mercedes M-Class (W164) 10/2008 - 07/2011
      • Mercedes ML (W164) 07/2005 - 04/2008
      • Mercedes ML (W164) 10/2008 - 07/2011
      • Mercedes R-Class (W251) 09/2005 - 05/2007
      • Mercedes R-Class (W251) 05/2007 - 05/2010
      • Mercedes SLK-Class (R171) 04/2008 -03/2011
      • Mercedes Sprinter (W906) 04/2006 - 08/2013
      • Mercedes Sprinter (W906) 08/2013 - 05/2018
      • Mercedes Sprinter (W907/W910) 06/2018 - 12/2020
      • Mercedes Sprinter (W907/W910) 11/2019 - 2023
      • Mercedes Vito/Viano (W639) 04/2006 - 08/2010
      • Mercedes Vito/Viano (W639) 09/2010 - 03/2014
      • Mercedes Vito (V447) 10/2014 - 02/2019
      • Mercedes Vito (V447) 05/2019 - 2023
    • Nissan
      • Nissan Primastar 2006 - 2010**
    • Opel
      • Opel Agila 2004 - 2007
      • Opel Antara 2006 - 2017
      • Opel Astra H 2004 - 2010
      • Opel Combo 2004 - 2011
      • Opel Corsa C/D 2004 - 2014
      • Opel Meriva A 2006 - 2010
      • Opel Signum 2005 - 2008
      • Opel Tigra Twin Top 2004 - 2009
      • Opel Vectra C 2004 - 2008
      • Opel Vivaro 2006 - 2010
      • Opel Zafira B 2005 - 2015
    • Peugeot
      • Peugeot 207 2006 - 2013
      • Peugeot 207CC 2007 - 2015
      • Peugeot 307 2005 - 2009
      • Peugeot 308 2009 -2013
      • Peugeot 407 2005 - 2011
      • Peugeot 807 2008 - 2014
      • Peugeot Expert 2007 -2016
      • Peugeot Partner 2008 - 2015
      • Peugeot RCZ 2010 - 2013
    • Porsche
      • Porsche 911 (977) 2008 - 2012
      • Porsche Boxster (987 Facelift) 2008 - 2012
      • Porsche Boxster (981) 2013 - 2016
      • Porsche Cayenne (9PA) 2007 - 05/2010
      • Porsche Cayenne (92A) 06/2010 - 2017
      • Porsche Cayman (987c) 2008 - 2013
      • Porsche Cayman (987c Facelift) 2013 - 2016
      • Porsche Panamera (970) 2009 - 2016
    • Renault
      • Renault Trafic 2006 - 2010**
    • Seat
      • Seat Alhambra 2010 - 2015
      • Seat Altea 2004 - 2015
      • Seat Exeo 2008 - 2013
      • Seat Ibiza 2008 - 2015
      • Seat Leon 2005 - 2012
      • Seat Mii 2011 - 2016***
      • Seat Toledo 2005 - 2016
    • Skoda
      • Skoda Citigo 2011 - 2016***
      • Skoda Fabia 2007 - 2014
      • Skoda Octavia II 2003 - 2013
      • Skoda Rapid 2012 - 2015
      • Skoda Roomster 2006 - 2015
      • Skoda Superb 2008 - 2015
      • Skoda Yeti 2009 - 2014
    • Toyota
      • Toyota Proace 2013 - 2016
      • Toyota Proace 2017 - 2021****
    • VW
      • VW Amarok 2010 - 2016
      • VW Beetle 2011 - 2016
      • VW Caddy 2003 - 2014
      • VW Caravelle 2003 - 2015***
      • VW CC 2010 - 2014
      • VW Crafter 2006 -2016
      • VW EOS 2006 - 2012
      • VW Fox 2005 - 2011
      • VW Golf 2003 - 2013
      • VW Jetta 2005 - 2015
      • VW Multivan 2003 -2015***
      • VW Passat 2005 - 2014
      • VW Polo 2005 - 2014
      • VW Phaeton (D1) 2007 - 2010
      • VW Scirocco 2008 - 2014
      • VW Sharan 2010 - 2014
      • VW T5 2003 - 2015**
      • VW T6 2015 - 2019*
      • VW Tiguan (5N) 2007 - 2016
      • VW Touran 2003 - 2015
      • VW Touareg 2003 - 2010***
      • VW UP 2011 - 2016***
  • Footnotes
    • *Vehicles with 40 Pin Quadlock
    • **Vehicles with CD30/MP3 OEM radio
    • ***Vehicles without sound system
    • ****Vehicles with RD6 OEM device

ACV T-cable Quadlock/High-Low adapter Datasheet
