  3. T cable Audi/Seat/Skoda/VW Quadlock

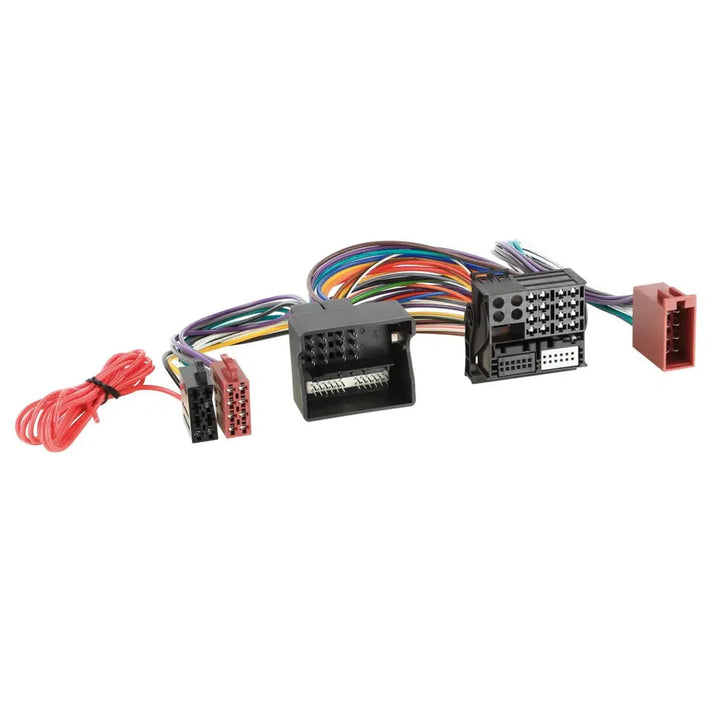

ACV T cable Audi/Seat/Skoda/VW Quadlock T-Adapter
SKU:  57-1324-02
EAN:  4026724335705

T cable Audi/Seat/Skoda/VW Quadlock

SKU:  57-1324-02
EAN:  4026724335705

Technical Highlights

  • 40 pin Quadlock connector, MQS insert fully occupied, for VAG models.
  • Installation of additional components, retrofittable wiring harness.
  • Red:+12V ignition, terminal 15 fused, not for active sound systems.
  • More technical details
€26,00
€26,00 €26,00
5% discount with credit card
inkl. VAT , possibly plus shipping
Delivery
Jun 19, - Jun 22,
at your door in 1–4 days This item isn't in stock right now. We'll ship it within the stated delivery time.
x piece
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa
Expert Image

Rob

Expert Image

Max

Avoid a bad purchase? We check your setup!

Rob & Max check your project: So you are guaranteed to get the maximum performance for your budget.

Response on weekdays within 24 hours

Your benefits at Masori
ACV-T Kabel Audi/Seat/Skoda/VW Quadlock-T-Adapter-masori-kaufen
€26,00
€26,00 €26,00

More power than T cable Audi/Seat/Skoda/VW Quadlock here!

Show all
  • A round black honeycomb mesh grille for the Deaf Bonce GDB-65 features faint EDB letters across its center.
    SALE -15%

    GDB-65

    €7,65
    €9,00 €7,65
    Delivery
    Delivered automatically as soon as available from the supplier.
  • Deaf Bonce-Apocalypse AP-X69A-6"x9" Koaxial-Lautsprecher-masori-kaufen
    200 Watt
    SALE -15%

    Apocalypse AP-X69A

    €127,50
    €150,00 €127,50
    Delivery
    Jun 22, - Jun 26,
  • Ai-Sonic-S2-C6.2-6.5" (16,5cm) Lautsprecherset-masori-kaufen
    90 Watt
    SALE -15%

    S2-C6.2

    €195,00
    €229,00 €195,00
    Delivery
    Jun 23, - Jun 28,
  • DD Audio-GR-MR Grill 5-8 Zoll-Lautsprechergitter-masori-kaufen
    SALE -17%

    GR-MR Grill 5-8 inch

    From €10,00
    €12,00 From €10,00
    In stock
    Jun 19, - Jun 20,
    2 ready to ship now This quantity is ready to ship immediately. If you order more, we'll deliver the additional quantity free of charge within the stated delivery time.
  • DD Audio-DC6.5a-6.5" (16,5cm) Lautsprecherset-masori-kaufen
    75 Watt
    SALE -15%

    DC6.5a

    €195,00
    €229,00 €195,00
    Delivery
    Jul 3, - Jul 8,
DSC01014_2

This could also look like this for you!

A speaker is only as good as its construction. While mass-produced products often sound flat, brands like DD Audio focus on precision and Deaf Bonce on uncompromising dynamics. We have filtered out the systems that technically get more out of your budget and open up a new league in sound quality for you.

Discover now

T cable Audi/Seat/Skoda/VW Quadlock by ACV Description

The cable T for Audi/Seat/Skoda/VW Quadlock is a T-Adapter from ACV. It allows access to the power and/or speaker wiring from the vehicle-side radio harness without damaging it or affecting the function of the factory radio. The installation of additional components such as hands-free systems, amplifiers, or high-low converters in the vehicle-specific radio connection harness is reversible. Connection via 40 Pin Quadlock (m/f) with VAG plug and fully populated MQS connector. The red wire carries +12V ignition terminal 15 and is fused. In vehicles with factory-installed active sound systems, only limited or no usability.

Features
  • T-Adapter
  • Connection: 40 Pin Quadlock (m/f), VAG plug, MQS connector fully populated
  • Access to the power and/or speaker wiring from the vehicle-side radio harness without damage and without affecting the function of the factory radio
  • Installation of additional components such as hands-free systems, amplifiers, or high-low converters in the vehicle-specific radio connection harness is reversible
  • red: +12V ignition terminal 15, fused
  • Note: In vehicles with factory-installed active sound systems, only limited or no usability
  • Vehicles Audi / Seat Exeo with 2-DIN OEM device
  • Compatible with Audi, Seat, Skoda, VW models according to the list
Technical data
  • Vehicle compatibility
    • Audi
      • Audi A1 (8X) 07/2010 - 11/2014*
      • Audi A1 (8X) 11/2014 - 04/2018*
      • Audi A3 (8P) 05/2003 - 04/2005
      • Audi A3 (8P) 10/2004 - 04/2013
      • Audi A4 (B6/8E) 11/2000 - 10/2005
      • Audi A4 (B7/8E) 11/2004 - 02/2009
      • Audi A5 (8T/8F) 06/2007 - 10/2011
      • Audi A6 (C5/B4) 05/2001 - 03/2006
      • Audi Q3 (8U) 10/2011 - 11/2014
      • Audi Q3 (8U) 02/2015 - 06/2018
      • Audi Q5 (8R) 09/2008 - 05/2012
      • Audi Q5 (8R) 09/2012 - 01/2017
      • Audi R8 (42) 04/2007 - 05/2015
      • Audi TT (8J) 04/2006 - 04/2010
      • Audi TT (8J) 08/2010 - 03/2014
    • Seat
      • Seat Alhambra (7N) 10/2010 - 04/2015
      • Seat Altea (5P) 06/2004 - 03/2009
      • Seat Altea (5P) 04/2009 - 07/2015
      • Seat Exeo (3R) 03/2009 - 05/2013
      • Seat Ibiza (6J) 06/2008 - 02/2012
      • Seat Ibiza (6J) 03/2012 - 06/2015
      • Seat Leon (1P) 09/2005 - 03/2009
      • Seat Leon (1P) 04-2009 - 11/2012
      • Seat Mii (AA) 12/2011 - 06/2019
      • Seat Toledo (5P) 01/2005 - 10/2009
      • Seat Toledo (NH) 03/2013 - 05/2015
    • Skoda
      • Skoda Citigo (AA) 06/2012 - 05/2017
      • Skoda Fabia (5J) 03/2007 - 04/2010
      • Skoda Fabia (5J) 06/2010 - 06/2014
      • Skoda Octavia (1Z) 06/2004 - 05/2009
      • Skoda Octavia (1Z) 01/2009 - 03/2013
      • Skoda Rapid (NH) 10/2012 - 04/2015
      • Skoda Roomster (5J) 09/2006 - 02/2015
      • Skoda Superb (3T) 07/2008 - 05/2013
      • Skoda Superb (3T) 06/2013 - 05/2015
      • Skoda Yeti (5L) 08/2009 - 10/2013
    • VW
      • VW Amarok (2H) 07/2010 - 08/2016
      • VW Beetle (16) 11/2011 - 06/2016
      • VW Caddy III (2K) 10/2003 - 08/2010
      • VW Caddy III (2K) 09/2010 - 04/2015
      • VW Caravelle (7H) 10/2004 - 09/2009
      • VW Caravelle (7H) 09/2009 - 05/2015
      • VW CC (3C/35) 06/2008 - 11/2011
      • VW CC (3C/35) 02/2012 - 08/2016
      • VW Eos (1F) 05/2006 - 10/2010
      • VW Eos (1F) 10/2010 - 04/2015
      • VW Fox (5Z) 04/2005 - 06/2011
      • VW Golf V (1K) 11/2003 - 09/2008
      • VW Golf V (1KM) 06/2007 - 10/2009
      • VW Golf V Plus (1KP) 01/2005 - 02/2009
      • VW Golf VI (1K) 11/2008 - 09/2012
      • VW Golf VI (1KM) 11/2009 - 04/2013
      • VW Golf VI Plus (1KP) 03/2009 - 01/2014
      • VW Jetta III (1K5/1KM) 09/2005 - 10/2010
      • VW Jetta IV (162) 01/2011 - 08/2014
      • VW Multivan (7H) 02/2003 -09/2009
      • VW Multivan (7H) 09/2009 - 05/2015
      • VW Passat B6 (3C2) 11/2005 - 07/2010
      • VW Passat B6 (3C5) 08/2005 - 07/2010
      • VW Passat B7 (3C/362) 11/2010 - 10/2014
      • VW Phaeton (3D) 05/2007 - 05/2010
      • VW Polo IV (9N) 03/2005 - 03/2009
      • VW Polo V (6R) 06/2009 - 01/2014
      • VW Scirocco III (13) 08/2008 - 04/2014
      • VW Sharan II (7N) 08/2010 - 04/2015
      • VW T5 Transporter (7H) 08/2003 - 09/2009
      • VW T5 Transporter (7H) 09/2009 - 05/2015
      • VW T6 (7HC) 07/2015 - 08/2019
      • VW Tiguan I (5N) 10/2007 - 02/2011
      • VW Tiguan I (5N) 06/2011 - 04/2016
      • VW Touareg I (7L) 06/2003 - 11/2006
      • VW Touareg I (7L) 11/2006 - 02/2010
      • VW Touran (1T) 01/2003 - 09/2006
      • VW Touran (1T) 11/2006 - 04/2010
      • VW Touran (1T) 08/2010 - 04/2015
      • VW UP! (AA) 12/2011 - 06/2016
  • *Vehicles with Chorus OEM device with monochrome display

Frequently Asked Questions about T cable Audi/Seat/Skoda/VW Quadlock

Which vehicles is the ACV T Cable Audi/Seat/Skoda/VW Quadlock suitable for?

The ACV T Cable Audi/Seat/Skoda/VW Quadlock is compatible with a variety of vehicles from the brands Audi, Seat, Skoda, and VW. This includes models such as the Audi A1 (8X) from 2010 to 2018, the Seat Ibiza (6J) from 2008 to 2015, the Skoda Fabia (5J) from 2007 to 2014, and the VW Golf VI (1K) from 2008 to 2013. Note that for vehicles with active sound systems, usage may be restricted or not possible. Please check the specifications for your specific model to ensure compatibility.

How is the T Cable Audi/Seat/Skoda/VW Quadlock connected?

The T Cable Audi/Seat/Skoda/VW Quadlock is connected via a 40 Pin Quadlock Plug (m/f) VAG. The MQS connector is fully populated, ensuring straightforward integration. This cable allows tapping into power and speaker wiring without damaging the vehicle's wiring harness. For installation, it is important to note the connection indication: marked in red is +12V ignition terminal 15, fused. This allows you to easily integrate additional devices such as hands-free systems or amplifiers. Make sure your vehicle has the appropriate connection options.

What technical features does the T Cable Audi/Seat/Skoda/VW Quadlock have?

The T Cable Audi/Seat/Skoda/VW Quadlock features a 40 Pin Quadlock Plug (m/f) VAG, which facilitates integration into various models of Audi, Seat, Skoda, and VW. It comes with a fully populated MQS connector to tap both power and audio information without loss of function. The red marking indicates the 12V ignition plus, which is fused, ideal for safely connecting external components. This cable is specifically designed for the vehicle-specific radio connection harness, allowing for easy reinstallation of the setup.

What limitations are there when using the T Cable in vehicles with active sound systems?

If your vehicle is equipped with a factory-installed active sound system, there may be limitations when using the T Plug Audi/Seat/Skoda/VW Quadlock. These cable sets are only partially or not at all suitable for such systems. The reason lies in the specific wiring and amplifiers integrated into active sound systems, which operate differently than traditional systems. Therefore, it is important to check the existing sound architecture of your vehicle before using the cable and, if necessary, to resort to alternative solutions to avoid complications.

What makes the T Plug Audi/Seat/Skoda/VW Quadlock reversible?

The T Plug Audi/Seat/Skoda/VW Quadlock offers reversibility because it allows tapping into power and speaker wiring without damaging the vehicle's radio harness. With the complete use of MQS, all original connections remain intact. This ensures that you can install additional devices like hands-free systems or high-low converters without making permanent changes to the vehicle. If needed, you can revert the system to its original state. This feature is particularly important if you want to resell the vehicle or undo the changes.

What advantages does the 40 Pin Quadlock VAG Plug offer during installation?

The 40 Pin Quadlock VAG Plug of the T Plug Audi/Seat/Skoda/VW Quadlock offers several advantages for installation. It allows a seamless connection with the vehicle-specific wiring harness and ensures that all audio and power signals are transmitted properly. The plug is fully populated, so you do not need any additional connection adapters. Additionally, the connections are coded to prevent wiring errors, making the installation safer and easier. This way, you can quickly and effectively integrate additional hardware like amplifiers or hands-free systems.

Can the T Plug Audi/Seat/Skoda/VW Quadlock also be used for the installation of amplifiers?

Yes, the T Plug Audi/Seat/Skoda/VW Quadlock is specifically designed to facilitate the integration of amplifiers. The cable-side tap allows audio signals to be routed directly from the original radio without altering your vehicle's wiring harness. The 40 Pin Quadlock Plug ensures a stable connection and provides the necessary power supply via the +12V ignition terminal 15 (fused). This allows you to add powerful amplifiers to your audio system, enhancing sound and performance while keeping the vehicle wiring intact.

What does the designation MQS insert mean for this T Plug?

The MQS insert for this T Plug Audi/Seat/Skoda/VW Quadlock refers to the type of plug configuration. This type of insert is fully populated, meaning that every pin of the plug is used to ensure comprehensive signal transmission. This is crucial for the proper functioning of additional components that you integrate into your vehicle. The fully populated MQS insert allows audio signals to be transmitted without interruptions or errors while keeping the power connection secure. This technical feature ensures reliable and easy installation.

How is the power supply ensured with the T Plug Audi/Seat/Skoda/VW Quadlock?

The power supply for the T Plug Audi/Seat/Skoda/VW Quadlock is ensured by the red marking on the cable, which indicates the +12V ignition terminal 15. This line is fused to ensure safe power transmission. This design allows additional devices to be seamlessly integrated into the vehicle's electrical system without the risk of short circuits or power interruptions. This is particularly useful when connecting amplifiers or high-low converters that require stable power supply for optimal operation. Be sure to carry out the installation carefully.

What is the function of the T Plug Audi/Seat/Skoda/VW Quadlock in relation to the vehicle system?

The T Plug Audi/Seat/Skoda/VW Quadlock serves to expand the audio system by tapping into power and speaker wiring without affecting the factory system. It allows for the hassle-free integration of additional components, such as hands-free systems or amplifiers, without irreversible changes to the original vehicle wiring. The 40 Pin Quadlock Plug, in combination with the MQS insert, offers the highest level of compatibility and functionality. It is used to reliably provide audio signals and power while all vehicle-specific safety systems can continue to operate efficiently.
