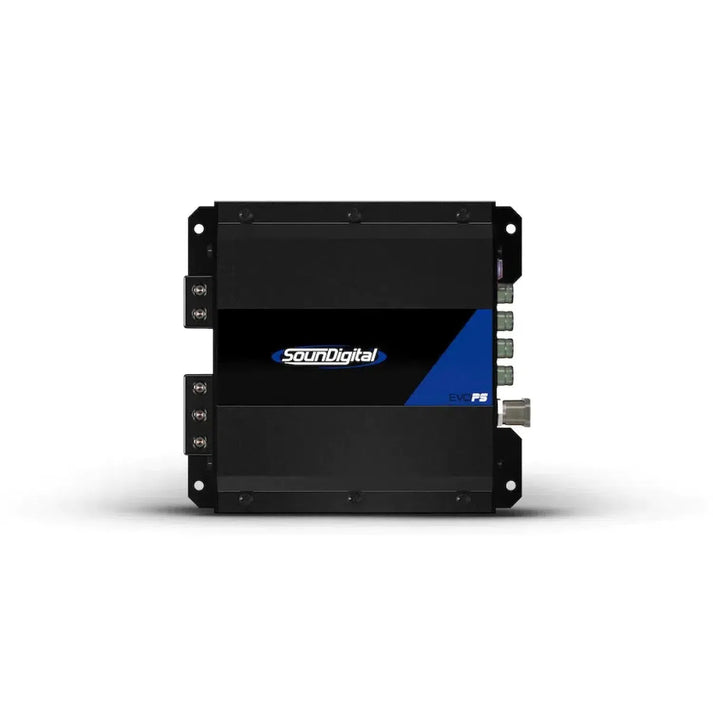

Soundigital 800.1 EVOPS 1-Channel Amplifier
800 Watt
Soundigital

800.1 EVOPS

1-Channel Amplifier

Technical Highlights

  • 800 W RMS power, 2 ohms and 4 ohms, compact and efficient.
  • Gold tracing circuit boards, Tiffany style RCA connectors, IP64 protection.
  • Frequency response 5Hz-500Hz, 90dB SNR, 85% efficiency, 200 damping factor.
  • More technical details
€499,00
€499,00 €499,00
5% discount with prepayment
inkl. VAT , possibly plus shipping
Impedance: 2 Ohm
Delivery
Apr 6, - Apr 9,
x Piece
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €41,58 with Klarna .

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours
Soundigital-800.1 EVOPS-1-Kanal Verstärker-masori-kaufen
€499,00
€499,00 €499,00

800.1 EVOPS by Soundigital

Soundigital 800.1 EVOPS is a 1-Channel Amplifier available in 2 or 4 Ohm versions. The amplifier delivers up to 1 x 800 WRMS and operates with a supply voltage of 8–16 V, a total efficiency of 85%, and a damping factor of 200. The frequency response (-3 dB) ranges from 5–500 Hz, the Crossover includes HPF 5–30 Hz and LPF 50–500 Hz, and the bass boost is 0–12 dB at 50 Hz. The signal values include 90 dB SNR and 0.1% THD+N (10% rated power). Constructive features include IP64 protection against vibration and corrosion, conformal coating, improved internal electrical components, gold tracing on the circuit boards, and Tiffany Style RCA connectors. The dimensions are 14.4 x 13 x 5.6 cm, the current draw is 32 A (music) or 65 A (max), and the recommended Fuse (music) is 40 A.

Features
  • 1-Channel Amplifier
  • Available as 2 or 4 Ohm version
  • RMS power up to 1 x 800 WRMS
  • IP64 protection against vibration and corrosion
  • Conformal coating
  • Improved internal electrical components
  • Gold tracing on the circuit boards
  • Tiffany Style RCA connectors
  • Supply voltage 8–16 V
  • Total efficiency 85%
  • Damping factor 200
  • Frequency response (-3 dB) 5–500 Hz
  • Crossover HPF 5–30 Hz
  • Crossover LPF 50–500 Hz
  • Bass boost 0–12 dB @ 50 Hz
  • SNR 90 dB
  • THD+N (10% rated power) 0.1%
  • Current draw (music) 32 A
  • Current draw (max) 65 A
  • Recommended Fuse (music) 40 A
  • Dimensions 14.4 x 13 x 5.6 cm
Technical Specifications
  • Power 2 Ohm version @ 4 Ohm: 1 x 528 WRMS
  • Power 2 Ohm version @ 2 Ohm: 1 x 800 WRMS
  • Power 4 Ohm version @ 4 Ohm: 1 x 800 WRMS
  • Supply voltage: 8–16 V
  • Current draw (music): 32 A
  • Current draw (max): 65 A
  • Recommended Fuse (music): 40 A
  • Total efficiency: 85%
  • Damping factor: 200
  • Frequency response (-3 dB): 5–500 Hz
  • SNR: 90 dB
  • Crossover HPF: 5–30 Hz
  • Crossover LPF: 50–500 Hz
  • THD+N (10% rated power): 0.1%
  • Bass boost: 0–12 dB @ 50 Hz
  • Dimensions: 14.4 x 13 x 5.6 cm

Your benefits at Masori

Soundigital 800.1 EVOPS Datasheet

Open datasheet

Frequently Asked Questions about 800.1 EVOPS

What power does the 800.1 EVOPS Amplifier from Soundigital offer?

The 800.1 EVOPS from Soundigital is a 1-Channel Amplifier capable of delivering up to 800 Watts RMS when operated with a load of 2 Ohms. With a load of 4 Ohms, it delivers 528 Watts RMS. Both the 2 Ohm and 4 Ohm versions operate with a supply voltage between 8V and 16V and feature a high efficiency of 85%, optimizing the amplifier's power output and reducing heat generation.

What are the dimensions of the 800.1 EVOPS Amplifier?

The dimensions of the 800.1 EVOPS Amplifier from Soundigital are 14.4 cm in length, 13 cm in width, and 5.6 cm in height. This compact format allows for easy installation even in tight spaces. Especially in vehicles with limited space, you can flexibly accommodate the amplifier thanks to its small size and robust design.

What protection features does the 800.1 EVOPS have against external influences?

The 800.1 EVOPS from Soundigital has advanced protection against vibration and corrosion, certified to IP64. This means that the amplifier is well protected even under harsh environmental conditions, whether from moisture or dust. A conformal coating on the circuit boards additionally provides increased resistance to environmental conditions, making the 800.1 EVOPS particularly durable.

What frequency ranges does the 800.1 EVOPS cover?

The frequency response of the 800.1 EVOPS Amplifier ranges from 5Hz to 500Hz, which is an impressive bandwidth covering both low and mid frequencies. The built-in Crossover allows you to adjust the high-pass filter (HPF) between 5Hz and 30Hz and the low-pass filter (LPF) between 50Hz and 500Hz. With a signal-to-noise ratio of 90dB and a THD + N of 0.1% at 10% rated power, the amplifier can reproduce signals accurately and clearly.

What advantages do the gold-plated circuit boards and Tiffany Style RCA connectors offer?

The circuit boards of the 800.1 EVOPS Amplifier are equipped with gold tracing, which improves conductivity while reducing oxidation. This leads to better signal transmission and a longer lifespan for the electronics. The Tiffany Style RCA connectors additionally provide a robust and reliable connection for audio signals, minimizing signal loss. This combination ensures higher sound quality and extends the lifespan of the connection points.

What supply voltage does the 800.1 EVOPS Amplifier require?

The 800.1 EVOPS Amplifier from Soundigital operates with a supply voltage ranging from 8V to 16V. This flexibility in voltage input allows for use in various electrical environments, especially in vehicles with differently sized energy systems. With a current draw for music of 32 Amperes and a maximum of 65 Amperes, the amplifier proves to be an efficient energy converter. A recommended Fuse of 40 Amperes protects the amplifier during increased current demands in music operation.

What is the damping factor of the Soundigital 800.1 EVOPS?

The damping factor of the 800.1 EVOPS Amplifier is 200. This high damping factor allows for better control of speaker movement, especially at low frequencies. A higher damping factor supports the precision of bass reproduction by enhancing the electromagnetic damping through the amplifier. The result is a clean and contoured sound reproduction, ideal for high-quality sound experiences, especially with demanding music featuring dynamic bass presence.

Can I install the 800.1 EVOPS Amplifier in any vehicle?

Thanks to its compact dimensions of 14.4 x 13 x 5.6 cm, the 800.1 EVOPS Amplifier from Soundigital can be installed in a variety of vehicles. Whether it's a car, SUV, or van – the small space requirement reduces installation hurdles. Considering the supply voltage of 8V to 16V is important to ensure compatibility with the onboard electronics. However, the installation must not obstruct the necessary airflow for cooling to ensure reliable operation.

How does the bass boost of the 800.1 EVOPS affect the sound?

The Soundigital 800.1 EVOPS Amplifier allows for a variable bass boost of 0 to 12 dB at 50Hz. This feature enables adjustment of the bass range according to listening preferences and music genres. By amplifying these frequencies, a broader sound variety is achieved, especially in music pieces that require a strong bass presence. This way, you can customize your sound to ensure optimal sound reproduction, for example, in larger vehicles or during louder driving conditions.

Why is the overall efficiency of 85% beneficial for the 800.1 EVOPS?

An overall efficiency of 85% in the 800.1 EVOPS Amplifier from Soundigital indicates low power loss, allowing more power to be utilized in the speakers and less converted into heat. This means the amplifier operates more efficiently, resulting in a longer lifespan for the components and reduced cooling load. Such efficiency is particularly advantageous in situations where power consumption and heat generation need to be minimized, such as in compact vehicle arrangements.
