Extreme L26RO4Y - XM004-04
Technical Highlights
- Power 250 watts RMS, maximum power handling 500 watts, impedance 4 ohms.
- Frequency response 20-1,000 Hz, resonance frequency 26 Hz, efficiency 86 dB.
- Voice coil diameter 5.588 cm, magnet weight 82.5 oz, Xmax 15 mm.
- More technical details
Pay conveniently in 12 interest-free installments at €30,75 with Klarna .
Availability for pickups could not be loaded.
Shipping cost calculator
Shipping cost calculator
Rob
Max
Unsure if this product fits your car?
We help you – quickly, personally, and without obligation.
Fill out the form and we'll send you a personalised offer
This product is not universally compatible. Send us your vehicle details and we will check fitment for your model free of charge.

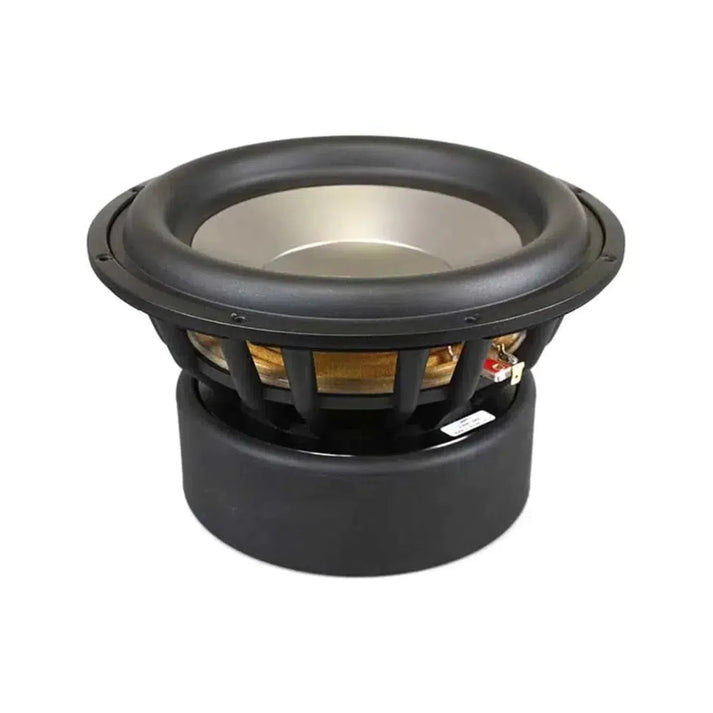

Extreme L26RO4Y - XM004-04 by Seas
The Seas Extreme L26RO4Y - XM004-04 is a 10-inch (25.4 cm) Subwoofer from the Design By Seas Series. It features an aluminum diaphragm, a total suspension, and an extra-large magnet system. The impedance is 4 Ohm, the long-term power handling (RMS) is 250 watts, and the maximum power handling is 500 watts. The sensitivity is 86 dB (1 m/2.83 V), the frequency response is 20–1,000 Hz, the resonance frequency is 26 Hz, and the voice coil measures 55.88 mm in diameter. Maximum displacement (Xmax) is 15 mm, moving mass is 160 g, compliance is 0.24 mm/N, total quality factor Qts is 0.27 with Qms 3.94 and Qes 0.29. Additional specifications: DC resistance is 3.5 Ohm, inductance is 2.33 mH, Vas is 45.87329 l, magnet weight is 2339 g, outer diameter is 268.986 mm, cutout diameter is 235.966 mm, total depth is 151.384 mm, bolt circle diameter is 256.54 mm, and there are 8 mounting holes (item number L26RO4Y).
- 10-inch Subwoofer
- Aluminum diaphragm
- Extra-large magnet system
- Total suspension
- Impedance 4 Ohm
- Long-term power handling (RMS) 250 watts
- Power handling (max) 500 watts
- Voice coil diameter 55.88 mm
- Maximum displacement (Xmax) 15 mm
- Series Design By Seas Series
- Item number L26RO4Y
- Mounting holes 8
- Sensitivity (SPL at 1 m / 2.83 V) 86 dB
- Frequency response 20–1,000 Hz
- DC resistance (Re) 3.5 Ohm
- Voice coil inductance (Le) 2.33 mH
- Resonance frequency (Fs) 26 Hz
- Mechanical quality factor (Qms) 3.94
- Electrical quality factor (Qes) 0.29
- Total quality factor (Qts) 0.27
- Moving mass (Mms) 160 g
- Compliance of the suspension (Cms) 0.24 mm/N
- Equivalent volume (Vas) 45.87329 l
- Magnet weight 2339 g
- Outer diameter 268.986 mm
- Total depth 151.384 mm
- Cutout diameter 235.966 mm
- Bolt circle diameter 256.54 mm
Your benefits at Masori
Seas Extreme L26RO4Y - XM004-04 Datasheet
Frequently Asked Questions about Extreme L26RO4Y - XM004-04
What impact does the long-term load capacity of 250 watts have on the performance of the Subwoofer?
What impact does the long-term load capacity of 250 watts have on the performance of the Subwoofer?
How does the aluminum diaphragm contribute to the bass precision of the Seas Extreme L26RO4Y - XM004-04 Subwoofer?
How does the aluminum diaphragm contribute to the bass precision of the Seas Extreme L26RO4Y - XM004-04 Subwoofer?
How does the total suspension of the Subwoofer ensure stability during extreme displacements?
How does the total suspension of the Subwoofer ensure stability during extreme displacements?
What advantages does the extra-large magnet system offer for the efficiency and quality of the Subwoofer?
What advantages does the extra-large magnet system offer for the efficiency and quality of the Subwoofer?
How does the voice coil diameter of 5.588 cm affect the performance of the Subwoofer?
How does the voice coil diameter of 5.588 cm affect the performance of the Subwoofer?
What conclusions can be drawn from the quality factors Qms, Qes, and Qts of the Subwoofer?
What conclusions can be drawn from the quality factors Qms, Qes, and Qts of the Subwoofer?
How does the equivalent volume of 45.87329 liters affect the placement and performance of the Subwoofer in the vehicle?
How does the equivalent volume of 45.87329 liters affect the placement and performance of the Subwoofer in the vehicle?
What role does the resonance frequency (Fs) of 26 Hz play in the frequency response of the Subwoofer and how does it affect sound quality?
What role does the resonance frequency (Fs) of 26 Hz play in the frequency response of the Subwoofer and how does it affect sound quality?
How do the mounting holes and the Bolt Circle Diameter affect the installation of the Subwoofer in different vehicle types?
How do the mounting holes and the Bolt Circle Diameter affect the installation of the Subwoofer in different vehicle types?
What impact does the maximum displacement (Xmax) of 15 mm have on the movement freedom and bass reproduction of the Subwoofer?
What impact does the maximum displacement (Xmax) of 15 mm have on the movement freedom and bass reproduction of the Subwoofer?
