  3. Punch P1T-S
Rockford Fosgate Punch P1T-S Dome Tweeter
60 Watt

Punch P1T-S

Technical Highlights

  • 1" PEI dome diaphragm, external crossover.
  • Power handling 60 watts RMS, impedance 4 ohms.
  • Frequency response 3.5kHz 22kHz, high pass 3.5kHz.
  • More technical details
€119,00
€119,00 €119,00
5% discount with prepayment
inkl. VAT , possibly plus shipping
Delivery
Apr 28, - May 1,
x set
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €9,91 with Klarna .

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours

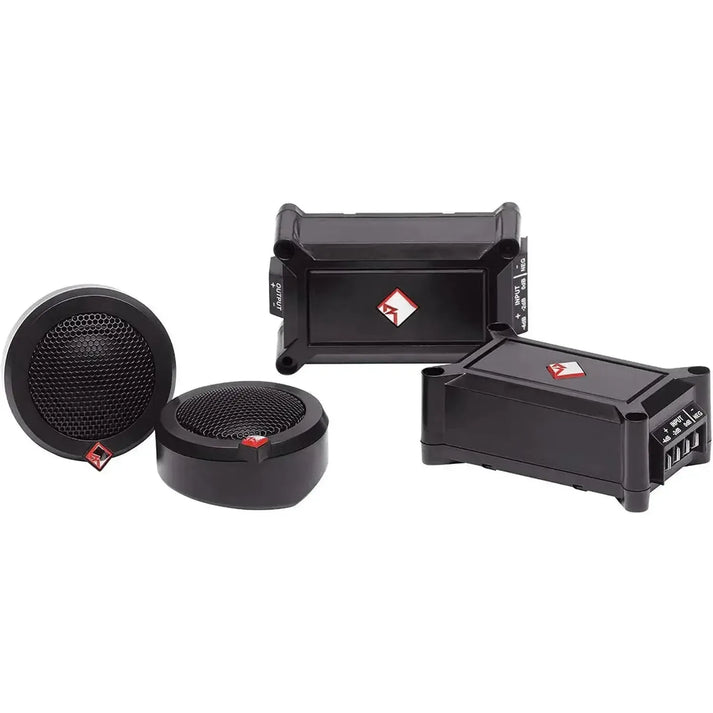

Rockford Fosgate-Punch P1T-S-Kalotten-Hochtöner-masori-kaufen
€119,00
€119,00 €119,00

Punch P1T-S by Rockford Fosgate

Rockford Fosgate Punch P1T-S is a Dome Tweeter with a 25.4 mm PEI dome membrane. The upgrade set includes an external high-pass Crossover with 3.5 kHz at 12 dB/octave Butterworth and three mounting frames. The nominal impedance is 4 Ohms and the sensitivity is 90 dB @ 1 W/1 m. The frequency response ranges from 3.5 kHz to 22 kHz. The power handling is 60 Watts RMS and 120 Watts Max. The nominal diameter is 25.4 mm with a mounting depth of 13 mm. Includes grille and frame as well as mounting materials. Shipping weight 0.54 kg.

Features
  • Dome Tweeter
  • 25.4 mm PEI dome membrane
  • External high-pass Crossover
  • 3 mounting frames
  • Includes grille/frame
  • Mounting materials included
Technical Specifications
  • Power handling RMS: 60 Watts
  • Max power: 120 Watts
  • Nominal impedance: 4 Ohms
  • Frequency response: 3.5 kHz – 22 kHz
  • Crossover: High-pass 3.5 kHz @ 12 dB/octave Butterworth
  • Sensitivity: 90 dB @ 1 W/1 m
  • Nominal diameter of tweeter: 25.4 mm
  • Mounting depth of tweeter: 13 mm
  • Shipping weight: 0.54 kg

Your benefits at Masori

Frequently Asked Questions about Punch P1T-S

What are the specifications of the Rockford Fosgate Punch P1T-S?

The Rockford Fosgate Punch P1T-S has an RMS power of 60 Watts and a maximum power handling of 120 Watts. The nominal impedance is 4 Ohms, allowing for efficient power transfer. The sensitivity is 90 dB @ 1W/1M, ensuring high sound quality with minimal power consumption. The frequency response ranges from 3.5 kHz to 22 kHz, providing detailed sound reproduction of high frequencies. These technical features make the Punch P1T-S a powerful tweeter that can be integrated into various audio systems.

What materials are used in the Punch P1T-S tweeter?

The Rockford Fosgate Punch P1T-S uses a 1-inch (25 mm) PEI dome diaphragm, known for its durable and high-quality acoustic properties. PEI (Polyetherimide) offers excellent thermal and mechanical stability, ensuring consistent performance even under extreme conditions. The use of a dome diaphragm is crucial for the precise reproduction of high frequencies represented in the frequency response from 3.5 kHz to 22 kHz. This material choice contributes to the clear and sharp sound of the tweeter.

What mounting frame options does the Punch P1T-S set offer?

The Rockford Fosgate Punch P1T-S set offers three different mounting frames to allow for flexible installation. This variety of frame options enables the installation of the tweeter in different vehicle models and audio systems, making it easier to adapt to specific use cases. The frame sizes are tailored to the nominal diameter of 1 inch (25.4 mm) and a mounting depth of 13 mm, ensuring simplified integration even in limited space. This versatility highlights the Punch P1T-S set as an adaptable solution for various installation requirements.

How does the crossover of the Punch P1T-S work?

The crossover of the Rockford Fosgate Punch P1T-S is a high-pass Butterworth filter that operates at 3.5 kHz with a slope of 12 dB/octave. This configuration effectively separates the bass range from the treble range to optimally operate the tweeter. The crossover ensures that only the appropriate high frequencies reach the PEI dome diaphragm, preventing damage from low frequencies while optimizing sound quality. The Butterworth characteristic guarantees a smooth transition frequency without phase shifts, which is important for clean and clear sound reproduction.

Which vehicle models is the Punch P1T-S compatible with?

While the product description does not mention specific vehicle brands, the dimensions of the Rockford Fosgate Punch P1T-S are universal enough to be integrated into a variety of vehicle models. The tweeter has a nominal diameter of 1 inch (25.4 mm) and a mounting depth of only 13 mm, allowing it to fit in most OEM locations in vehicles. This provides flexibility in installation and enables these tweeters to be accommodated in a variety of vehicles as long as the mounting openings match the dimensions.

What are the benefits of the 90 dB sensitivity of the Punch P1T-S?

The 90 dB sensitivity of the Rockford Fosgate Punch P1T-S means that the tweeter produces a sound pressure level of 90 decibels at a distance of one meter with just one watt of power input. This indicates that the tweeter can be efficiently powered with low amplifier power, which is particularly important in vehicles where amplifier power is often limited. This high sensitivity allows for clear and dynamic sound reproduction even at low volumes, ideal for audiophile listeners who want to perceive fine details in the music.

How do I install the Punch P1T-S in my audio system?

The installation of the Rockford Fosgate Punch P1T-S tweeter set is relatively simple with the included three mounting frames and fastening materials. Start by selecting the appropriate frame that matches the dimensions of 1 inch (25.4 mm) in diameter and 13 mm in mounting depth. Place the tweeter in the desired position, such as on the A-pillars or in the dashboard, and secure it with the fastening materials. Integrate the crossover into the speaker wire to optimally direct the sound. Pay attention to the connection polarities to avoid phase issues.

What role does the PEI dome diaphragm play in the Punch P1T-S?

The PEI dome diaphragm in the Rockford Fosgate Punch P1T-S is crucial for the high sound quality of the tweeter. PEI is a high-performance polymer known for its stability and rigidity, making it the ideal foundation for the precise reproduction of high frequencies. The dome construction allows for uniform vibration, which, combined with a frequency range of 3.5 kHz to 22 kHz, enables crystal-clear and detailed sound reproduction. This technical component is fundamental for the detail fidelity and response speed of the tweeter in the audio system.

How does the 4-ohm nominal impedance of the Punch P1T-S affect the audio system?

The 4-ohm nominal impedance of the Rockford Fosgate Punch P1T-S ensures efficient energy transfer between the amplifier and the tweeter. In common vehicle audio systems, a 4-ohm impedance provides the ideal balance between electrical power and sound quality. This impedance prevents overloading the amplifier and guarantees that this tweeter performs excellently across a range of power levels. Higher impedances might require more power from the amplifier, while lower impedances could unnecessarily strain it, potentially leading to uneven sound quality.

What frequency range does the Punch P1T-S cover?

The frequency response of the Rockford Fosgate Punch P1T-S ranges from 3.5 kHz to 22 kHz, covering a wide range of high frequencies. This frequency range is crucial for hearing musical details and highs that give the sound sharpness and clarity. High frequencies are essential for the representation of vocals, string instruments, and jazz cymbals, making this tweeter an important component in a high-quality audio system. With its precise frequency reproduction, the Punch P1T-S enhances the listening experience by revealing subtleties that are often overlooked.
