  3. Prime R2-750X1
Rockford Fosgate Prime R2-750X1 1-Channel Amplifier
SKU:  R2-750X1
EAN:  4251950323688
750 Watt

Prime R2-750X1

SKU:  R2-750X1
EAN:  4251950323688

Technical Highlights

  • 750W 1-channel, Class-D, CLEAN setting, RLC level remote control.
  • Balanced inputs, variable infrasonic filter, RCA pass-through.
  • Fully adjustable switches, short circuit and overcurrent protection.
  • More technical details
00 d
00 h
00 m
00 s
€341,10
-10% €379,00 €341,10
5% discount with credit card
inkl. VAT , possibly plus shipping
Delivery
May 29, - Jun 1,
x piece
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €28,42 with Klarna .

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours
Rockford Fosgate-Prime R2-750X1-1-Kanal Verstärker-masori-kaufen
€341,10
€379,00 €341,10

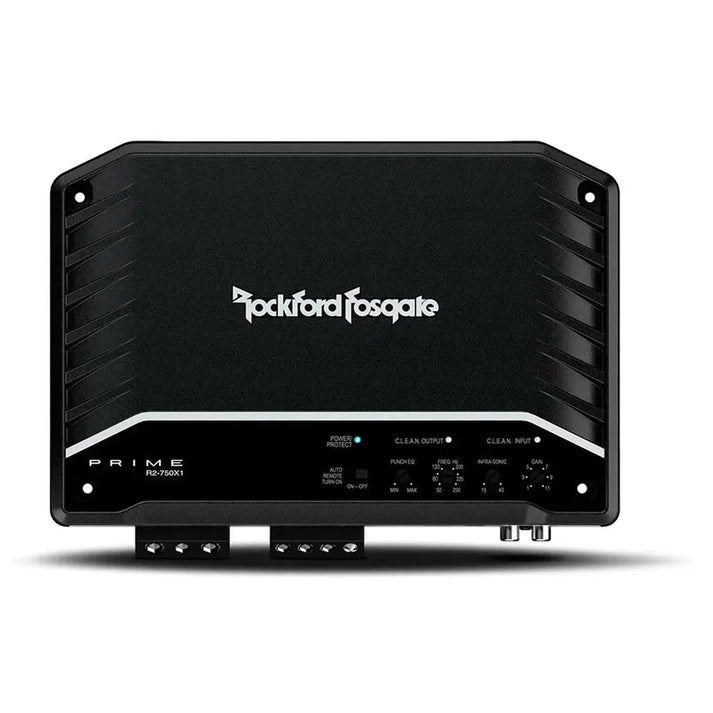

Prime R2-750X1 by Rockford Fosgate

The Rockford Fosgate Prime R2-750X1 is a 1-Channel Amplifier with Class D topology. Equipped with balanced differential inputs, RCA pass-through outputs, and high-level compatible input via 4-pin Molex. The setup includes variable input gain, an auto-sense bypass switch for RAP, C.L.E.A.N. setting, and an included RLC level remote control. An overhead control panel, continuously variable on-board Punch EQ, and a variable infrasonic filter are integrated. Protection features against short circuit and overcurrent, CEA-2006 and CE compliance, as well as a cast aluminum heat sink and convection cooling are present. The RMS continuous power reaches up to 750 watts x 1 at 1 ohm, the frequency response is from 20 Hz to 250 Hz, and fully adjustable 12 dB/octave high-pass and low-pass Butterworth filters are available.

Features
  • 1-Channel Amplifier
  • Class D topology
  • Balanced differential inputs with RCA pass-through outputs
  • High-level input compatible (4-pin Molex)
  • Variable input gain adjustment
  • Auto-sense bypass switch for vehicles with RAP
  • C.L.E.A.N. setting
  • Included RLC level remote control
  • Variable infrasonic filter
  • Overhead control panel
  • Continuously variable on-board Punch EQ
  • Short circuit and overcurrent protection
  • CEA-2006 compliant and CE compliant
  • Cast aluminum heat sink
  • Fully adjustable 12 dB/octave high-pass and low-pass Butterworth filters
Technical Specifications
  • RMS continuous power 250 watts x 1 @ 4 ohms
  • RMS continuous power 500 watts x 1 @ 2 ohms
  • RMS continuous power 750 watts x 1 @ 1 ohm
  • Dynamic power 300 watts x 1 @ 4 ohms
  • Dynamic power 545 watts x 1 @ 2 ohms
  • Dynamic power 830 watts x 1 @ 1 ohm
  • Frequency response 20 Hz – 250 Hz
  • Input sensitivity low-level 150 mV – 4 V
  • Input sensitivity high-level 450 mV – 12 V
  • Signal input low-level 2x RCA
  • Signal input high-level 4-pin Molex
  • Signal output low-level 2x RCA, pass-thru active with RCA or high-level input
  • Sound control Punch EQ 0 to +18 dB at 45 Hz
  • Low-pass 50 Hz – 250 Hz @ 12 dB/octave Butterworth
  • Subsonic 15 Hz – 40 Hz @ 12 dB/octave Butterworth
  • Remote control Yes
  • Operating voltage 9 – 16 V DC
  • Recommended Fuse 120 A
  • Max. current draw 71 A at 13.8 V sine
  • Cable cross-section power supply 20 mm²
  • Cable cross-section speaker 8 mm²
  • Cooling Convection
  • Dimensions H x W x D 49 mm x 173 mm x 255 mm

Your benefits at Masori

Frequently Asked Questions about Prime R2-750X1

What is the RMS continuous power of the Prime R2-750X1?

The Rockford Fosgate Prime R2-750X1 offers an impressive RMS continuous power, provided in three different impedance levels: 250 watts at 4 ohms, 500 watts at 2 ohms, and 750 watts at 1 ohm. This means that this amplifier is designed to deliver consistent and overwhelming performance in various installation scenarios, whether you are running a single powerful subwoofer or a more complex setup. The versatility of the power settings allows you to get the most out of your car audio system by utilizing the dynamic power of the Prime series.

What dynamic power does the Prime R2-750X1 deliver?

The Prime R2-750X1 from Rockford Fosgate produces a dynamic power of 300 watts at 4 ohms, 545 watts at 2 ohms, and 830 watts at 1 ohm. This dynamic power describes the amplifier's ability to deliver short-term peak loads and ensures that the music remains clear and powerful even during moments of high intensity. Particularly during bass drops, this amplifier can easily meet greater power demands without audible distortion or loss of performance. This dynamic load capability extends the effectiveness of the amplifier beyond the static RMS powers.

How does signal integration work with this amplifier?

The Prime R2-750X1 amplifier uses balanced differential inputs and offers both low-level RCA and high-level 4-pin Molex inputs. This is ideal for integration into both factory and custom audio systems. Additionally, there are pass-through RCA outputs that allow the user to route the signal through the system and easily add more amplifiers. This enhanced signal processing enables seamless and lossless integration, regardless of the existing audio sources and configurations.

What filter functions does the Prime R2-750X1 offer?

The amplifier is equipped with fully adjustable 12 dB/octave Butterworth crossovers, allowing both high-pass and low-pass filters. The low-pass filter is adjustable from 50 Hz to 250 Hz, while the subsonic filter handles frequencies from 15 Hz to 40 Hz. These fine-tuning options ensure that only the desired frequencies are sent to the speakers, minimizing distortion and optimizing sound quality. For clear and punchy bass, a punch EQ control is also integrated, adjustable from 0 to +18 dB at 45 Hz.

What are the key dimensions for installing the Prime R2-750X1?

The dimensions of the Prime R2-750X1 amplifier are 4.9 cm in height, 17.3 cm in width, and 25.5 cm in depth. These compact measurements make installation easier in a variety of vehicles. Especially when you have limited space, this compact format offers the flexibility to mount the amplifier under seats or in trunk compartments without taking up much storage space. When installing, always consider the size of the installation location to ensure proper airflow and cooling for optimal performance.

How is the cooling of the Prime R2-750X1 handled?

The Prime R2-750X1 amplifier uses a convection cooling system integrated into an aluminum cast heat sink. This design maximizes heat dissipation by increasing the surface area for heat distribution, which is particularly important under higher current loads. Aluminum has high thermal conductivity, ensuring the operational stability of the amplifier even under demanding conditions. For added safety, the amplifier is equipped with short-circuit and overcurrent protection to safeguard the amp against thermal overloads.

What safety measures are integrated into the Prime R2-750X1?

The Prime R2-750X1 features several protection mechanisms to safeguard both the amplifier and the connected audio equipment. These include short circuit and overcurrent protection, which secures the amplifier against electrical hazards and helps prevent internal damage from unwanted power surges. Furthermore, the amplifier is both CEA-2006 compliant and CE compliant, meaning it meets strict safety and performance guidelines. These measures promote reliable performance and longevity of the amplifier.

What input sensitivities does the Prime R2-750X1 support?

The Prime R2-750X1 supports an input sensitivity of 150 mV to 4 V in the low-level range and 450 mV to 12 V in the high-level range. This wide range allows the amplifier to be integrated into various audio systems, whether they are factory-installed or custom systems. This adaptability is particularly useful for car audio enthusiasts who want to easily adjust the amplifier to their existing system levels to achieve the desired sound performance.

How does the C.L.E.A.N. setting help with the Prime R2-750X1?

The C.L.E.A.N. setting (Clipping Monitor) on the Prime R2-750X1 is an innovative technology that helps you optimally set the amplifier to avoid distortion. It indicates when the input signal reaches clipping points, making it easy to adjust the ideal input gain. The goal is to maximize sound clarity while minimizing any risk of distortion that could affect speaker performance. With this feature, you ensure clear, uncolored sound.

What cable diameter is recommended for wiring the Prime R2-750X1?

For the power wiring of the Prime R2-750X1 amplifier, a cable diameter of 20mm² is recommended to ensure the necessary current flow. For speaker wiring, you should use a cable with a diameter of 8mm². These cable sizes are necessary to minimize current loss and ensure stable voltage supply, which is particularly important for the amplifier's power requirements. In addition to performance, the correct cable size is crucial for preventing overheating and ensuring the system's operational safety.
