  3. Prime R165-S

Rockford Fosgate Prime R165-S 6.5" (16,5cm) Speaker Set

1 Review

40 Watt

Rockford Fosgate Prime R165-S 6.5" (16,5cm) Speaker Set

1 Review

Technical Highlights

  • Power: 40 watts RMS, 80 watts maximum power, 4 ohms impedance.
  • Mylar® tweeter with 13 mm dome, crystal clear highs.
  • Frequency response: 60Hz-20kHz, Sensitivity: 89 dB @ 1W/1M.
  • More technical details
€99,00
€99,00 €99,00
5% discount with prepayment
inkl. VAT , possibly plus shipping
Delivery
Mar 22, - Mar 25,
x Couple
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €8,25 with Klarna .

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours
Rockford Fosgate-Prime R165-S-6.5" (16,5cm) Lautsprecherset-masori-kaufen
€99,00
€99,00 €99,00

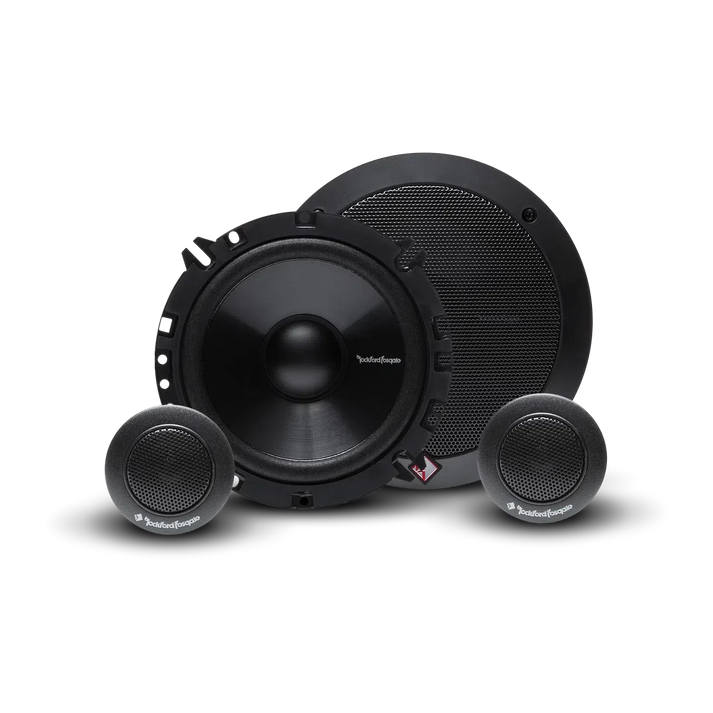

Prime R165-S by Rockford Fosgate

The Prime R165-S speaker set from Rockford Fosgate is a 6.5-inch 2-way component system specifically designed to replace factory speakers. Equipped with a mica-injected polypropylene cone, it offers an extended frequency response. The 1/2" (13 mm) Mylar® tweeter delivers crystal-clear highs and flexible mounting options. With a power handling of 40 watts RMS and a maximum power of 80 watts, you can expect powerful sound. Additional features include the foam surround as well as the included grilles and mounting rings, which allow for easy installation.

The Prime Series Component System is a new generation of factory replacement speakers that deliver the authentic Rockford Fosgate sound. The R165-S is a specialized 2-way component system with a mica-injected polypropylene cone for extended frequency response and can be installed directly in original equipment. The tweeter features a balanced Mylar® dome for crystal-clear highs, an inline crossover to simplify installation, and can be mounted flush, surface-mounted, or at an angle.

Features

  • Polypropylene cone with mica injection
  • Foam surround
  • Sold in pairs (2 pieces per set)
  • 1/2" (13 mm) Mylar® dome tweeter

Specifications

  • Power handling 40 watts RMS
  • Power 80 watts max
  • Tweeter mounting depth 26.88 mm
  • 6.5 inch (16.5 cm) speaker set
  • Midrange mounting depth 50.1 mm
  • Tweeter size (nominal diameter) 25.4 mm
  • Midrange size (nominal diameter) 6.5 inch
  • Nominal impedance (Ohm) 4-ohm crossover high pass
  • (HP): 12kHz @ 6dB/octave
  • Sensitivity (dB @ 1W/1M) 89
  • Frequency response (Hz) 60Hz - 20kHz
  • Mounting hardware
  • Grilles/mounting rings included

Your benefits at Masori

Rockford Fosgate Prime R165-S Datasheet

Open datasheet

Frequently Asked Questions about Prime R165-S

What frequency range does the Rockford Fosgate Prime R165-S Speaker Set offer?

The Rockford Fosgate Prime R165-S Speaker Set covers a frequency range from 60 Hz to 20 kHz. This extended frequency response allows for precise reproduction of both deep bass and clear highs, ensuring a balanced sound profile. The mica-injected polypropylene diaphragm of the midrange driver minimizes distortion and optimizes sound quality. If you value detailed high-frequency reproduction and rich bass, the Prime R165-S provides the technical foundation for an impressive listening experience.

What is the RMS power handling of the Prime R165-S and what maximum power can it handle?

The Rockford Fosgate Prime R165-S has an RMS power handling of 40 watts and can handle a maximum power of up to 80 watts. These power parameters ensure that the Speaker Set delivers powerful and distortion-free sound in both everyday listening situations and during intense use. The combination of 40 watts RMS and 80 watts maximum power allows you to adjust the volume to your preferences without compromising sound quality. This is particularly beneficial if you enjoy listening to music at high volumes while still desiring clear sound representation.

What materials are used in the diaphragm of the Rockford Fosgate Prime R165-S and what advantages do they offer?

The Rockford Fosgate Prime R165-S uses a mica-injected polypropylene diaphragm in the midrange driver as well as a Mylar® tweeter dome. The mica injection in the polypropylene diaphragm enhances mechanical strength and reduces distortion at high frequencies, leading to an extended frequency response. The Mylar® dome of the tweeter ensures crystal-clear high-frequency reproduction and high distortion resistance. These materials ensure excellent sound quality and durability of the speaker, allowing you to enjoy consistent performance over a long period.

What installation options does the Prime R165-S Speaker Set offer for vehicle installation?

The Rockford Fosgate Prime R165-S Speaker Set offers versatile installation options. The tweeters can be mounted flush, on the surface, or at an angle, allowing flexibility in placement within the vehicle. With a mounting depth of 26.88 mm for the tweeters and 50.1 mm for the midrange drivers, the Speaker Set can be easily accommodated in the existing speaker grilles. Additionally, the included grille and mounting rings facilitate installation by ensuring a stable and secure attachment. This flexibility is ideal if you want to install the set in a vehicle with limited space or specific installation requirements.

How does the integrated Crossover in the Rockford Fosgate Prime R165-S work for sound optimization?

The Rockford Fosgate Prime R165-S is equipped with an integrated inline Crossover that optimally controls the tweeter and midrange driver. The Crossover employs a high-pass filter at 12 kHz with a slope of 6 dB/octave to ensure that only high frequencies are sent to the tweeter and the remaining frequencies are directed to the midrange driver. This technical implementation prevents frequency overlap and ensures a clear separation of sound ranges, allowing for precise and distortion-free playback of audio signals. With this Crossover implementation, you get a balanced and detailed sound image without compromise.

What are the dimensions of the tweeters and midrange drivers of the Prime R165-S, and how do they affect installation?

The Rockford Fosgate Prime R165-S Speaker Set features tweeters with a nominal diameter of 25.4 mm and midrange drivers with a diameter of 6.5 inches. The mounting depth of the tweeter is 26.88 mm, while that of the midrange driver is 50.1 mm. These compact dimensions allow for easy integration into the existing speaker mounts of your vehicle without extensive modifications. The precise measurements ensure a seamless fit and facilitate installation, especially in vehicles with limited space for speaker components.

What is the impedance of the Rockford Fosgate Prime R165-S speaker system and what significance does it have for the vehicle system?

The Rockford Fosgate Prime R165-S Speaker Set has a nominal impedance of 4 Ohms. This impedance represents the load that the speaker exerts on the Amplifier. An impedance of 4 Ohms is typical for many vehicle speakers and allows for efficient power delivery through the vehicle system. It is important that the impedance of the speaker matches the output impedance of the Amplifier to ensure optimal power delivery and sound quality. Mismatching impedances can lead to power loss and potential damage to the system.

What sound pressure levels does the Prime R165-S achieve at a power of 1 W and a distance of 1 m?

The Rockford Fosgate Prime R165-S Speaker Set achieves a sound pressure level of 89 dB at a power of 1 Watt and a distance of 1 meter. This high sensitivity value means that the speaker is capable of producing loud and clear sound with relatively low power. This makes the Prime R165-S suitable for vehicle systems with limited Amplifier power, without compromising sound quality. This sound pressure level helps ensure a wide dynamic range and convincing sound reproduction in your vehicle.

What additional mounting materials are included with the Rockford Fosgate Prime R165-S and how do they support installation?

The package of the Rockford Fosgate Prime R165-S Speaker Set includes the necessary mounting materials such as Grilles and mounting rings. These components significantly facilitate installation by ensuring a secure and stable mounting of the speakers in the existing speaker openings of your vehicle. The Grilles protect the speakers from damage caused by dirt and foreign objects, while the mounting rings ensure a snug fit and correct positioning. This simplifies the installation process, reduces installation effort, and provides a professional appearance in the vehicle.

How does the mica-injected polypropylene diaphragm of the Prime R165-S enable an extended frequency response?

The mica-injected polypropylene diaphragm in the Rockford Fosgate Prime R165-S midrange driver significantly contributes to an extended frequency response. By injecting mica, a thin and strong mineral, the diaphragm becomes stiffer and better resists mechanical stresses. This reduces distortion and allows for a more precise and faster response to audio signals, especially in the high-frequency ranges. The increased stability of the diaphragm supports the maintenance of sound clarity and detail across the entire frequency range, resulting in a balanced and dynamic listening experience.
