Retrosound RSD-Ivory-6DAB 1-DIN Car Radio
SKU:  RSD-IVORY-6DAB

RSD-Ivory-6DAB

SKU:  RSD-IVORY-6DAB

Technical Highlights

  • Integrated 4-channel amplifier with 4 x 24 watts RMS power.
  • Speaker impedance from 4 to 8 ohms, optimal sound quality.
  • 6-channel RCA outputs for external amplifiers, 2.85 volts.
  • More technical details
00 d
00 h
00 m
00 s
€539,00
-30% €765,00 €539,00
5% discount with credit card
inkl. VAT , possibly plus shipping
Delivery
Jun 2, - Jun 4,
x piece
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €44,91 with Klarna .

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours

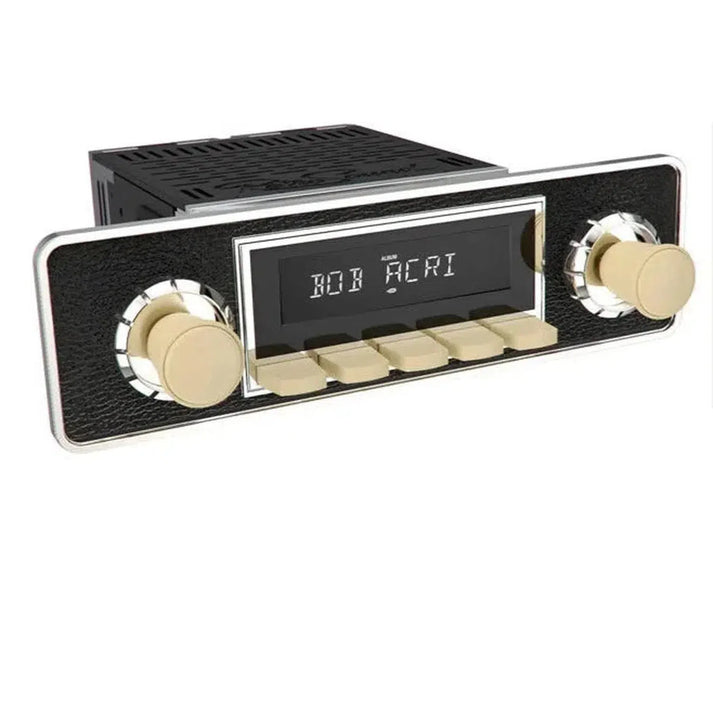

Retrosound-RSD-Ivory-6DAB-1-DIN Autoradio-masori-kaufen
€539,00
€765,00 €539,00

RSD-Ivory-6DAB by Retrosound

RSD-Ivory-6DAB is a 1-DIN Car Radio from Retrosound featuring DAB+ digital radio as well as FM/MW radio reception with RDS and 30 station presets. A2DP Bluetooth audio playback, a Bluetooth hands-free system with an external microphone, and certified Apple iPhone control via USB cable are integrated. Two rear USB inputs and a rear 3.5 mm AUX input are available. An integrated 4-Channel Amplifier, three preamp outputs for Front/Rear/Subwoofer, and a tuner with European even and odd frequencies are included. The LCD lighting is adjustable in 32,000 colors, along with 3 equalizer programs, individual bass/treble/fader/balance settings, Xbas loudness, and non-volatile memory. DAB+ reception is via an SMB antenna input.

Features
  • 1-DIN Car Radio
  • DAB+ digital radio
  • FM/MW radio reception with RDS
  • A2DP Bluetooth audio playback
  • Bluetooth hands-free system with external microphone
  • Certified Apple iPhone control via USB cable
  • Two USB inputs on the back of the device
  • 3.5 mm AUX input on the back of the device
  • 3 preamp outputs (Front/Rear/Subwoofer)
  • Integrated 4-Channel Amplifier
  • RMS power: 4 x 24 watts
  • Max power: 4 x 45 watts
  • Adjustable LCD lighting with 32,000 colors
  • 3 equalizer programs plus individual bass/treble/fader/balance settings
  • Xbas loudness function
  • Tuner with European even and odd radio frequencies
  • Non-volatile memory
  • Separate power line for motor antenna and amplifier
Technical Specifications
  • FM frequency range 87.5–107.9 MHz (steps 0.05 MHz)
  • MW frequency range 530–1710 kHz (steps 9 kHz)
  • DAB+ reception via SMB antenna input for passive DAB+ antennas
  • RCA outputs: 6 channel, 2.85 volts (Front/Rear/Subwoofer)
  • Dimensions of the radio main unit 101 x 51 x 136 mm
  • Power supply 10.5–14.4 volts
  • Maximum current draw 15 amperes
  • Standby current 3.5 mA
  • Output power at 12 V, 4 Ohm, less than 1% distortion: 4 x 15 watts RMS
  • Speaker impedance 4–8 Ohm
  • Input sensitivity AUX1 greater than 300 mV / 6 kOhm
  • 2 USB inputs (back of the device) up to max. 32 GB
  • E-approval E13 03 10006 E13*72/245*2006/96*10006*00

Your benefits at Masori

Retrosound RSD-Ivory-6DAB Datasheet

Open datasheet

Frequently Asked Questions about RSD-Ivory-6DAB

What features does the RSD-Ivory-6DAB car radio offer?

The RSD-Ivory-6DAB from Retrosound offers a wide range of features. It is equipped with DAB+ digital radio for clear reception and supports A2DP Bluetooth audio playback, allowing for wireless integration of smartphones. External music can be played through two USB inputs on the back and an AUX input. The certified Apple iPhone control allows operation via USB cable, while the Bluetooth hands-free system uses an external microphone. Three pre-amplifier outputs are designed for external amplifiers. The built-in 4-channel amplifier provides an output power of 4 x 24 watts RMS with a maximum power of 45 watts per channel.

How can I connect my iPhone to the RSD-Ivory-6DAB?

The RSD-Ivory-6DAB supports certified Apple iPhone control. You can connect your iPhone using the included USB cable, which plugs into one of the two rear USB inputs. This not only allows control of music playback but also enables the continued use of your iPhone's touchscreen functionalities. At the same time, the device charges while connected. This seamless integration offers a user-friendly technical solution for iPhone users seeking a quick and reliable connection. Additional benefits include protection through the reconnection in the car and a secure hands-free function.

What audio formats can the RSD-Ivory-6DAB play?

The RSD-Ivory-6DAB is capable of playing MP3 and WMA files directly through the rear USB inputs. This versatility allows you to utilize a wide range of audio files from various media sources. In addition to supporting different file formats, the radio offers A2DP Bluetooth audio playback, which facilitates the integration of mobile devices and wireless music playback. This combination of playback options maximizes listening enjoyment as well as functionality and provides an excellent solution for modern audio requirements in the vehicle.

What are the dimensions of the RSD-Ivory-6DAB and how does that affect installation?

The radio base unit of the RSD-Ivory-6DAB has compact dimensions of 101x51x136mm, which means easy integration into most 1-DIN slots. These standardized measurements significantly facilitate installation, as they ensure widespread compatibility with common vehicle models and brands. However, it is important to ensure that there is enough installation depth to easily connect the rear connections such as USB and AUX. Additionally, an ISO installation kit is included, which supports installation in various vehicles and makes the process manageable even for those with less technical expertise.

How does the lighting adjustment work on the RSD-Ivory-6DAB?

The RSD-Ivory-6DAB offers customizable LCD lighting, allowing you to choose from 32,000 different colors. This enables you to perfectly match the radio visually to the interior lighting of your vehicle. With the custom adjustment option, you can easily change the display color depending on the time of day or personal preferences. This functionality is controlled via a special equalizer on the display and is particularly beneficial in vehicles with specific color schemes in the cockpit. Moreover, the various lighting options enhance usability at night.

What tuner functions does the RSD-Ivory-6DAB have?

The RSD-Ivory-6DAB is equipped with a modern tuner that supports both DAB+ and FM with RDS. The FM reception ranges from 87.5 to 107.9 MHz in 0.05 MHz steps and also offers RDS functionality, with 30 station presets for quick access to favorite radio stations. The AM range provides frequencies from 530 to 1710 kHz in 9 kHz steps. The DAB+ system uses an SMB antenna input and allows reception of digital stations for crystal-clear audio playback. This combination ensures diverse usability for different radio reception needs.

Does the RSD-Ivory-6DAB support the installation of external Amplifiers?

Yes, the RSD-Ivory-6DAB is excellent for integrating external Amplifiers. It features three RCA stereo outputs for Front, Rear, and Subwoofer, each providing an output voltage of 2.85 volts. These outputs allow for the connection of additional Amplifiers to enhance the sound quality in your vehicle. With these connections, you can set up a comprehensive audio system that is perfect for both music lovers and professional installations. Especially if you enjoy listening to music loudly, external Amplifiers create improved speaker control and sound depth.

What Bluetooth features does the RSD-Ivory-6DAB offer?

The RSD-Ivory-6DAB offers comprehensive Bluetooth connectivity options, including A2DP Bluetooth audio playback, which allows you to stream music wirelessly from your smartphone. Additionally, it has a built-in Bluetooth hands-free system equipped with an external microphone. This feature ensures clear conversations while driving. The Bluetooth connection is quick and continuous, making it practical and efficient for everyday use. This combination of features allows for seamless integration of mobile devices and promotes safety through hands-free calling while driving.

What power supply is required for the RSD-Ivory-6DAB?

The RSD-Ivory-6DAB requires a DC power supply in the range of 10.5 to 14.4 volts. The maximum current draw is 15 amps, while the device only consumes 3.5 mA in standby mode. These specifications are important to ensure that your vehicle provides the necessary power capacity to operate the radio properly. The standardized power supply allows for easy integration into most vehicle electrical systems and is confirmed for use in classic cars by the E-approval. Technical adjustments are usually not required, and installation can be done without special modifications.

What speaker output impedance does the RSD-Ivory-6DAB support?

The RSD-Ivory-6DAB supports speakers with an impedance of 4 to 8 ohms. This flexibility allows compatibility with a variety of speaker types and configurations, which is particularly advantageous when planning a sound system in the car. The internal Amplifier is designed for an output power of 4 x 24 watts RMS, with a maximum power of up to 45 watts per channel, supporting a wide range of speakers and Amplifiers. These technical details are crucial to ensure optimal sound quality and power delivery.
