  3. LFB Mini 40Pin Quadlock CAN Bus
ACV LFB Mini 40Pin Quadlock CAN Bus Steering Wheel Remote Control
SKU:  42SBM010
EAN:  4026724668797

LFB Mini 40Pin Quadlock CAN Bus

SKU:  42SBM010
EAN:  4026724668797

Technical Highlights

  • CAN bus, 40-pin Quadlock BMW connector, continuous current. Suitable for Mini (F55/F56/F57), various models. Signals: handbrake signal, reverse signal, ignition, lighting.
  • More technical details
€99,00
€99,00 €99,00
5% discount with credit card
inkl. VAT , possibly plus shipping
Delivery
May 29, - Jun 1,
x piece
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €8,25 with Klarna .

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours

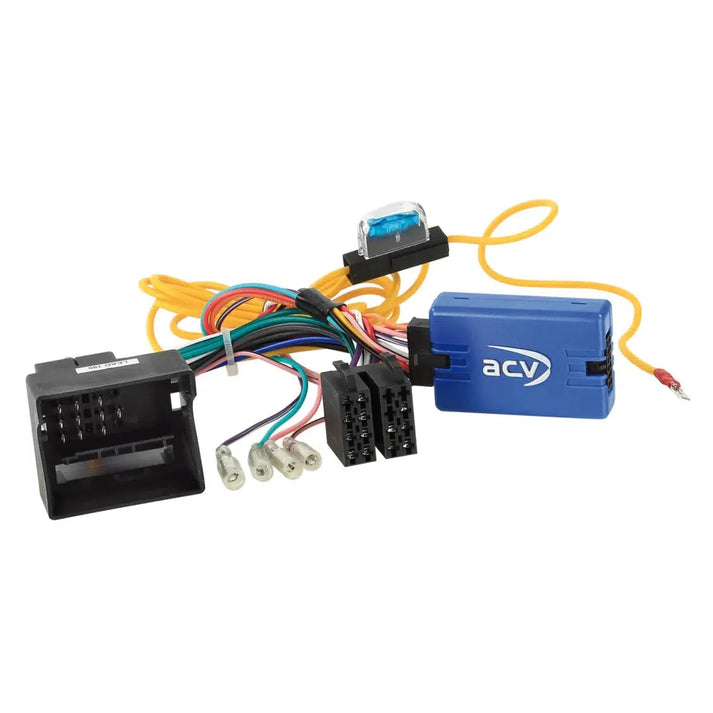

ACV-LFB Mini 40Pin Quadlock CAN Bus-Lenkradfernbedienung-masori-kaufen
€99,00
€99,00 €99,00

LFB Mini 40Pin Quadlock CAN Bus by ACV

The LFB Mini 40Pin Quadlock CAN Bus from ACV is a Steering Wheel Remote Control. Version with CAN Bus and 40 Pin Quadlock BMW Plug. Connection: +12V constant power yellow (terminal 30), Battery protected. Suitable for Mini F55, F56, and F57, production period 03/2014 to 02/2018. Provides the following signals: handbrake signal, reverse signal, ignition, lighting, speed, and Steering Wheel Remote Control. PDC, warning tones, and vehicle settings are not supported. Connection cables for various radio manufacturers available, including Alpine (42ctalpinelead), Parrot (42ctasteroidlead), Bosch-Blaupunkt >2010 (42ctblaupunktlead), Blaupunkt/China HU/Kenwood (42ctchinahulead), Clarion (42ctclarionlead), JVC (42ctjvclead), Kenwood (42ctkenwoodlead), Multilead various devices (42ctmultilead), Panasonic (42ctpanasoniclead), Blaupunkt/Kenwood/Pioneer (42ctpioneerlead), Blaupunkt/Kenwood/Sony (42ctsonylead), and XZent/Zenec (42ctzeneclead).

Features
  • Steering Wheel Remote Control
  • CAN Bus
  • Connection: 40 Pin Quadlock BMW Plug
  • Connection: +12V constant power yellow (terminal 30) Battery protected
  • Compatibility: Mini F55/F56/F57, 03/2014 – 02/2018
  • Not supported: PDC, warning tones, vehicle settings
Technical Data
  • Signal output: handbrake signal
  • Signal output: reverse signal
  • Signal output: ignition
  • Signal output: lighting
  • Signal output: speed
  • Signal output: Steering Wheel Remote Control
  • Connection cable ACV > Alpine: 42ctalpinelead
  • Connection cable ACV > Parrot: 42ctasteroidlead
  • Connection cable ACV > Bosch-Blaupunkt >2010: 42ctblaupunktlead
  • Connection cable ACV > Blaupunkt/China HU/Kenwood: 42ctchinahulead
  • Connection cable ACV > Clarion: 42ctclarionlead
  • Connection cable ACV > JVC: 42ctjvclead
  • Connection cable ACV > Kenwood: 42ctkenwoodlead
  • Connection cable ACV > Multilead various devices: 42ctmultilead
  • Connection cable ACV > Panasonic: 42ctpanasoniclead
  • Connection cable ACV > Blaupunkt/Kenwood/Pioneer: 42ctpioneerlead
  • Connection cable ACV > Blaupunkt/Kenwood/Sony: 42ctsonylead
  • Connection cable ACV > XZent/Zenec: 42ctzeneclead

Your benefits at Masori

ACV LFB Mini 40Pin Quadlock CAN Bus Datasheet

Open datasheet

Frequently Asked Questions about LFB Mini 40Pin Quadlock CAN Bus

What functions are not supported by the LFB Mini 40Pin Quadlock CAN Bus?

The LFB Mini 40Pin Quadlock CAN Bus does not support PDC or warning tones. Vehicle settings cannot be transferred with this adapter either. The main function of the adapter is to transmit the Steering Wheel Remote Control functions and other essential signals. This limitation is important, especially when replacing the factory radio, as additional vehicle functions are not active. Make sure that the unsupported functions are sufficient for your use case.

For which vehicle models is the LFB Mini 40Pin Quadlock CAN Bus suitable?

The LFB Mini 40Pin Quadlock CAN Bus is specifically suitable for Mini models, particularly the F55, F56, and F57 series produced between March 2014 and February 2018. This is important because plug formats and the electronic architecture of vehicles can vary by model. When installing a new radio or other electronic components, it is crucial that the adapter is compatible with the chosen vehicle to ensure smooth operation.

What signals are provided by the LFB Mini 40Pin Quadlock CAN Bus?

The adapter enables the transmission of various essential signals. These include the handbrake signal, reverse signal, ignition, lighting, speed, and the Steering Wheel Remote Control. These signals are critical to ensure the integration of the aftermarket radio into the vehicle system. Without the correct transmission of these signals, some of the new electronic features may not function properly. It is particularly important to ensure that the speed and ignition signals work correctly to guarantee safety and functionality in road traffic.

How do I check the compatibility of the LFB Mini 40Pin Quadlock CAN Bus with my vehicle?

To check the compatibility of the LFB Mini 40Pin Quadlock CAN Bus, compare the plugs of the adapter with those of your vehicle. The optical fit is crucial, as is the technical matching, to ensure that the Steering Wheel Remote Control functions are retained. Verify whether any of the supported original factory radios were installed and note that some functions may be omitted depending on the aftermarket device. It is essential to test the functionality of the vehicle systems before final installation to avoid complications.

Which radios can be connected to the LFB Mini 40Pin Quadlock CAN Bus?

The LFB Mini 40Pin Quadlock CAN Bus allows connection to a variety of brands and models. Supported manufacturers include Alpine, Parrot, Bosch-Blaupunkt (up to 2010), Blaupunkt/China HU/Kenwood, Clarion, JVC, Kenwood, Panasonic, Pioneer, and XZent/Zenec. Each of these manufacturers has specific connection cables such as the 42ctalpinelead, 42ctjvclead, or 42ctkenwoodlead. These enable a seamless connection to a suitable aftermarket radio. Make sure you have selected the appropriate cable for your specific radio and vehicle model.

What are the technical requirements for the power supply of the LFB Mini 40Pin Quadlock CAN Bus?

The LFB Mini 40Pin Quadlock CAN Bus requires a +12V constant power supply through the yellow wire, known as terminal 30. This battery connection must be fused to protect the system from potential voltage irregularities or electrical shorts. Proper power supply is essential to ensure the ongoing functionality of the connected devices and to maintain the electromagnetic compatibility of the vehicle's radio network. Even when the vehicle is turned off, certain functions should remain operational. Improper installation could lead to malfunctions or damage.

What should be considered when installing the LFB Mini 40Pin Quadlock CAN Bus?

When installing the LFB Mini 40Pin Quadlock CAN Bus, it is important to ensure the comparison of the plugs and compatibility with the vehicle. Before final installation, check all vehicle systems, especially the Steering Wheel Remote Control, for functionality. If any of the functions are not supported, it is advisable to reconsider the process to avoid malfunctions. It is also recommended to refer to technical manuals or additional resources to ensure that the connection cables are correctly connected and electrical safety is maintained.

Can the LFB Mini 40Pin Quadlock CAN Bus fully support the original Steering Wheel Remote Control?

The LFB Mini 40Pin Quadlock CAN Bus is designed to maintain the Steering Wheel Remote Control functions as much as possible. However, depending on the model of the aftermarket radio and the current software version, the functionality may vary. Personally, I have found during installations that some functions might be limited or replaced. Therefore, it is worthwhile to consult the respective vehicle manual and test the integration before the complete installation of the aftermarket radio to ensure that the demands for user comfort are fully met.

What is the significance of the various plugs in the LFB Mini 40Pin Quadlock CAN Bus?

The various plugs of the LFB Mini 40Pin Quadlock CAN Bus are specifically designed for transmitting important vehicle data. Each connection serves a specific function, from power supply to signal transmission. For example, the 40 Pin Quadlock BMW Plug is crucial for controlling the Steering Wheel Remote Control and other signals such as ignition or lighting. Each connection cable, whether for manufacturers like Blaupunkt or Kenwood, is tailored to the requirements of these devices. Therefore, plugs and their functions should be carefully examined to ensure correct installation and full compatibility.

How does the CAN Bus connection affect the installation of an aftermarket radio?

The CAN Bus connection of the LFB Mini 40Pin Quadlock plays a central role in the installation of an aftermarket radio, as it enables communication between the vehicle and the radio. It transmits critical information such as speed, ignition, and other signals that are essential for ensuring proper functionality. If not connected properly, it could particularly lead to misinterpretations of vehicle control commands or impaired performance. Therefore, a thorough check of compatibility and correct wiring is crucial to ensure smooth functionality of the new system.
