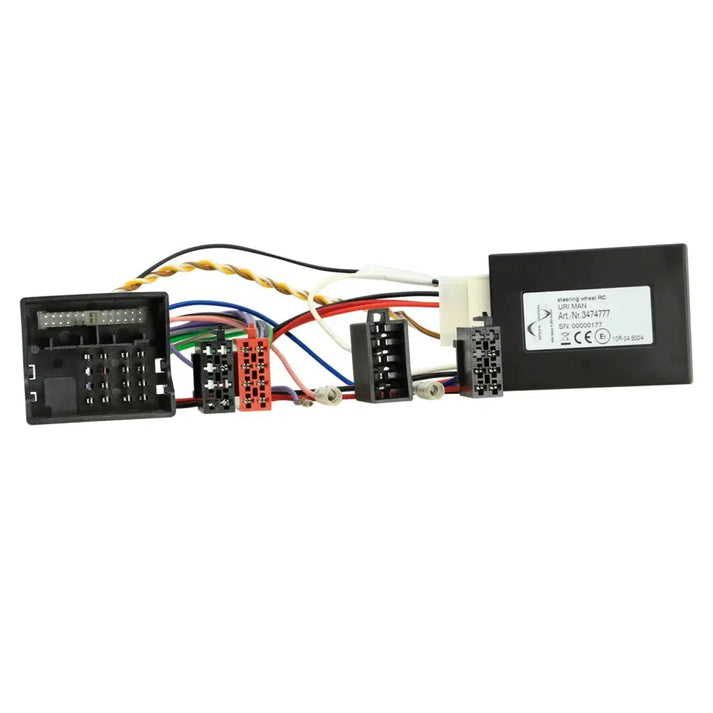

ACV LFB MAN 40Pin Quadlock

Beschreibung

If you want to replace your factory radio with an aftermarket radio, you should make sure to retain the original steering wheel remote control functions.

Please note, however, that depending on the vehicle equipment, range of functions and software of the retrofit device, individual operating functions may be omitted or replaced by other functions.

Compare the adapter plugs shown with those in your vehicle and make sure they fit visually and technically.

Please also check whether one of the specified original factory radios was installed in your vehicle.

Before you finally install the retrofit radio, we recommend that you check your vehicle's functions, vehicle settings and steering wheel remote controls to ensure that everything is working smoothly.

Notice

CAN bus

• Connection: 40 Pin Quadlock MAN connector +12V
• Connection: +12V power supply

Vehicles with +24 volt power supply

• Voltage converter 24 Volt > 12 Volt max. 10A > Article: 30.3520-06
• Vehicles with OEM subwoofer MQS connector assignment 40 Pin Quadlock:
• Check assignment with OEM device before installation
• B11: +12V Amp Remote
• D10: Preamp-GND 2V max.
• D11: Preamp-R 2V max.
• D12: Pramp-L 2V max.

Vehicles with OEM camera MQS connector assignment 40 Pin Quadlock

• Check assignment with OEM device
• D3: Video+
• D4: Video
• D6: +24V reversing signal
• Check dip switch position of steering wheel remote control on retrofit device (see BDA)
• Dip switch position Check vehicle equipment (see BDA)

Suitable for the following vehicles

• MAN TGA 2007 -2020*
• MAN TGL 2007 - 2020*
• MAN TGM 2007 - 2020*
• MAN TGS 2007 - 2020*
• MAN TGX 2007 - 2020*

The following signals are provided

• Reimported vehicles or vehicles with different software may be functionally incompatible.
• +12V ignition terminal 15
• +12V lighting terminal 58
• +12V reversing signal
• speed signal
• Total output load capacity: 200 mA max.
• Load capacity of single output: 180 mA. max

current consumption greater than 180 mA

• 1 relay coil resistance 75 Ohm min.
• 2 relays coil resistance 150 Ohm min.
• steering wheel remote control
• *Vehicles with 42 Pin Quadlock connector conversion adapter VAG 42Pin Quadlock>40Pin Quadlock > Article: 321328-24
• *CAN Bus high/low black/blue//brown/black > MQS connector B6/B12
• *Vehicles with ISO connection  > CAN bus in the ISO power connector

Optional

• 2-DIN radio cover MAN TGA/TGL/TGM/TGS/TGX Rubber Touch > Item: 391165-01

Connection cables for the following radio manufacturers

• LFB Speedsignal cable > Blaupunkt 2010>/Pioneer/Sony 4 Pin: 42c-3474101
• LFB Speedsignal Cable > JVC/Kenwood/XZent/Zenec 1 Lead 4 Pin: 42c-3474104
• LFB Speedsignal Cable > Alpine/Clarion/JVC 3.5mm jack 4 Pin: 42c-3474105
• LFB Speedsignal cable > Blaupunkt 2010>/China HU Lead 4 Pin: 42c-3474124

General Installation Instructions

examination

• 1: Checking all operating functions and vehicle setting functions of the OEM device
• 2: Disassemble the OEM device without applying any voltage
• 3: Check all interface connections for correctness and continuity without voltage

connection and connection sequence

• 1: Make settings and hardware configuration of the interface without power
• 2: Check the configuration of the radio connection cable
• 3: Connect the radio connection cable according to the operating instructions of the retrofit device
• 4: Connect all other connections according to the operating instructions of the retrofit device
• 5: Connection of the entire installation to the vehicle with the live connection last
• 6: Software configuration of the interface according to the instructions in the article text and in the BDA
• 7: Configuration of the retrofit device according to the operating instructions of the retrofit device steering wheel remote control/camera/FSE/antenna phantom power and others
• 8: Functional test of steering wheel remote control and vehicle

Changes to the hardware configuration of the interface and the radio connection cable

• 1: Make changes without stress
• 2: Connection after change see above 5 to 8

In case of malfunction of the interface or the vehicle

• 1: Revert to the OEM device
• 2: Operating the OEM device
• 3: Establish CAN bus rest
• 4: Checking the hardware configuration of the interface
• 5: Connection after CAN bus rest see above 5 to 8
• Connections, connection changes, alternative connections, connections of loose cables or connection extensions of loose cables specified in the information text or the operating instructions are intended solely for orientation and information purposes for trained specialist personnel.

Additional connections, changes to the cable configuration of the wiring harness or use of alternative connections or connection extensions

• 1: Connections and modifications must only be carried out by trained personnel
• 2: Connections and modifications must be checked before connection for any manufacturer approvals or manufacturer warranty conditions that may be affected by the modifications
• 3: Connections and changes must be checked for functionality and correctness before connection by measuring and comparing them with the vehicle's cable assignment plan
• 4: Connections and modifications are carried out at your own risk without guarantee of functionality
• 5: Connections and modifications are carried out at your own risk without any guarantee for damage to the vehicle, the retrofit device or the interface
• 6: Modifications to the pre-assembled wiring harness may void the product warranty
