  3. LFB Ford ISO/Mini ISO
ACV LFB Ford ISO/Mini ISO Steering Wheel Remote Control
SKU:  42SFO009
EAN:  4026724423587

LFB Ford ISO/Mini ISO

SKU:  42SFO009
EAN:  4026724423587

Technical Highlights

  • CAN bus, ISO/Mini ISO connector, remote amplifier, speed. Suitable for Ford Ka, various models. Signals: ignition, lights, reverse signal, handbrake signal.
  • More technical details
€99,00
€99,00 €99,00
5% discount with credit card
inkl. VAT , possibly plus shipping
Delivery
May 29, - Jun 1,
x piece
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €8,25 with Klarna .

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours

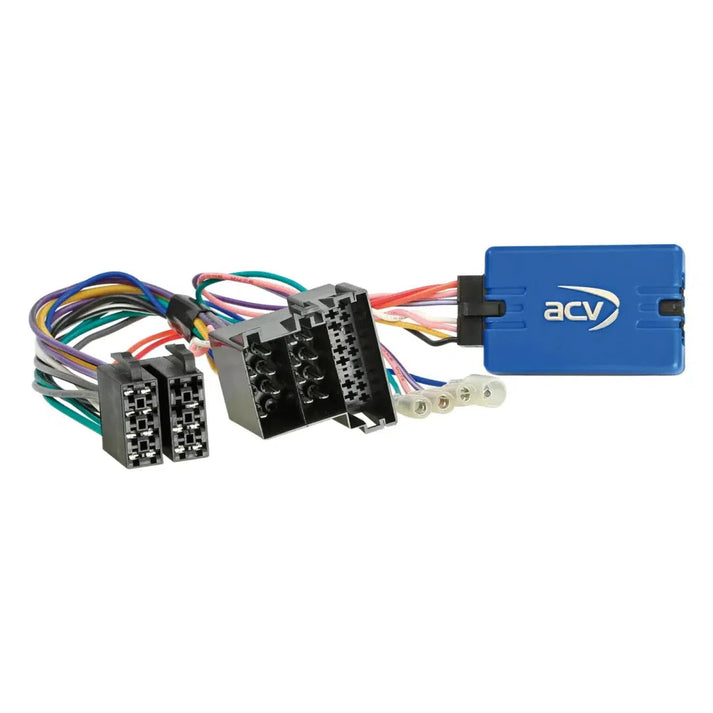

ACV-LFB Ford ISO/Mini ISO-Lenkradfernbedienung-masori-kaufen
€99,00
€99,00 €99,00

LFB Ford ISO/Mini ISO by ACV

ACV LFB Ford ISO/Mini ISO is a Steering Wheel Remote Control with CAN Bus and ISO/Mini ISO connection. Suitable for Ford Ka (RU8) 02/2009 - 05/2017. Provides the following signals: red +12V ignition terminal 15, orange +12V lighting terminal 58, purple/white +12V reverse signal, pink speed signal, green ground GND handbrake signal. Blue: +12V Amp Amplifier Remote. Total output load capacity 100 mA max.; for power requirements greater than 100 mA, relay with coil resistance 75 Ohm (1 relay) or 150 Ohm (2 relays). Connection cables for Alpine, Parrot, Bosch-Blaupunkt, Blaupunkt, China HU, Kenwood, Clarion, JVC, Multilead, Panasonic, Pioneer, Sony, and XZent/Zenec as per list. Optional: Active system adapter Alfa Romeo/Lancia 13-1001-50.

Features
  • Steering Wheel Remote Control
  • Manufacturer: ACV
  • Interface: CAN Bus
  • Connection: ISO / Mini ISO
  • Compatibility: Ford Ka (RU8) 02/2009 - 05/2017
  • Blue: +12V Amp Amplifier Remote
  • Optional: Active system adapter Alfa Romeo/Lancia 13-1001-50
Technical Data
  • Provided signals
    • red: +12V ignition terminal 15
    • orange: +12V lighting terminal 58
    • purple/white: +12V reverse signal
    • pink: speed signal
    • green: ground GND handbrake signal
    • Steering Wheel Remote Control
  • Total output load capacity: 100 mA max.
  • Power requirement greater than 100 mA: 1 relay coil resistance 75 Ohm min.
  • Power requirement greater than 100 mA: 2 relays coil resistance 150 Ohm min.
  • Connection cables for the following radio manufacturers
    • LFB cable 42s/acv > Alpine jack: 42ctalpinelead
    • LFB cable 42s/acv > Parrot 4 Pin: 42ctasteroidlead
    • LFB cable 42s/acv > Bosch-Blaupunkt >2010 Mini ISO: 42ctblaupunktlead
    • LFB cable 42s/acv > Blaupunkt/China HU/Kenwood 3 cables: 42ctchinahulead
    • LFB cable 42s/acv > Clarion jack: 42ctclarionlead
    • LFB cable 42s/acv > JVC 1 cable/jack: 42ctjvclead
    • LFB cable 42s/acv > Kenwood 1 cable: 42ctkenwoodlead
    • LFB cable 42s/acv > Multilead various devices: 42ctmultilead
    • LFB cable 42s/acv > Multilead various devices/Pioneer 2022>: 42ctmultilead3
    • LFB cable 42s/acv > Multilead various devices/Pioneer 2022>: 42ctmultilead5
    • LFB cable 42s/acv > Panasonic 1 cable: 42ctpanasoniclead
    • LFB cable 42s/acv > Blaupunkt/Kenwood/Pioneer jack: 42ctpioneerlead
    • LFB cable 42s/acv > Pioneer AVH/DMH/SPH 2022> jack loose: 42ctpioneerlead2
    • LFB cable 42s/acv > Devices with LFB learning function: 42ctsmartlead
    • LFB cable 42s/acv > Blaupunkt/Kenwood/Sony jack: 42ctsonylead
    • LFB cable 42s/acv > XZent/Zenec 1 cable: 42ctzeneclead

Your benefits at Masori

ACV LFB Ford ISO/Mini ISO Datasheet

Open datasheet

Frequently Asked Questions about LFB Ford ISO/Mini ISO

How does the LFB Ford ISO/Mini ISO Adapter from ACV work?

The LFB Ford ISO/Mini ISO Adapter from ACV is designed to retain the Steering Wheel Remote Control functions when installing a new aftermarket radio in a vehicle. By connecting the adapter to the original plugs in the vehicle, it ensures that the signals for ignition, lighting, reverse signal, and speed, as well as the ground GND, are transmitted correctly. The adapter supports various radio manufacturers through specific connection cables, such as Alpine and Kenwood. To ensure compatibility, it is important to compare the plug types in the vehicle with those of the adapter.

What connection cables are included with the LFB Ford ISO/Mini ISO Adapter?

The LFB Ford ISO/Mini ISO Adapter includes several specialized connection cables to be compatible with a variety of radio manufacturers. This includes cables for Alpine, Parrot, Bosch-Blaupunkt, Clarion, JVC, Kenwood, Panasonic, Pioneer, Sony, and XZent/Zenec, among others. Each of these cables is specifically designed for the respective brand, such as the 42ctalpinelead for Alpine or the 42ctkenwoodlead for Kenwood. This allows for seamless integration of the aftermarket radio with the vehicle control via the steering wheel buttons.

Is the ACV LFB Ford ISO/Mini ISO Adapter compatible with my Ford Ka?

Yes, the ACV LFB Ford ISO/Mini ISO Adapter is specifically suitable for the Ford Ka (RU8) from 02/2009 to 05/2017. The compatibility ensures that specific vehicle signals such as ignition, lighting, and reverse signal are correctly forwarded. Additionally, the original radio should be checked to verify the proper fit of the adapter plugs. It is important to ensure that the radio manufacturer's cable fits the aftermarket radio to enable the use of the Steering Wheel Remote Control.

What signals does the LFB Ford ISO/Mini ISO Adapter from ACV transmit?

The adapter transmits relevant vehicle parameters, including +12V ignition (terminal 15), +12V lighting (terminal 58), +12V reverse signal, speed signal, and ground GND. These signals are crucial for ensuring the smooth operation of the aftermarket radio in the vehicle. However, note that the adapter has a maximum total current load of 100 mA to function optimally. This affects the power requirements and allows electronic systems within the vehicle to operate correctly.

How do I check the functionality of the Steering Wheel Remote Control after installation?

After installation, you should ensure that all functions of the Steering Wheel Remote Control are working correctly. Test various buttons to ensure they transmit the desired commands to the aftermarket radio. Start with basic functions like volume control and station selection. If there are discrepancies, check the cable connections and the compatibility of the installed cable with the retrofitted radio. In particular, ensure that the connections to the ignition, lighting, and other signals are properly established.

What technical features does the LFB Ford ISO/Mini ISO Adapter from ACV have?

One of the technical features of the adapter is its variety of specific connection cables, which ensure compatibility with different radio manufacturers. The product offers a maximum load capacity of the total outputs of 100 mA and requires that the coil resistance for a relay is at least 75 Ohms and for two relays at least 150 Ohms. The signals transmitted by the adapter include ignition, lighting, and speed, allowing for extensive integration with vehicle operation.

How complex is the installation of the LFB Ford ISO/Mini ISO Adapter from ACV?

The installation is technically demanding and requires a good understanding of the vehicle and radio configuration. First, the existing plugs in the vehicle should be compared with those of the adapter to ensure a proper fit. Depending on the vehicle's equipment, it may be necessary to adjust or replace the functionality of individual controls. A correct connection of the ISO/Mini ISO plug, especially the blue +12V Amplifier Remote, is crucial to ensure the proper functioning of the system.

Does the LFB Ford ISO/Mini ISO adapter from ACV support CAN Bus?

The adapter supports a CAN Bus connection, allowing the exchange of information between the aftermarket radio and the vehicle control systems. Through the blue ISO/Mini ISO plug, specific signals such as the +12V Amplifier Remote can be fed in. This connection ensures that important vehicle data, such as speed and reverse signal, are reliably transmitted. The connection via CAN Bus is particularly important in modern vehicles to fully utilize the extensive control options of the vehicle with the new radio.

Which vehicle functionalities could be affected by the LFB Ford ISO/Mini ISO adapter from ACV?

Some vehicle functionalities may be influenced by the use of the adapter, especially depending on the vehicle equipment and the functionality of the aftermarket radio. Functions controlled by the original Steering Wheel Remote Control may be lost or replaced by others. However, critical signals, such as ignition or lighting signals, will be forwarded correctly. Therefore, it is important to check the functionality of the vehicle controls, especially the Steering Wheel Remote Control, before final installation to ensure smooth operation.

Are there compatibility limitations for radios that can be connected with the LFB Ford ISO/Mini ISO adapter from ACV?

Compatibility is largely ensured by the variety of specific connection cables, but there are limitations based on the specific radio brand and connection options. For example, there are specific cables for brands like Alpine, Clarion, Pioneer, and Kenwood. The respective adapter cable must match the radio to correctly integrate the functions of the Steering Wheel Remote Control. Additionally, the CAN Bus connection should be checked to ensure that all desired functions can be transmitted. A thorough compatibility check in advance is essential.
