  3. LFB Citroen/Fiat 40Pin Quadlock PDC
ACV LFB Citroen/Fiat 40Pin Quadlock PDC Steering Wheel Remote Control
SKU:  42SCT008
EAN:  4026724131253

LFB Citroen/Fiat 40Pin Quadlock PDC

SKU:  42SCT008
EAN:  4026724131253

Technical Highlights

  • CAN Bus connection: 40 pin Quadlock Citroen connector recommended.
  • Supports PDC playback on rear speaker output.
  • Load capacity of total outputs: 100 mA max. current requirement.
  • More technical details
€159,00
€159,00 €159,00
5% discount with credit card
inkl. VAT , possibly plus shipping
Delivery
May 29, - Jun 1,
x piece
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €13,25 with Klarna .

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours

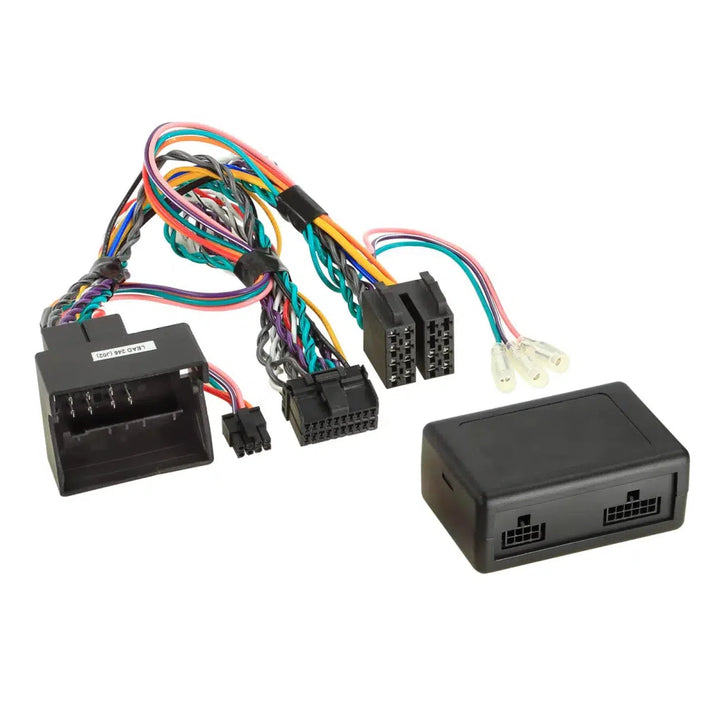

ACV-LFB Citroen/Fiat 40Pin Quadlock PDC-Lenkradfernbedienung-masori-kaufen
€159,00
€159,00 €159,00

LFB Citroen/Fiat 40Pin Quadlock PDC by ACV

LFB Citroen/Fiat 40Pin Quadlock PDC is a Steering Wheel Remote Control from ACV with CAN Bus and 40 Pin Quadlock Citroen/Peugeot connection. It supports vehicles with Blaupunkt, Continental or Siemens VDO RD4 OEM device with volume control knob as well as Clarion MQ-RD6 OEM device with monochrome display and central control knob. PDC rear is supported with playback on the rear speaker output, vehicle settings are supported. Provided signals: +12V ignition terminal 15, +12V lighting terminal 58, +12V reverse signal, speed signal, ground GND handbrake signal; total output load capacity 100 mA max. In ECO mode, +12V constant power terminal 30 Battery is secured, in vehicles with PDC switch, PDC playback must be activated. Compatibility exists with LFB connection cables for Alpine, Parrot, Bosch-Blaupunkt, Blaupunkt, China HU, Clarion, JVC, Kenwood, Multilead, Panasonic, Pioneer, XZent, and Zenec according to specified wire IDs. Vehicles without Continental RD45 OEM device, without Magneti Marelli RT3/RT6 Harman Becker OEM navigation, and without JBL OEM sound system are considered; in the absence of OEM rear speakers, a cable swap in the ISO plugs is planned.

Features
  • Steering Wheel Remote Control
  • CAN Bus
  • Connection: 40 Pin Quadlock Citroen/Peugeot plug
  • PDC rear supported
  • PDC playback on rear speaker output
  • Vehicle settings supported
  • Vehicles with Blaupunkt/Continental/Siemens VDO RD4 OEM device with volume control knob
  • Vehicles with Clarion MQ-RD6 OEM device with monochrome display and central control knob
  • Vehicles without Continental RD45 OEM device with volume control knob
  • Vehicles without Magneti Marelli RT3/RT6 Harman Becker OEM navigation with volume control knob
  • Vehicles without JBL OEM sound system
  • Vehicles without OEM rear speakers: Swap cables for front speakers/rear speakers in the ISO plugs
  • Vehicles with PDC switch: PDC playback must be activated
  • Vehicles with ECO mode: +12V constant power terminal 30 Battery secured
  • Citroën Berlingo (7) 06/2008 - 03/2012
  • Citroën Berlingo (7) 04/2012 - 05/2015
  • Citroën Berlingo (7) 06/2015 - 06/2018
  • Citroën C2 (J) 12/2004 - 12/2009
  • Citroën C3 (F) 10/2005 - 01/2010
  • Citroën C3 (S) 01/2010 - 01/2017
  • Citroën C4 (L) 11/2004 - 08/2010
  • Citroën C5 (D) 10/2004 - 04/2008
  • Citroën C8 (E) 01/2008 - 07/2012
  • Citroën C8 (E) 07/2012 - 06/2014
  • Citroën DS3 (S) 03/2010 - 07/2014
  • Citroen Jumpy (X) 02/2007 - 05/2016
  • Citroen Jumpy (X) 09/2016 - 2023***
  • Citroen Spacetourer 03/2016 - 2023***
  • Fiat Scudo (ZAF 270) 02/2007 - 07/2016
  • Opel Vivaro C (V) 09/2019 - 2023***
  • Opel Zafira Life V (V) 02/2019 - 2023***
  • Toyota Proace 03/2013 - 08/2016
  • Toyota Proace (V) 03/2016 - 2023***
  • Toyota Proace Verso (V) 03/2016 - 2023***
Technical data
  • Provided signals
  • red: +12V Ignition terminal 15
  • orange: +12V Lighting terminal 58
  • purple/white: +12V Reverse signal
  • pink: Speed signal
  • green: Ground GND Handbrake signal
  • Load capacity of total outputs: 100 mA max.
  • Power requirement greater than 100 mA
  • 1 Relay coil resistance 75 Ohm min.
  • 2 Relay coil resistance 150 Ohm min.
  • Reimported vehicles or vehicles with different software may be incompatible in functions.
  • * Vehicles with RD45 OEM device LFB Citroen/Fiat/Peugeot/Toyota 40 Pin Quadlock: Item 42b-3444741
  • ** Vehicles with RD45 OEM device Warning Tone Interface BMW/Citroen/Peugeot/Fiat/Ford/Volvo: Item can-pdc
  • *** Vehicles with PDC and Clarion MQ-RD6 OEM device with monochrome display and central rotary knob
  • *** Vehicle settings not supported
  • Connection cable for the following radio manufacturers
  • LFB Cable 42s/acv > Alpine Jack: 42ctalpinelead
  • LFB Cable 42s/acv > Parrot 4 Pin: 42ctasteroidlead
  • LFB Cable 42s/acv > Bosch-Blaupunkt >2010 Mini ISO: 42ctblaupunktlead
  • LFB Cable 42s/acv > Blaupunkt/China HU/Kenwood 3 Cables: 42ctchinahulead
  • LFB Cable 42s/acv > Clarion Jack: 42ctclarionlead
  • LFB Cable 42s/acv > JVC 1 Cable/Jack: 42ctjvclead
  • LFB Cable 42s/acv > Kenwood 1 Cable: 42ctkenwoodlead
  • LFB Cable 42s/acv > Multilead various devices: 42ctmultilead
  • LFB Cable 42s/acv > Multilead various devices/Pioneer 2022 >: 42ctmultilead3
  • LFB Cable 42s/acv > Multilead various devices/Pioneer 2022 >: 42ctmultilead5
  • LFB Cable 42s/acv > Panasonic 1 Cable: 42ctpanasoniclead
  • LFB Cable 42s/acv > Blaupunkt/Kenwood/Pioneer Jack: 42ctpioneerlead
  • LFB Cable 42s/acv > Pioneer AVH/DMH/SPH 2022 > Jack loose: 42ctpioneerlead2
  • LFB Cable 42s/acv > Devices with LFB Learning Function: 42ctsmartlead
  • LFB Cable 42s/acv > Blaupunkt/Kenwood/Sony Jack: 42ctsonylead
  • LFB Cable 42s/acv > XZent/Zenec 1 Cable: 42ctzeneclead

Your benefits at Masori

ACV LFB Citroen/Fiat 40Pin Quadlock PDC Datasheet

Open datasheet

Frequently Asked Questions about LFB Citroen/Fiat 40Pin Quadlock PDC

What is the main purpose of the Steering Wheel Remote Control Citroen/Fiat 40Pin Quadlock PDC?

The main purpose of the Steering Wheel Remote Control Citroen/Fiat 40Pin Quadlock PDC from ACV is to retain the functions of the original Steering Wheel Remote Control for aftermarket radios. It allows control commands to be transmitted through the steering wheel, ensuring that operating the radio remains comfortable even after a replacement. Additionally, the interface supports Park Distance Control (PDC) playback through the speaker output, which is particularly important for vehicles with a PDC switch. By being compatible with the CAN Bus systems of various vehicle brands, it preserves integral driving characteristics while allowing aftermarket devices to be easily connected.

Which vehicles are supported by the Steering Wheel Remote Control Citroen/Fiat 40Pin Quadlock PDC adapter?

The Steering Wheel Remote Control Citroen/Fiat 40Pin Quadlock PDC is compatible with a variety of vehicles, including several models from Citroën, Fiat, Opel, and Toyota. Supported Citroën models include Berlingo, C2, C3, C4, C5, DS3, and Jumpy, while Fiat covers the Scudo. Opel drivers can use the adapter with the Vivaro C and Zafira Life V. Additionally, the Toyota Proace and Proace Verso models from 2013 to 2023 are compatible. Important factors include the specific vehicle electronics and the presence of certain OEM components in the vehicle.

How can the compatibility of the Steering Wheel Remote Control Citroen/Fiat 40Pin Quadlock PDC with my vehicle be checked?

To ensure the compatibility of the Steering Wheel Remote Control Citroen/Fiat 40Pin Quadlock PDC with your vehicle, you should compare the depicted plugs of the adapter with the connections in your vehicle. Pay attention to the specific CAN Bus connection via the 40-pin Quadlock plug as well as the software of the original factory radio. For vehicles equipped with OEM devices like Blaupunkt or Clarion, it is crucial to check the pin configuration for compatibility. Additionally, you can match the vehicle model data with the supported car types in the description to avoid incorrect purchases.

Are there any special installation instructions for the Steering Wheel Remote Control Citroen/Fiat 40Pin Quadlock PDC?

For the correct installation of the Steering Wheel Remote Control Citroen/Fiat 40Pin Quadlock PDC, it is necessary to check all operating and vehicle setting functions of the OEM device. A voltage-free disassembly of the factory device is required. This ensures a correct connection sequence. First, the hardware configuration of the interface should be checked, and then the radio connection cable should be connected according to the instructions of the retrofit device. It is important to configure the software of the interface according to the provided instructions and to test the functionality of the Steering Wheel Remote Control after installation.

What signals does the Steering Wheel Remote Control Citroen/Fiat 40Pin Quadlock PDC provide?

The Steering Wheel Remote Control Citroen/Fiat 40Pin Quadlock PDC offers various important signals that can be used in the vehicle. These include the ignition signal (+12V, terminal 15), the lighting signal (+12V, terminal 58), and the reverse signal (+12V, purple/white). Additionally, it includes the speed signal and the ground GND handbrake signal. These signals support a variety of applications, particularly in the area of Steering Wheel Remote Control and acoustic feedback, e.g., for Park Distance Control. Proper use ensures that no functions are lost in the vehicle components context.

Does the Steering Wheel Remote Control Citroen/Fiat 40Pin Quadlock PDC adapter support vehicles with PDC?

Yes, the Steering Wheel Remote Control Citroen/Fiat 40Pin Quadlock PDC adapter supports vehicles with Park Distance Control (PDC). This includes the playback of PDC signals through the 'Rear' speaker output, which is particularly important for vehicles with an existing PDC switch. The adapter is designed to send signals to the retrofit radio to maintain PDC functionality. This integration requires that the PDC in the vehicle is activated to ensure proper functionality. A detailed check of the vehicle configuration before installation is essential.

How does the Steering Wheel Remote Control Citroen/Fiat 40Pin Quadlock PDC affect the use of vehicle settings?

The use of the Steering Wheel Remote Control Citroen/Fiat 40Pin Quadlock PDC affects the ability to support certain vehicle settings when they are directly linked to the Steering Wheel Remote Control and other functions. It is noted that for some models, particularly those with Clarion MQ-RD6 OEM devices or ECO mode, adjustments or special configurations may be necessary. The accuracy of the installation and the alignment with the existing software play a role in maintaining full functionality. A prior check of all functions of the OEM device is crucial.

Which connection cables are compatible with the Steering Wheel Remote Control Citroen/Fiat 40Pin Quadlock PDC?

The Steering Wheel Remote Control Citroen/Fiat 40Pin Quadlock PDC supports a variety of connection cables that are compatible with different radio brands. Specific cables such as the 42ctkenwoodlead for Kenwood or 42ctpioneerlead for Pioneer devices are available. These cables provide the necessary integration to link OEM functions and special radio software. Particularly significant are cables like 42ctclarionlead for Clarion or 42ctsmartlead for devices with Steering Wheel Remote Control learning function. Understanding the connection cables is critical to ensure harmony between the vehicle and the aftermarket device, especially with multifunction devices.

Can configuration changes to the Steering Wheel Remote Control Citroen/Fiat 40Pin Quadlock PDC lead to problems?

Configuration changes to the Steering Wheel Remote Control Citroen/Fiat 40Pin Quadlock PDC must be carried out with caution, as they carry a risk. Changes should be made without voltage to protect the hardware. Any modification can potentially affect the product's warranty and cause malfunctions. A faulty configuration could impact the CAN Bus idle or lead to a rollback to the OEM device. Therefore, all changes should be made by trained professionals, and it should always be checked whether the changes comply with the manufacturer's warranty conditions.

What should be considered when retrofitting the Steering Wheel Remote Control Citroen/Fiat 40Pin Quadlock PDC?

When retrofitting the Steering Wheel Remote Control Citroen/Fiat 40Pin Quadlock PDC, the voltage in the vehicle must be considered at all times. Properly adjusting the plugs and their alignment is important for the functionality of the entire system. Ensuring the safety of the voltage-free connection and disconnection is particularly important to avoid damaging any electromechanical components. Additionally, care should be taken to ensure that the software configuration of the individual components is carried out according to the instructions. A final functional test confirms that all components work safely and compatibly.
