  3. LFB Citroen 40Pin Quadlock RD4 device
ACV LFB Citroen 40Pin Quadlock RD4 device Steering Wheel Remote Control
SKU:  42SCT003
EAN:  4026724423310

LFB Citroen 40Pin Quadlock RD4 device

SKU:  42SCT003
EAN:  4026724423310

Technical Highlights

  • Impedance of the relays: 75 Ohm min. for one relay, 150 Ohm min. for two.
  • Load capacity of the total outputs: maximum 100 mA current requirement.
  • PDC support for Citroën/Fiat with RD4 OEM device and 40 pin Quadlock.
  • More technical details
€99,00
€99,00 €99,00
5% discount with credit card
inkl. VAT , possibly plus shipping
Delivery
May 29, - Jun 1,
x piece
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €8,25 with Klarna .

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours

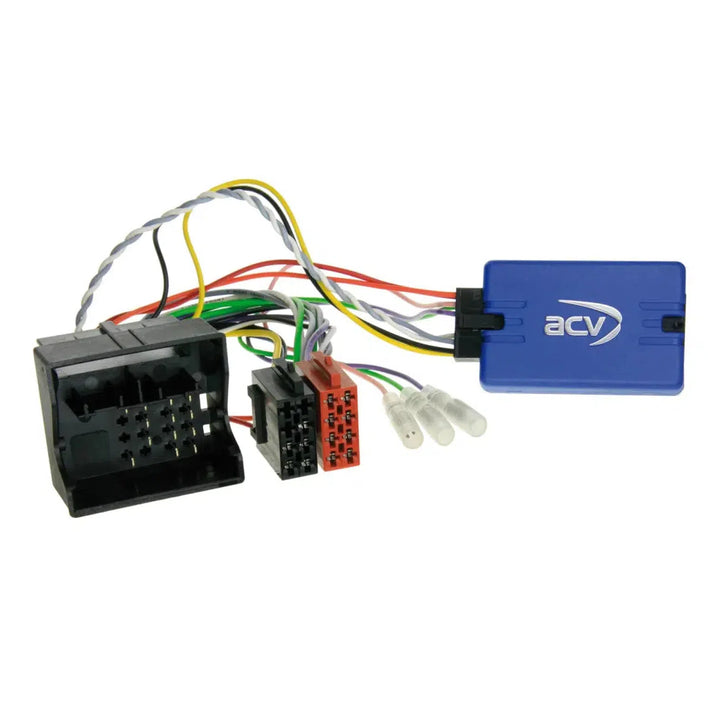

ACV-LFB Citroen 40Pin Quadlock RD4 Gerät-Lenkradfernbedienung-masori-kaufen
€99,00
€99,00 €99,00

LFB Citroen 40Pin Quadlock RD4 device by ACV

ACV LFB Citroen 40Pin Quadlock RD4 device is a Steering Wheel Remote Control with CAN-Bus and 40 Pin Quadlock Citroen Peugeot Plug. Designed for vehicles with Blaupunkt, Continental, or Siemens VDO RD4 OEM device with volume control knob. Not for vehicles with Continental RD5 OEM CD-Tuner Silverbox, Continental RD45 OEM device with volume control knob, Magneti Marelli RT3 or RT6, Harman Becker OEM Navigation, or JBL OEM Sound System. Vehicle settings supported. Provided signals: +12V ignition terminal 15 red, +12V lighting terminal 58 orange, +12V reverse signal purple white, speed signal pink, ground GND handbrake signal green. Total output load 100 mA max; for current demand greater than 100 mA, 1 relay with coil resistance 75 Ohm min or 2 relays with 150 Ohm min. For vehicles with ECO-Mode +12V permanent power connection terminal 30 Battery fused. PDC additionally can-pdc. Connection cables available for Alpine, Parrot, Bosch-Blaupunkt, Blaupunkt China HU Kenwood, Clarion, JVC, Kenwood, Multilead various devices including Pioneer 2022>, Panasonic, Blaupunkt Kenwood Pioneer, Pioneer AVH DMH SPH 2022>, devices with LFB learning function, Blaupunkt Kenwood Sony, and XZent Zenec.

Features
  • Steering Wheel Remote Control
  • CAN-Bus
  • Connection: 40 Pin Quadlock Citroen Peugeot Plug
  • Vehicles with Blaupunkt Continental Siemens VDO RD4 OEM device with volume control knob
  • Vehicles without Continental RD5 OEM CD-Tuner Silverbox
  • Vehicles without Continental RD45 OEM device with volume control knob
  • Vehicles without Magneti Marelli RT3 RT6
  • Vehicles without Harman Becker OEM Navigation
  • Vehicles without JBL OEM Sound System
  • Vehicle settings supported
  • Vehicles with ECO-Mode +12V permanent power connection terminal 30 Battery fused
  • PDC additionally can-pdc
  • Citroën Berlingo (7) 06/2008 - 03/2012
  • Citroën Berlingo (7) 04/2012 - 05/2015
  • Citroën Berlingo (7) 06/2015 - 06/2018
  • Citroën C2 (J) 12/2004 - 12/2009
  • Citroën C3 (F) 10/2005 - 01/2010
  • Citroën C3 (S) 01/2010 - 01/2017
  • Citroën C4 (L) 11/2004 - 08/2010
  • Citroën C5 (D) 10/2004 - 04/2008
  • Citroën C8 (E) 01/2008 - 07/2012
  • Citroën C8 (E) 07/2012 - 06/2014
  • Citroën DS3 (S) 03/2010 - 07/2014
  • Citroen Jumpy (X) 02/2007 - 05/2016
  • Citroen Nemo (A) 08/2008 - 12/2015
  • Citroen Xsara Picasso (C) 03/2004 - 02/2010
  • Fiat Scudo (ZAF 270) 02/2007 -07/2016
  • Toyota Proace 03/2013 - 08/2016
  • LFB cable 42s/acv to Alpine jack: 42ctalpinelead
  • LFB cable 42s/acv to Parrot 4 Pin: 42ctasteroidlead
  • LFB cable 42s/acv to Bosch-Blaupunkt >2010 Mini ISO: 42ctblaupunktlead
  • LFB cable 42s/acv to Blaupunkt China HU Kenwood 3 cable: 42ctchinahulead
  • LFB cable 42s/acv to Clarion jack: 42ctclarionlead
  • LFB cable 42s/acv to JVC 1 cable jack: 42ctjvclead
  • LFB cable 42s/acv to Kenwood 1 cable: 42ctkenwoodlead
  • LFB cable 42s/acv to Multilead various devices: 42ctmultilead
  • LFB cable 42s/acv to Multilead various devices Pioneer 2022>: 42ctmultilead3
  • LFB cable 42s/acv to Multilead various devices Pioneer 2022>: 42ctmultilead5
  • LFB cable 42s/acv to Panasonic 1 cable: 42ctpanasoniclead
  • LFB cable 42s/acv to Blaupunkt Kenwood Pioneer jack: 42ctpioneerlead
  • LFB cable 42s/acv to Pioneer AVH DMH SPH 2022> jack loose: 42ctpioneerlead2
  • LFB cable 42s/acv to devices with LFB learning function: 42ctsmartlead
  • LFB cable 42s/acv to Blaupunkt Kenwood Sony jack: 42ctsonylead
  • LFB cable 42s/acv to XZent Zenec 1 cable: 42ctzeneclead
Technical Data
  • Provided signals: red +12V ignition terminal 15
  • Provided signals: orange +12V lighting terminal 58
  • Provided signals: purple white +12V reverse signal
  • Provided signals: pink speed signal
  • Provided signals: green ground GND handbrake signal
  • Total output load: 100 mA max
  • Current demand greater than 100 mA: 1 relay coil resistance 75 Ohm min
  • Current demand greater than 100 mA: 2 relays coil resistance 150 Ohm min
  • Reimport vehicles or vehicles with different software: functions incompatible possible
  • Alternative PDC for RD4 40 Pin Quadlock: item 42sct008
  • Alternative for RD45 40 Pin Quadlock: item 42b-3444741

Your benefits at Masori

ACV LFB Citroen 40Pin Quadlock RD4 device Datasheet

Open datasheet

Frequently Asked Questions about LFB Citroen 40Pin Quadlock RD4 device

Which vehicle models are compatible with the LFB Citroen 40Pin Quadlock RD4 device?

The LFB Citroen 40Pin Quadlock RD4 device from ACV is compatible with a variety of vehicle models. This includes Citroën models such as the Berlingo (from 2008 to 2018), C2, C3, C4, C5, C8, DS3, Jumpy, Nemo, Xsara Picasso, as well as Fiat Scudo and Toyota Proace. It is important that the 40 Pin Quadlock connection is present and that the vehicle is equipped with a Blaupunkt, Continental, or Siemens VDO RD4 OEM device. The device is not suitable for vehicles with certain JBL or Magneti Marelli systems. Check the specific model compatibilities in the product description.

How do I check the cable compatibility of the LFB Citroen 40Pin Quadlock RD4 device?

To ensure the cable compatibility of the LFB Citroen 40Pin Quadlock RD4 device, you should first compare the depicted plugs of the adapter with the connections in your vehicle. It is important that the plugs match visually and technically. Before final assembly, it is recommended to test all functions of the vehicle as well as the correct operation of the Steering Wheel Remote Control. This step ensures that all connections are correct and that no functions are lost due to incompatibilities. In the user manual, you will find detailed installation instructions for the connection cables.

What signals are available when connecting the LFB Citroen 40Pin Quadlock RD4 device?

The LFB Citroen 40Pin Quadlock RD4 device provides various signals for connection. The provided signals include a +12V ignition connection (terminal 15), +12V lighting connection (terminal 58), a reverse signal, a speed signal, and the ground connection (GND). Additionally, there is a handbrake signal. With a total output capacity of a maximum of 100 mA, the current demand should not exceed 100 mA. Two coil resistances of at least 75 and 150 Ohms are required for certain relay operations. These signals support integration into your existing vehicle network.

How is the correct installation of the LFB Citroen 40Pin Quadlock RD4 device carried out?

The installation of the Steering Wheel Remote Control Citroen 40Pin Quadlock RD4 device requires several steps. First, you configure the interface without power and check the radio connection cable. Then, you connect all terminals according to the user manual. The interface is finally connected to a powered terminal. When making changes to Steering Wheel Remote Controls, cameras, or hands-free systems, you should perform these without power. Changes to the pre-assembled wiring harness may affect warranty claims. The detailed installation manual provides precise information on the correct cable connection and configuration to operate the product without errors.

What functions are possible with the Steering Wheel Remote Control Citroen 40Pin Quadlock RD4 device?

The Steering Wheel Remote Control Citroen 40Pin Quadlock RD4 device supports a variety of functions, including the integration of the Steering Wheel Remote Control. Vehicle settings are also supported, ensuring seamless operation. It is important to check the compatibility of the retrofit device's software, as some functions may be omitted or replaced depending on the equipment. Vehicles in ECO mode require a +12V constant power connection (terminal 30). For specific configurations, such as use with PDC, an additional CAN bus connection may be required. You can find all details in the device's user manual.

Which radio manufacturers are compatible with the Steering Wheel Remote Control Citroen 40Pin Quadlock RD4 device?

The Steering Wheel Remote Control Citroen 40Pin Quadlock RD4 device is compatible with various radio manufacturers, including Alpine, Parrot, Bosch-Blaupunkt, Kenwood, Clarion, JVC, Panasonic, Sony, XZent, and Zenec. Compatibility is ensured through specific connection cables. The item numbers for the respective cables are listed in the product description, such as the Alpine cable (42ctalpinelead) or the Kenwood cable (42ctkenwoodlead). During installation, it is important to check the configuration of the radio connection cable according to the user manual of the retrofit device to ensure everything is connected correctly.

How is the functionality of the Steering Wheel Remote Control ensured?

To ensure the functionality of the Steering Wheel Remote Control when switching to the Steering Wheel Remote Control Citroen 40Pin Quadlock RD4 device, it is essential to check the functions of your vehicle, including the remote control, before final assembly. All vehicle functions should be correctly switched to the retrofit radio, with some functions potentially omitted or replaced depending on the vehicle's equipment. Also, check that all plug connections are properly secured. Note that the setup should only be performed by trained professionals to prevent possible incompatibilities.

What special features should be considered for the CAN bus connection?

The CAN bus connection for the LFB Citroen 40Pin Quadlock RD4 device requires specific conditions. Vehicles with Blaupunkt, Continental, or Siemens VDO RD4 media technology are compatible. However, those with Continental RD5 or RD45 devices, Magneti Marelli RT3/RT6, or Harman Becker Navigation are excluded. Before connecting, it must be checked whether the vehicle settings are compatible with the CAN bus. Vehicles in ECO mode also require a specially secured +12V constant power connection. The CAN bus allows for a networked control system specifically designed for compatibility with vehicle functions.

What connection cable options are available for the LFB Citroen 40Pin Quadlock RD4 device?

Various connection cables are available for the LFB Citroen 40Pin Quadlock RD4 device. These connect the device to radios from Alpine, Parrot, Bosch-Blaupunkt, Kenwood, Clarion, JVC, Sony, and other manufacturers. The item numbers for the cables are, for example, 42ctalpinelead for Alpine or 42ctkenwoodlead for Kenwood. Each cable is specifically tailored to the requirements of the respective radio manufacturer. The selection of the appropriate connection cable depends on the model-specific design of the plug system, which is described in more detail in the manual of the retrofit radio. A thorough check of cable compatibility can prevent installation issues.

How does the connection of the LFB Citroen 40Pin Quadlock RD4 device affect the vehicle settings?

The connection of the LFB Citroen 40Pin Quadlock RD4 device can influence the vehicle settings. The integration of the device typically supports the Steering Wheel Remote Control and the PDC function. However, it is advisable to check the vehicle settings for their configuration with the retrofit radio before installation. Vehicles must not be directly connected to an unsecured power supply in ECO mode; a secured +12V constant power connection is crucial. Additionally, caution is advised with differing software versions or re-imported vehicles, as compatibility may be limited. Always consult the manual for more detailed information.
