KMR-M508DAB
Technical Highlights
- Max. output power of 50W x 4, MOSFET power IC.
- Pre-amplifier output: 2.5V, 600 ohms impedance, RCA connectors.
- Input frequency range: Aux 20 Hz~20 kHz, ±1 dB accuracy.
- More technical details
Availability for pickups could not be loaded.
Shipping cost calculator
Shipping cost calculator
Rob
Max
Unsure if this product fits your car?
We help you – quickly, personally, and without obligation.
Fill out the form and we'll send you a personalised offer
This product is not universally compatible. Send us your vehicle details and we will check fitment for your model free of charge.

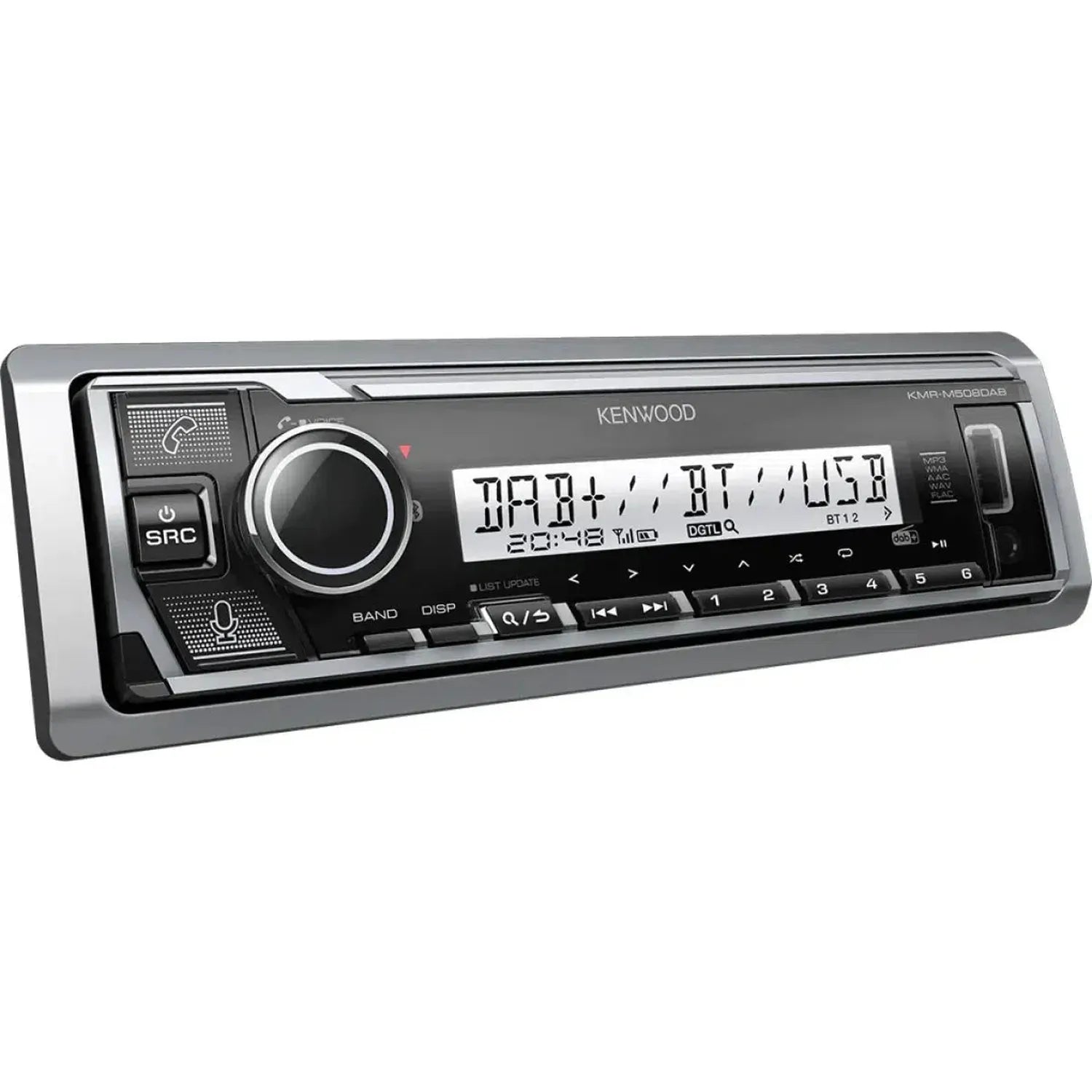

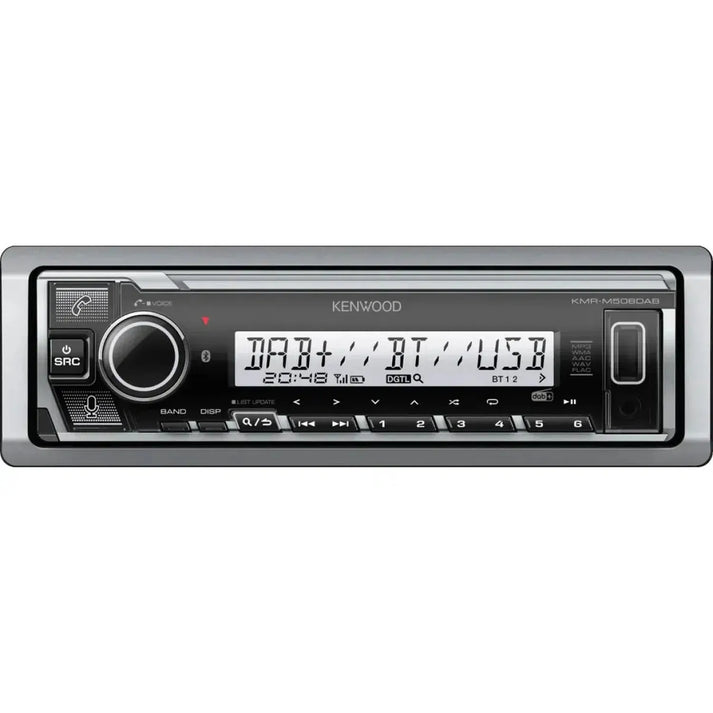

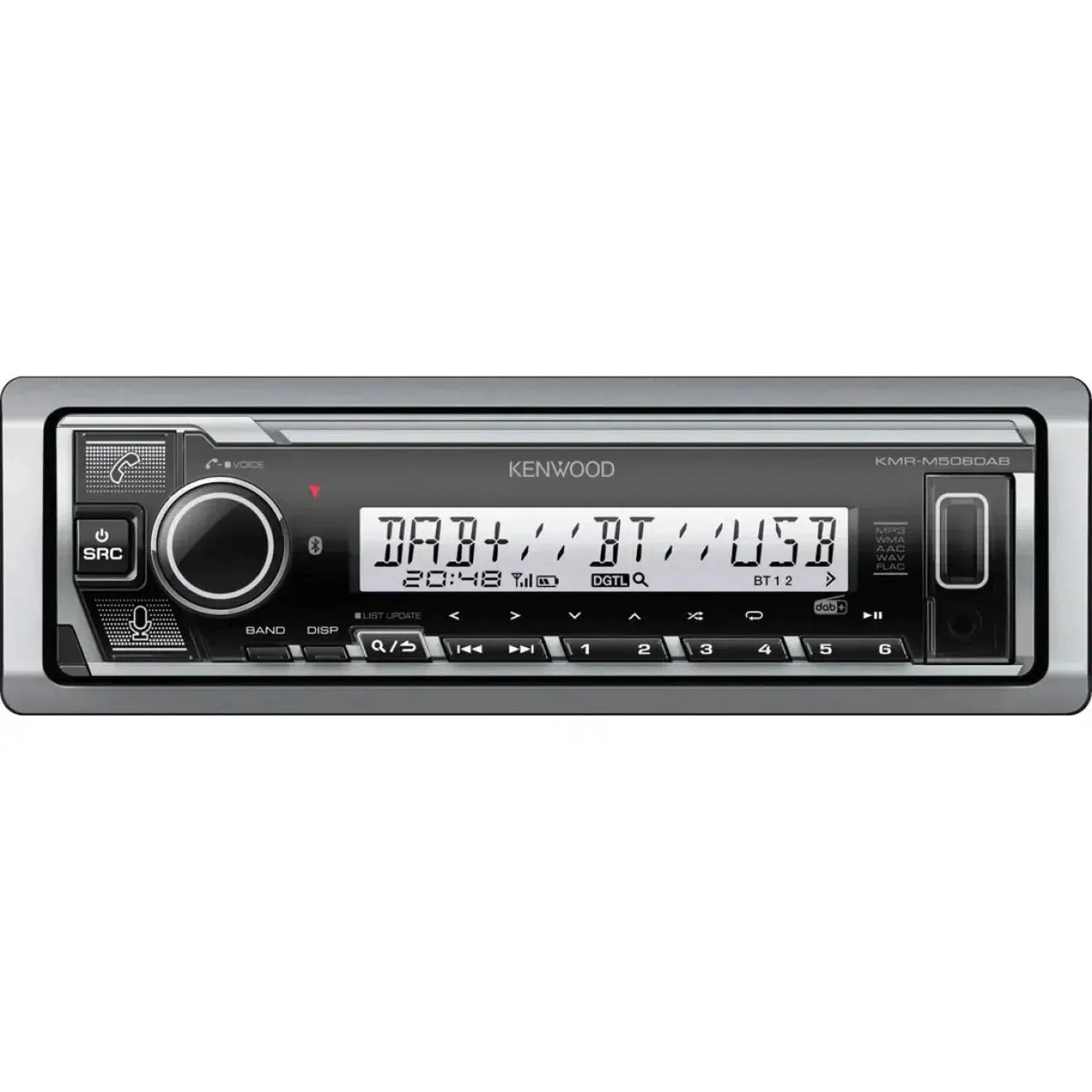

KMR-M508DAB by Kenwood
Discover the Kenwood KMR-M508DAB 1-DIN car radio, an exceptional example of top-notch car audio technology. It offers an impressive array of features that elevate your car audio experience to the next level. With its Bluetooth functionality, USB host connection, and Infinity 1-DIN size, this car radio bridges the gap between comfort and performance. The variable button and display lighting ensure that you have optimal control over your media day and night. The built-in Bluetooth capability provides you with hassle-free hands-free and audio streaming options, while the DAB+ radio offers an enhanced listening experience. If you're looking for a highly functional yet stylish solution for your car audio, the Kenwood KMR-M508DAB is the perfect choice.
Specifications
- General Equipment Features
- DIN size 1 DIN
- Removable cover Yes
- Variable Key Illumination
- Rotary control & control knob Yes
- Dual Direct Access Button Hands-Free & Audio Streaming
- Backup storage sender storage & menu settings
- Level reduction with linear volume fade-in Yes
- Beep-Ton Ja
- Digital time (24H) Yes
- Switch off after (20/40/60 minutes) Yes
- Integrated connection Mitsumi, 16 pin
- ISO connection Yes, Mitsumi on ISO cable
- Integrated Bluetooth module Yes
- USB host connection Yes, (Front)
- Update option Yes
- Device without CD drive Yes
- Shallow housing depth Yes
- Conformal Coating Ja
- Display features
- Display type Positive, Liquid Crystal Display (LCD)
- Ad segment two-line text ad and symbols
- "VA" technology LCD Yes
- Display lighting variable via RGB LED
- Brightness Controller (Dimmer) Manual / Timer
- Brightness 0-31 steps
- Selectable menu language English (Standard) / Spanish / French / German / Russian
- Design features
- Decorative trim glossy black
- Taste design Black glossy
- Cover frame black glossy
- Volume control knob & control button or rotary knob transparent with chrome ring decoration
- Triangle Lighting Red
- Dust protection for front connections Yes
- Key illumination variable via RGB LED
- Illuminated front USB variable via RGB LED
- Brightness control (buttons) 0 - 31 steps
- Dimmer (Buttons) Manual / Timer
- Variable Lighting Yes
- Color zone 2-zone color regulation
- Brightness Zone 2-Zone Brightness Control
- Chromed accents control knob & chrome strip on control panel
- Tuner Features
- Sender Selection Manual / Pre-set
- UKW reception Yes
- UKW Stereo/Mono switch Yes
- AM (MW/LW) reception Yes
- Up/Down Sender search run Yes
- Station storage (FM/MW) 24 storage (18FM / 6MW)
- Sender memory for FM & AM 6 memories
- Automatic channel storage (AME) Yes
- Permanent broadcast memory Yes
- Radio Data System Yes
- Radio Text Plus Yes
- Traffic information Yes
- Local Search Yes
- AR Regional Selectable: AF/AF Reg/OFF
- Automatic traffic radio station search Yes
- Enhanced Other Networks Yes
- Program Type Identification (PTY) Yes
- Features DAB
- Integrated DAB+ tuner Yes
- Certification by Digital Radio Tick Mark Yes
- Automatic channel search Yes
- Ensemble Search Yes
- Sender search Auto1 / Auto2 / Manual
- Number of station storage spaces 6 bands * 3 storage space
- Automatic channel storage Yes
- Sender list in alphabetical order Yes
- Sender storage list Yes
- Related service Yes
- Audio interruption in PTY standby Yes
- Audio interruption during announcements Yes
- DAB-RDS incl. TI Yes
- Traffic information Yes
- DAB-AF Ja
- Issue of messages (ASW-Select) Yes
- DMB Audio (Digital Multimedia Broadcasting) Yes
- Soft linking Yes
- On/Off switch for external antenna power supply Yes
- Equipment features USB
- USB - Connection Yes, USB input with protective cover
- USB Standard 2.0 High speed
- Audio playback formats: MP3, WMA, AAC, WAV, FLAC Yes
- Repeat and play function, random playback Yes
- Repeat function / Shuffle playback Yes
- Direct search function Yes
- Resume Play Yes
- Playtime display Yes
- 1.5 A Charging Function Yes
- Features iPod
- Made for iPod & iPhone * Yes
- iPod control via USB (Audio / 1-Wire) and Lightning connector with optional connection cable KCA-iP103
- Audio playback Yes
- Search by Initial Letters (Alphabet Search) Yes
- Skip Search Yes
- Extended search function (Related Search) Yes
- Direct search function Yes
- iPod EQ Mode Yes
- Manual operation of the iPods Yes
- App Mode Yes
- Spotify App Link Mode Yes
- iAP via Bluetooth Yes
- iTunes Radio App and iAP1
- Reverse search Yes
- 1A charging function Yes
- * Please always use the latest firmware update
- Audio Features
- Max. output power 50 W x 4
- MOSFET Power IC Yes
- Type of AUX input Mini-jack, Front AUX-IN
- Preamp output 2 RCA connectors
- Output level of the preamplifier output 2.5V
- Switchable preamplifier output REAR / SUBWOOFER Yes
- Subwoofer reference level setting Yes
- 2-way crossover Yes
- 3-way crossover (bi-amp connection) Yes
- Sound control / EQ presets 13 band equalizer, 8 memory
- Balance/Fader Yes
- Bass Boost Circuit Off/+1/+2/+3/+4/+5
- Level reduction (-20dB) with linear volume fade-in Yes
- Simple 3-band EQ mode Yes
- Equalizer + Preset 13-Bands Graphic Equalizer with 8 Presets.
- Digital sound processor (DSP) integrated Yes
- Runtime correction Yes
- High-pass and low-pass filter Yes
- Speaker size adjustable Yes, Front/Rear/Subwoofer independent
- Kenwood Sound Reconstruction Ja
- Sound Reconstruction (Klang Tuning System) Yes
- Space Enhancer Ja
- Realizer Ja
- Stage EQ Yes
- Drive EQ (Equalizer) Yes
- Features Bluetooth: General
- Maximum number of registered smartphones for hands-free and audio streaming function 5 mobile phones
- Hands Free Profile with high sound quality HFP V1.6
- Max. number of mobile phones to be registered 5 mobile phones
- 2 phones can be paired simultaneously Yes
- Audio data transmission A2DP (Advanced Audio Distribution Profile) Yes
- Audio streaming with high sound quality SBC/AAC
- Maximum number of registerable devices for A2DP playback 5 units
- Serial data transmission (SPP - Serial Port Profile) Yes
- Simple secure pairing yes
- Access to Phonebook (PBAP) Yes
- Extended Bluetooth Control Profile (AVRCP 1.5) Yes
- "Easy Pairing" function Yes
- iPhone & Android automatic pairing via USB Yes
- Voice Control / Siri Yes
- Remote controllable via KENWOOD Remote App
- KENWOOD Music Mix Function Yes
- Amazon Alexa ready Yes
- Phone search function Yes
- Private Mode Yes
- Alphabetical Search (Phone Book) Yes
- Noise suppression Yes
- Echo compensator Yes
- Status display for mobile phone function Yes
- Status display for audio functions Yes
- Signal strength Yes
- Battery charge status Yes
- Bluetooth Pairing Display Yes
- High-quality microphone with noise cancellation rear input
- Firmware Update Yes
- * Depending on mobile phone model or manufacturer & Kenwood component

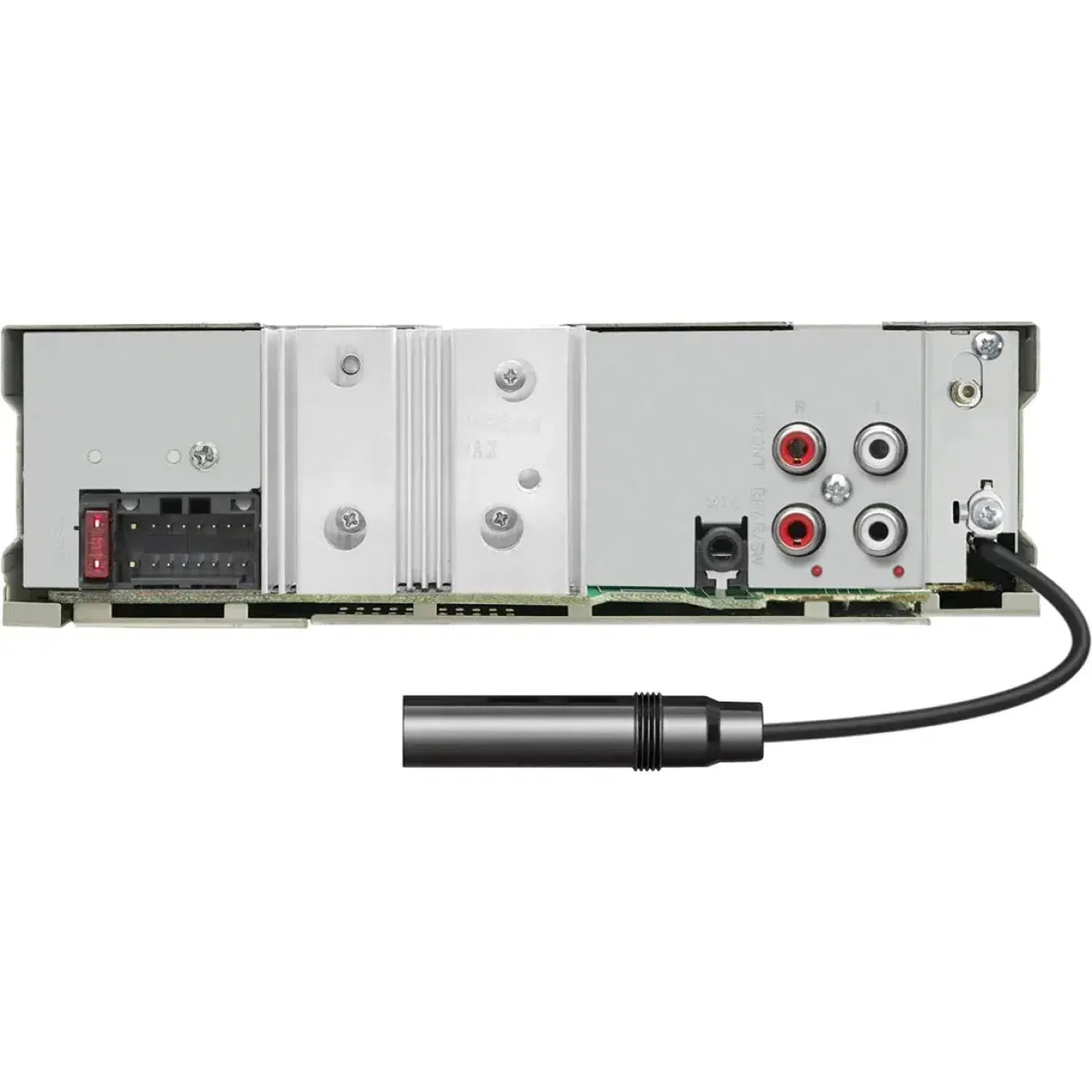

- connection option
- Front USB & AUX input Yes
- Connection for OEM steering wheel remote control Yes
- Mitsumi power connection to ISO
- Switching voltage connection (P. CON.) Yes
- Pre-amplifier outputs 2 x RCA: Front + Rear/Sub (selectable)
- UKW/AM antenna connection JASO connection
- DAB antenna connection SMB connection
- Connection for hands-free microphone 3.5mm mini-jack
- Technical Data Tuner
- FM range: 87.5 MHz - 108 MHz (in 50 kHz steps) Yes
- UKW input sensitivity 0.56μV/75 Ohm (S/N 30 dB)
- Input sensitivity (Signal-to-noise ratio) 1.58 μV/75 Ohm (S/N 46 dB)
- UKW transmission range 30 Hz ~ 15 kHz (± 3 dB)
- UKW Signal-to-Noise Ratio (Mono) 68 dB
- UKW channel separation (1 kHz) 40 dB
- MW range: 531 kHz - 1611 kHz (in 9 kHz steps) Yes
- MW input sensitivity 28.5 μV
- LW range: 153 kHz - 279 kHz (in 9 kHz steps) Yes
- LW input sensitivity 45 μV
- Technical Data DAB
- Band III - Frequency range 174.928 MHz - 239.2 MHz
- Sensitivity - 100 dBm
- Signal-to-noise ratio 90 dB
- DAB antenna connection type SMB
- Output voltage 14.4V (10.5V to 16V allowable)
- Maximum current < 100 mA
- Codec Specification
- MP3 files compliant with MPEG-1/2 Audio Layer-3
- WMA files consistent with Windows Media Audio
- AAC files AAC-LC “.aac” (CD & USB) and “.m4a” (USB) files
- WAV Files Linear - PCM Files
- FLAC files FLAC files (up to 96kHz/24bit)
- Technical Data USB
- Compatibility of USB version USB 1.1/2.0 Full Speed
- File system FAT 32/16/12
- Max. current consumption 1500 mA
- D/A converter 24bit
- MP3 decoding compliant with MPEG-1/2 Audio Layer-3
- WMA decoding consistent with Windows Media Audio
- AAC decoding of "m4a" & "aac" files encoded in AAC-LC format
- WAV Decoding Linear - PCM Files
- FLAC Decoding FLAC files up to 96kHz/24bit
- Technical Data Audio
- Maximum power 50 W x 4
- Output power (DIN45324, +B=14.4 V) 22 W x 4
- Output level 2500 mV / 10 kOhm
- Impedance of the preamplifier output 600 Ohm
- Speaker impedance 4 Ohm ~ 8 Ohm
- Transmission range Aux input 20 Hz ~ 20 kHz (±1dB)
- Max. input level AUX 1000 mV
- Impedance AUX input 30 kOhm
- Technical Data DSP
- Frequency band: Front 62.5 Hz ~ 16 kHz
- Equalizer: Level Gain –9 dB ~ +9 dB
- Quality setting 0.25/ 0.50/ 1.00/ 2.00
- Cut-off frequency of the high-pass filter Through / 50 ~ 220 (Hz)
- Slope of the high-pass filter -12/-18/-24 dB/Oct.
- Low-pass corner frequency 50 ~ 120 (Hz) / Through
- Slope of the low-pass filter -12/-18/-24 dB/Oct.
- Time delay 0 — 610 cm (2 cm steps)
- Vehicle Model ► OFF ► COMPACT ► Full SIZE CAR ► WAGON ► MINIVAN ► SUV ► MINIVAN LONG
- Equalizer Type Graphic
- Frequency band 13 bands
- Technical Data Bluetooth
- Standard Bluetooth V4.2
- Transmission frequencies 2.402 - 2.48 GHz
- Output power + 4 dBm(max), 0 dBm (AVE) power class 2
- Max. range about 10 meters
- HFP (Hands Free Profile) Yes
- Serial data transmission (SPP - Serial Port Profile) Yes
- Audio data transmission A2DP (Advanced Audio Distribution Profile) Yes
- Audio formats SBC/AAC
- AVRCP (Audio Video Remote Control Profile) Ja
- PBAP (Phonebook Access Profile) Yes
- Scope of delivery
- Expansion tool 2 pieces
- Cover frame Yes
- Mounting frame Yes
- DC Cable (Mitsumi to ISO) 15 cm
- Hands-free microphone with 3 m long connection cable
- Technical Data General
- Operating voltage 14.4 V (10.5 ~ 16 V permissible)
- Max. current consumption 10A
- Current consumption with ignition off Below 1mA
- Dimensions (W x H x D) 182 x 53 x 100 mm
- Weight 700 g.
- Operating temperature range -10°C ~ 60°C
- User Manual Multilingual Quick Guide
