KMMBT508DAB
Technical Highlights
- Digital DAB+/FM switching, 2 preamplifier outputs, 2.5 V.
- Max. output power 50 W x 4, 13-band EQ with DSP, DTA.
- Speaker impedance 4~8 Ohm, integrated Bluetooth, USB 2.0.
- More technical details
Pay conveniently in 12 interest-free installments at €11,55 with Klarna .
Availability for pickups could not be loaded.
Shipping cost calculator
Shipping cost calculator
Rob
Max
Unsure if this product fits your car?
We help you – quickly, personally, and without obligation.
Fill out the form and we'll send you a personalised offer
This product is not universally compatible. Send us your vehicle details and we will check fitment for your model free of charge.
KMMBT508DAB by Kenwood

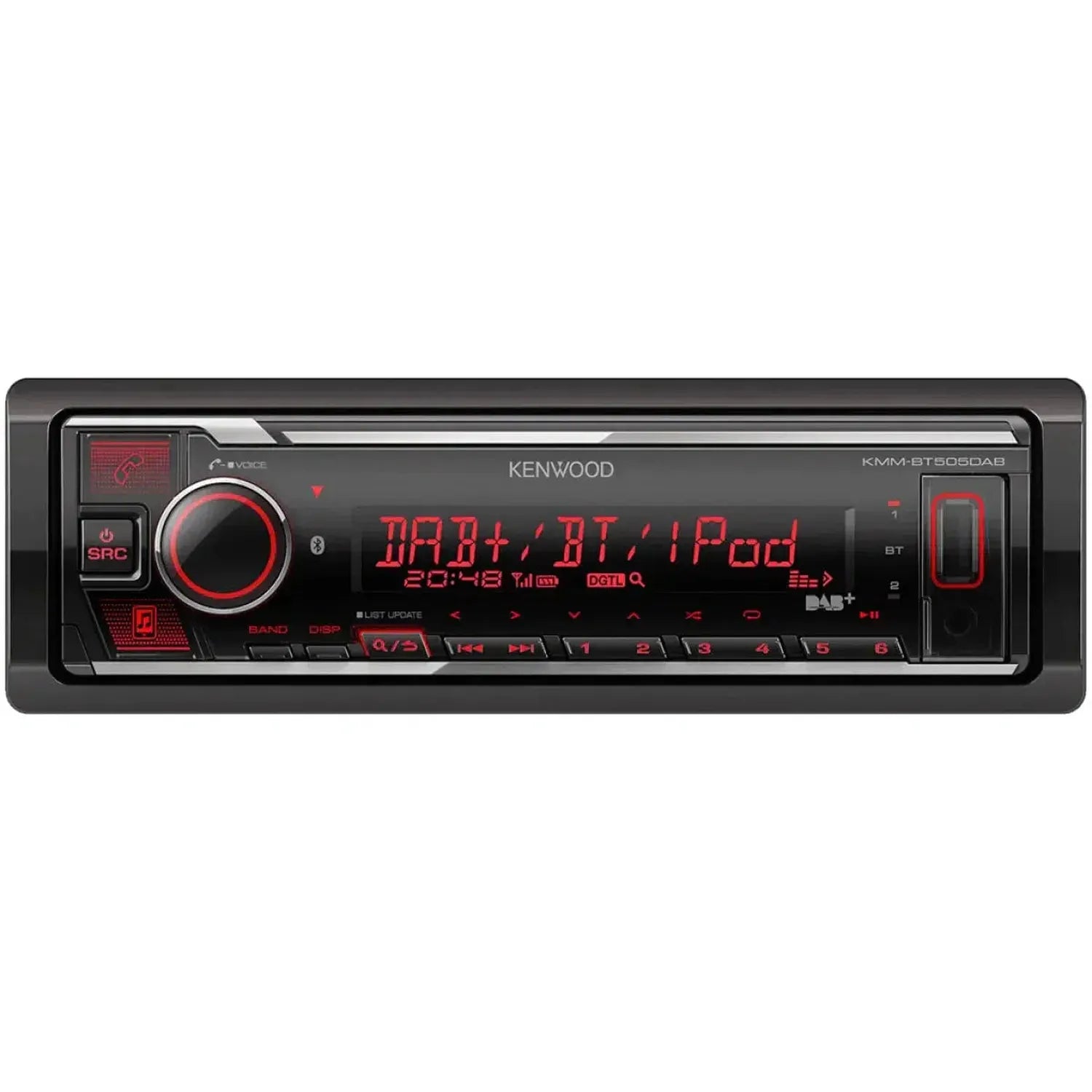

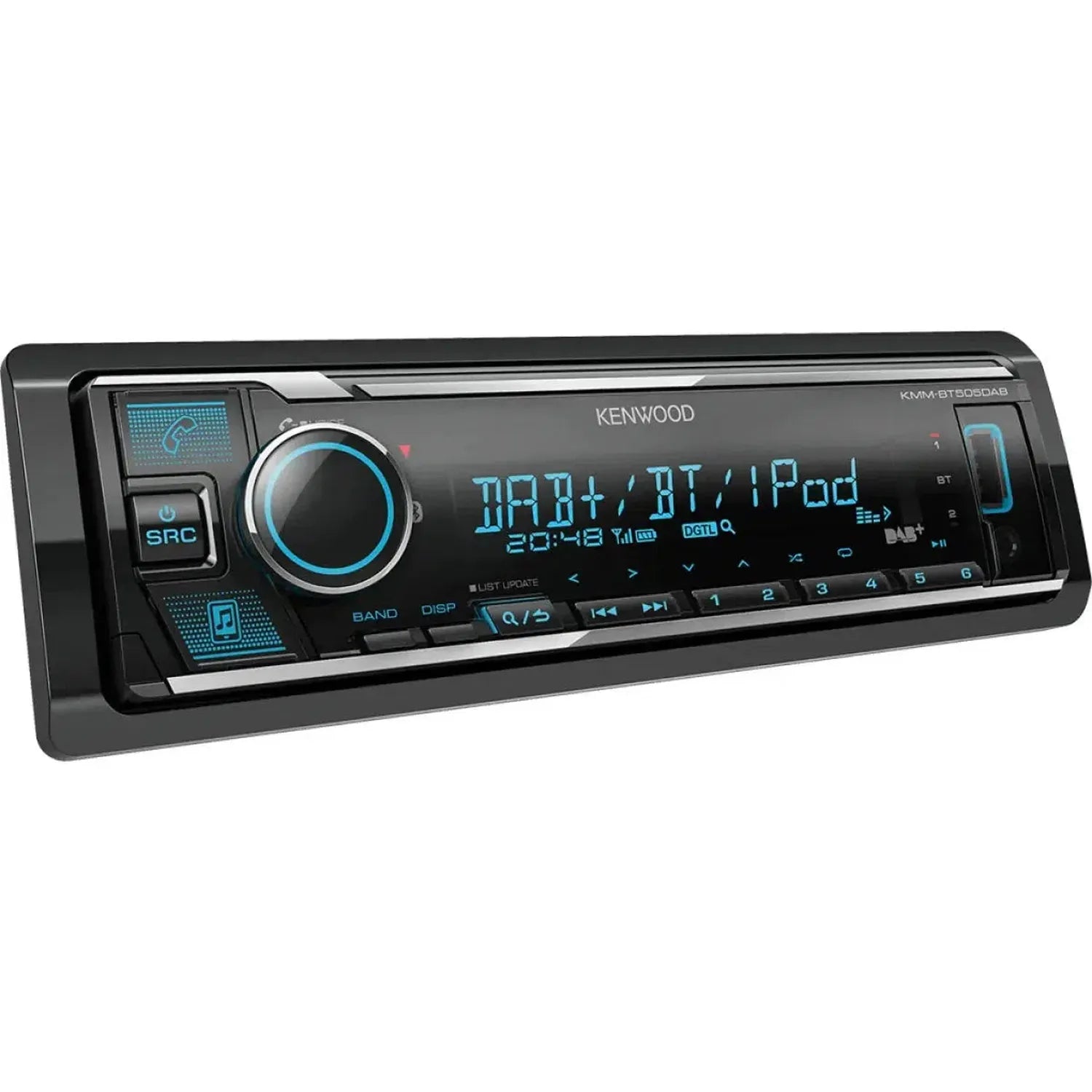

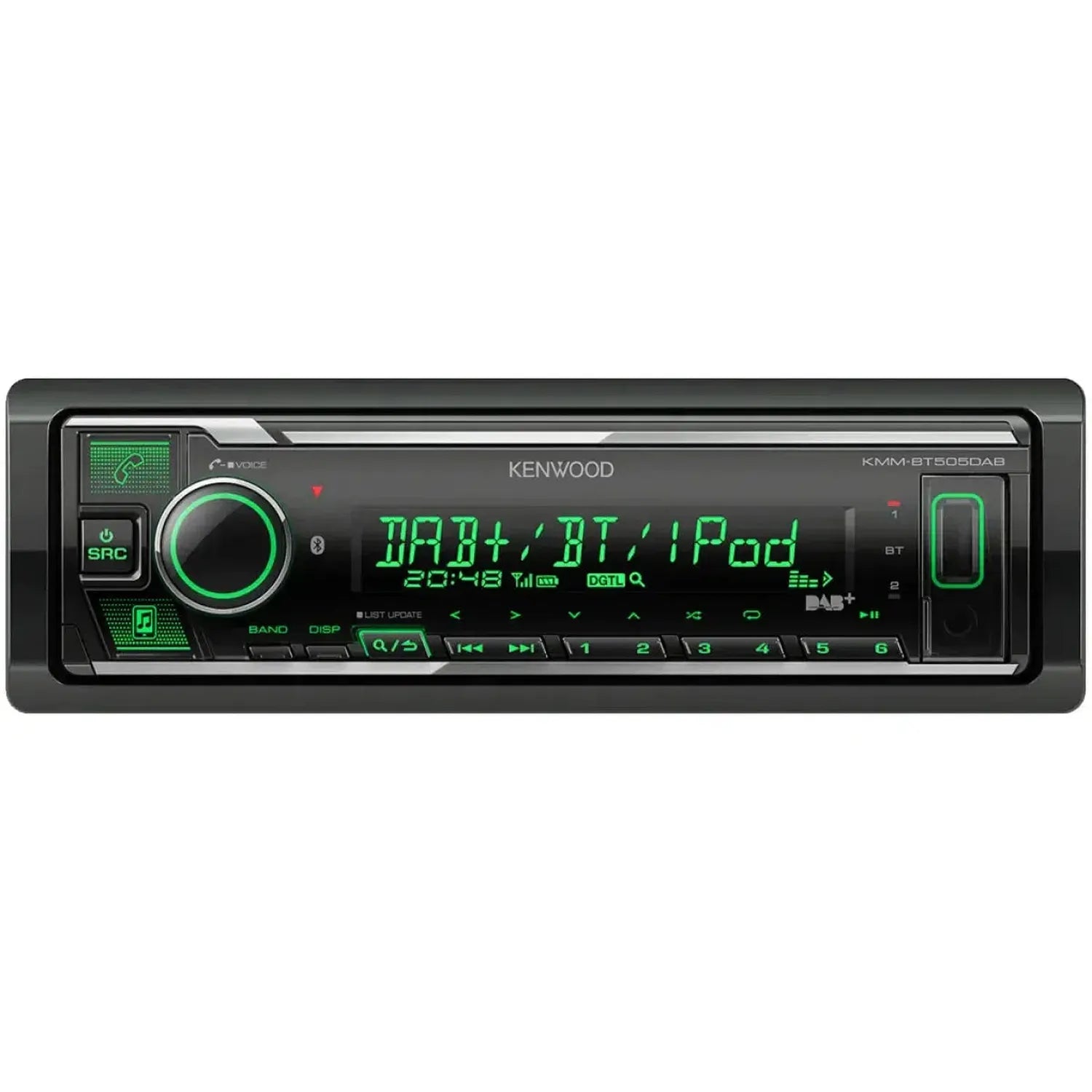

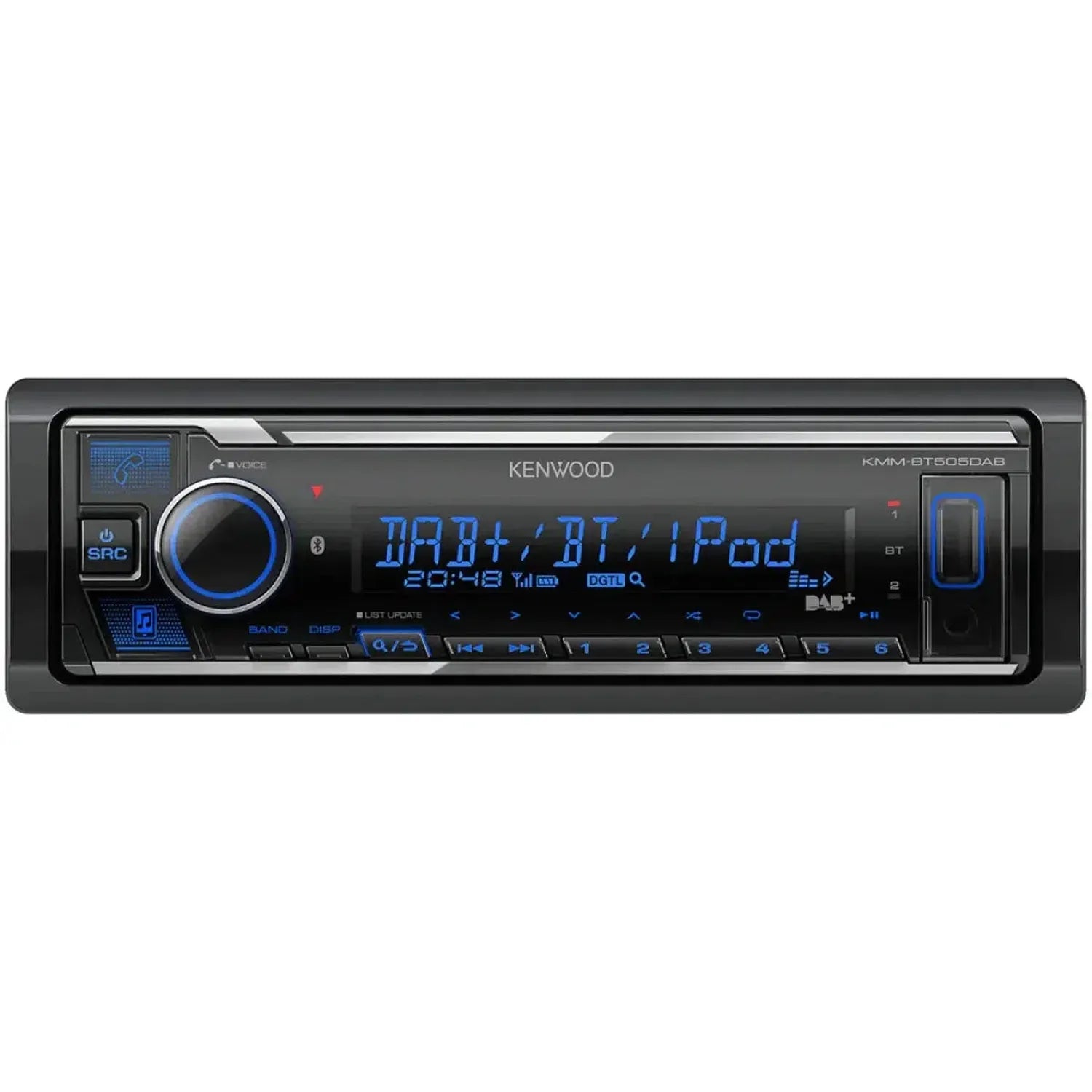

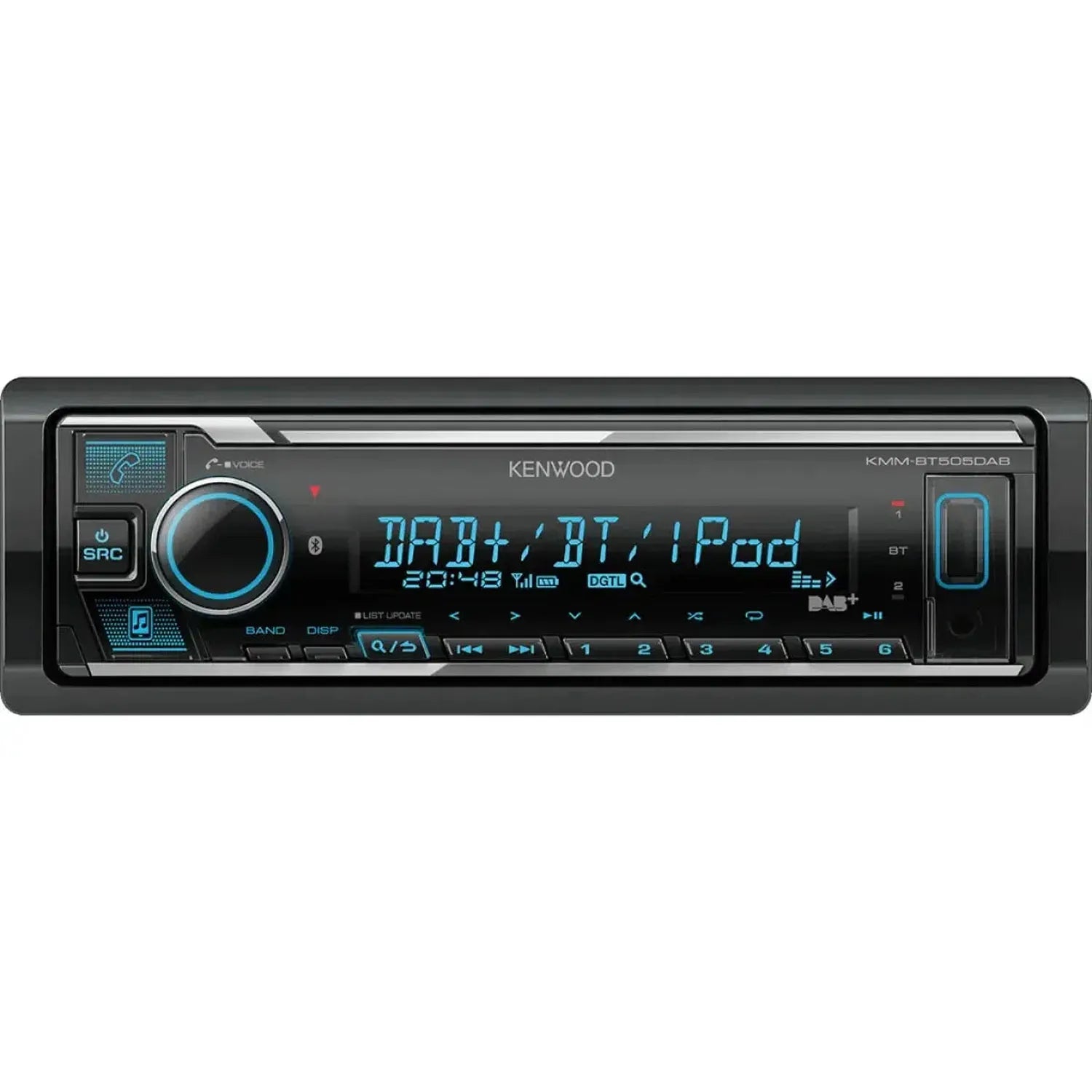

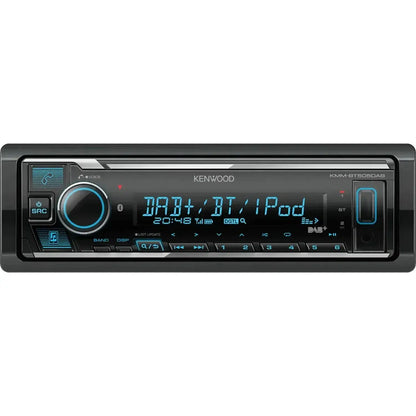

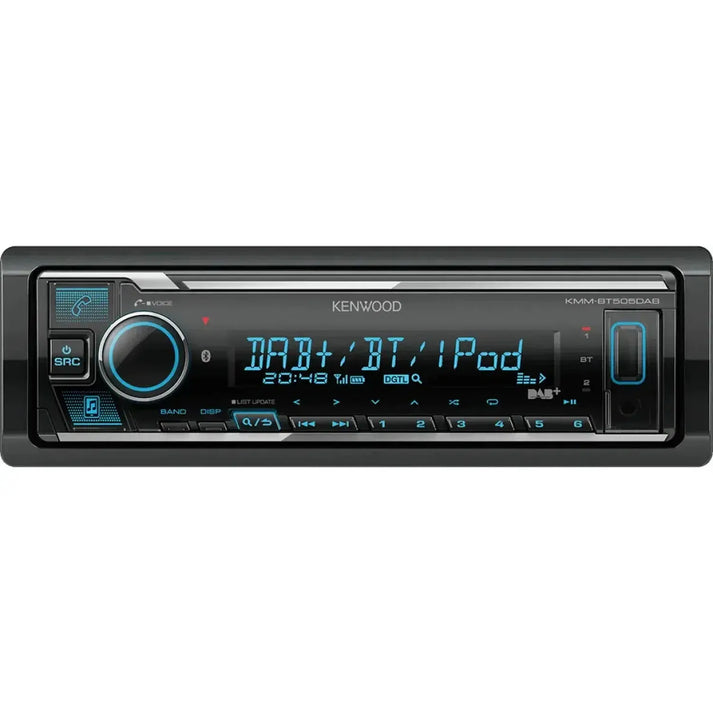

The Kenwood KMMBT508DAB is a 1-DIN car radio that offers impressive performance and versatile features. It impresses with its reduced installation depth of only 100 mm, as it does not require a CD drive. With digital radio DAB+ and seamless switching between DAB and FM, it ensures uninterrupted music enjoyment. Whether MP3, WMA, AAC, WAV, or FLAC - the KMMBT508DAB plays them all. The sound DSP with a 13-band equalizer and digital time alignment (DTA) ensures optimal sound quality. With preparation for Kenwood Remote & Music Mix App and Spotify Control, it is up to date with the latest technology. A detachable control panel, a 13-character LC display with "VA" technology for better readability, and variable lighting complete the overall picture.
Specifications
- properties
- Over 30% lower installation depth (no CD drive): total 100 mm
- Digital radio DAB+ with seamless switching between DAB and FM
- MP3/WMA/AAC/WAV/FLAC Playback
- Sound DSP with 13-band equalizer and digital time correction (DTA) for optimal sound quality
- Prepared for Kenwood Remote & Music Mix App
- Spotify Control
- Detachable control panel, 13-digit LC display with
- "VA" technology for better readability and variable lighting
- Variable Key Illumination
- Dual "TEL Direct Access" Button
- 2 preamplifier outputs with 2.5V
- General Equipment Features
- DIN size 1 DIN
- Removable cover Yes
- Variable Key Illumination
- Rotary control & control knob Yes
- Dual Direct Access Button Hands-Free & Audio Streaming
- Backup storage sender storage & menu settings
- Level reduction with linear volume fade-in Yes
- Beep-Ton Ja
- Digital time (24H) Yes
- Watch display in switched off state standard off
- Switch off after (20/40/60 minutes) Yes
- Integrated connection Mitsumi, 16 pin
- ISO connection Yes, Mitsumi on ISO cable
- Integrated Bluetooth module Yes
- USB host connection Yes, (Front)
- Update option Yes
- Device without CD drive Yes
- Shallow housing depth Yes
- Display features
- Display type Liquid Crystal Display (LCD)
- Ad segment two-line text ad and symbols
- "VA" technology LCD Yes
- Display lighting variable via RGB LED
- Brightness Controller (Dimmer) Manual / Timer
- Brightness 0-31 steps
- Demo Mode Yes
- Selectable menu language English (Standard) / Spanish / French / Russian
- Design features
- Decorative trim glossy black
- Taste design glossy black
- Cover frame black glossy
- Volume control knob & control button or rotary knob transparent with chrome ring
- Triangle Lighting Red
- Dust protection for front connections Yes
- Key illumination variable via RGB LED
- Illuminated front USB variable via RGB LED
- Brightness control (buttons) 0 - 31 steps
- Dimmer (Buttons) Manual / Timer
- Variable Lighting Yes
- Color Zone 2-Zone Color Regulation
- Brightness Zone 2-Zone Brightness Control
- Chromed accents control knob & chrome strip on control panel
- Tuner Features
- Sender Selection Manual / Pre-set
- UKW reception Yes
- UKW Stereo/Mono switch Yes
- AM (MW/LW) reception Yes
- Up/Down Sender scan Yes
- Station storage (FM/MW) 24 storage (18FM / 6MW)
- Sender memory for FM & AM 6 memories
- Automatic channel storage (AME) Yes
- Permanent broadcast memory Yes
- Radio Data System Yes
- Radio Text Plus Yes
- Traffic information Yes
- Local Search Yes
- AR Regional Selectable: AF/AF Reg/OFF
- Automatic traffic radio station search Yes
- Enhanced Other Networks Yes
- Program Type Identification (PTY) Yes
- Features DAB
- Integrated DAB+ tuner Yes
- Certification by Digital Radio Tick Mark Yes
- Automatic channel search Yes
- Ensemble Search Yes
- Sender search Auto1 / Auto2 / Manual
- Number of station storage spaces 6 bands * 3 storage space
- Automatic channel storage Yes
- Sender list in alphabetical order Yes
- Sender storage list Yes
- Related service Yes
- Audio interruption in PTY standby Yes
- Audio interruption during announcements Yes
- DAB-RDS incl. TI Yes
- Traffic information Yes
- DAB-AF Ja
- Issue of messages (ASW-Select) Yes
- DMB Audio (Digital Multimedia Broadcasting) Ja
- Soft linking Yes
- On/Off switch for external antenna power supply Yes
- Yes
- USB features
- USB - Connection Yes, USB input with protective cover
- USB Standard 2.0 High speed
- Audio playback formats: MP3, WMA, AAC, WAV, FLAC Yes
- Repeat and play function, random playback Yes
- Repeat function / Shuffle Yes
- Direct search function Yes
- Resume Play Yes
- Playtime display Yes
- 1.5 A Charging Function Yes
- Features iPod
- Made for iPod & iPhone * Yes
- iPod control via USB (Audio / 1-Wire) and Lightning connector with optional connection cable KCA-iP103
- Audio playback Yes
- Search by Initial Letters (Alphabet Search) Yes
- Skip Search Yes
- Extended search function (Related Search) Yes
- Direct search function Yes
- iPod EQ Mode Yes
- Manual operation of the iPods Yes
- App Mode Yes
- Spotify App Link Mode Yes
- iAP via Bluetooth Yes
- iTunes Radio App and iAP1
- Reverse search Yes
- 1A charging function Yes
- * Please always use the latest firmware update.
- Audio Features
- Max. output power 50 W x 4
- MOSFET Power IC Yes
- Type of AUX input Mini-jack, Front AUX-IN
- Preamp output 2 RCA connectors
- Output level of the preamplifier output 2.5V
- Switchable preamplifier output REAR / SUBWOOFER Yes
- Subwoofer reference level setting Yes
- 2-way crossover Yes
- 3-way crossover (bi-amp connection) Yes
- Sound control / EQ presets 13 band equalizer, 8 memory
- Balance/Fader Yes
- Bass Boost Circuit Off/+1/+2/+3/+4/+5
- Level reduction (-20dB) with linear volume fade-in Yes
- Simple 3-band EQ mode Yes
- Equalizer + Preset 13-Bands Graphic Equalizer with 8 Presets.
- Digital sound processor (DSP) integrated Yes
- Runtime correction Yes
- High-pass and low-pass filters Yes
- Speaker size adjustable Yes, Front/Rear/Subwoofer independent
- Kenwood Sound Reconstruction Ja
- Sound Reconstruction (Klang Tuning System) Yes
- Space Enhancer Ja
- Realizer Ja
- Stage EQ Yes
- Drive EQ (Equalizer) Yes
- Features Bluetooth: General
- Hands Free Profile with high sound quality HFP V1.6
- Max. number of mobile phones to be registered 5 mobile phones
- 2 phones can be paired simultaneously Yes
- Audio data transmission A2DP (Advanced Audio Distribution Profile) Yes
- Audio streaming with high sound quality SBC/AAC
- Maximum number of registerable devices for A2DP playback 5 units
- Serial data transmission (SPP - Serial Port Profile) Yes
- Simple secure pairing yes
- Access to Phonebook (PBAP) Yes
- Extended Bluetooth Control Profile (AVRCP 1.5) Yes
- "Easy Pairing" function Yes
- iPhone & Android automatic pairing via USB Yes
- Voice control / Siri Yes
- Remote controllable via KENWOOD Remote App
- KENWOOD Music Mix Function Yes
- Phone search function Yes
- Private Mode Yes
- Alphabetical Search (Phone Book) Yes
- Noise suppression Yes
- Echo compensator Yes
- Status display for mobile phone function Yes
- Status display for audio functions Yes
- Signal strength Yes
- Battery charge status Yes
- Bluetooth Pairing Display Yes
- High-quality microphone with noise cancellation rear input
- Firmware Update Yes
- * Depending on mobile phone model or manufacturer & Kenwood component

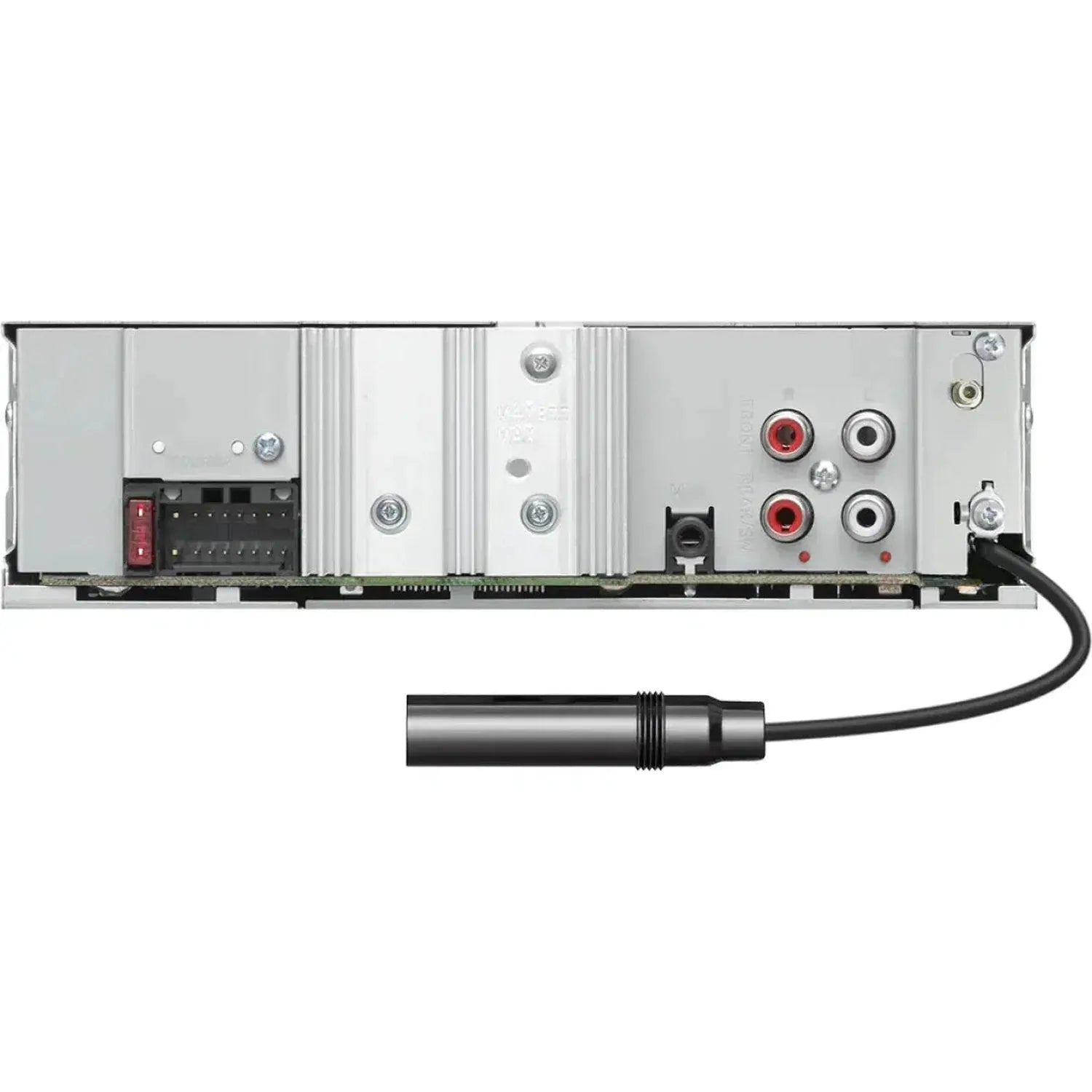

- connection option
- Front-USB & AUX input Yes
- Connection for OEM steering wheel remote control Yes
- Mitsumi power connection to ISO
- Switching voltage connection (P. CON.) Yes
- Pre-amplifier outputs 2 x RCA: Front + Rear/Sub (selectable)
- UKW/AM antenna connection JASO connection
- DAB antenna connection SMB connection
- Connection for hands-free microphone 3.5mm mini-jack
- Technical Data Tuner
- FM range: 87.5 MHz - 108 MHz (in 50 kHz steps) Yes
- UKW input sensitivity 0.56μV/75 Ohm (S/N 30 dB)
- Input sensitivity (Signal-to-noise ratio) 1.58 μV/75 Ohm (S/N 46 dB)
- UKW transmission range 30 Hz ~ 15 kHz (± 3 dB)
- UKW Signal-to-Noise Ratio (Mono) 68 dB
- UKW channel separation (1 kHz) 40 dB
- MW range: 531 kHz - 1611 kHz (in 9 kHz steps) Yes
- MW input sensitivity 28.5 μV
- LW range: 153 kHz - 279 kHz (in 9 kHz steps) Yes
- LW input sensitivity 45 μV
- Technical Data DAB
- Band III - Frequency range 174.928 MHz - 239.2 MHz
- Sensitivity - 100 dBm
- Signal-to-noise ratio 90 dB
- DAB antenna connection type SMB
- Output voltage 14.4V (10.5V to 16V allowable)
- Maximum current < 100 mA
- Codec Specification
- MP3 files compliant with MPEG-1/2 Audio Layer-3
- WMA files consistent with Windows Media Audio
- AAC files AAC-LC “.aac” (CD & USB) and “.m4a” (USB) files
- WAV Files Linear - PCM Files
- FLAC files FLAC files (up to 96kHz/24bit)
- Technical Data USB
- Compatibility of USB version USB 1.1/2.0 Full Speed
- File System FAT 32/16/12
- Max. current consumption 1500 mA
- D/A converter 24bit
- MP3 decoding compliant with MPEG-1/2 Audio Layer-3
- WMA decoding consistent with Windows Media Audio
- AAC decoding "m4a" & "aac" files encoded in AAC-LC format
- WAV Decoding Linear - PCM Files
- FLAC Decoding FLAC files up to 96kHz/24bit
- Technical Data Audio
- Maximum power 50 W x 4
- Output power (DIN45324, +B=14.4 V) 22 W x 4
- Output level 2500 mV / 10 kOhm
- Impedance of the preamplifier output 600 Ohm
- Speaker impedance 4 Ohm ~ 8 Ohm
- Transmission range Aux input 20 Hz ~ 20 kHz (±1dB)
- Max. input level AUX 1000 mV
- Impedance AUX input 30 kOhm
- Technical Data DSP
- Frequency band: Front 62.5 Hz ~ 16 kHz
- Equalizer: Level Gain –9 dB ~ +9 dB
- Quality setting 0.25/ 0.50/ 1.00/ 2.00
- Cut-off frequency of the high-pass filter Through / 50 ~ 220 (Hz)
- Slope of the high-pass filter -12/-18/-24 dB/Oct.
- Low-pass cutoff frequency 50 ~ 120 (Hz) / Through
- Slope of the low-pass filter -12/-18/-24 dB/Oct.
- Time delay 0 — 610 cm (2 cm steps)
- Vehicle Model ► OFF ► COMPACT ► Full SIZE CAR ► WAGON ► MINIVAN ► SUV ► MINIVAN LONG
- Equalizer Type Graphic
- Frequency band 13 bands
- Technical Data Bluetooth
- Standard Bluetooth V3.0
- Transmission frequencies 2.402 - 2.48 GHz
- Output power + 4 dBm(max), 0 dBm (AVE) power class 2
- Max. range about 10 meters
- HFP (Hands Free Profile) Yes
- Serial data transmission (SPP - Serial Port Profile) Yes
- Audio data transmission A2DP (Advanced Audio Distribution Profile) Yes
- Audio formats SBC/AAC
- AVRCP (Audio Video Remote Control Profile) Ja
- PBAP (Phonebook Access Profile) Ja
- Scope of delivery
- Expansion tool 2 pieces
- Cover frame Yes
- Mounting frame Yes
- DC Cable (Mitsumi to ISO) 15 cm
- Active DAB antenna with 3 m long connection cable
- Hands-free microphone with 3 m long connection cable
- Technical Data General
- Operating voltage 14.4 V (10.5 ~ 16 V permissible)
- Max. current consumption 10A
- Current consumption with ignition off Below 1mA
- Dimensions (W x H x D) 182 x 53 x 100 mm
- Weight 700 g.
- Operating temperature range -10°C ~ 60°C
- User Manual Multilingual Quick Guide
Your benefits at Masori
Kenwood KMMBT508DAB Datasheet
Frequently Asked Questions about KMMBT508DAB
Wie trägt die geringe Einbautiefe des Kenwood KMMBT508DAB zur Installation bei?
Wie trägt die geringe Einbautiefe des Kenwood KMMBT508DAB zur Installation bei?
Welche Audioformate unterstützt das Kenwood KMMBT508DAB und wie wirkt sich das auf die Klangqualität aus?
Welche Audioformate unterstützt das Kenwood KMMBT508DAB und wie wirkt sich das auf die Klangqualität aus?
Wie arbeitet das Digitalradio DAB+ des Kenwood KMMBT508DAB im Vergleich zu herkömmlichem UKW?
Wie arbeitet das Digitalradio DAB+ des Kenwood KMMBT508DAB im Vergleich zu herkömmlichem UKW?
Welche Funktionen bietet das Sound-DSP des Kenwood KMMBT508DAB für die Klangverbesserung?
Welche Funktionen bietet das Sound-DSP des Kenwood KMMBT508DAB für die Klangverbesserung?
Was sind die spezifischen Bluetooth-Funktionen des Kenwood KMMBT508DAB?
Was sind die spezifischen Bluetooth-Funktionen des Kenwood KMMBT508DAB?
Sind die Displayoptionen des Kenwood KMMBT508DAB auch bei direkter Sonneneinstrahlung gut ablesbar?
Sind die Displayoptionen des Kenwood KMMBT508DAB auch bei direkter Sonneneinstrahlung gut ablesbar?
Welche Arten von Audioausgaben bietet das Kenwood KMMBT508DAB?
Welche Arten von Audioausgaben bietet das Kenwood KMMBT508DAB?
Wie wirkt sich die variable Beleuchtung beim Kenwood KMMBT508DAB auf die Benutzererfahrung aus?
Wie wirkt sich die variable Beleuchtung beim Kenwood KMMBT508DAB auf die Benutzererfahrung aus?
Inwiefern erleichtern die App-Integration und Spotify Control die Nutzung des Kenwood KMMBT508DAB?
Inwiefern erleichtern die App-Integration und Spotify Control die Nutzung des Kenwood KMMBT508DAB?
Wie erfolgt die manuelle Senderauswahl und Speicherung am Kenwood KMMBT508DAB?
Wie erfolgt die manuelle Senderauswahl und Speicherung am Kenwood KMMBT508DAB?
Manufacturer information / responsible person
Manufacturer information / responsible person
Let customers speak for us
Hammer Woofer 👍 jeden Euro wert
Great Product, Great Price
Very good experience purchasing several car audio installation products through Masori: Zeus AluButyl 140dB, the Montagehebelset Keile 3-piece soft trim removal tool set, and the 10–100 mm² M8 ring terminal set.
Shipping was fast and everything arrived well packaged with no issues. Regarding the products, the AluButyl provides very good sound deadening performance, with solid material that is easy to work with, ideal for doors and areas where vibration reduction is required.
The trim removal tool set is very useful for disassembling interior panels without damaging plastics or clips, especially in delicate areas, while the M8 ring terminals are of very good quality, offering solid contact and a robust finish, ideal for safe and professional power installations.
Overall, very satisfied with the purchase. High-quality materials suitable for professional-level car audio builds or well-finished personal projects, and a highly recommended store.
Very good experience purchasing several car audio installation products through Masori: Zeus AluButyl 140dB, the Montagehebelset Keile 3-piece soft trim removal tool set, and the 10–100 mm² M8 ring terminal set.
Shipping was fast and everything arrived well packaged with no issues. Regarding the products, the AluButyl provides very good sound deadening performance, with solid material that is easy to work with, ideal for doors and areas where vibration reduction is required.
The trim removal tool set is very useful for disassembling interior panels without damaging plastics or clips, especially in delicate areas, while the M8 ring terminals are of very good quality, offering solid contact and a robust finish, ideal for safe and professional power installations.
Overall, very satisfied with the purchase. High-quality materials suitable for professional-level car audio builds or well-finished personal projects, and a highly recommended store.
Very good experience purchasing several car audio installation products through Masori: Zeus AluButyl 140dB, the Montagehebelset Keile 3-piece soft trim removal tool set, and the 10–100 mm² M8 ring terminal set.
Shipping was fast and everything arrived well packaged with no issues. Regarding the products, the AluButyl provides very good sound deadening performance, with solid material that is easy to work with, ideal for doors and areas where vibration reduction is required.
The trim removal tool set is very useful for disassembling interior panels without damaging plastics or clips, especially in delicate areas, while the M8 ring terminals are of very good quality, offering solid contact and a robust finish, ideal for safe and professional power installations.
Overall, very satisfied with the purchase. High-quality materials suitable for professional-level car audio builds or well-finished personal projects, and a highly recommended store.
Very good experience purchasing the Vibe Audio POWERBOX65.4M amplifier through Masori.
Shipping was fast and the product arrived well packaged with no issues. The amplifier offers a very easy plug & play installation, making it ideal for OEM-style integrations or clean installations without complications.
Performance is stable, with good power for its size and very decent sound quality within its category. It’s a practical solution to upgrade a car audio system without complex installations or major modifications.
Overall, very satisfied with the purchase. A reliable shop and a product that delivers what it promises.
The product it self is amazing subwoofer is perfect great quality but i can't tell how disappointed i'm in masori shipping it said 2-4 business days and it took almost 3 weeks for amplifier i still waiting.
Die Mille Serie von Hertz ist einfach großartig.
Grandioser Sound bei jeder Lautstärke.
Der Woofer ist bedenkenlos zu empfehlen.
Ótimo produto muito bom bem reforçado um grave absurdo um alto-falante de alta performance instalado bem certo limpadores de qualidade controladores de som e bateria você terá um grave absurdo em seu sistema
Einer der besten Tiefmitteltöner im 10cm-Bereich, Top Verarbeitungsqualität, sehr hochwertige Materialien, hervorragende tiefreichende Mitteltonwiedergabe.
Ich habe sie an den Sounddigital 800.4 Evo6 angeschlossen. Und ich bin mehr als zufrieden. Mitteltöner laut und auch präzise. Hochtöner brennen nicht in den Ohren, die sind laut und geben das, was sie sollen. Gut angelegtes Geld.
Perfekter Verstärker, Lieferung wie erwartet. Top-Unternehmen.
das ist super 👌👌👌
Kam gut verpackt an und liefert sauber seine leistung
Dies ist eine hervorragende Option für eine kräftige Serndina. Ich empfehle sie.
