KMMBT408DAB
Technical Highlights
- Max output power of 50W x 4, impedance 4~8 Ohm.
- Integrated DAB+ tuner, unrivaled sensitivity at 100 dBm.
- Bluetooth V4.2, 10-meter range, powerful +4 dBm max.
- More technical details
Pay conveniently in 12 interest-free installments at €12,71 with Klarna .
Availability for pickups could not be loaded.
Shipping cost calculator
Shipping cost calculator
Rob
Max
Unsure if this product fits your car?
We help you – quickly, personally, and without obligation.
Fill out the form and we'll send you a personalised offer
This product is not universally compatible. Send us your vehicle details and we will check fitment for your model free of charge.

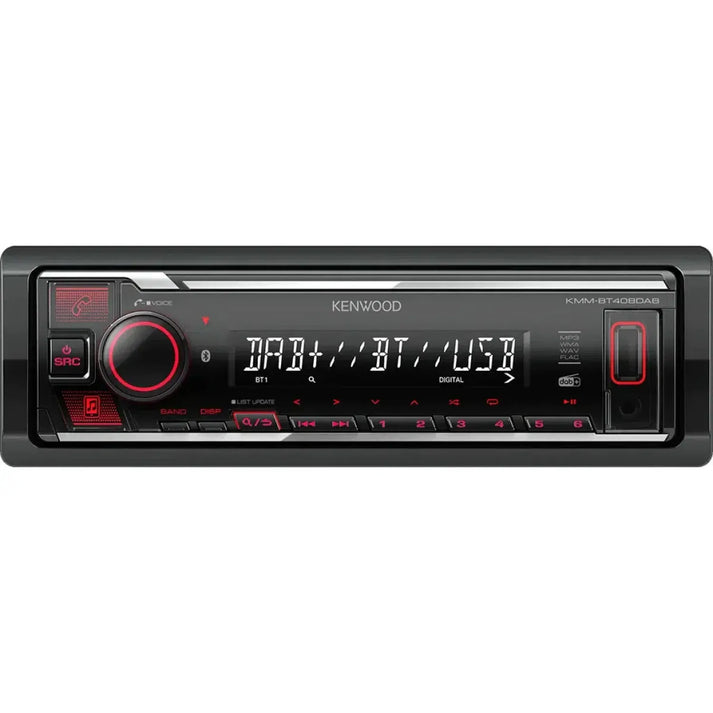

KMMBT408DAB by Kenwood
Discover the KMMBT408DAB, a high-quality 1-DIN car radio from the renowned manufacturer Kenwood. Equipped with a variety of features, including an integrated Bluetooth module, a detachable control panel, and red button illumination, the KMMBT408DAB offers impressive audio performance. It has a shallow chassis depth and a USB host interface for maximum compatibility and convenience. Whether you are looking for crystal-clear sound quality or an easy-to-use, intuitive interface, the KMMBT408DAB car radio from Kenwood provides you with all that and more.
Specifications
- General Equipment Features
- DIN size 1 DIN
- Removable cover Yes
- Key illumination Red
- Rotary control & control knob Yes
- Dual Direct Access Button Hands-Free & Audio Streaming
- Backup Storage Menu Settings
- Beep-Ton Ja
- Digital time (24H) Yes
- Watch display in switched off state standard off
- Switch off after (20/40/60 minutes) Yes
- Integrated connection Mitsumi, 16 pin
- ISO connection Yes, Mitsumi to ISO cable
- Integrated Bluetooth module Yes
- USB host connection Yes
- Update option Yes
- Device without CD drive Yes
- Shallow housing depth Yes
- Display features
- Display type Liquid Crystal Display (LCD)
- Ad segment 1 line 13-digit
- "VA" technology LCD Yes
- Display Lighting White (LED)
- Brightness Controller (Dimmer) Manual / Timer
- Brightness 0-31 steps
- Demo Mode Yes
- Selectable menu language English (Standard) / Spanish / French / Russian
- Language of the TAG display English, Spanish, Russian & Greek
- Design features
- Front panel/frame black, injection molded plastic
- Decorative cover black, injection molded plastic
- Taste design black, injection molded plastic
- Cover frame black, injection molded plastic
- Triangle Lighting Red
- Dust protection for front connections Yes
- Key illumination Red
- Illuminated Front USB Red
- Display Lighting White LED
- Brightness control (buttons) 0 - 31 steps
- Brightness setting (Display) 0 - 31 steps
- Dimmer (Buttons) Manual / Timer
- Dimmer setting (Display) Manual / Timer
- Tuner Features
- Sender Selection Manual / Pre-set
- Tuner store button Yes
- UKW reception Yes
- UKW Stereo/Mono switch Yes
- AM (MW/LW) reception yes
- Sender configuration (Auto 1 / Auto 2 / Manual) Auto1 / Auto2 / Manual
- Up/Down Sender search run Yes
- Station storage (FM/MW) 24 storage (18FM / 6MW)
- Sender memory for FM & AM 6 memories
- Automatic channel storage (AME) Yes
- Permanent broadcast memory Yes
- Radio Data System Yes
- Radio Text Plus Yes
- Traffic information Yes
- Local Search Yes
- AR Regional Selectable: AF/AF Reg/OFF
- Automatic traffic radio station search Yes
- Enhanced Other Networks Yes
- Program Type Identification (PTY) Yes
- Features DAB
- Integrated DAB+ tuner Yes
- Certification by Digital Radio Tick Mark Yes
- Automatic channel search Yes, (Service, Ensemble & Component)
- Sender search Auto1 / Auto2 / Manual
- Number of station storage spaces 6 bands * 3 storage spaces
- Sender list in alphabetical order Yes
- Sender storage list Yes
- Alphabetical channel search Yes
- Related service Yes
- Audio interruption in PTY readiness Yes
- Audio interruption during announcements Yes
- DAB-RDS incl. TI Yes
- Traffic information Yes
- DAB Priority Yes
- PTY (Programme Type) Search Yes
- PTY (Programme Type) Monitoring Yes
- Soft linking Yes
- On/Off switch for external antenna power supply Yes
- Yes, SMB connection
- Playable audio files
- Playback of MP3 files USB
- Playback of WMA files USB
- Playback of WAV files USB
- Playback of FLAC files USB
- Features USB
- USB - Connection Yes, USB input with protective cover
- USB Standard USB 1.1/USB 2.0 Full Speed
- Drive Change Yes
- Playback of WMA (Windows Media Audio) files Yes
- WAV (Waveform Audio Format) Playback Yes
- FLAC format (lossless audio codec) Yes
- Repeat function / Shuffle playback Yes
- Resume Play Yes
- Playtime display Yes
- 1.5 A Charging Function Yes
- Audio Features
- Max. output power 50 W x 4
- MOSFET Power IC Yes
- AUX input Yes, Front Mini Jack
- Pre-amplifier output RCA
- Output level of the preamplifier output 2.5V
- Switchable preamplifier output REAR / SUBWOOFER Yes
- Subwoofer reference level setting Yes
- 2-way crossover Yes
- 3-way crossover (bi-amp connection) Yes
- Balance/Fader Yes
- Loudness Control Off / LV1 / LV2
- Bass Boost Circuit Off/+1/+2/+3/+4/+5
- Equalizer + Preset 13-Bands Graphic Equalizer with 8 Presets.
- Digital sound processor (DSP) integrated Yes
- Runtime correction Yes
- High-pass and low-pass filter Yes
- Speaker size adjustable Yes
- Sound Reconstruction (Klang Tuning System) Yes
- Space Enhancer Ja
- Realizer Ja
- Stage EQ Yes
- Drive EQ (Equalizer) Yes
- Tone Increase Yes
- Features Bluetooth: General
- Maximum number of registered smartphones for hands-free and audio streaming function 5 mobile phones
- Hands Free Profile with high sound quality HFP V1.7.1
- 2 phones can be paired simultaneously Yes
- Audio streaming with high sound quality SBC
- Serial data transmission (SPP - Serial Port Profile) Yes
- Access to Phonebook (PBAP) Yes
- "Easy Pairing" function Yes
- Android automatic pairing via USB Yes
- Remote controllable via KENWOOD Remote App Only Android, available in the Play Store
- KENWOOD Music Mix Function Yes
- Private Mode Yes
- Knock function Yes
- Alphabetical Search (Phone Book) Yes
- Voice control Yes
- Status display for mobile phone function Yes
- Status display for audio functions Yes
- Signal strength Yes
- Battery charge status Yes
- Bluetooth Pairing Display Yes
- High-quality microphone with noise cancellation Including wired back
- Firmware update Yes, in conjunction with system updates
- * depending on mobile phone model or manufacturer & Kenwood component
- connection option
- Front-USB & AUX input Yes
- Connection for OEM steering wheel remote control Yes, optional interface is required
- New power connection Mitsumi to ISO
- Switching voltage connection (P. CON.) Yes
- Mute function with 2 operating modes Yes
- UKW/AM antenna connection
- DAB antenna connection SMB connection
- Connection for hands-free microphone 3.5mm mini-jack
- Technical Data Tuner
- FM range: 87.5 MHz - 108 MHz (in 50 kHz steps) Yes
- UKW input sensitivity 0.56μV/75 Ohm (S/N 30 dB)
- Input sensitivity (Signal-to-noise ratio) 1.58 μV/75 Ohm (S/N 46 dB)
- UKW transmission range 30 Hz ~ 15 kHz (± 3 dB)
- UKW Signal-to-Noise Ratio (Mono) 68 dB
- UKW channel separation (1 kHz) 40 dB
- MW range: 531 kHz - 1611 kHz (in 9 kHz steps) Yes
- MW input sensitivity 28.5 μV
- LW range: 153 kHz - 279 kHz (in 9 kHz steps) Yes
- LW input sensitivity 45 μV
- Technical Data DAB
- Band III - Frequency range 174.928 MHz - 239.2 MHz
- DAB-Modi I, II, III, IV
- Sensitivity - 100 dBm
- Signal-to-noise ratio 90 dB
- DAB antenna connection type SMB
- Output voltage 12V (11V to 16V allowable)
- Maximum current < 100 mA
- Technical Data USB
- Compatibility of USB version USB 1.1 / 2.0 full speed
- File system FAT 32 / 16 / 12
- Max. current consumption 1500 mA
- MP3 decoding compliant with MPEG-1/2 Audio Layer-3
- WMA decoding consistent with Windows Media Audio
- WAV Decoding Linear - PCM Files
- FLAC Decoding FLAC files up to 96kHz/24bit
- Transmission range 20Hz - 20kHz
- S/N ratio 99 dB (1kHz)
- Dynamic range 93 dB
- Channel separation 90 dB
- Technical Data Audio
- Maximum power 50 W x 4
- Output power (DIN45324, +B=14.4 V) 22 W x 4
- Output level 2500 mV / 10 kOhm
- Impedance of the preamplifier output 600 Ohm
- Speaker impedance 4 Ohm ~ 8 Ohm
- Transmission range Aux input 20 Hz ~ 20 kHz (±1dB)
- Max. input level AUX 1000 mV
- AUX input impedance 30 kOhm
- Graphic Equalizer 13-Band
- G. EQ. Frequency 62.5/100/160/250/400/630/1k/1k6/2k5/4k/6k3/10k/16k
- G. EQ. Gain (dB) -7 / ... / +7
- Subwoofer Level (dB) -50 dB to +10 dB
- Technical Data Bluetooth
- Standard Bluetooth V4.2
- Transmission frequencies 2.402 - 2.48 GHz
- Output power + 4 dBm(max), power class 2
- Max. range about 10 meters
- HFP (Hands Free Profile) Yes, V1.7.1
- Serial data transmission (SPP - Serial Port Profile) Yes
- Audio data transmission A2DP (Advanced Audio Distribution Profile) Yes
- Audio format SBC
- AVRCP (Audio Video Remote Control Profile) Ja, V1.6.1
- PBAP (Phonebook Access Profile) Yes
- Scope of delivery
- Expansion tool 2 pieces
- Cover frame Yes
- Mounting frame Yes
- DC Cable (Mitsumi to ISO) 20 cm
- Active DAB antenna with 3 m long connection cable
- Hands-free microphone with 3 m long connection cable
- Multilingual operating instructions include quick help
- Downloadable manual Yes
- Technical Data General
- Operating voltage 14.4 V (10.5 ~ 16 V permissible)
- Max. current consumption 10A
- Dimensions (W x H x D) 182 x 53 x 100 mm
- Weight 700 g.
Your benefits at Masori
Kenwood KMMBT408DAB Datasheet
Frequently Asked Questions about KMMBT408DAB
Wie ist die Audioqualität des Kenwood KMMBT408DAB Autoradios?
Wie ist die Audioqualität des Kenwood KMMBT408DAB Autoradios?
Welche Funktionen bietet das integrierte Bluetooth-Modul im KMMBT408DAB?
Welche Funktionen bietet das integrierte Bluetooth-Modul im KMMBT408DAB?
Wie erfolgt die Sendersuche im Kenwood Autoradio KMMBT408DAB?
Wie erfolgt die Sendersuche im Kenwood Autoradio KMMBT408DAB?
Welche Displayfunktionen bietet das Kenwood KMMBT408DAB Autoradio?
Welche Displayfunktionen bietet das Kenwood KMMBT408DAB Autoradio?
Ist das Kenwood KMMBT408DAB Autoradio mit meinem Auto kompatibel?
Ist das Kenwood KMMBT408DAB Autoradio mit meinem Auto kompatibel?
Welche USB-Funktionalitäten bietet das Kenwood KMMBT408DAB?
Welche USB-Funktionalitäten bietet das Kenwood KMMBT408DAB?
Welche Audioformate können über das Kenwood KMMBT408DAB abgespielt werden?
Welche Audioformate können über das Kenwood KMMBT408DAB abgespielt werden?
Wie steht es um die DAB+ Empfangsleistung des KMMBT408DAB?
Wie steht es um die DAB+ Empfangsleistung des KMMBT408DAB?
Welche Maßnahmen zur Klangoptimierung bietet das Kenwood KMMBT408DAB?
Welche Maßnahmen zur Klangoptimierung bietet das Kenwood KMMBT408DAB?
Welche Antennenanschlüsse bietet das Kenwood KMMBT408DAB Autoradio?
Welche Antennenanschlüsse bietet das Kenwood KMMBT408DAB Autoradio?
Manufacturer information / responsible person
Manufacturer information / responsible person
Let customers speak for us
Hammer Woofer 👍 jeden Euro wert
Great Product, Great Price
Very good experience purchasing several car audio installation products through Masori: Zeus AluButyl 140dB, the Montagehebelset Keile 3-piece soft trim removal tool set, and the 10–100 mm² M8 ring terminal set.
Shipping was fast and everything arrived well packaged with no issues. Regarding the products, the AluButyl provides very good sound deadening performance, with solid material that is easy to work with, ideal for doors and areas where vibration reduction is required.
The trim removal tool set is very useful for disassembling interior panels without damaging plastics or clips, especially in delicate areas, while the M8 ring terminals are of very good quality, offering solid contact and a robust finish, ideal for safe and professional power installations.
Overall, very satisfied with the purchase. High-quality materials suitable for professional-level car audio builds or well-finished personal projects, and a highly recommended store.
Very good experience purchasing several car audio installation products through Masori: Zeus AluButyl 140dB, the Montagehebelset Keile 3-piece soft trim removal tool set, and the 10–100 mm² M8 ring terminal set.
Shipping was fast and everything arrived well packaged with no issues. Regarding the products, the AluButyl provides very good sound deadening performance, with solid material that is easy to work with, ideal for doors and areas where vibration reduction is required.
The trim removal tool set is very useful for disassembling interior panels without damaging plastics or clips, especially in delicate areas, while the M8 ring terminals are of very good quality, offering solid contact and a robust finish, ideal for safe and professional power installations.
Overall, very satisfied with the purchase. High-quality materials suitable for professional-level car audio builds or well-finished personal projects, and a highly recommended store.
Very good experience purchasing several car audio installation products through Masori: Zeus AluButyl 140dB, the Montagehebelset Keile 3-piece soft trim removal tool set, and the 10–100 mm² M8 ring terminal set.
Shipping was fast and everything arrived well packaged with no issues. Regarding the products, the AluButyl provides very good sound deadening performance, with solid material that is easy to work with, ideal for doors and areas where vibration reduction is required.
The trim removal tool set is very useful for disassembling interior panels without damaging plastics or clips, especially in delicate areas, while the M8 ring terminals are of very good quality, offering solid contact and a robust finish, ideal for safe and professional power installations.
Overall, very satisfied with the purchase. High-quality materials suitable for professional-level car audio builds or well-finished personal projects, and a highly recommended store.
Very good experience purchasing the Vibe Audio POWERBOX65.4M amplifier through Masori.
Shipping was fast and the product arrived well packaged with no issues. The amplifier offers a very easy plug & play installation, making it ideal for OEM-style integrations or clean installations without complications.
Performance is stable, with good power for its size and very decent sound quality within its category. It’s a practical solution to upgrade a car audio system without complex installations or major modifications.
Overall, very satisfied with the purchase. A reliable shop and a product that delivers what it promises.
The product it self is amazing subwoofer is perfect great quality but i can't tell how disappointed i'm in masori shipping it said 2-4 business days and it took almost 3 weeks for amplifier i still waiting.
Die Mille Serie von Hertz ist einfach großartig.
Grandioser Sound bei jeder Lautstärke.
Der Woofer ist bedenkenlos zu empfehlen.
Ótimo produto muito bom bem reforçado um grave absurdo um alto-falante de alta performance instalado bem certo limpadores de qualidade controladores de som e bateria você terá um grave absurdo em seu sistema
Einer der besten Tiefmitteltöner im 10cm-Bereich, Top Verarbeitungsqualität, sehr hochwertige Materialien, hervorragende tiefreichende Mitteltonwiedergabe.
Ich habe sie an den Sounddigital 800.4 Evo6 angeschlossen. Und ich bin mehr als zufrieden. Mitteltöner laut und auch präzise. Hochtöner brennen nicht in den Ohren, die sind laut und geben das, was sie sollen. Gut angelegtes Geld.
Perfekter Verstärker, Lieferung wie erwartet. Top-Unternehmen.
das ist super 👌👌👌
Kam gut verpackt an und liefert sauber seine leistung
Dies ist eine hervorragende Option für eine kräftige Serndina. Ich empfehle sie.
