DMX9720XDS
Technical Highlights
- Max. output power 50W x 4, 5V pre-out.
- Supports Apple CarPlay and Android Auto wirelessly.
- HDMI video input, integrated Bluetooth module, DAB+ tuner.
- More technical details
Pay conveniently in 12 interest-free installments at €85,29 with Klarna .
Availability for pickups could not be loaded.
Shipping cost calculator
Shipping cost calculator
Rob
Max
Unsure if this product fits your car?
We help you – quickly, personally, and without obligation.
Fill out the form and we'll send you a personalised offer
This product is not universally compatible. Send us your vehicle details and we will check fitment for your model free of charge.

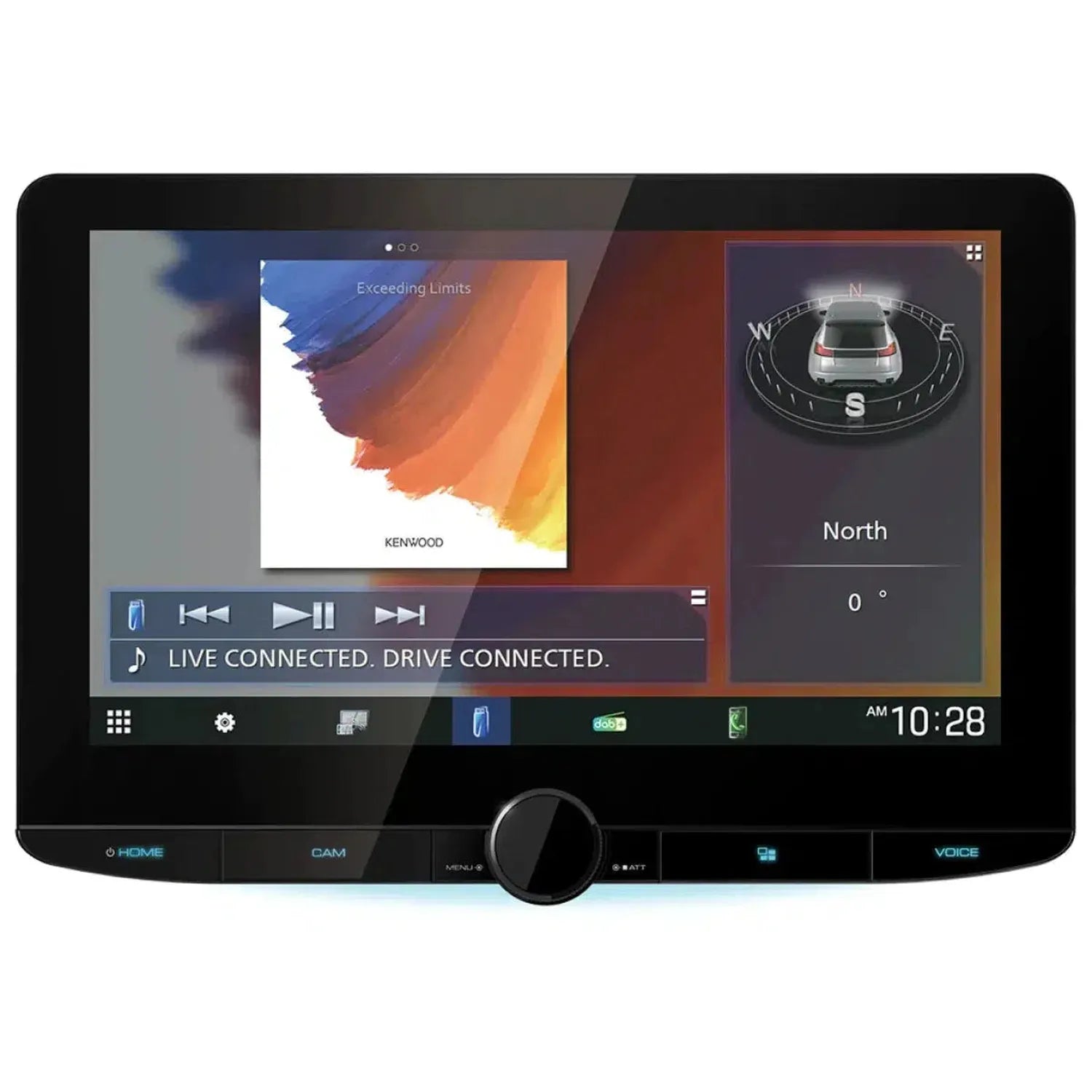

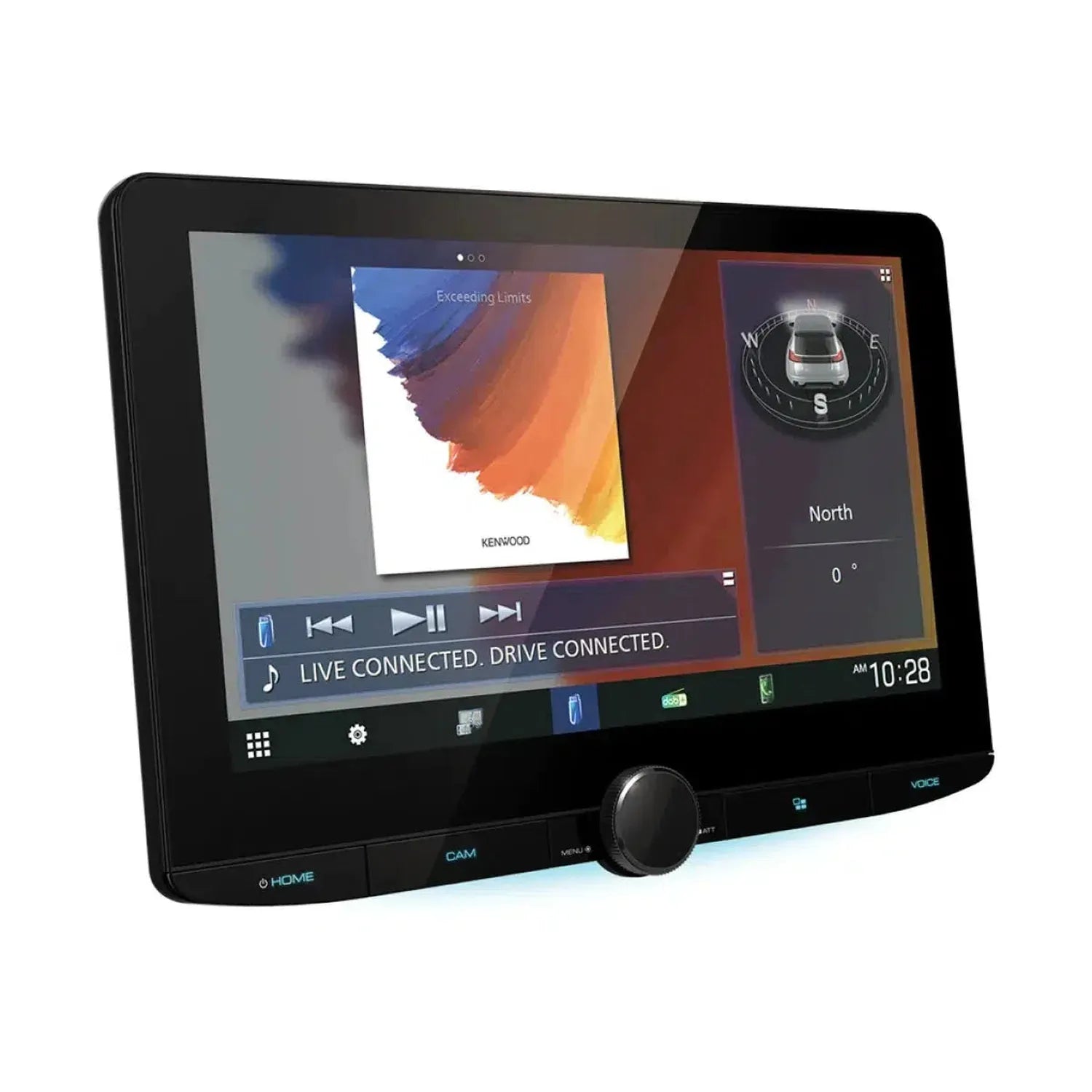

DMX9720XDS by Kenwood

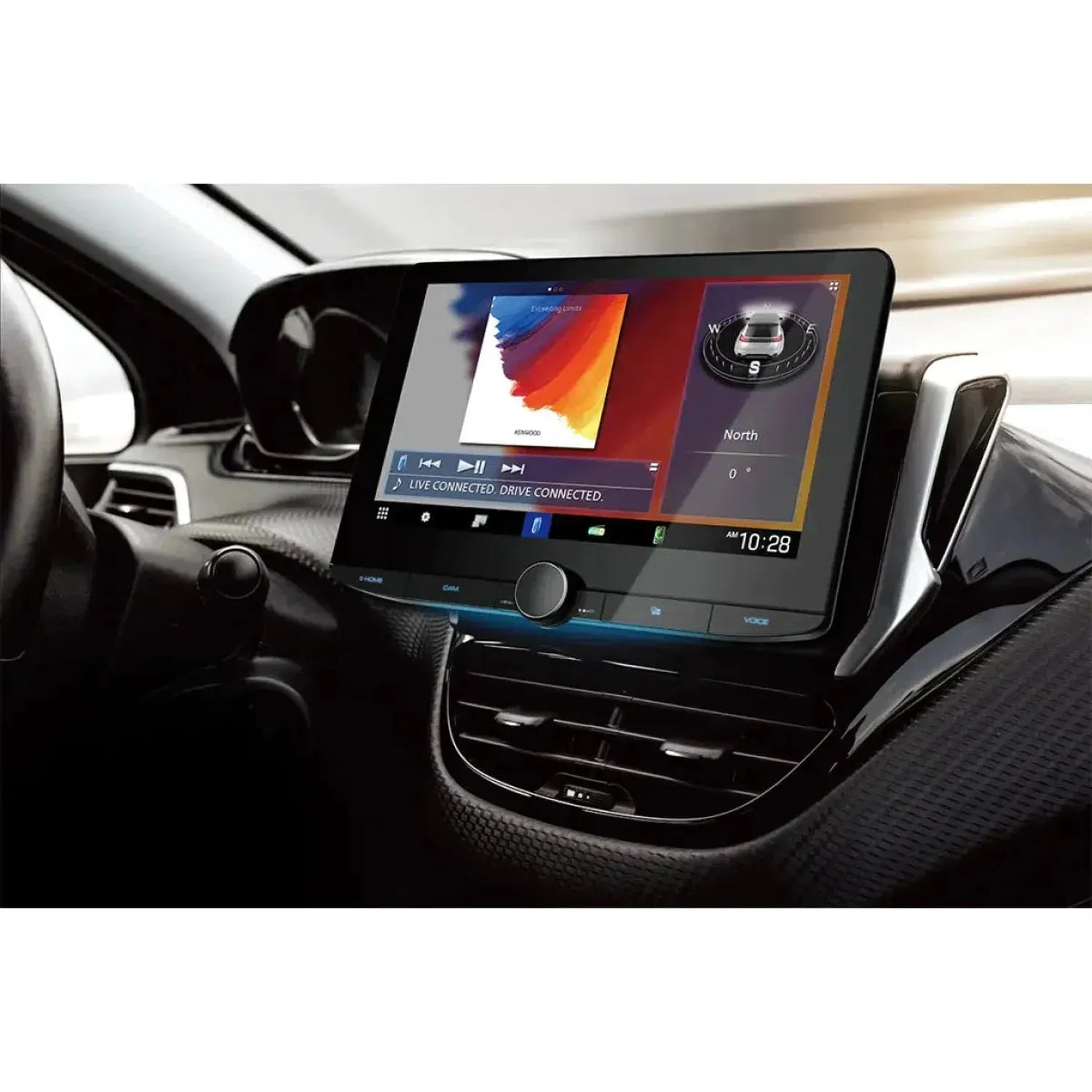

The Kenwood DMX9720XDS is a state-of-the-art 2-DIN car radio that elevates your driving experience to a new level. It features robust general specifications such as an integrated Bluetooth module, DAB+ tuner, and diverse multimedia compatibility. With a clear 25.7 cm (10.1") display and extensive customization options, this device offers an unbeatable entertainment experience for your vehicle. Additionally, it supports both Apple CarPlay and Android Auto, even providing a wireless control option. It also includes features like HD camera input, hands-free function, and various connection options. These are just some of the remarkable features of Kenwood's DMX9720XDS that make it an excellent upgrade for your car.
Specifications
- General Equipment Features
- DIN size 2 DIN
- Freely selectable security code Yes, freely selectable
- Clear GUI menu Yes
- Selectable GUI background display Yes
- Key illumination variable color setting
- Installer Memory Ja
- Back-up storage Yes
- Level reduction with linear volume fade-in Yes
- Prepared for IR remote control Yes, (KCA-RCDV331)
- Digital time (24H) Yes
- Integrated Bluetooth module Yes
- Integrated DAB+ tuner Yes
- WiFi integrated Yes
- Made for iPod Ja

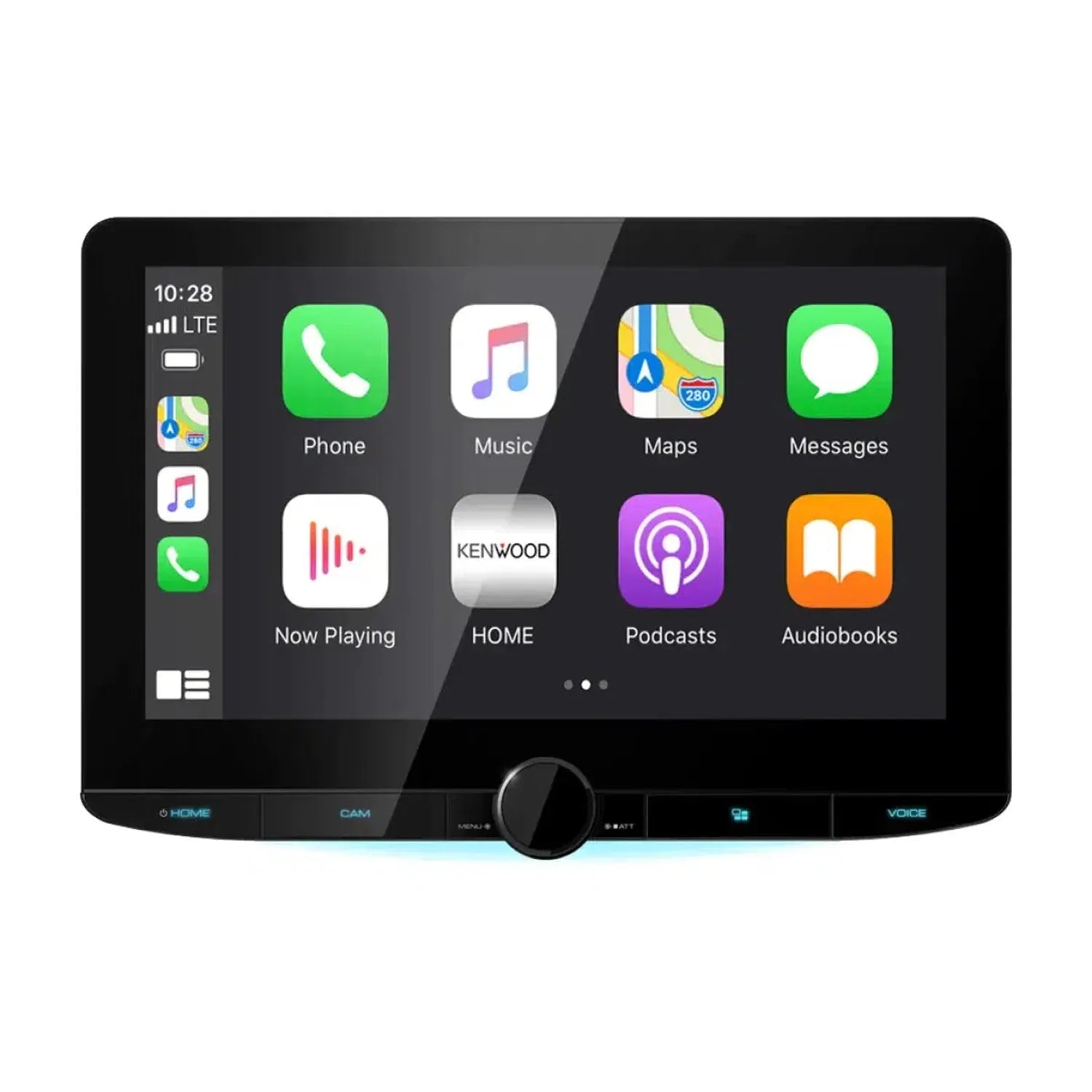

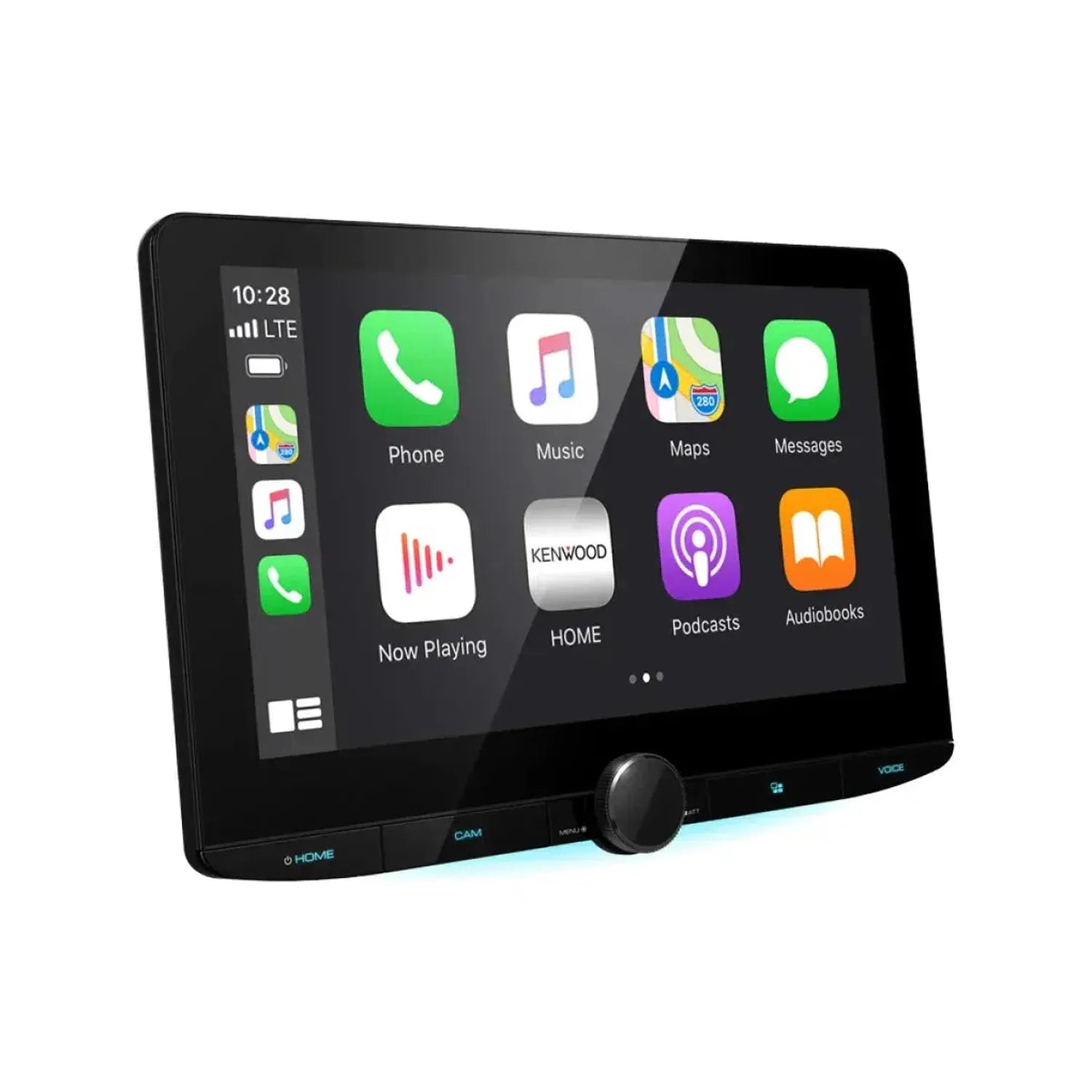

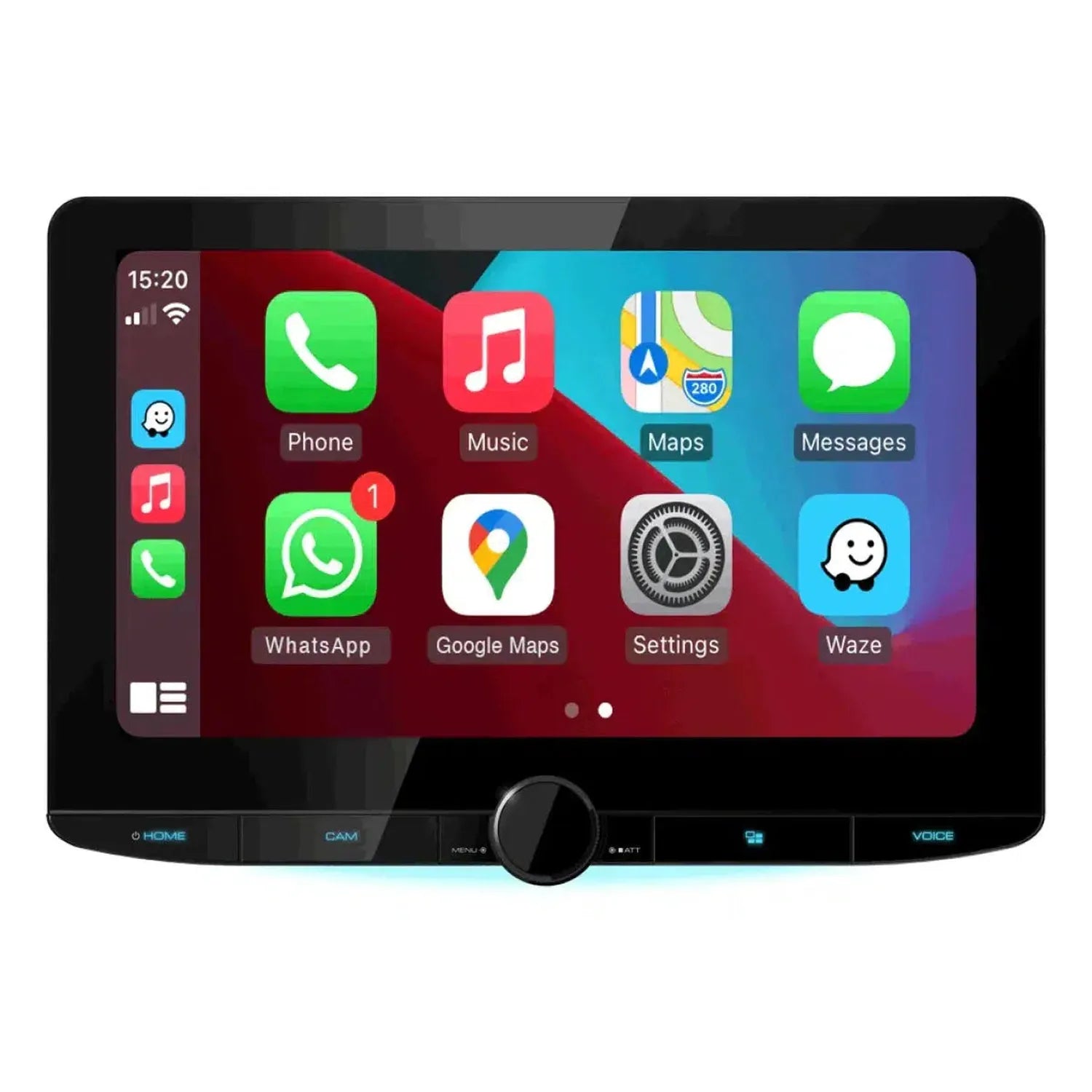

- Supports Apple CarPlay Yes
- Wireless operation of Apple CarPlay Yes

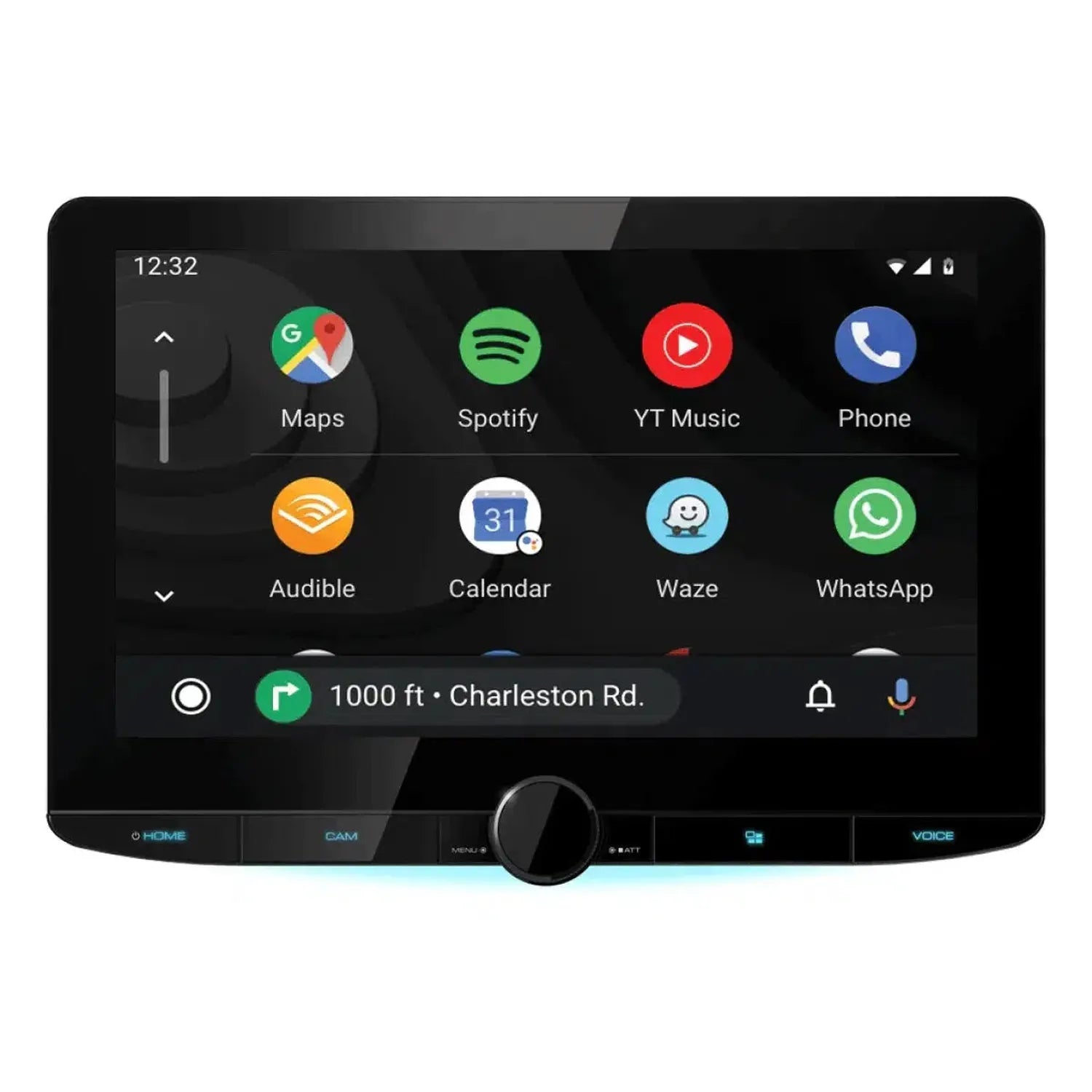

- Supports Android Auto Yes
- Wireless operation of Android Auto Yes
- Wireless Mirroring for Android Smartphones Yes
- Update option Yes
- HDMI Input for Video Playback
- Dashcam Link Yes
- Display features

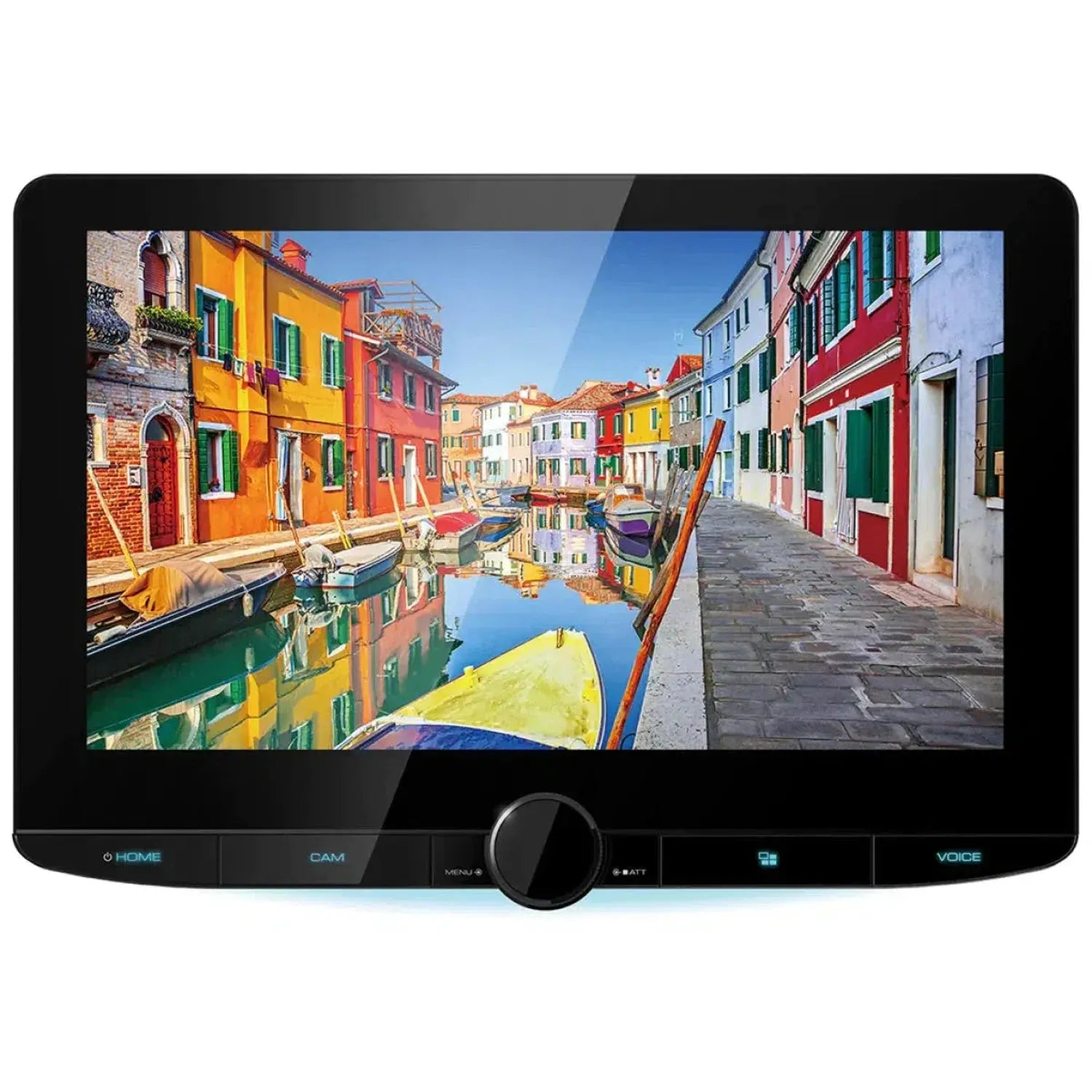

- Display size 25.7 cm (10.1")
- Display mode 3 modes (Full (Standard)/Auto/Normal)
- Image settings
- Noon & Night Memory.
- Brightness.
- Tint.
- Colour.
- Contrast.
- Black Level.
- Backlight.
- Switching of Day/Night Display Manual Synchronization
- Dimmer function Sync / On / Off
- Video sources Mirroring / CarPlay / Android Auto.
- Capacitive Touch Screen
- Display type anti-glare effect
- Display foil Anti-Fingerprint / Anti-Reflection / Anti-Glare)
- Capacitive Display Panel
- Display Mechanism Movable Screen
- Adjustable tilt angle -10° ~ +45°
- Adjustable depth position of the display 20mm (secured by screws)
- Adjustable height of the display 39mm (secured by screws)
- LCD viewing angle adjustable "0" (standard) / "-1" / "-2" / "-3"
- Automatic NTSC/PAL switching automatically
- Features of the GUI
- Text 22 Languages: ► English (UK) (Standard) ► English (US) ► Spanish ► French ► German ► Italian ► Dutch ► Russian ► Portuguese ► Chinese (Simplified) ► Chinese (Traditional) ► Thai ► Turkish ► Arabic ► Persian ► Hebrew ► Greek ► Malay ► Indonesian ► Polish ► Czech ► Hungarian
- Firmware update (SoC) via USB
- Presentation Graphics
- Spectrum Analyzer Yes
- Demonstration mode Yes
- Individual Main Menu Yes
- Opening Screen Type Standard
- Individual Background Setting Preset x6:
- Static x4.
- Colour Customize x1.
- Sync Album Art x1.
- USER x2.
- Variable background color Yes
- Multi Widgets Full screen, Flexible source, Drive & Photo Frame Widget
- Picture-in-Picture function Yes
- Animated user interface Yes
- Screen recording Yes
- Automatic rearview camera display (R-CAM Interrupt) Yes
- Rearview camera - Warning notice Yes
- Rearview camera parking assistance lines Yes
- Automatic switching front camera (adjustable) Yes
- Reflection of the front camera view Yes
- DashCam Control (DashCam Link Function) Yes
- Display for fast charging function Yes
- Features Network & WiFi
- WiFi integrated Integrated
- Frequency Range Dual Band (2.4GHz / 5GHz)
- IEEE Standard 802.11a/b/g/n/ac
- WiFi connection for Apple CarPlay Yes
- WiFi connection for Android Auto Yes
- WiFi connection for Android Mirroring (smartphone mirroring) Yes
- Tuner Features
- Sender Selection Manual / Default (List)
- Recipient type Lithio
- UKW Stereo/Mono switch Yes
- UKW (RDS) + MW/LW Tuner Yes
- Sender configuration (Auto 1 / Auto 2 / Manual)
- Up/Down Sender search run Yes
- Station storage (FM/MW) 20 storage (15 FM / 5 MW)
- Automatic channel storage (AME) Yes
- Permanent broadcast memory Yes
- Radio Data System Yes
- Radio Text Plus Yes
- Traffic information yes
- Local Search Yes
- AR Regional Selectable: AF/AF Reg/OFF
- Automatic traffic radio station search Yes
- Enhanced Other Networks Yes
- Program Type Identification (PTY) Yes
- Features DAB
- Integrated DAB+ tuner Yes
- Certification by Digital Radio Tick Mark Yes
- Automatic channel search Yes, (Service, Ensemble & Component)
- Ensemble Search Yes
- Sender search Auto1 / Auto2 / Manual
- Number of station storage spaces 15 bands * 1 storage space
- Sender list in alphabetical order Yes
- Sender storage list Yes
- Alphabetical channel search Yes
- Related service Yes
- Traffic information yes
- DAB Priority Yes
- Automatic DAB-FM Switching Yes
- Digital radio with Seamless Blending Yes
- DLS (Dynamic Label) - Text information that is broadcast in addition to the audio signal by the respective sender. Yes
- PTY (Programme Type) Search Yes
- PTY (Programme Type) Monitoring Yes
- Issue of messages (ASW-Select) Yes
- TMC Data Service Yes
- DMB Audio (Digital Multimedia Broadcasting) Yes
- Soft linking Yes
- On/Off switch for external antenna power supply Yes
- Features Bluetooth: General
- BT Module Murata
- Maximum number of registered smartphones for hands-free and audio streaming function 10 mobile phones
- Hands-Free Profile HFP V1.7
- Hands Free Profile with high sound quality HFP V1.7
- Dual mobile phone connection Yes
- 2 phones can be paired simultaneously Yes
- Audio data transmission A2DP (Advanced Audio Distribution Profile) Yes, (SBC/AAC)
- Audio streaming with high sound quality SBC/AAC
- LDAC - High Resolution Audio Streaming Yes
- Maximum number of registerable devices for A2DP playback 5 units
- Serial data transmission (SPP - Serial Port Profile) Yes
- Simple secure pairing yes
- Access to Phonebook (PBAP) Yes
- Number of telephone directory entries Up to 1000 telephone directory entries
- Number of entries Call history Up to 50 entries of dialed, received and missed calls
- AVRCP Profile Yes, V1.6
- Multi Profile Support Yes
- iPhone & Android automatic pairing via USB Yes
- Remote controllable via KENWOOD Remote App
- Prepared for KENWOOD Portal App Yes
- KENWOOD Music Mix Function Yes
- Phone search function Yes
- Private Mode Yes
- Alphabetical Search (Phone Book) Yes
- Noise suppression Yes
- Echo compensator Yes
- Status display for mobile phone function Yes
- Status display for audio functions Yes
- Signal strength Yes
- Battery charge status Yes
- High-quality microphone with noise cancellation Including wired back
- Playable audio files
- Playback of AAC files USB
- AAC files are playable USB
- Playback of MP3 files USB
- Playback of WMA files USB
- Playback of WAV files USB
- Playback of FLAC files USB
- Playback of DSD files (Hi Res Audio) USB
- Playable video files
- Playback of MPEG1/2 video files USB
- Playback of MPEG4 video files USB
- Playback of WMV video files USB
- Playback of H.264 video files USB
- Playback of mkv files USB
- Playback of JPEG image files USB
- Playback of BMP image files USB
- Playback of PNG image files USB
- Equipment features USB
- USB - Connection Yes, 1 x USB 2.0 (pigtail)
- USB Standard 2.0 High speed
- Drive Change Yes
- Apple CarPlay Yes
- Supports Apple CarPlay Yes
- USB 1 wire Mirroring for Android Ja
- Display of Day Information (ID3) Yes
- Show Album Cover Yes
- Repeat and play function, random playback Yes
- Repeat function Folder/Files/All
- Shuffle Folder
- Category search Yes
- Link Search Yes
- Resume Play Yes
- Playtime display Yes
- Features iPod
- Made for iPod & iPhone * Yes
- iPod control via USB (Audio / 1-Wire) and Lightning connector with optional connection cable KCA-iP103
- Album Cover Display Yes
- Search about Music Archive Yes
- Search by Initial Letters (Alphabet Search) Yes
- Skip Search Yes
- iPod Accessory Protocol (iAP) iAP2
- iTunes Radio App Yes iAP2
- Supports Apple CarPlay wirelessly or via USB
- Reverse search Yes
- iPhone Voice Control Siri Yes
- Bluetooth Auto Pairing for iPhone Yes
- 1A charging function Yes
- * Please always use the latest firmware update.
- Audio Features
- Max. output power (MOSFET power IC) 4 x 50W
- Preamp output 3 Preamp outputs (Front/Rear/SUB)
- Output level of the preamplifier output 5V
- Volume Offset Yes
- 2 Zone Audio Control Yes
- Sound setting Yes, (via DSP)
- Loudness Control Yes, via DSP
- Bass boost function Yes, (via DSP)
- Level reduction (-20dB) with linear volume fade-in Yes
- Integrated Equalizer Yes, 13 Band graphic EQ
- Integrated DSP Yes
- Runtime correction Yes
- Buzzer On/Off Yes
- Features DSP
- Vehicle Model Setting Off / Compact / Sedan / Wagon / Minivan / SUV / Passenger Van
- Speaker size setting Yes
- Crossover 3-Way / 2-Way X'over / HPF / LPF
- Setting listening position / runtime correction Yes
- Equalizer Type Graphic
- Integrated 13-Band Equalizer
- Equalizer Profile / User Profile 8 Presets / 4 Individual Profiles
- Zone Control 1 Zone / 2 Zone
- Balance & Fader Control Yes
- Volume adjustment adjustable independently of audio source
- Sound Effects
- Bass Boost
- Supreme
- Loudness
- Realizer
- Drive Equalizer
- Stage EQ
- Space Enhancer
- Audio Setup Memory Ja

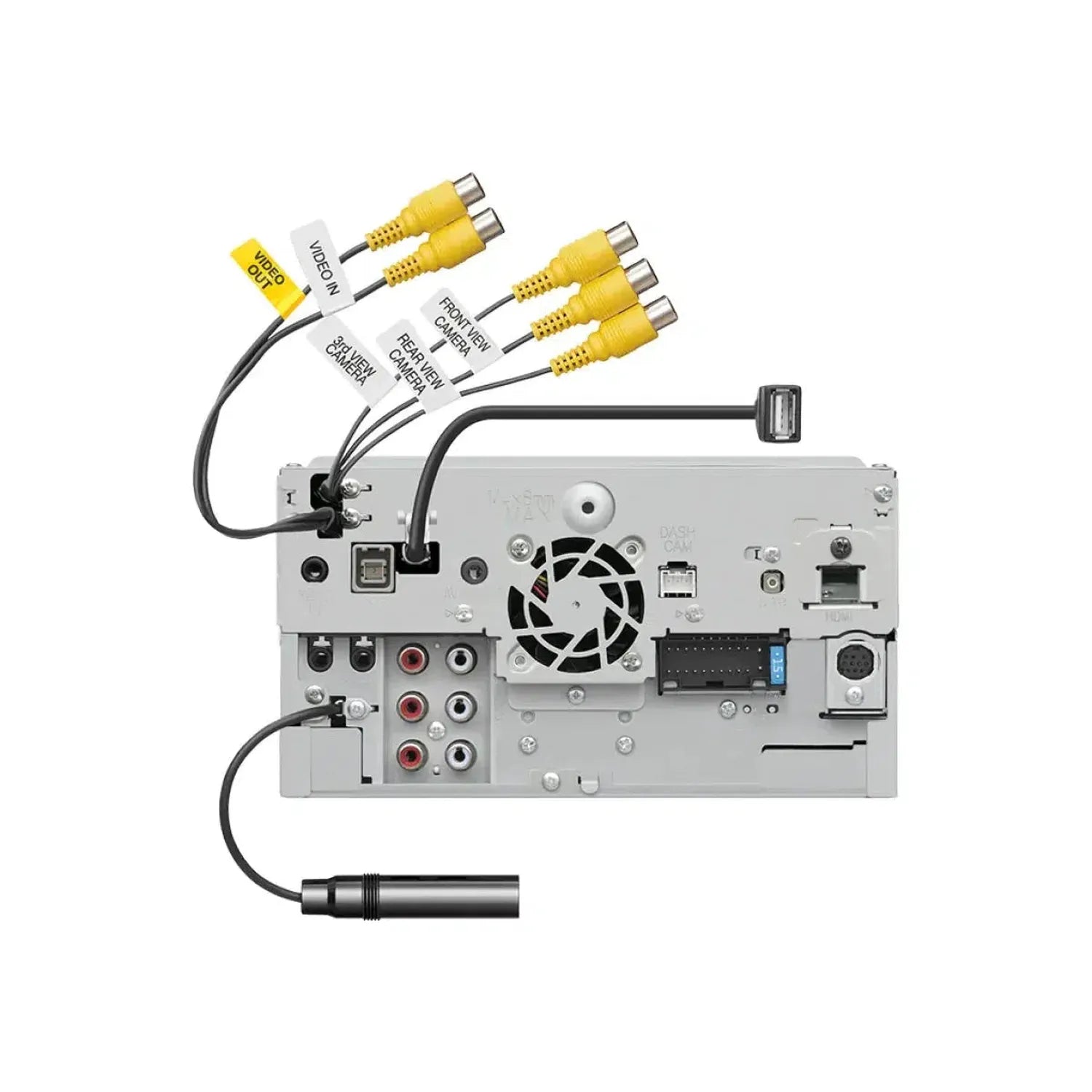

- connection option
- Digital iPod control Yes
- USB connection 1 x USB 2.0 (pigtail)
- Connection for OEM steering wheel remote control Yes, optional interface is required
- OEM display control Yes, optional interface (KIM) needed
- Yes
- OEM Display IN/OUT Yes
- Mitsumi power connection to ISO
- Park sensor cable Yes
- Switching voltage connection (P. CON.) Yes
- Mute function with 2 operating modes Yes
- Manual brightness adjustment (dimmer) Yes
- Connection for speed signal Yes
- AV input 1x mini jack (selectable: AV input / camera input)
- AV Output Video: RCA / Audio: mini-jack
- Available AV-Out Source AV-in / Off
- Connection for reverse control Yes
- Separate connection for rear view camera NTSC or HD-TVI input
- Connection for rearview camera selectable: Front (NTSC or HD-TVI) or DashCam (NTSC)
- Front camera / Dashcam selectable Yes
- Camera input for up to 4 cameras
- HD Camera Input Front & Rear Camera Input
- Dashcam Link Yes
- Preamp outputs 3 x RCA: Front/Rear/Subwoofer
- Connection for TV receivers (third-party manufacturers) including control via REM-Out Yes
- HDMI Input Type A
- GPS antenna input HRS GT5-1S connection
- UKW/AM antenna connection JASO connection
- DAB antenna connection SMB connection
- Connection for hands-free microphone 3.5mm mini-jack
- Technical Data Tuner
- FM range: 87.5 MHz - 108 MHz (in 50 kHz steps) Yes
- UKW input sensitivity 0.8μV/75 Ohm (S/N 30 dB)
- Input sensitivity (Signal-to-noise ratio) 1.6 μV/75 Ohm (S/N 15.2 dB)
- UKW transmission range 30 Hz ~ 15 kHz (± 3 dB)
- UKW Signal-to-Noise Ratio (Mono) 65 dB
- UKW input sensitivity (DIN) over 80 dB (±400 kHz)
- UKW channel separation (1 kHz) 45 dB
- MW range: 531 kHz - 1611 kHz (in 9 kHz steps) Yes
- MW input sensitivity 45 μV
- LW range: 153 kHz - 279 kHz (in 9 kHz steps) Yes
- LW input sensitivity 25 μV
- Technical Data DAB
- Band III - Frequency range 174.928 MHz - 239.2 MHz
- DAB-Modi I, II, III, IV
- Sensitivity - 100 dBm
- Signal-to-noise ratio 90 dB
- Audio format MPEG1 Audio Layer II, MPEG4 HE-AAC V2
- DAB antenna connection type SMB
- Output voltage 14.4V (11V to 16V allowable)
- Maximum current < 100 mA
- Technical Data Bluetooth
- Standard Bluetooth V5.0
- Transmission frequencies 2.402 - 2.48 GHz
- Output power + 4 dBm(max), power class 2
- Max. range about 10 meters
- HFP (Hands Free Profile) Yes, V1.7
- Serial data transmission (SPP - Serial Port Profile) Yes
- Audio data transmission A2DP (Advanced Audio Distribution Profile) Yes
- Audio formats SBC/AAC
- AVRCP (Audio Video Remote Control Profile) Yes, V1.6
- PBAP (Phonebook Access Profile) Yes
- Multi Profile Support Yes
- Technical Data USB
- Compatibility of USB version USB 2.0 High Speed
- File system FAT 16/32 / exFAT / NTFS
- Max. current consumption 1500 mA
- D/A converter 24/32 bit
- Video formats MPEG1/MPEG2/MPEG4/WMV/H.264/MKV
- Audio formats MP3/WMA/AAC/WAV/FLAC/Vorbis
- S/N ratio 98.5 dB (1kHz)
- Dynamic range 89 dB
- Technical Data Audio
- Maximum power 50 W x 4
- Output power (DIN45324, +B=14.4 V) 22 W x 4
- Frequency range 20 Hz ~ 88 kHz
- Output level 5000 mV / 1 kOhm
- Impedance of the preamplifier output 300 Ohm
- Speaker impedance 4 Ohm ~ 8 Ohm
- Technical Data DSP
- Frequency band 62.5/100/160/ ~ /6.3k/10k/16k Hz
- Equalizer: Level Gain –9 dB ~ +9 dB
- Time delay 0 — 610cm (1 cm steps)
- Speaker type: Center ► NONE ► 40mm x 70mm ► 5cm ► 10cm ► 13cm ► over 16cm
- Speaker type: Front ► O.E.M. ► 10cm ► 13cm ► 16cm ► 17cm ► 18cm ► 4" x 6" ► 5" x 7" ► 6" x 8" ► 6" x 9" ► 7" x 10"
- Speaker type: Rear ► NONE ► O.E.M ► 10cm ► 13cm ► 16cm ► 17cm ► 18cm ► 4" x 6" ► 5" x 7" ► 6" x 8" ► 6" x 9" ► 7" x 10"
- Speaker type: Subwoofer ► NONE ► 16cm ► 20cm ► 25cm ► 30cm ► over 30cm
- 2-Way X'over / Front/Rear (HPF) / Frequency Through, 30/40/50/ ~ /220/250 Hz
- 2-Way X'over / Front/Rear (HPF) / Slope -6/-12/-18/-24 (dB/oct)
- 2-Way X'over / Subwoofer (LPF) / Frequency 30/40/50/ ~ /220/250 Hz, Through
- 2-Way X'over / Subwoofer (LPF) / Slope -6/-12/-18/-24 (dB/oct)
- 3-Way X'Over / High Pass Filter Frequency Through, 30/40/50/ ~ /220/250 Hz
- 3-Way X'Over / High Pass Filter Slope -12/-18/-24 (dB)
- 3-Way X'Over / Low Pass Filter Frequency 30/40/50/ ~ /220/250 Hz, Through
- 3-Way X'Over / Low Pass Filter Slope -12/-18/-24 (dB/Oct)
- Subwoofer Level -50dB ~ 10dB
- Vehicle model ► From ► Compact ► Sedan ► Station wagon ► Minivan ► SUV ► Minibus
- Technical Data Video
- Color system of the external video input NTSC/PAL
- Max. level for video input (mini-jack) 1 Vss / 75 Ohm
- Max. level for external audio input (mini-jack) 2 V / 25 kOhm
- Video input level (RCA) 1 Vss, 75 Ohm
- Video output level (RCA) 1 Vss / 75 Ohm
- Audio output level (mini jack) 0.9 V / 10 kOhm
- HDMI - VGA input resolution 640x480p @59.94Hz/60Hz
- HDMI - 480p input resolution 720x480p @59.94Hz/60Hz
- HDMI - 720p input resolution 1280x720p @59.94Hz/60Hz
- HDMI - input Audio type 16/20/24-bit Linear PCM
- Technical Data Monitor
- Screen diagonal 10.1 inches wide
- Screen size (WxH) 223.7 x 125.8 mm
- Display-System AAS (Azimuthal Anchoring Switch) LCD panel
- Drive system TFT Active Matrix display
- Number of pixels 2764800 pixels (1280 (H) x 720 (V) x RGB
- Visible pixels 99.99%
- Pixel arrangement RGB stripe arrangement
- LED backlighting (Light Emitting Diode)
- Technical Data General
- Operating voltage 14.4 V (11 ~ 16 V permissible)
- Dimensions front panel (W x H) 261.6mm x 181.1mm
- Dimensions control units (W x H x D) 178 x 100 x 155 mm
- Weight 3250 g.
- Scope of delivery
- DC Cable (Mitsumi to ISO) 20 cm
- USB extension cable Yes, 1 meter long
- Screws Ø 3 x 6mm, 2 pieces
- Screws (thread) M5 x 8mm, 6 pieces
- Screws (thread) M5 x 8mm, 6 pieces
- Screws (thread) M5 x 8mm, 6 pieces
- GPS antenna with 3.5 m long connection cable
- GPS Antenna Yes
- Hands-free microphone with 3 m long connection cable
- Bracket (vertical mounting) 2 pieces
- Bracket (horizontal mounting) 1 piece
- Bracket C 1 piece
- Multilingual operating instructions include quick guide + operating instructions
- Downloadable manual Yes
Your benefits at Masori
Kenwood DMX9720XDS Datasheet
Frequently Asked Questions about DMX9720XDS
Wie groß ist das Display des Kenwood DMX9720XDS?
Wie groß ist das Display des Kenwood DMX9720XDS?
Welche Dateiformate unterstützt das Kenwood DMX9720XDS?
Welche Dateiformate unterstützt das Kenwood DMX9720XDS?
Welche Vorteile bietet der integrierte DAB+ Tuner des Kenwood DMX9720XDS?
Welche Vorteile bietet der integrierte DAB+ Tuner des Kenwood DMX9720XDS?
Kann das Kenwood DMX9720XDS kabellos mit Smartphones verbunden werden?
Kann das Kenwood DMX9720XDS kabellos mit Smartphones verbunden werden?
Welche Audioanpassungen sind mit dem Kenwood DMX9720XDS möglich?
Welche Audioanpassungen sind mit dem Kenwood DMX9720XDS möglich?
Wie ist die Bluetooth-Funktionalität des Kenwood DMX9720XDS?
Wie ist die Bluetooth-Funktionalität des Kenwood DMX9720XDS?
Welche Anpassungsmöglichkeiten bietet das Display des Kenwood DMX9720XDS?
Welche Anpassungsmöglichkeiten bietet das Display des Kenwood DMX9720XDS?
Wie gestaltet sich die AV-Anschlusskonfiguration beim Kenwood DMX9720XDS?
Wie gestaltet sich die AV-Anschlusskonfiguration beim Kenwood DMX9720XDS?
Welche Funktionen bietet der integrierte iPod-Zugriff des Kenwood DMX9720XDS?
Welche Funktionen bietet der integrierte iPod-Zugriff des Kenwood DMX9720XDS?
Welche Anschlussoptionen und Steuerungsmöglichkeiten bietet das Kenwood DMX9720XDS?
Welche Anschlussoptionen und Steuerungsmöglichkeiten bietet das Kenwood DMX9720XDS?
Manufacturer information / responsible person
Manufacturer information / responsible person
Let customers speak for us
Hammer Woofer 👍 jeden Euro wert
Great Product, Great Price
Very good experience purchasing several car audio installation products through Masori: Zeus AluButyl 140dB, the Montagehebelset Keile 3-piece soft trim removal tool set, and the 10–100 mm² M8 ring terminal set.
Shipping was fast and everything arrived well packaged with no issues. Regarding the products, the AluButyl provides very good sound deadening performance, with solid material that is easy to work with, ideal for doors and areas where vibration reduction is required.
The trim removal tool set is very useful for disassembling interior panels without damaging plastics or clips, especially in delicate areas, while the M8 ring terminals are of very good quality, offering solid contact and a robust finish, ideal for safe and professional power installations.
Overall, very satisfied with the purchase. High-quality materials suitable for professional-level car audio builds or well-finished personal projects, and a highly recommended store.
Very good experience purchasing several car audio installation products through Masori: Zeus AluButyl 140dB, the Montagehebelset Keile 3-piece soft trim removal tool set, and the 10–100 mm² M8 ring terminal set.
Shipping was fast and everything arrived well packaged with no issues. Regarding the products, the AluButyl provides very good sound deadening performance, with solid material that is easy to work with, ideal for doors and areas where vibration reduction is required.
The trim removal tool set is very useful for disassembling interior panels without damaging plastics or clips, especially in delicate areas, while the M8 ring terminals are of very good quality, offering solid contact and a robust finish, ideal for safe and professional power installations.
Overall, very satisfied with the purchase. High-quality materials suitable for professional-level car audio builds or well-finished personal projects, and a highly recommended store.
Very good experience purchasing several car audio installation products through Masori: Zeus AluButyl 140dB, the Montagehebelset Keile 3-piece soft trim removal tool set, and the 10–100 mm² M8 ring terminal set.
Shipping was fast and everything arrived well packaged with no issues. Regarding the products, the AluButyl provides very good sound deadening performance, with solid material that is easy to work with, ideal for doors and areas where vibration reduction is required.
The trim removal tool set is very useful for disassembling interior panels without damaging plastics or clips, especially in delicate areas, while the M8 ring terminals are of very good quality, offering solid contact and a robust finish, ideal for safe and professional power installations.
Overall, very satisfied with the purchase. High-quality materials suitable for professional-level car audio builds or well-finished personal projects, and a highly recommended store.
Very good experience purchasing the Vibe Audio POWERBOX65.4M amplifier through Masori.
Shipping was fast and the product arrived well packaged with no issues. The amplifier offers a very easy plug & play installation, making it ideal for OEM-style integrations or clean installations without complications.
Performance is stable, with good power for its size and very decent sound quality within its category. It’s a practical solution to upgrade a car audio system without complex installations or major modifications.
Overall, very satisfied with the purchase. A reliable shop and a product that delivers what it promises.
The product it self is amazing subwoofer is perfect great quality but i can't tell how disappointed i'm in masori shipping it said 2-4 business days and it took almost 3 weeks for amplifier i still waiting.
Die Mille Serie von Hertz ist einfach großartig.
Grandioser Sound bei jeder Lautstärke.
Der Woofer ist bedenkenlos zu empfehlen.
Ótimo produto muito bom bem reforçado um grave absurdo um alto-falante de alta performance instalado bem certo limpadores de qualidade controladores de som e bateria você terá um grave absurdo em seu sistema
Einer der besten Tiefmitteltöner im 10cm-Bereich, Top Verarbeitungsqualität, sehr hochwertige Materialien, hervorragende tiefreichende Mitteltonwiedergabe.
Ich habe sie an den Sounddigital 800.4 Evo6 angeschlossen. Und ich bin mehr als zufrieden. Mitteltöner laut und auch präzise. Hochtöner brennen nicht in den Ohren, die sind laut und geben das, was sie sollen. Gut angelegtes Geld.
Perfekter Verstärker, Lieferung wie erwartet. Top-Unternehmen.
das ist super 👌👌👌
Kam gut verpackt an und liefert sauber seine leistung
Dies ist eine hervorragende Option für eine kräftige Serndina. Ich empfehle sie.
