DMX5020BTS
Technical Highlights
- Max power 4x45W, 2 RCA outputs, subwoofer (2V).
- Speaker impedance 4 to 8 Ohm, touchscreen 6.8".
- Bluetooth V4.1, Android Auto, Apple CarPlay compatible.
- More technical details
Pay conveniently in 12 interest-free installments at €28,69 with Klarna .
Availability for pickups could not be loaded.
Shipping cost calculator
Shipping cost calculator
Rob
Max
Unsure if this product fits your car?
We help you – quickly, personally, and without obligation.
Fill out the form and we'll send you a personalised offer
This product is not universally compatible. Send us your vehicle details and we will check fitment for your model free of charge.

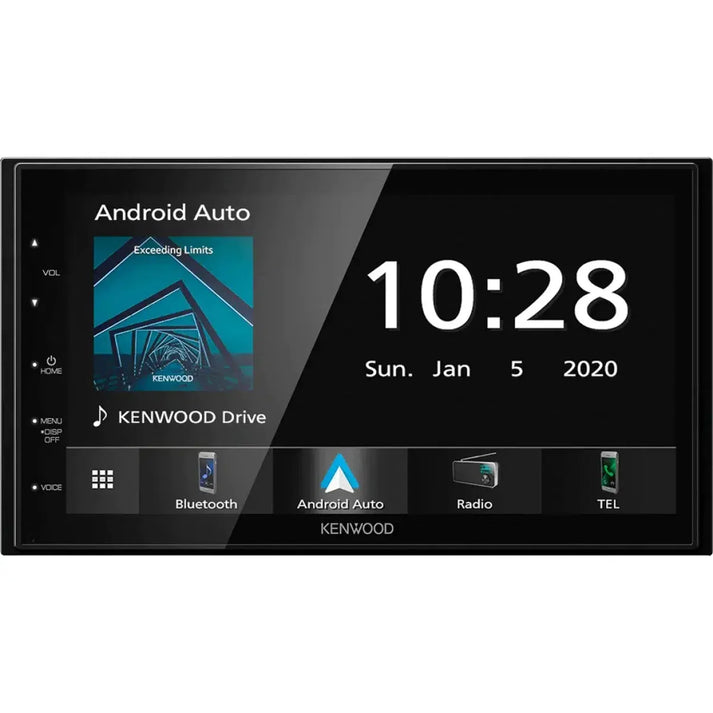

DMX5020BTS by Kenwood
Experience bear-strong audio performance with the Kenwood DMX5020BTS. This 2-DIN car radio impresses with a wealth of innovative features for flawless sound and user-friendliness. Its main features include a 6.8" WVGA capacitive touchscreen, built-in Bluetooth, 2 preamp outputs and subwoofer, 13-band EQ, and much more. With the DMX5020BTS model, Kenwood has launched a device that offers every driver that special extra thanks to Apple CarPlay® and Android Auto™ compatibility, AV input, video output, as well as rear camera input and a user-friendly interface.
Specifications
- Essential Features
- 6.8" WVGA capacitive touchscreen - White key backlighting
- Apple CarPlay® & Android Auto™ ready
- Android USB-mirroring capable
- Built-in Bluetooth
- Bluetooth ready for wireless music playback
- 2 preamplifier outputs + subwoofer (2.0V)
- 13 Band EQ - DSP - DTA Built-in
- AV input, video output & RCAM input
- Reverse camera input with built-in parking assist lines
- Short chassis for easy installation
- General Features
- DIN size 2 DIN
- Smooth GUI Yes
- Selectable GUI background image Yes
- Key illumination white color
- Attenuator with gentle volume reset Yes
- Touch sensor sound Yes
- Optional IR remote control Yes, (KNA-RCDV331)
- Digital clock (24 hours) Yes
- ISO connection Yes
- Built-in Bluetooth Yes
- Suitable for iPod Yes
- Works with Apple CarPlay Yes
- Works with Android Auto Yes
- Android USB Mirroring Yes
- Firmware updatable Yes
- Properties of the monitor
- Screen type 6.8" Wide VGA
- Display mode 4 modes (Full/Zoom/Normal/Auto)
- Screen adjustments brightness/tint/color/contrast
- Dimmer Function Manual/Sync
- Dimming level yes
- Image source mode Mirroring / CarPlay / Android Auto.
- Display Type Glare Protection
- Display Film Anti-Fingerprint
- Display panel capacitive
- Mechanism Type Fixed
- NTSC/PAL-Richter Yes (Auto)
- Display Out Mode Yes
- Multimedia GUI functions
- OSDC Type Graphic
- Menu text 14 languages:
- English (UK) (Standard)
- English (US)
- Spanish
- French
- German
- Italian
- Dutch
- Russian
- Portuguese
- Hebrew
- Greek
- Polish
- Czech
- Hungarian
- Software Updates (SoC)
- Demonstration mode Yes
- Customize Top Menu Yes
- Startup Screen Type Standard
- Adjust Background 6 x Presets + 2 x User Settings
- R-CAM Interruption Yes
- R-CAM Parking Guidelines Yes
- Tuner functions
- Sender selection manual / preset (list)
- FM reception Yes
- FM Stereo / Mono Selection Yes
- AM (MW/LW) reception Yes
- Voting mode Auto1/Auto2/Manual
- Upward/Downward Search/Scan Yes
- Tuner-Presettings (FM/AM) 20 Presettings (15FM / 15AM)
- Automatic storage entry (ASE) Yes
- Radio Data System Ja
- Radio Text Plus Yes
- Traffic information yes
- Local Search Yes
- AF Regional selectable: AF/AF Reg/OFF
- Enhanced Other Networks Function (EON) Yes
- Program type function (PTY) Yes
- General Bluetooth Features
- Max. number of registered phones for HFP & A2DP 7 phones
- Hands Free Profile (HPF) V1.6
- Hands-free profile with high sound quality HFP V1.6
- Audio Streaming (A2DP) Yes, (SBC/AAC)
- Serial connection profile (SCP) Yes
- Simple Secure Pairing (SSP) Yes
- Phone Book Access Profile (PBAP) Yes
- Number of PBAP entries Up to 1000 phone book entries
- PBAP-Call List Up to 20 entries for dialed, answered, and missed calls
- Generic Access Profile (GAP) Yes
- Service Identification Profile (SDP) Yes
- Audio/Video Remote Control Profile (AVRCP) Yes, V1.5
- Fangschaltung / Tapping Yes
- Private Mode Yes
- Alphabetical search (telephone directory) Yes
- Voice control Yes
- Noise suppression Yes
- Echo suppression Yes
- Display of signal strength Yes
- Display of remaining battery Yes
- Bluetooth Pairing Display Yes
- High-quality microphone with noise cancellation included
- Bluetooth firmware updatable Yes, included in system updates
- Playable audio file
- AAC (*.aac) files are playable USB
- MP3 files are playable USB
- WMA (.wma) files are playable USB
- WAV (.wav) files are playable USB
- FLAC files are playable USB
- CE_Playable Video File
- MPEG1/2 files are playable USB
- MPEG4 files are playable USB
- WMV files are playable USB
- H.264 files are playable USB
- Mkv files are playable USB
- JPEG files are playable USB
- USB Features
- USB connection Yes, back / 1m cable / fixed
- USB Type 2.0 High Speed
- Works with Android Auto Yes
- Works with Apple CarPlay Yes
- USB mirroring for Android install "Mirroring OA for KENWOOD" from the Play Store
- Repeat Playback Folder/File/All
- Shuffle Folder
- Category Search Yes
- Link Search Yes
- Resume playback Yes
- Timecode display Yes
- 1.5A Smartphone Fast Charging Yes
- Audio Functions
- Max. output power (MOSFET Power IC) 4 x 45 W
- Preamp output 2 RCA: FRONT/REAR + SUB(mono)
- Preamp output level 2 V
- Volume Offset Yes
- Balance/Fader Control Yes
- Att.(-20dB) with soft volume feedback Yes
- Equalizer Ja, 13 Band Graphic EQ
- Digital Sound Processor (DSP) Yes
- Digital Time Adjustment (DTA) Yes
- Signalton on/off Yes
- Multimedia DSP Functions
- Loudness Yes
- Bass enhancement Yes
- Autotyp control
- Out
- Compact
- Limousine
- Kombi
- Minivan
- SUV
- passenger car
- Control of speaker size and position Yes
- 'X'over Network 2-Way X'over / HPF / LPF'
- Control of the listening position / Time alignment Yes
- Equalizer Type Graphic
- Equalizer 13-Bands
- Equalizer-Presets / User Setting 7 Presets / 4 User Settings
- Balance & Fader Control Yes
- Source Volume Offset independent of source
- sound effects
- Out
- Compact
- Limousine
- Kombi
- Minivan
- SUV
- passenger car
- Audio Setup Memory Yes
- Video Functions
- Audio-Video Output Yes, only Video (RCA)
- Audio/Video Input Yes, Video and Audio Mini Jack
- Video input for rearview camera 1 dedicated video input (RCA)
- Recognition mode reverse camera reverse sensor cable
- Parking assistance line Yes
- Connectivity
- Wired OEM remote control possible Yes, optional interface required
- Programmable OEM steering wheel remote control function Yes
- Cable for park sensor (handbrake) Yes
- Cable for power control (P.CON) Yes
- Cable for dimmer control Yes
- Preamp output 2 x RCA (front/rear) + Sub (mono)
- AV input (non-switchable) (mini jack) Audio & Video
- Video output RCA x1
- Reverse sensor cable Yes
- Rearview camera input Dedicated RCA video input
- FM antenna input JASO connection
- External microphone input 3.5mm mini jack
- Tuner Specifications
- FM range: 87.5MHz - 108MHz (50kHz step) Yes
- FM Usable Sensitivity 1.8μV/75ohm (S/N 30dBf)
- FM frequency response 30Hz ~ 14kHz (± 3dB)
- FM Signal-to-Noise Ratio (Mono) 50dB
- FM Stereo Separation (1kHz) 35dB
- MW range: 531kHz - 1611kHz (9kHz step) Yes
- Usable MW sensitivity 99μV
- Bluetooth specifications
- Bluetooth Technology V4.1
- Frequency 2.402 - 2.48 GHz
- Output power +8dBm(max), power class 1
- Maximum range line of sight approx. 10 meters
- Handsfree Profile (HFP) Yes, V 1.6
- Serial connection profile (SCP) Yes
- Advanced Audio Distribution Profile (A2DP) Yes
- Audiocodec SBC/AAC
- Phone Book Access Profile (PBAP) Yes
- USB specifications
- Compatibility of USB version USB 2.0 High Speed
- File system FAT 16/32, exFAT
- Maximum supply current 1500mA
- D/A converter 24bit
- Video Decoder MPEG1/2/4, WMV, H.264, mkv
- Audio Decoder MP3, WMA, AAC, WAV, FLAC
- Audio Specifications
- Maximum power 45W x 4
- Output power (DIN45324,+B=14.4v) 21W x 4
- Output frequency range 20Hz ~ 20kHz
- Preamp level 2000mV / 10kOhm,
- Preamp impedance ≤ 1400 Ohm
- Speaker impedance 4Ohm ~ 8Ohm
- DSP specifications
- Frequency band - Front 62.5Hz ~ 16kHz
- Equalizer Gain -9dB ~ +9dB
- 2-Way X'over / Front/Rear (HPF) / Frequency depth/30/ ... /220/250Hz
- 2-Way X'over / Front/Rear (HPF) / Slope -6/-12/-18/-24 (dB/Oct.)
- 2-Way X'over / Subwoofer (LPF) / Frequency 30/40/...250Hz/Pass
- 2-Way X'over / Subwoofer (LPF) / Slope -6/-12/-18/-24 (dB/oct.)
- Position: 2-Way (Front/Rear/Sub) Delay 0cm ~ 610cm (1cm step)
- Subwoofer Level -40dB ~ 6dB
- Equalizer Type Graphic
- Frequency band 13 bands
- Video Specifications
- Color system of the external video input NTSC/PAL
- External video input level (mini jack) 1 Vpp / 75 Ohm
- External Audio Max. Input Level (RCA) 1.5 V / 25 kOhm
- Monitor Specifications
- Screen size (diagonal) 6.75 inches wide
- Screen size (WxH) 151.8 x 79.7 mm
- Display System Transparent TN-LCD Panel
- Drive system TFT active matrix system
- Number of pixels 1152000 pixels (800(H) x 480(V) x RGB)
- Effective Pixels 99.99%
- Pixel arrangement RGB stripes
- LED backlighting (Light Emitting Diode)
- General Specifications
- Operating voltage 14.4V (10.5 ~ 16V permissible)
- Dimensions (WxHxD) 178 x 100 x 75 mm
- Weight 1.1 g.
- Weight, incl. sleeve and protective cap 1.3 kg
- accessories
- Unlocking keys 2 pieces
- Rosette Ja
- Installation sleeve Yes
- Hands-free microphone with 3 m cable
- Multilingual User Manual
Your benefits at Masori
Kenwood DMX5020BTS Datasheet
Frequently Asked Questions about DMX5020BTS
Wie funktioniert das Apple CarPlay® im Kenwood DMX5020BTS?
Wie funktioniert das Apple CarPlay® im Kenwood DMX5020BTS?
Welche Audioformate spielt der Kenwood DMX5020BTS ab?
Welche Audioformate spielt der Kenwood DMX5020BTS ab?
Wie erfolgt die Einbindung von Android Auto™ im Kenwood DMX5020BTS?
Wie erfolgt die Einbindung von Android Auto™ im Kenwood DMX5020BTS?
Welche Bluetooth-Funktionen bietet das Kenwood DMX5020BTS?
Welche Bluetooth-Funktionen bietet das Kenwood DMX5020BTS?
Welche Videodateiformate werden vom Kenwood DMX5020BTS unterstützt?
Welche Videodateiformate werden vom Kenwood DMX5020BTS unterstützt?
Was sind die Thiele Small Parameter des Kenwood DMX5020BTS?
Was sind die Thiele Small Parameter des Kenwood DMX5020BTS?
Wie sieht die Kompatibilität vom Kenwood DMX5020BTS zu diversen Automarken aus?
Wie sieht die Kompatibilität vom Kenwood DMX5020BTS zu diversen Automarken aus?
Welche Optionen zur Audioanpassung bietet das Kenwood DMX5020BTS?
Welche Optionen zur Audioanpassung bietet das Kenwood DMX5020BTS?
Wie wird das Kenwood DMX5020BTS in einem Auto installiert?
Wie wird das Kenwood DMX5020BTS in einem Auto installiert?
Welche Monitor-Spezifikationen hat das Kenwood DMX5020BTS?
Welche Monitor-Spezifikationen hat das Kenwood DMX5020BTS?
Manufacturer information / responsible person
Manufacturer information / responsible person
Let customers speak for us
Hammer Woofer 👍 jeden Euro wert
Great Product, Great Price
Very good experience purchasing several car audio installation products through Masori: Zeus AluButyl 140dB, the Montagehebelset Keile 3-piece soft trim removal tool set, and the 10–100 mm² M8 ring terminal set.
Shipping was fast and everything arrived well packaged with no issues. Regarding the products, the AluButyl provides very good sound deadening performance, with solid material that is easy to work with, ideal for doors and areas where vibration reduction is required.
The trim removal tool set is very useful for disassembling interior panels without damaging plastics or clips, especially in delicate areas, while the M8 ring terminals are of very good quality, offering solid contact and a robust finish, ideal for safe and professional power installations.
Overall, very satisfied with the purchase. High-quality materials suitable for professional-level car audio builds or well-finished personal projects, and a highly recommended store.
Very good experience purchasing several car audio installation products through Masori: Zeus AluButyl 140dB, the Montagehebelset Keile 3-piece soft trim removal tool set, and the 10–100 mm² M8 ring terminal set.
Shipping was fast and everything arrived well packaged with no issues. Regarding the products, the AluButyl provides very good sound deadening performance, with solid material that is easy to work with, ideal for doors and areas where vibration reduction is required.
The trim removal tool set is very useful for disassembling interior panels without damaging plastics or clips, especially in delicate areas, while the M8 ring terminals are of very good quality, offering solid contact and a robust finish, ideal for safe and professional power installations.
Overall, very satisfied with the purchase. High-quality materials suitable for professional-level car audio builds or well-finished personal projects, and a highly recommended store.
Very good experience purchasing several car audio installation products through Masori: Zeus AluButyl 140dB, the Montagehebelset Keile 3-piece soft trim removal tool set, and the 10–100 mm² M8 ring terminal set.
Shipping was fast and everything arrived well packaged with no issues. Regarding the products, the AluButyl provides very good sound deadening performance, with solid material that is easy to work with, ideal for doors and areas where vibration reduction is required.
The trim removal tool set is very useful for disassembling interior panels without damaging plastics or clips, especially in delicate areas, while the M8 ring terminals are of very good quality, offering solid contact and a robust finish, ideal for safe and professional power installations.
Overall, very satisfied with the purchase. High-quality materials suitable for professional-level car audio builds or well-finished personal projects, and a highly recommended store.
Very good experience purchasing the Vibe Audio POWERBOX65.4M amplifier through Masori.
Shipping was fast and the product arrived well packaged with no issues. The amplifier offers a very easy plug & play installation, making it ideal for OEM-style integrations or clean installations without complications.
Performance is stable, with good power for its size and very decent sound quality within its category. It’s a practical solution to upgrade a car audio system without complex installations or major modifications.
Overall, very satisfied with the purchase. A reliable shop and a product that delivers what it promises.
The product it self is amazing subwoofer is perfect great quality but i can't tell how disappointed i'm in masori shipping it said 2-4 business days and it took almost 3 weeks for amplifier i still waiting.
Die Mille Serie von Hertz ist einfach großartig.
Grandioser Sound bei jeder Lautstärke.
Der Woofer ist bedenkenlos zu empfehlen.
Ótimo produto muito bom bem reforçado um grave absurdo um alto-falante de alta performance instalado bem certo limpadores de qualidade controladores de som e bateria você terá um grave absurdo em seu sistema
Einer der besten Tiefmitteltöner im 10cm-Bereich, Top Verarbeitungsqualität, sehr hochwertige Materialien, hervorragende tiefreichende Mitteltonwiedergabe.
Ich habe sie an den Sounddigital 800.4 Evo6 angeschlossen. Und ich bin mehr als zufrieden. Mitteltöner laut und auch präzise. Hochtöner brennen nicht in den Ohren, die sind laut und geben das, was sie sollen. Gut angelegtes Geld.
Perfekter Verstärker, Lieferung wie erwartet. Top-Unternehmen.
das ist super 👌👌👌
Kam gut verpackt an und liefert sauber seine leistung
Dies ist eine hervorragende Option für eine kräftige Serndina. Ich empfehle sie.
