Vehicle Search

  3. Venice V4
Hertz Venice V4 4-Channel Amplifier
SKU:  VENEZIA-V4
EAN:  8018823138840
290 Watt

Venice V4

SKU:  VENEZIA-V4
EAN:  8018823138840

Technical Highlights

  • Power 160W x 4 at 4 Ohm, 580W x 2 at 4 Ohm possible.
  • Minimal distortion at 100Hz, distortion below 0.06%.
  • Impedance at 2 ohms minimum, pre-ln impedance at 10 kΩ.
  • More technical details
€599,00
€599,00 €599,00
5% discount with credit card
inkl. VAT , possibly plus shipping
Delivery
May 30, - Jun 2,
x piece
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €49,91 with Klarna .

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours

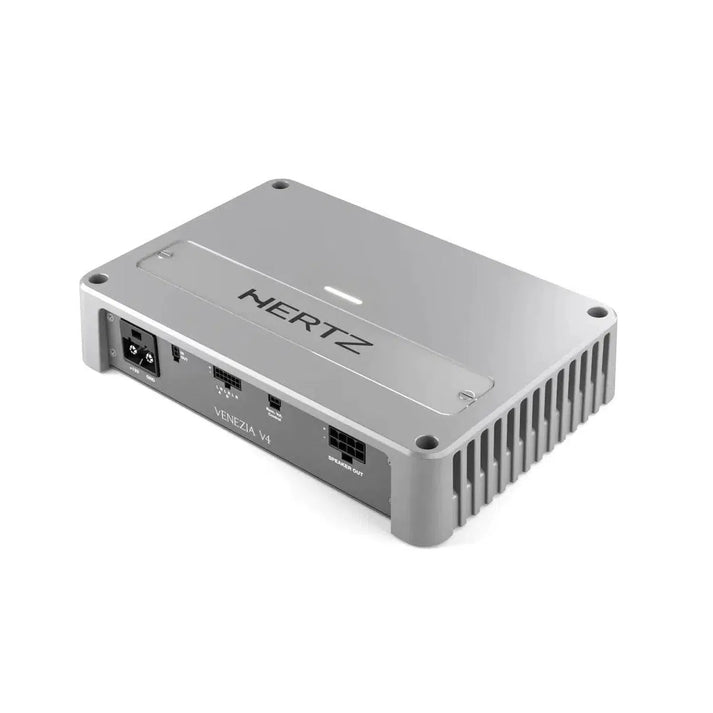

Hertz-Venezia V4-4-Kanal Verstärker-masori-kaufen
€599,00
€599,00 €599,00

Venice V4 by Hertz

The Hertz Venezia V4 is a 4-Channel Amplifier with Advanced Class D technology. Its design for marine applications includes an IPX2 certification. The Hi-Res certification, a bandwidth of 10 to 42 kHz, and an A-weighted signal-to-noise ratio of 102 dBA characterize the signal processing. The amplifier can operate as a 4-, 3-, or 2-channel unit and offers adjustable crossovers with Hi-Pass and Lo-Pass for each channel pair, as well as a bass boost at 50 Hz. Inputs include PRE IN and a full-range Pre-Out; A and B channels provide mono switching and bypass. The power supply operates with 9 to 16 VDC, and the remote input works with 7 to 15 VDC at 1 mA. The architecture is designed for high efficiency with low heat generation and reduced electromagnetic radiation. Dimensions A/B/C/D/E: 270/240/185/155/54 mm, weight 2.66 kg.

Features
  • 4-Channel Amplifier
  • Advanced Class D technology
  • IPX2 certified
  • Hi-Res certified
  • Channel configuration: 4 / 3 / 2
  • Adjustable crossovers
  • Designed for marine applications
  • Optional accessories: HRC BM2 Subwoofer remote control, Subwoofer level -20 to +6 dB, Molex connector
Technical Specifications
  • Supply voltage: 9 - 16 VDC
  • Current (On/Off): 1.6 A / 0.04 mA
  • Consumption at 1 Ω, 14.4 VDC (max. musical power): 48 A
  • Remote input: 7 - 15 VDC, 1 mA
  • Distortion (THD, 100 Hz @ 4 Ω): < 0.06 %
  • Bandwidth: 10 - 42 kHz
  • S/N Ratio (A-weighted @ 1 V): 102 dBA
  • Damping factor (100 Hz @ 4 Ω): 130
  • Sensitivity Low-In: 0.2 - 5 VRMS
  • Pre-In impedance: 10 kΩ
  • Minimum load impedance: 2 Ω
  • Inputs: PRE IN
  • Pre-Out: Full range
  • A channel pair: MONO (on/off)
  • A channel pair: Bypass Yes (Full)
  • A channel pair: Hi-Pass 50 - 4,000 Hz @ 12 dB/Oct
  • A channel pair: Lo-Pass 50 - 4,000 Hz @ 12 dB/Oct
  • B channel pair: MONO (on/off)
  • B channel pair: Bypass Yes (Full)
  • B channel pair: Hi-Pass 50 - 4,000 Hz @ 12 dB/Oct
  • B channel pair: Lo-Pass 50 - 4,000 Hz @ 12 dB/Oct
  • Bass boost: 50 Hz, 0 - 12 dB
  • 4 channels: 160 W x 4 (4 Ω) RMS @ 14.4 VDC, THD 1 %
  • 4 channels: 290 W x 4 (2 Ω) RMS @ 14.4 VDC, THD 1 %
  • 3 channels: 160 W x 2 (4 Ω) + 580 W x 1 (4 Ω) RMS @ 14.4 VDC, THD 1 %
  • 3 channels: 290 W x 2 (2 Ω) + 580 W x 1 (4 Ω) RMS @ 14.4 VDC, THD 1 %
  • 2 channels: 580 W x 2 (4 Ω) RMS @ 14.4 VDC, THD 1 %
  • Total RMS power: 1160 W
  • Dimensions: A 270 mm, B 240 mm, C 185 mm, D 155 mm, E 54 mm
  • Weight: 2.66 kg

Your benefits at Masori

Hertz Venice V4 Datasheet

Open datasheet

Frequently Asked Questions about Venice V4

What is the output power of the Hertz Venezia V4 at different impedances?

The Hertz Venezia V4 offers impressive output power at various impedances. At 4 ohms, the 4-channel mode delivers 160 W x 4, while at 2 ohms, it reaches a total of 290 W x 4. In 3-channel operation, the amplifier provides 160 W x 2 @ 4 ohms plus 580 W for a mono channel also at 4 ohms. In 2-channel mode, it delivers a powerful 580 W x 2 at 4 ohms. The high efficiency is ensured by the Advanced Class D technology, which not only provides power but also minimizes heat generation and electromagnetic radiation. The total RMS power is an impressive 1160 watts.

What crossover settings does the Venezia V4 offer?

The Hertz Venezia V4 is equipped with precise and adjustable crossovers. The crossovers allow for hi-pass filtering from 50 Hz to 4 kHz at 12 dB per octave. Similarly, the amplifier offers lo-pass filtering in the same frequency range with identical steepness. Both frequency ranges are available for both the A-Ch channel and the B-Ch channel. This allows you to tailor the sound to the specific needs of your speakers to achieve the best possible audio experience. This flexibility is ideal for anyone looking to optimize their sound according to personal preferences and ambient noise.

How is the Hertz Venezia V4 installed in a boat and what specifications should be considered?

When installing the Hertz Venezia V4 in a boat, there are some important specifications to consider. The dimensions of the amplifier are A: 270mm, B: 240mm, C: 185mm, D: 155mm, E: 54mm. These values are important to mount the amplifier in a suitable location where adequate ventilation is available. Additionally, the supply voltage of the amplifier should be between 9 and 16 VDC. The consumption at 1 ohm is up to 48 A. The amplifier is IPX2 certified, which means it is protected against light splashes of water, an important feature for marine applications. This ensures that it operates safely and efficiently in your boat.

What advantages does the Advanced Class D technology offer in the Venezia V4?

The Advanced Class D technology in the Hertz Venezia V4 offers significant advantages in terms of efficiency and performance. One of the main benefits is maximum energy efficiency, which minimizes power consumption and extends battery life, a crucial factor during longer boat trips. Additionally, this technology generates less heat and less electromagnetic radiation, contributing to the stability and safety of the Amplifier. At the same time, the low distortion factor of <0.06% at 100 Hz and 4 Ohm ensures excellent sound quality, ideal for an unparalleled audio experience on the water.

To what extent is the Hertz Venezia V4 waterproof and suitable for marine applications?

The Hertz Venezia V4 is specifically designed for use in marine applications and is equipped with an IPX2 certification. This certification means that the Amplifier is protected against light splashes of water, a crucial feature for use on boats, as it protects against typical water splashes and moisture. Together with the Hi-Res certification, which ensures excellent sound quality, this means that the Venezia V4 is exceptionally suitable for demanding audio applications on the water. At the same time, it offers durability and reliability despite challenging marine conditions.

What makes the Venezia V4 from Hertz special for Hi-Res audio and audiophile applications?

The Hertz Venezia V4 is Hi-Res certified, making it the perfect choice for audiophile applications. With an impressive frequency range of 10 Hz to 42 kHz, the Amplifier can reproduce all the sonic details present in Hi-Res recordings. The S/N ratio of 102 dBA (A-weighted at 1 V) ensures an extremely clear signal with minimal noise. This allows for detailed and clean audio playback, even at the highest volume levels. If you value high-resolution audio playback, the Venezia V4 is an excellent choice for being in the midst of the sound experience.

What power supply does the Hertz Venezia V4 require and what power consumption can be expected?

To operate the Hertz Venezia V4, a supply voltage of 9 to 16 VDC is required, which meets the typical requirements for marine amplifiers. The power consumption in the on/off state is only 1.6 A or 0.04 mA, allowing for efficient use of boat resources. The consumption at maximum musical power at 1 Ohm and 14.4 VDC amounts to 48 A. These specifications are crucial for planning power management on board and ensure smooth operation of the Amplifier under various load scenarios on the boat.

How does the bass boost of the Hertz Venezia V4 affect audio quality?

The Hertz Venezia V4 offers an adjustable bass boost at 50 Hz, allowing you to enhance the bass range by up to 12 dB. This feature is particularly beneficial when you want to tailor the bass to your personal preferences or specific music genres. The adjustments are lossless, so you can precisely fine-tune the bass range without affecting the rest of the frequency spectrum. Combined with the Hi-Res certification of the amplifier, this ensures that the sound quality is not compromised by the bass boost, but rather provides a fuller and richer listening experience.

How can the Hertz Venezia V4 be integrated into an existing sound system?

The Hertz Venezia V4 can be seamlessly integrated into existing sound systems, thanks to its versatile input/output options. The amplifier features PRE-IN inputs and offers Pre-Out functions to optimally distribute sound across different setups. The availability of full-range and mono settings on the A and B channels, along with the ability to bypass crossovers, allows for flexible adaptation to various speaker systems. This way, you can ideally integrate the amplifier into any marine sound system, whether it is a simple or complex setup, significantly enhancing versatility and adaptability.

What specific features does the optional subwoofer remote control HRC BM2 support for the Venezia V4?

The optional subwoofer remote control HRC BM2 for the Hertz Venezia V4 allows you to individually control the subwoofer level from -20 to +6 dB, precisely adjusting the bass level to match your favorite music and listening preferences. This can be particularly useful when different music genres or environments change quickly and require dynamic adjustments. The HRC BM2 is equipped with a bulletproof Molex connector, ensuring a reliable and stable connection even in harsh conditions on the water. This feature simplifies the customization of the sound system and makes it instantly adaptable.
