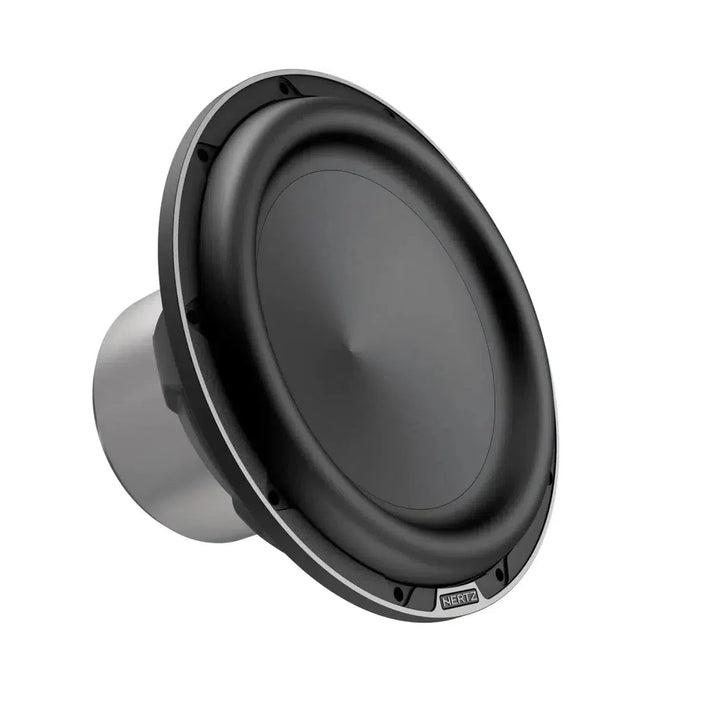

Get excited by the Hertz Mille Legend ML 2500.3, a 10-inch subwoofer designed for music lovers who want to experience the thrill of live concerts in their vehicle. This subwoofer is the result of a long development phase aimed at conveying the emotions of a live performance, featuring a compact design and optimized for use in small enclosures. Thanks to its outstanding technical specifications, the ML 2500.3 delivers the lowest undistorted frequencies without any dynamic compression, making it the perfect solution for those seeking performance and easy installation in one device. It offers an impressive power handling of 700 W continuous and 1400 W peak, with a frequency response of 27 - 500 Hz.

Technical Data

• Size mm 250
• Power Handling - RMS W 700
• Power Handling - Peak W 1400
• Impedance Ohm 4
• Voice Coil Ø 100 (4)
• Frequency Response Hz 27 - 500
• Magnet Size W x D x H mm 95 x 28 x 6
• Weight kg 7.5
• Magnet Neodymium
• Cone Pressed pulp cone with mineral powders
• Xmech mm ±27

Physical Specifications

• A 268 mm
• B 234 mm
• C 159 mm
• D 137 mm
• E 274 mm
• F 50 mm

Electro-Acoustic Specifications

• D mm 212.5
• Xmax mm 17
• Re Ohm 2.75
• Fs Hz 33
• Le mH 1.05
• Vas l 23.5
• Mms g 175
• Cms mm/N 0.125
• BL T*m 12.6
• Qts 0.63
• Qes 0.65
• Qms 7.5
• Spl dB 88

Frequency Response

ENCLOSURE

SEALED - COMPACT

17 LITERS
Best power-to-space ratio. The enclosure size corresponds to that of a side luggage compartment.

BOX TECHNICAL DATA - SEALED

• Vb l(cu.ft.) 17 (0.6)
• Fb Hz 49
• Qtc 0.89
• B mm 350
• H mm 300
• T mm 250
• Mounting Hole - 235
• Wood Thickness 19

CUTTING LIST - SEALED

• A mm 350 x 300 Quantity 2
• B mm 350 x 212 Quantity 2
• C mm 262 x 212 Quantity 2

SEALED - PERFORMANCE

25 LITERS
Recommended for tight yet solid audiophile bass. For clean reproduction in the lower range (10 Hz - 24 dB/oct.), using a subsonic filter is advisable.

BOX TECHNICAL DATA - SEALED PERFORMANCE

• Vb l(cu.ft.) 25 (0.88)
• Fb Hz 42.5
• Qtc 0.80
• B mm 400
• H mm 350
• T mm 260
• Mounting Hole - 235
• Wood Thickness 19

CUTTING LIST - SEALED PERFORMANCE

• A mm 400 x 350 Quantity 2
• B mm 400 x 222 Quantity 2
• C mm 312 x 222 Quantity 2

FEATURES

• Exceptionally large neodymium magnet optimized with FEA simulations to ensure magnetic field stability even at high excursions.
• CNC-machined plates with very low carbon content for maximum magnetic permeability and low distortion at high power.
• Voice coil internal magnet with high size-to-power ratio for maximum efficiency.
• CCAW voice coil with 100 mm (4 inch) diameter capable of handling 1400 W music power, keeping operating temperature very low and minimizing dynamic compression.
• The voice coil is wound using the In/Out method to ensure even cooling of the different coil layers.
• Voice coil wound on TIL former: This fiberglass material combines the heat dissipation properties of aluminum with the stiffness of polyamide composites, ensuring uncompromising acoustic performance.
• Pole piece with "Aluminum Shorting Ring" for minimal distortion and maximum excursion at low frequencies.
• "Boundary Free" IIR rubber surround for higher SPL performance than other subwoofers with the same outer diameter.
• Exponential V-cone® with optimized geometry for high cone stiffness and high deformation resistance even at maximum excursion.
• Mineral-injected paper diaphragm for outstanding stiffness and damping.
• Acoustically very transparent, low-resonance basket made of an aluminum alloy with a self-supporting six-spoke structure and integrated ventilation holes under the spider.
• CNC-machined, elegant, diamond-cut basket edge with Hertz logo.
• Ergonomic, ultra-compact design with a range of electro-acoustic parameters optimized for sealed enclosures with volumes from 17 to 25 liters.
