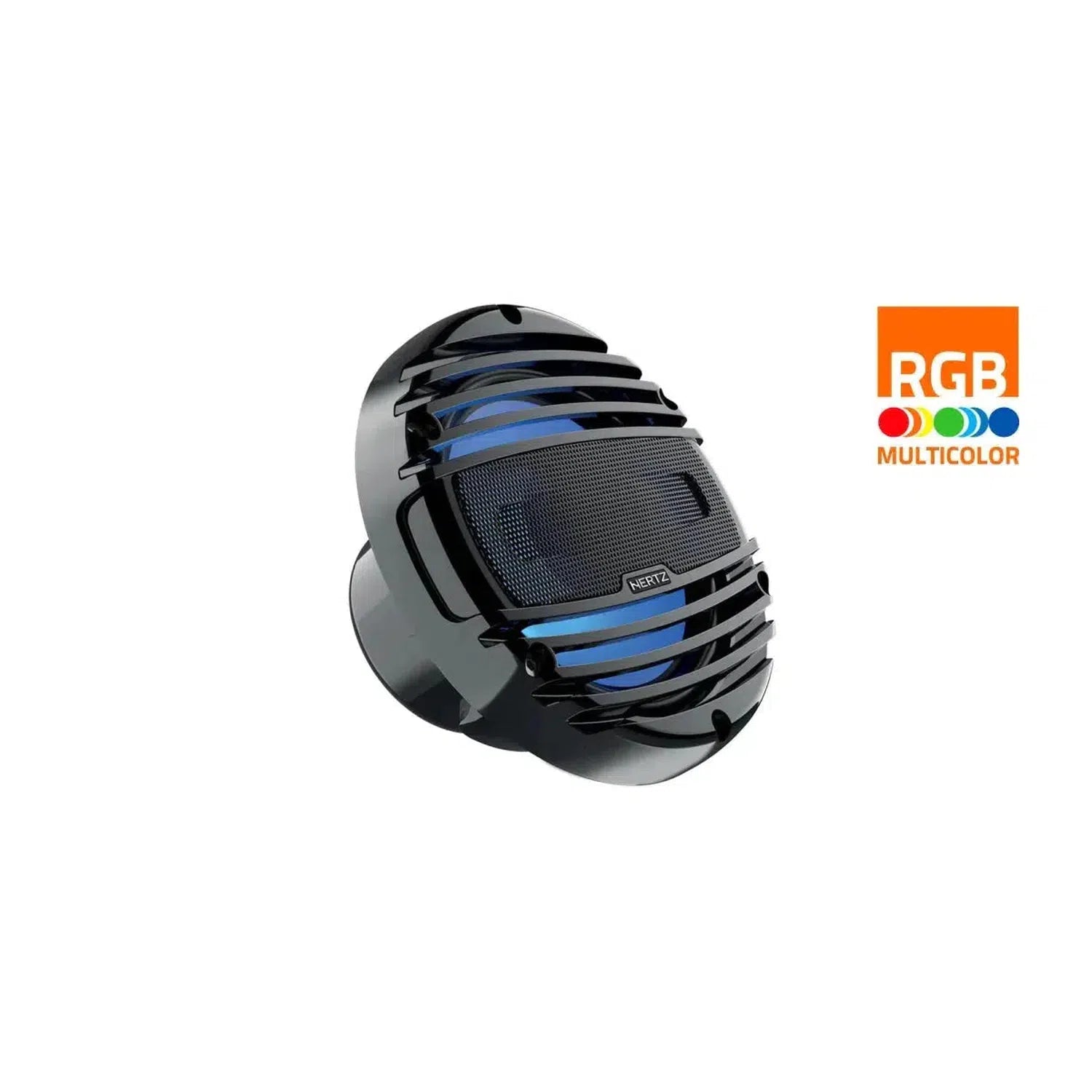

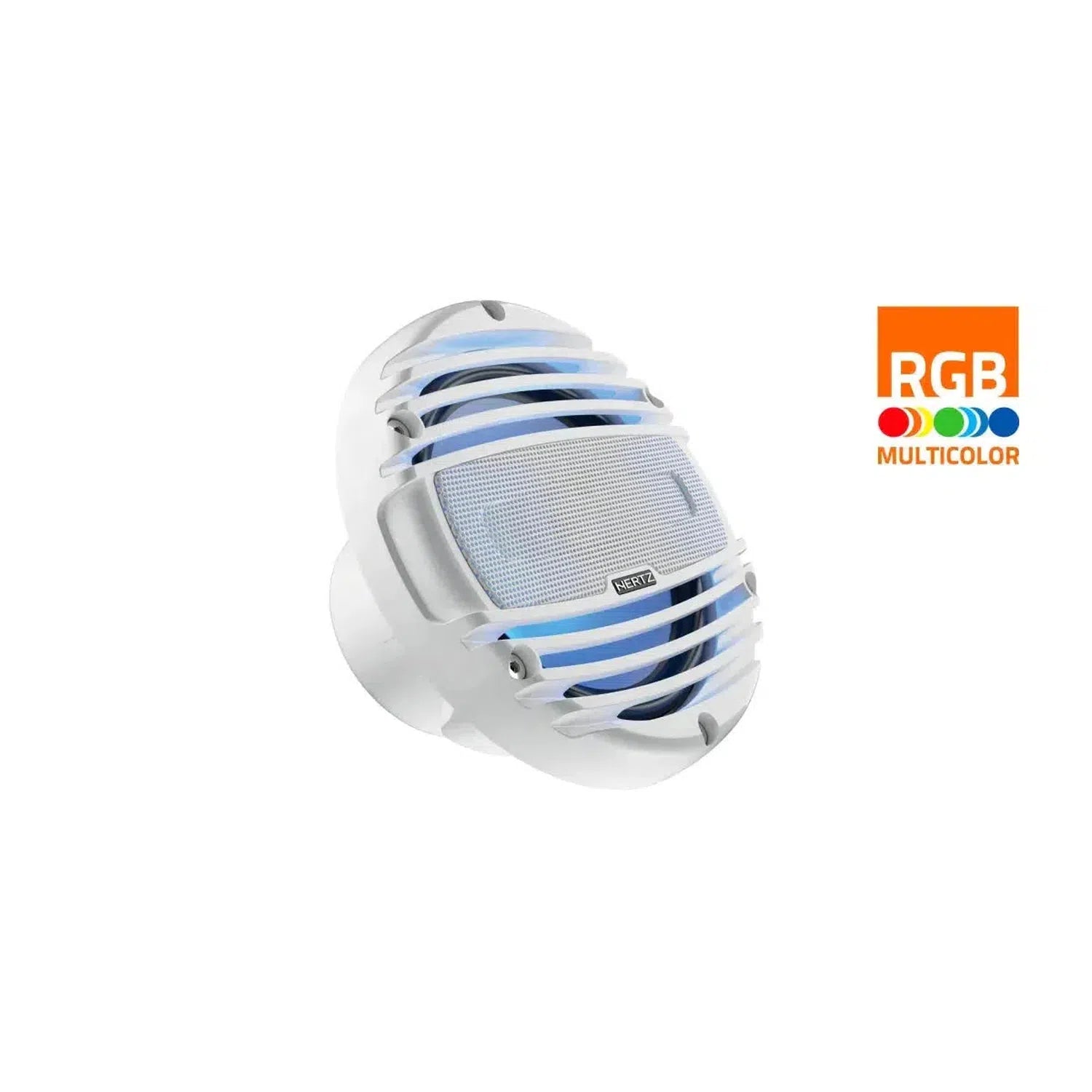

Discover the HMX 6.5-LD-TW, a 6.5-inch marine coaxial speaker from Hertz. As a high-performance speaker for marine applications, it offers unique features such as the RGB LED lighting option and an acoustically optimized design for off-axis operation, maximizing sound pressure levels. It is characterized by high power handling, a UV-resistant polypropylene cone, and a durable aramid spider. With the high-excursion mobile device option, the HMX 6.5-LD-TW delivers high, distortion-free sound pressure, providing an excellent audio experience.

Technical Specifications

• Size mm 165
• Power Handling - RMS W 75
• Power Handling - Peak W 150
• Impedance Ohm 4
• Depth mm 95.6
• Tweeter Diaphragm mm 36
• Woofer Voice Coil Ø mm 25
• Tweeter Voice Coil Ø mm 20
• Frequency Response Hz 50 - 25k
• Woofer Magnet Size B x T x H mm 78.5 x 32 x 17
• Tweeter Magnet Size B x H mm 19.7 x 3
• Weight per Speaker kg 1
• Woofer Magnet High-Density Ferrite
• Tweeter Magnet Neodymium
• Diaphragm Polypropylene with UV Inhibitors
• Xmech mm ±6.65

Electro-Acoustic Specifications

• D mm 125
• Re Ohm 3.5
• Fs Hz 65
• Le mH 0.53
• Vas I 8.8
• Mms g 14
• Cms mm/N 0.4
• Bl T*m 5.2
• Qts 0.7
• Qes 0.75
• Qms 11.5
• Spl dB 89

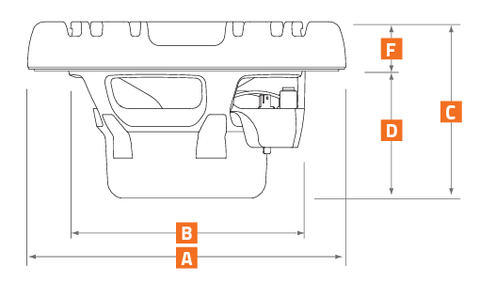

Physical Specifications

• A 172.2 mm
• B 128 mm
• C 95.6 mm
• D 69 mm
• F 26.6 mm

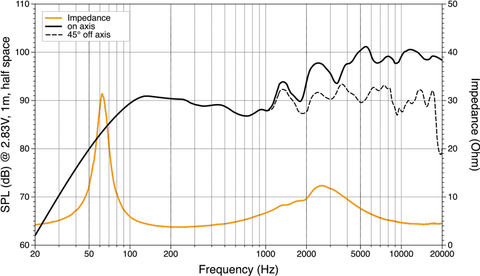

Frequency Response

Accessories

HM RGB 1 BK

• Radio frequency remote control with a variety of functions, such as selecting the color that matches your boat, to creating a light show that reacts to the music tempo.

Features

• 1. Integrated RGB LED lighting to enhance your experience when combined with the HM RGB 1 BK accessory.
• 2. Designed and tested for real-world application environments (UV, salt spray, vibrations, splashing water, temperature shock, dust).
• 3. 1.4-inch neodymium magnet tweeter with a PEI material dome combined with a front plate and acoustic lens, optimized for best off-axis radiation and highest sound pressure level.
• 4. Sonically transparent tone-on-tone stainless steel tweeter grille providing efficient high-frequency transmission, an attractive appearance, and rock-solid protection.
• 5. Long-excursion 25-mm voice coil woofer (1") finely tuned for infinite baffle applications with polypropylene cone with UV inhibitors and co-molded Santoprene surround.
• 6. Aramid fiber spider with silicone-insulated lead wires ensuring durability and consistent performance over time.
• 7. FEM-optimized high-excursion mobile devices driven by a massive magnetic assembly encapsulated in a marine-grade polymer injection-molded basket.
• 8. Sealed built-in crossover with resettable solid-state tweeter protection circuit.
• 9. Gold-plated corrosion-resistant terminals.
