  3. HMS 10 B4-LD-W

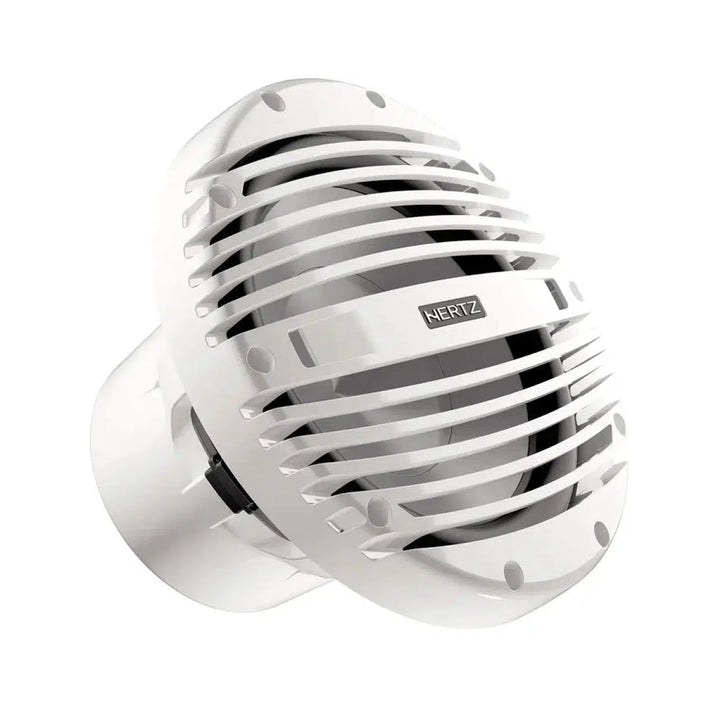

Hertz HMS 10 B4-LD-W 10" (25cm) Subwoofer
SKU:  HMS-10-B4-LD-W
EAN:  8018823139007
250 Watt

HMS 10 B4-LD-W

SKU:  HMS-10-B4-LD-W
EAN:  8018823139007

Technical Highlights

  • Power 250W RMS, 500W Peak, impedance 4 Ohm, Ø50mm voice coil.
  • Polypropylene cone, UV-resistant, FEM-optimized mobile devices.
  • Aramid fiber spider, silicone insulation, high density flux ferrite magnet.
  • More technical details
€369,00
€369,00 €369,00
5% discount with credit card
inkl. VAT , possibly plus shipping
Delivery
May 30, - Jun 2,
x piece
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €30,75 with Klarna .

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours
Hertz-HMS 10 B4-LD-W-10" (25cm) Subwoofer-masori-kaufen
€369,00
€369,00 €369,00

HMS 10 B4-LD-W by Hertz

Hertz HMS 10 B4-LD-W is a 10-inch (25 cm) Subwoofer with 4 Ohm impedance and single voice coil. The RMS power is 250 W, and the peak power is 500 W. It features a 50 mm voice coil, FEM-optimized mobile unit with high excursion, and a massive magnet group in a marine-grade injected polymer basket. The diaphragm is made of polypropylene with UV inhibitors and a combined Santoprene surround, aramid fiber spider with silicone-insulated connection wires. Gold-plated, corrosion-resistant brass terminal connectors with silicone caps. Xmax 12.3 mm, Xmech ±19 mm, depth 191 mm, size 250 mm, weight 5.1 kg. Designed for infinite baffle applications and tested for UV, salt mist, vibrations, splash water, temperature shock, and dust.

Features
  • 10-inch (25 cm) Subwoofer
  • Impedance 4 Ohm
  • Single voice coil
  • RMS power 250 W
  • Peak power 500 W
  • Voice coil Ø 50 mm
  • Installation depth 191 mm
  • Size 250 mm
  • Diaphragm polypropylene with UV inhibitors
  • Combined Santoprene surround
  • Magnet flux ferrite with high density
  • Marine-grade injected polymer basket
  • Aramid fiber spider with silicone-insulated connection wires
  • Gold-plated, corrosion-resistant brass terminal connectors with silicone caps
  • Designed for infinite baffle
  • Resistant to UV, salt mist, vibrations, splash water, temperature shock, and dust
  • Mounting hole 230 mm
Technical Specifications
  • Depth 191 mm
  • Voice coil Ø 50 mm
  • Magnet size 140 x 60 x 30 mm
  • Weight 5.1 kg
  • Xmech ±19 mm
  • D 210 mm
  • Xmax 12.3 mm
  • Re 2.1 Ohm
  • Fs 43 Hz
  • Le 0.46 mH
  • Vas 30.46 l
  • Mms 75.6 g
  • Cms 0.18 mm/N
  • BL 8.3 T*m
  • Qts 0.6
  • Qes 0.63
  • Qms 12.3
  • SPL 88.5 dB
  • Physical specifications: A 277 mm, B 230 mm, C 191 mm, D 145 mm, F 46 mm
  • Sealed box (compact): Vb 50 l; Fb 54 Hz; Qtc 1.05; B 440 mm; H 440 mm; T 365 mm; Mounting hole 230 mm; Wood thickness 19 mm
  • Panel cut (compact): A 440 x 440 mm (2), B 440 x 327 mm (2), C 402 x 327 mm (2)
  • Sealed box (performance): Vb 71 l; Fb 51 Hz; Qtc 0.99; B 460 mm; H 460 mm; T 450 mm; Mounting hole 230 mm; Wood thickness 19 mm
  • Panel cut (performance): A 460 x 460 mm (2), B 460 x 412 mm (2), C 422 x 412 mm (2)

Your benefits at Masori

Hertz HMS 10 B4-LD-W Datasheet

Open datasheet

Frequently Asked Questions about HMS 10 B4-LD-W

What power does the HMS 10 B4-LD-W Subwoofer from Hertz offer?

The HMS 10 B4-LD-W Subwoofer from Hertz is designed for an RMS capacity of 250 watts, while the peak power reaches an impressive 500 watts. These power specifications allow the subwoofer to produce high sound pressure levels, ensuring excellent bass reproduction. The combination of a single coil design and a high-density ferrite magnet ensures perfect control and precise sound reproduction even under demanding conditions. Especially in open environments, it impresses with its efficiency and performance.

How robust is the HMS 10 B4-LD-W against environmental influences?

The HMS 10 B4-LD-W from Hertz is extremely resistant to various environmental influences thanks to its high-quality materials. It withstands UV rays, salt mist, vibrations, water spray, thermal shock, and dust. These resistances make it ideal for applications in marine environments, where conventional speakers quickly reach their limits. The robust design ensures that the subwoofer maintains its functionality and sound quality even under extreme conditions, which is particularly beneficial for boat owners.

What physical properties does the HMS 10 B4-LD-W have and what significance do they have?

The HMS 10 B4-LD-W has compact dimensions of 250 mm in size and a depth of 191 mm, allowing for versatile installation. Weighing 5.1 kg ensures that the unit remains stable in its position and operates with low resonance. Its robust housing, measuring 440 x 440 mm with a wood thickness of 19 mm, additionally ensures that the sound produced remains free from cabinet resonances, while the polymer housing provides protection against the demands of the marine environment.

What Thiele-Small parameters does the Hertz HMS 10 B4-LD-W have?

The HMS 10 B4-LD-W Subwoofer has the following Thiele-Small parameters: Its re-impedance is 2.1 ohms, while the resonance frequency (Fs) is at 43 Hz. The equivalent volume (Vas) is 30.46, which, in conjunction with an effective diameter (D) of 210 mm, allows for efficient deep bass reproduction. Its mechanical displacement (Xmax) is 12.3 mm. Other electromechanical values such as Qts of 0.6 and BL of 8.3 T*m ensure a balanced and powerful bass reproduction.

What is the cabinet configuration of the HMS 10 B4-LD-W?

The HMS 10 B4-LD-W Subwoofer is particularly suitable for sealed box applications. For a compact enclosure, a volume of 50 liters (1.77 cu.ft.) is required at a resonance frequency (Fb) of 54 Hz. For larger enclosures, the recommended volume is 71 liters (2.51 cu.ft.) with a lower Fb of 51 Hz. This adaptability ensures optimal performance in varying space availability and sound preferences. The recommended wood thickness for the enclosure is 19 mm, and the specific panel cutting measures are provided in detail.

What materials are used in the HMS 10 B4-LD-W and why?

The Hertz HMS 10 B4-LD-W uses a combination of durable materials specifically designed for harsh conditions. The cone is made of polypropylene treated with UV inhibitors to minimize sun damage. The progressive aramid fiber spider, combined with silicone-insulated connection wires, ensures long life and consistent performance. The magnet is made of high-density flux ferrite, which, along with a polymer-encapsulated basket, ensures structural integrity even under the most demanding marine conditions.

How is the voice coil of the HMS 10 B4-LD-W designed?

The voice coil of the HMS 10 B4-LD-W by Hertz is designed as a single voice coil with a diameter of 50 mm. This design allows it to handle significant output power while optimally controlling the movements of the cone. Its construction is FEM-optimized, meaning it has been designed using finite element methods to maximize efficiency and longevity even at high sound pressure levels. The voice coil helps maintain the structural integrity and sound fidelity of the Subwoofer.

What special design features does the HMS 10 B4-LD-W have?

The HMS 10 B4-LD-W from Hertz features a number of special design elements, including a FEM-optimized mobile unit for high excursions and a massive magnetic group for improved performance. The injected basket is made from marine-grade polymer material that is both structurally stable and weather-resistant. Gold-plated brass terminal connectors, which are corrosion-resistant and have a silicone cap, protect the connection point from environmental influences. All these design elements contribute to the exceptional performance of the device.

What electro-acoustic specifications does the Hertz HMS 10 B4-LD-W offer?

Electro-acoustically, the HMS 10 B4-LD-W offers specified characteristics such as a total excursion (Xmech) of ±19 mm, a maximum mechanical displacement (Xmax) of 12.3 mm, and a sensitivity (Spl) of 88.5 dB. Its inductance (Le) is 0.46 mH, while the moving mass (Mms) reaches 75.6 g. Dynamic parameters such as the compliance (Cms) of 0.18 mm/N and the mechanical quality (Qms) of 12.3 make the system efficient and well-suited for different bass requirements. The Qes value of 0.63 also supports a fine balance between electrical and acoustic efficiency.

How do I install the Hertz HMS 10 B4-LD-W in my boat?

When installing the HMS 10 B4-LD-W from Hertz, one should focus on the installation dimensions and the specific environment on board the boat. The Subwoofer installation depth is 191 mm, and the mounting diameter is 277 mm. It is important that the mounting occurs in a suitable location that promotes air circulation and sound transmission. The enclosure should be built with a minimum volume of 50 liters depending on the desired sound profile. Secure mounting is essential to avoid unwanted vibrations and interference with sound reproduction.
