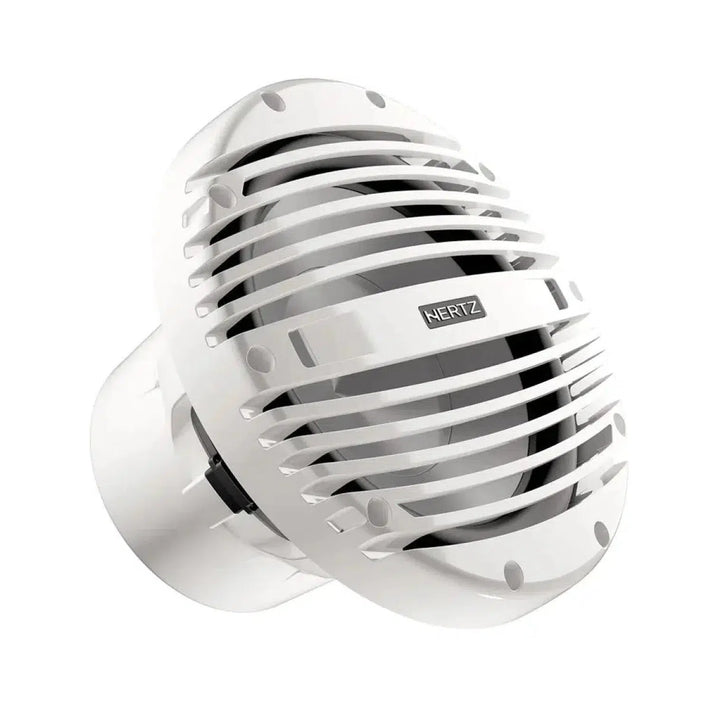

Hertz HMS 10 B-2 10" (25cm) Subwoofer
SKU:  HMS-10-B-2
EAN:  8018823132121
250 Watt

HMS 10 B-2

SKU:  HMS-10-B-2
EAN:  8018823132121

Technical Highlights

  • Power 500W peak, 250W RMS, impedance 2 ohms, high efficiency.
  • 50mm voice coil, polypropylene cone with UV protection, durable.
  • Aramid fiber spider, ferrite magnet, 191 mm depth, weight 5.1 kg.
  • More technical details
€209,00
€209,00 €209,00
5% discount with credit card
inkl. VAT , possibly plus shipping
Delivery
May 30, - Jun 2,
x piece
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €17,41 with Klarna .

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours
Hertz-HMS 10 B-2-10" (25cm) Subwoofer-masori-kaufen
€209,00
€209,00 €209,00

HMS 10 B-2 by Hertz

Hertz HMS 10 B-2 is a 10-inch (25 cm) marine Subwoofer with 2 Ohm impedance, 250 W RMS, and 500 W peak. It features a single voice coil with a diameter of 50 mm, a ferrite magnet measuring 140 x 60 x 30 mm, and an injection-molded polymer basket made for marine use. The polypropylene diaphragm with UV inhibitors is complemented by a combined Santoprene surround and an advanced aramid fiber spider with silicone-insulated connection wires. Gold-plated, corrosion-resistant brass terminal connectors with silicone caps are integrated. Resistance to UV radiation, salt mist, vibrations, splashes, temperature shock, and dust is provided. The depth is 191 mm, the weight is 5.1 kg, Xmax is 12.3 mm, and Xmech is ±16.3 mm. The rated sound pressure is 88.5 dB, and the resonance frequency is 43 Hz.

Features
  • 10-inch (25 cm) Subwoofer
  • Impedance 2 Ohm
  • Power handling RMS 250 W
  • Power handling peak 500 W
  • Single voice coil
  • Voice coil Ø 50 mm
  • Depth 191 mm
  • Weight 5.1 kg
  • Magnet ferrite
  • Magnet size 140 x 60 x 30 mm
  • Polypropylene diaphragm with UV inhibitors
  • Santoprene surround
  • Aramid fiber spider with silicone-insulated connection wires
  • Injection-molded polymer basket made for marine use
  • Gold-plated, corrosion-resistant brass terminal connectors with silicone caps
  • Resistance to UV, salt mist, vibrations, splashes, temperature shock, dust
Technical Specifications
  • Size 250 mm
  • Xmax 12.3 mm
  • Xmech ±16.3 mm
  • Re 2.1 Ohm
  • Fs 43 Hz
  • Le 0.46 mH
  • Vas 30.46 l
  • Mms 75.6 g
  • Cms 0.18 mm/N
  • Bl 8.3 T*m
  • Qts 0.6
  • Qes 0.63
  • Qms 12.3
  • Rated sound pressure 88.5 dB
  • D 210 mm
  • Physical specifications: A 277 mm, B 230 mm, C 191 mm, D 145 mm, F 46 mm
  • Enclosure data – Sealed box (Compact): Vb 50 l, Fb 54 Hz, Qtc 1.05, W 440 mm, H 440 mm, D 365 mm, Mounting hole M 230 mm, Wood thickness 19 mm
  • Panel cut – Sealed box (Compact): A 440 x 440 mm Quantity 2
  • Panel cut – Sealed box (Compact): B 440 x 327 mm Quantity 2
  • Panel cut – Sealed box (Compact): C 402 x 327 mm Quantity 2
  • Enclosure data – Sealed box: Vb 71 l, Fb 51 Hz, Qtc 0.99, W 460 mm, H 460 mm, D 450 mm, Mounting hole M 230 mm, Wood thickness 19 mm
  • Panel cut – Sealed box: A 460 x 460 mm Quantity 2
  • Panel cut – Sealed box: B 460 x 412 mm Quantity 2
  • Panel cut – Sealed box: C 422 x 412 mm Quantity 2

Your benefits at Masori

Hertz HMS 10 B-2 Datasheet

Open datasheet

Frequently Asked Questions about HMS 10 B-2

What advantages does the 2-ohm configuration of the HMS 10 B-2 Marine-Subwoofer offer?

The 2-ohm configuration of the HMS 10 B-2 Marine-Subwoofer from Hertz allows for optimal use of amplifier power. This impedance enables the subwoofer to draw more current from the amplifier, resulting in a more powerful bass performance. Combined with main speakers, this ensures dynamic and robust audio playback. Especially in marine environments, where there are other acoustic challenges such as wind and water noise, this lower impedance can help highlight the bass and create an intense listening experience. For audiophiles seeking seamless integration and excellent sound performance, this subwoofer is an outstanding choice.

What is the power handling of the HMS 10 B-2 and what does this mean for its audio performance?

The HMS 10 B-2 features an RMS power handling of 250 watts and a peak power handling of 500 watts. These values demonstrate the subwoofer's ability to continuously reproduce high levels without distortion, ensuring clear and powerful bass even at maximum output. This power handling ensures that the subwoofer consistently delivers its audio performance even in demanding applications where high volume is necessary. Therefore, this subwoofer is ideally suited for loud outdoor events or on boats. It offers consistent sound fidelity and can meet extreme acoustic demands.

What durable materials does the HMS 10 B-2 use to withstand harsh marine conditions?

The HMS 10 B-2 from Hertz has been specifically designed for marine conditions. It utilizes a polypropylene diaphragm with UV inhibitors that protect against sunlight, as well as a Santoprene surround that is highly durable and resistant to saltwater. The advanced aramid fiber spider ensures consistent performance over time. By using silicone caps on gold-plated brass terminals, the connection is protected from corrosion due to salt mist and moisture. This choice of materials ensures that the subwoofer operates reliably even under harsh conditions and achieves consistent audio performance.

What are the dimensions of the HMS 10 B-2 and what should be considered during installation?

The HMS 10 B-2 Marine Subwoofer has a diameter of 250 mm and a mounting depth of 191 mm. The installation requires a cutout of 230 mm. When installing, it is important to pay attention to the depth of the enclosure and the space behind the installation location. The installation on board should prioritize secure mounting to withstand the effects of vibrations and movement. Its robust construction allows for installation even in exposed positions that are subject to vibrations. It is advisable to follow the included installation instructions carefully to achieve optimal performance.

What do the Xmax and Xmech values indicate for the bass performance of the HMS 10 B-2?

For the HMS 10 B-2, the Xmax value is 12.3 mm and the Xmech value is ±16.3 mm. These values describe the maximum displacement of the speaker and directly determine the Subwoofer's ability to reproduce low frequencies. Xmax is the linear displacement range in which the diaphragm moves smoothly without introducing distortion. Xmech refers to the maximum mechanically usable travel of the diaphragm. Higher values allow for more powerful bass reproduction, as the diaphragm can move larger volumes of air, thus producing deeper bass. These parameters ensure that the HMS 10 B-2 generates a deep, powerful sound even at high volumes.

What role does the voice coil play in the HMS 10 B-2 and what are its technical specifications?

The HMS 10 B-2 uses a 50 mm voice coil, which is crucial for the performance and durability of the Subwoofer. This size of the single voice coil allows for high thermal resilience, meaning it can convert more energy from electrical signals into mechanical vibrations without overheating. Even in demanding situations, it provides excellent control over diaphragm movement, resulting in clear and precise bass. The high-quality manufacturing of the voice coil from materials designed for high current flow ensures that the Subwoofer maintains its performance even under extreme conditions.

How does the HMS 10 B-2 differ in its construction from standard Subwoofers?

Unlike standard Subwoofers, the HMS 10 B-2 has been specifically designed for use in marine environments. It features a FEM-optimized, highly mobile magnetic drive unit, enclosed in a robust marine-grade polymer basket that is also resistant to splashes. The housing is vibration-resistant and protects the components from salt mist, dust, and thermal shock. The materials used and the construction are chosen to withstand both mechanical stress and environmental influences. These differences make it more durable and reliable under conditions that would be challenging for conventional speakers.

Why are the gold-plated brass connectors important for the HMS 10 B-2?

The gold-plated brass connectors of the HMS 10 B-2 play a crucial role in the reliability and performance of the Subwoofer. Gold-plated connectors minimize the possibility of corrosion, which can occur in marine environments due to moisture and salt mist. These connectors provide improved electrical conductivity and ensure that power loss remains minimal, which in turn optimizes audio performance. Together with the silicone caps that further protect the connection points from penetrating water, these connectors offer long-term and trouble-free operation, even in the most challenging nautical conditions.

What do the Thiele Small parameters of the HMS 10 B-2 mean for sound quality?

The Thiele Small parameters of the HMS 10 B-2, such as Fs 43 Hz, Vas 30.46 l, and Qts 0.6, provide detailed insights into the performance and sound characteristics of the Subwoofer. Fs, the resonance frequency, is relatively low at 43 Hz, allowing for a deep bass sound. Vas indicates that the effective air volume displacement is 30.46 liters, suggesting a flexible box tuning. The Qts value of 0.6 indicates a controlled transient response, ideal for precise and natural bass reproduction. These parameters are crucial for tuning the enclosure design and optimizing the overall audible sound quality.

How does the frequency response of the HMS 10 B-2 behave in sealed enclosures?

The HMS 10 B-2 is optimized for use in a sealed enclosure, which affects the frequency response. With an enclosure volume of 71 liters (2.51 cu ft.), an Fb of 51 Hz and a Qtc of 0.99 are achieved. This means that the Subwoofer delivers a smooth roll-off curve with precise bass, ideal for clear and uncolored sound reproduction. Sealed enclosures support the transient response through targeted insulation, making the bass appear denser without distortion. This configuration is particularly suitable for applications where accurate bass control is a priority and closed enclosure conditions are preferred.
