Hertz Cento CK 165 6.5" (16.5cm) speaker set

Name: Hertz Cento CK 165 6.5 inch speaker set | Masori
Brand: Hertz
Price: 152.15 EUR
Availability: InStock

CYBER -15%

Max, Mikael and 53k+ customers already with Masori sound upgrade

Hertz Cento CK 165 6.5" (16.5cm) speaker set

Power: 95 W RMS, 285 W Peak, Impedance: 4 Ohm.
Frequency response: 55 22.5 kHz, Crossover: 2.5 kHz @ 12 dB.
Sensitivity: 93 dB, tweeter membrane: 26 mm Tetolon.
Mehr technische Details

00

€152,15

~~€179,00~~ €152,15

5% Rabatt mit Vorkasse

inkl. VAT , possibly plus shipping

Bequem in 12 zinsfreien Raten à €12,67 mit Klarna zahlen.

Jetzt mit kostenlosem Versand ab 50€!

Shipping cost calculator

Land/Region

PLZ

Garantie & zusätzlicher Geräteschutz für dein HiFi-System

3 Jahre Masori Garantie Kostenlos 48 Monate Plusgarantie €14,99 60 Monate Plusgarantie Am beliebtesten €19,99

Deshalb wählen uns 100.000+ Kunden

3 Jahre Garantie

Sicher & sorglos
Blitzversand

mit DHL Express
Tiefpreisschutz

Nie zu viel zahlen

Rob

Max

Unsicher, ob dieses Produkt zu deinem Auto passt?

Wir helfen dir – schnell, persönlich und unverbindlich.

Antwort on weekdays within 24h

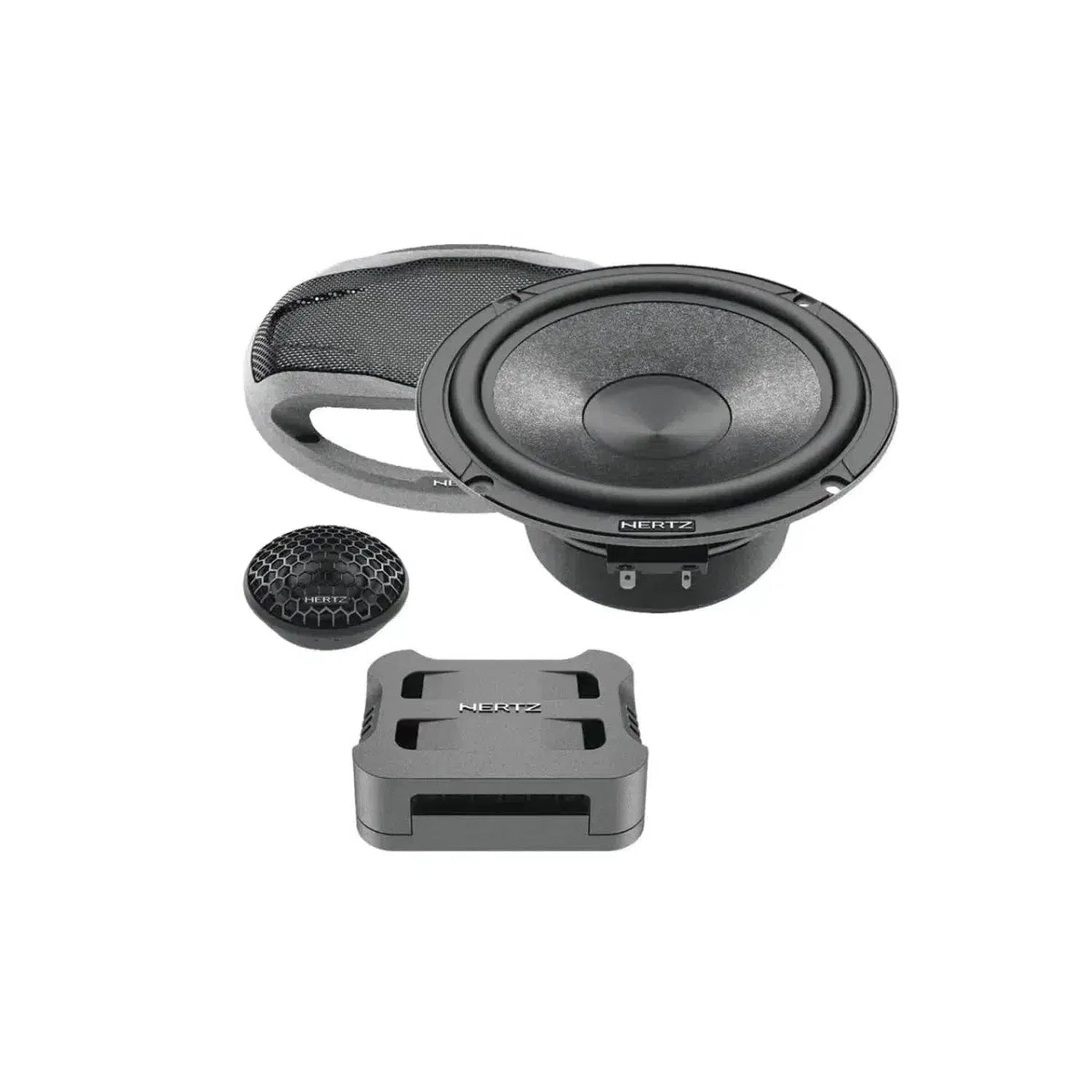

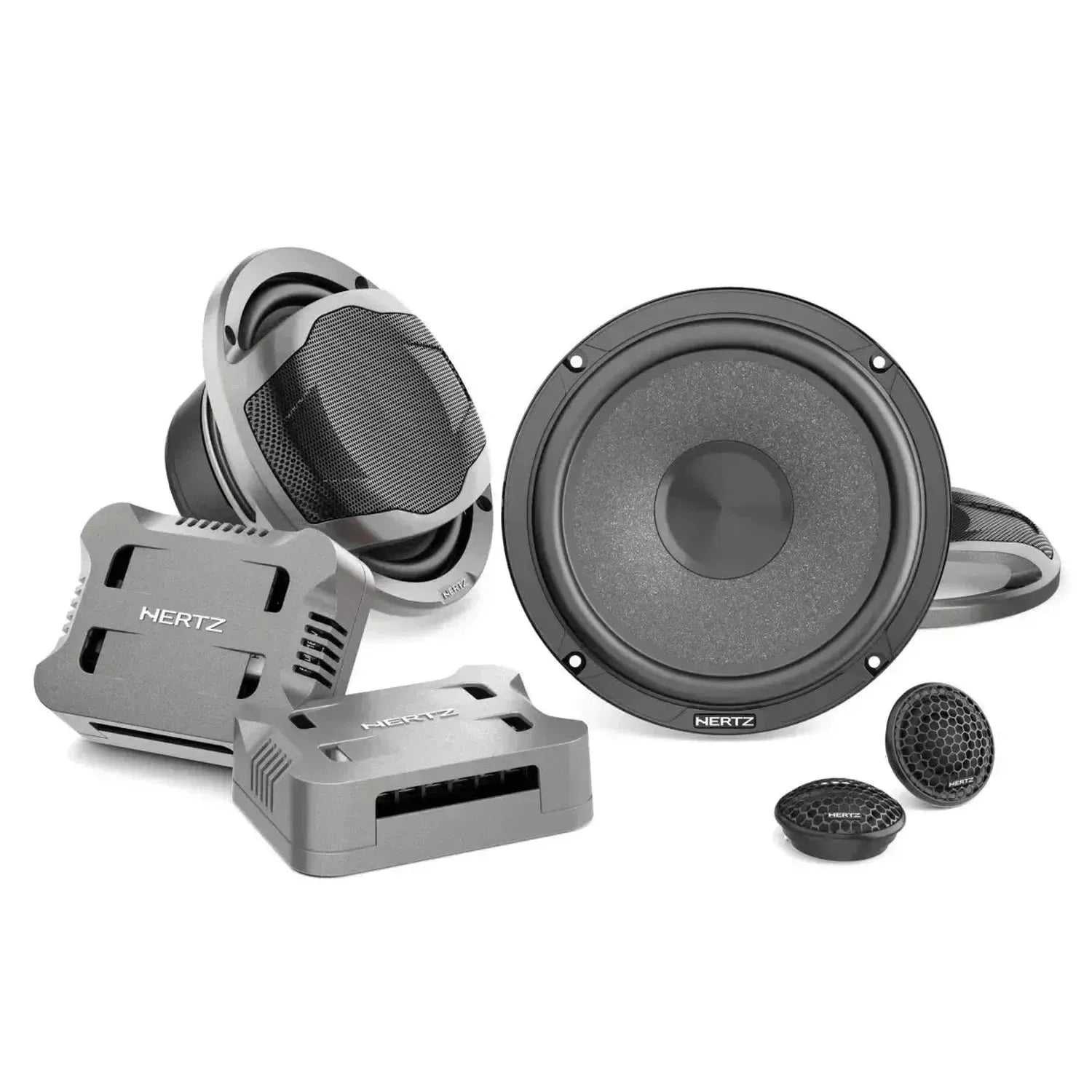

Cento CK 165 by Hertz

The Cento CK 165 is a 6.5-inch front system set from Hertz, which is among the market leaders due to its innovative features. The system is characterized by its new C 26 tweeter with a 26 mm Tetolon diaphragm and a 20 mm voice coil, ensuring detailed and natural reproduction of high-mid frequencies. Its balanced frequency responses offer you maximum performance no matter where you are. After intensive research, a perfectly tuned diaphragm material was chosen for the C165 mid-bass driver, which impresses with its excellent balance between lightness and damping. The ultra-compact crossovers and the included speaker grille complete this offer, making the Cento CK 165 an excellent choice for any car hi-fi system.

Technical Data

Size mm 165
Power Handling - RMS W 95
Power Handling - Peak W 285
Impedance Ohm 4
Tweeter Diaphragm mm 26
Woofer Voice Coil Ø mm 25
Tweeter Voice Coil Ø mm 20
Sensitivity dB SPL 93
Frequency Response Hz 55 - 22.5k
Crossover Cutoff 2.5 kHz @ 12 dB Oct.
Crossover Type Passive 2-Way Crossover
Weight of One Component - Woofer 0.96
Weight of One Component - Tweeter kg 0.03
Weight of One Component - Crossover kg 0.185

Electro-Acoustic Specifications

D mm 131.5
Re Ohm 3.2
Fs Hz 60
Le mH 0.2
Vas l 13.24
Mms g 13.9
Cms mm/N 0.51
BL T*m 4.9
Qts 0.59
Qes 0.69
Qms 3.9
Spl dB 93

FEATURES

Cento CK 165 Zoll src=

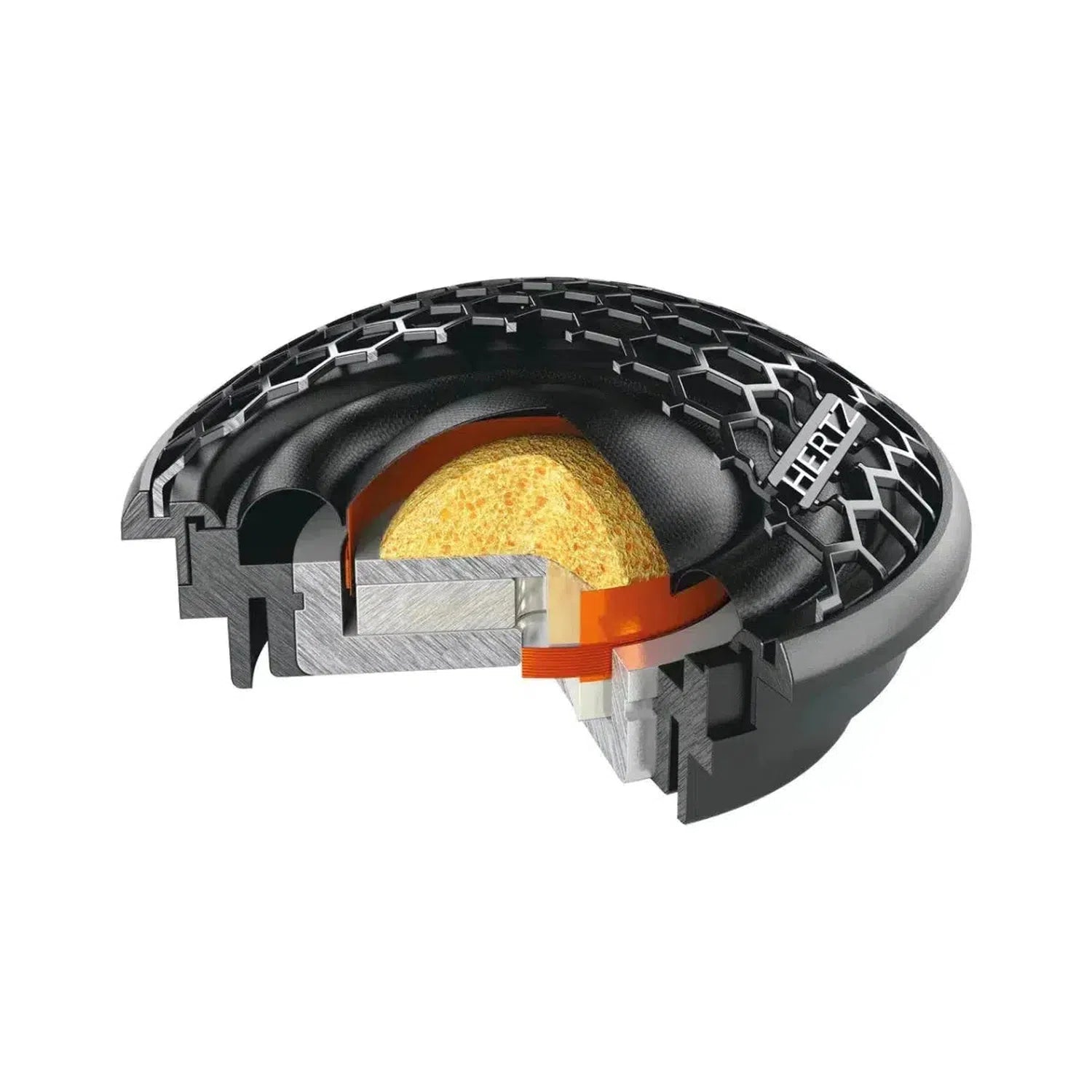

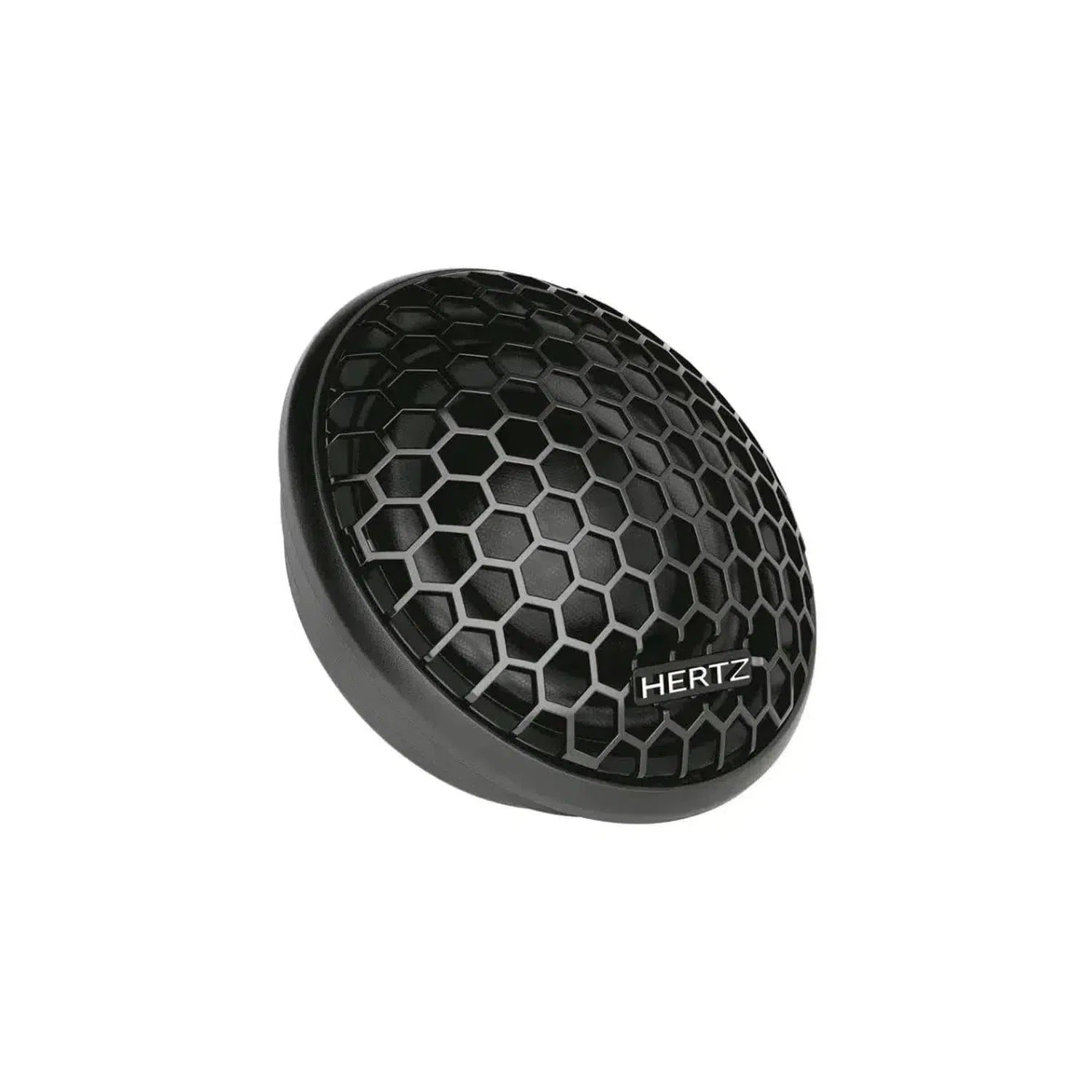

C 26:

Soft Tetolon-Fiber® 26 mm (1 inch) dome and 20 mm (0.8 inch) voice coil, for a natural yet detailed reproduction of musical nuances.
Neodymium magnet with high-density magnetic flux, optimized for maximum control during high-energy dynamic transients in the mid to high frequency range.
The front plate geometry was optimized using FEM technology (Finite Element Modeling) for a linear frequency response in off-axis installations.
Wide range of accessories for easy integration into OEM placements.

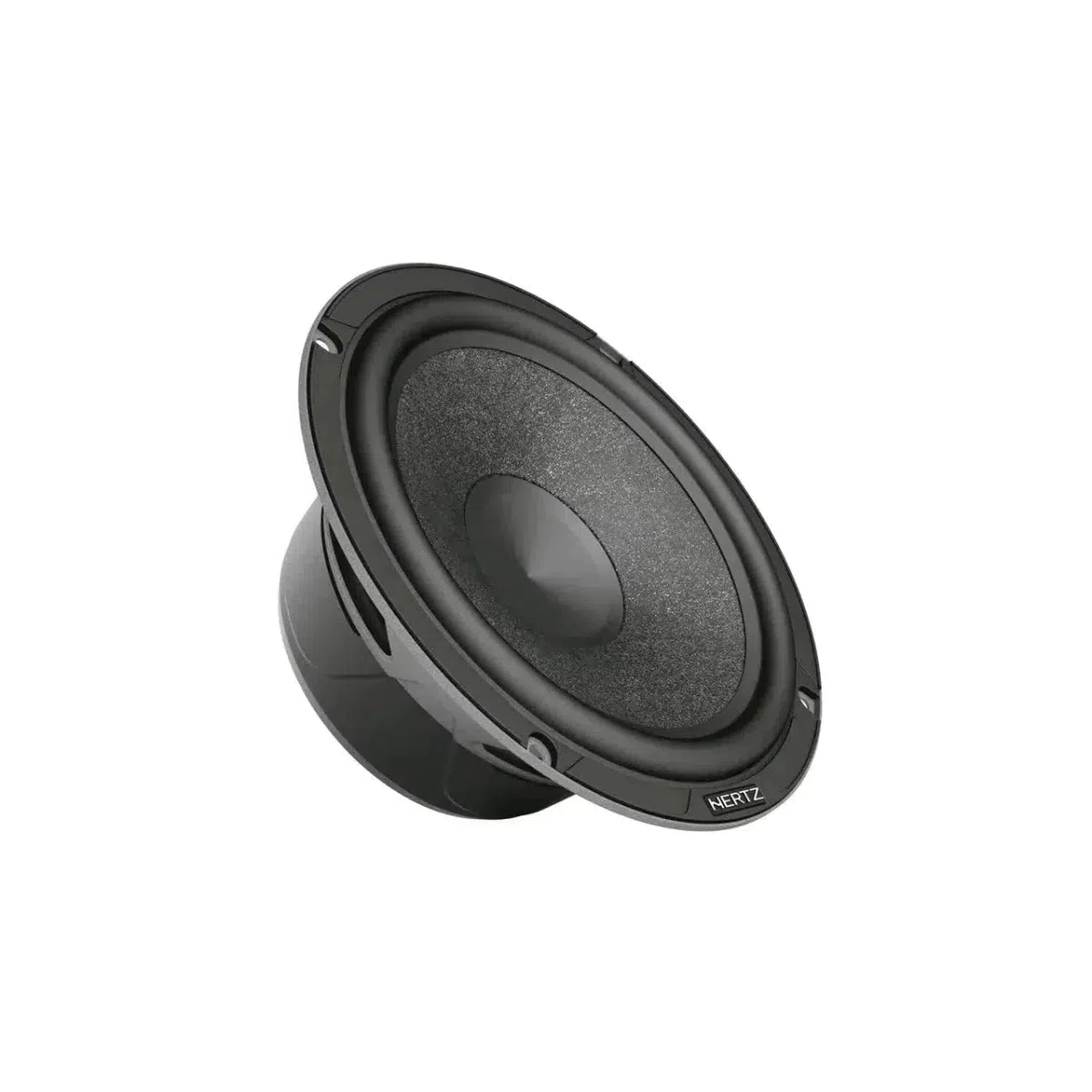

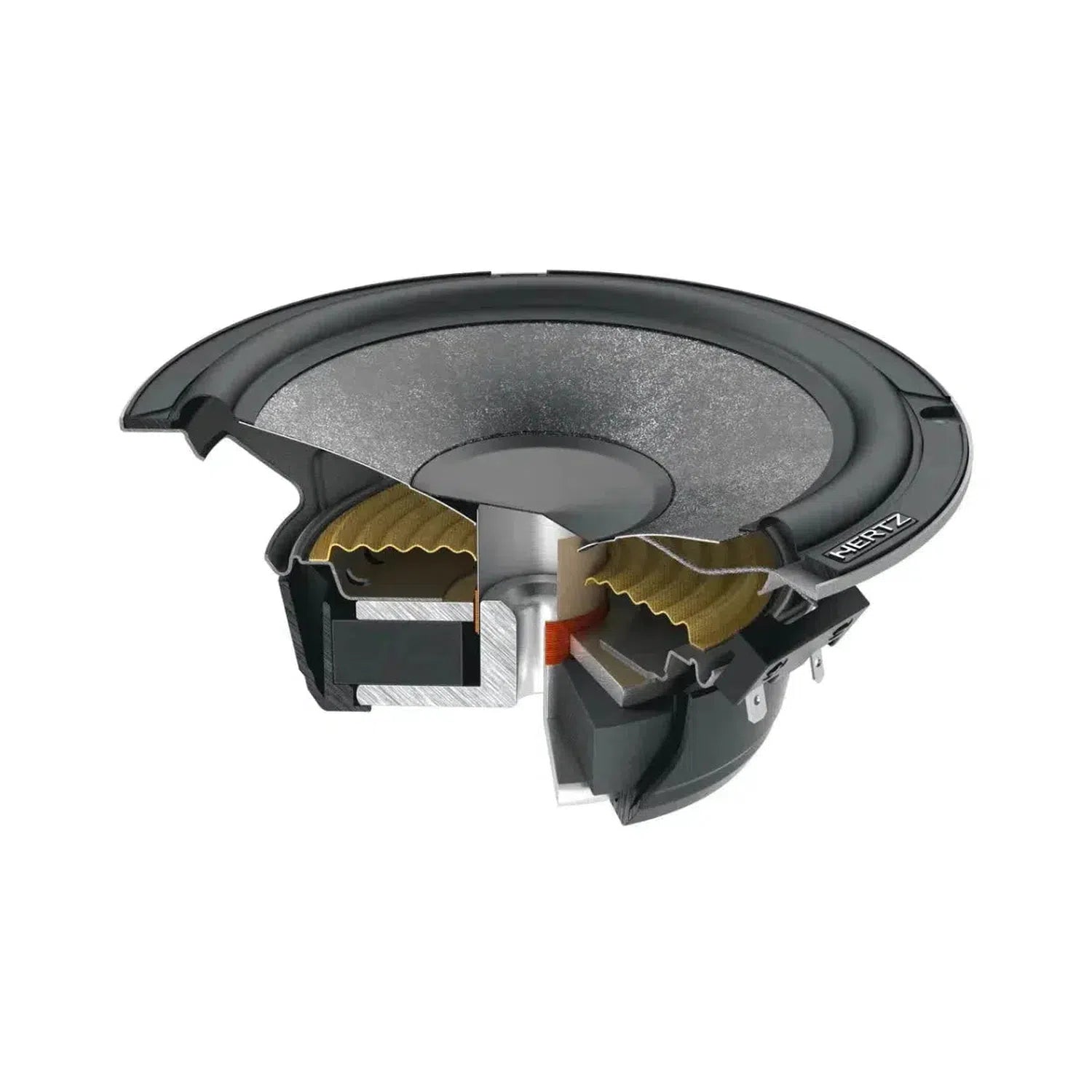

C 165:

165 mm (6.5 inch) semi-pressed paper diaphragm SPP-M (Semi Pressed Paper-Mica), enriched with mica powder for an excellent balance between lightness and damping.
High-density ferrite magnet combined with low-carbon pole plates for reduced distortion at high power levels.
25 mm (1 inch) voice coil with an aluminum former to ensure high excursion and power handling.
Compact and transparent three-spoke basket acoustically combined with a rubber magnet cover for complete damping of unwanted vibrations.

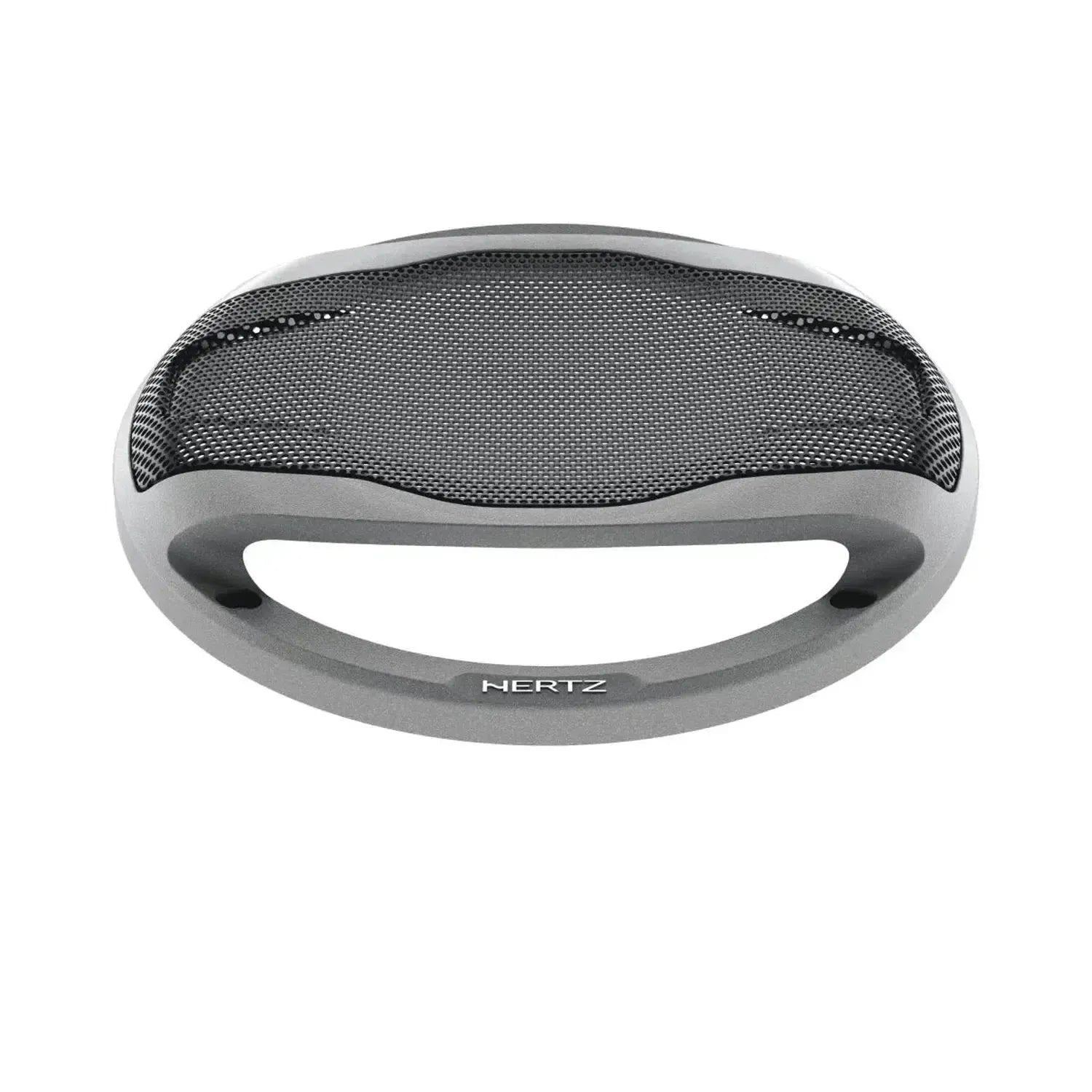

Elegant grille made of high-strength ABS plastic structure with metallic finish combined with a protective metal grille.

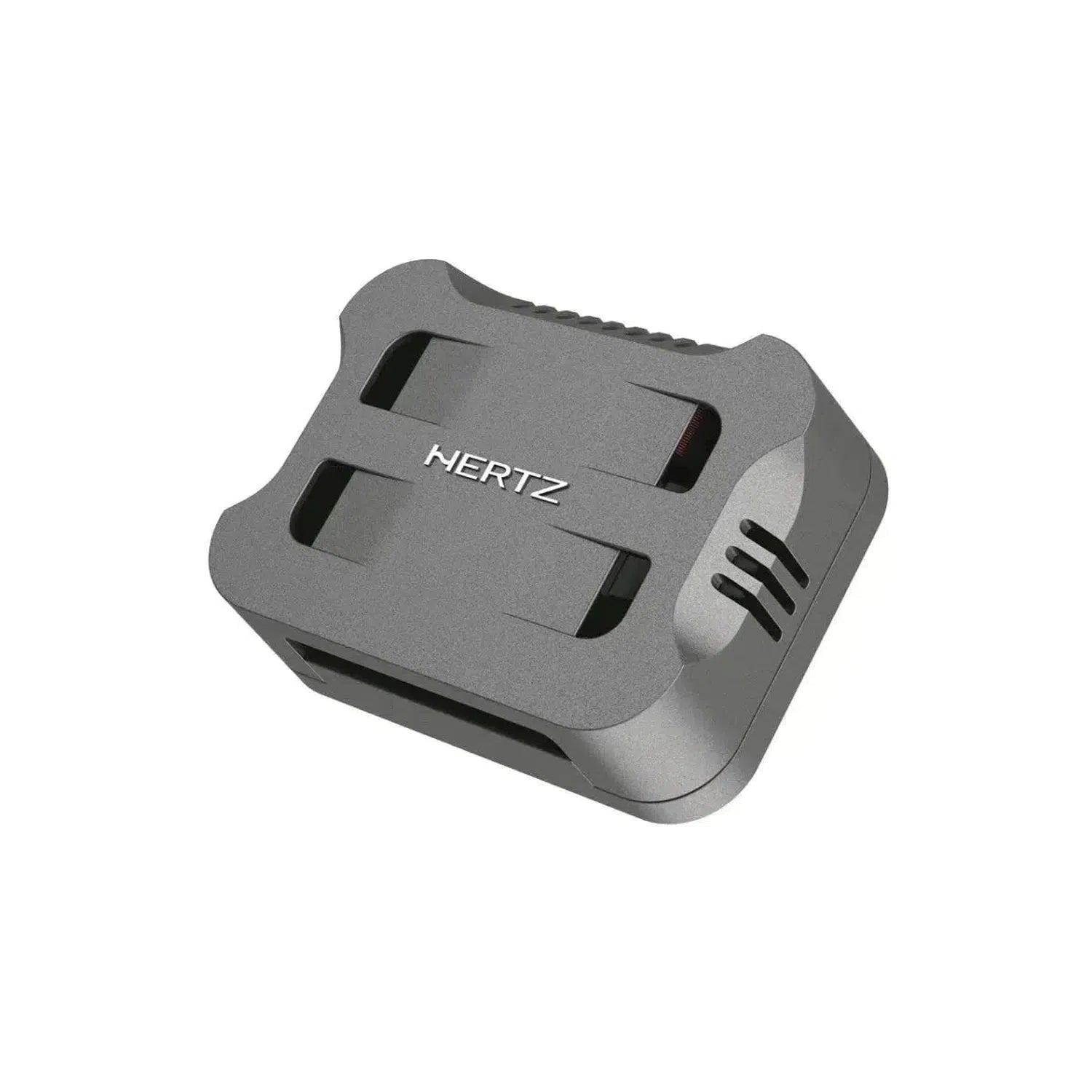

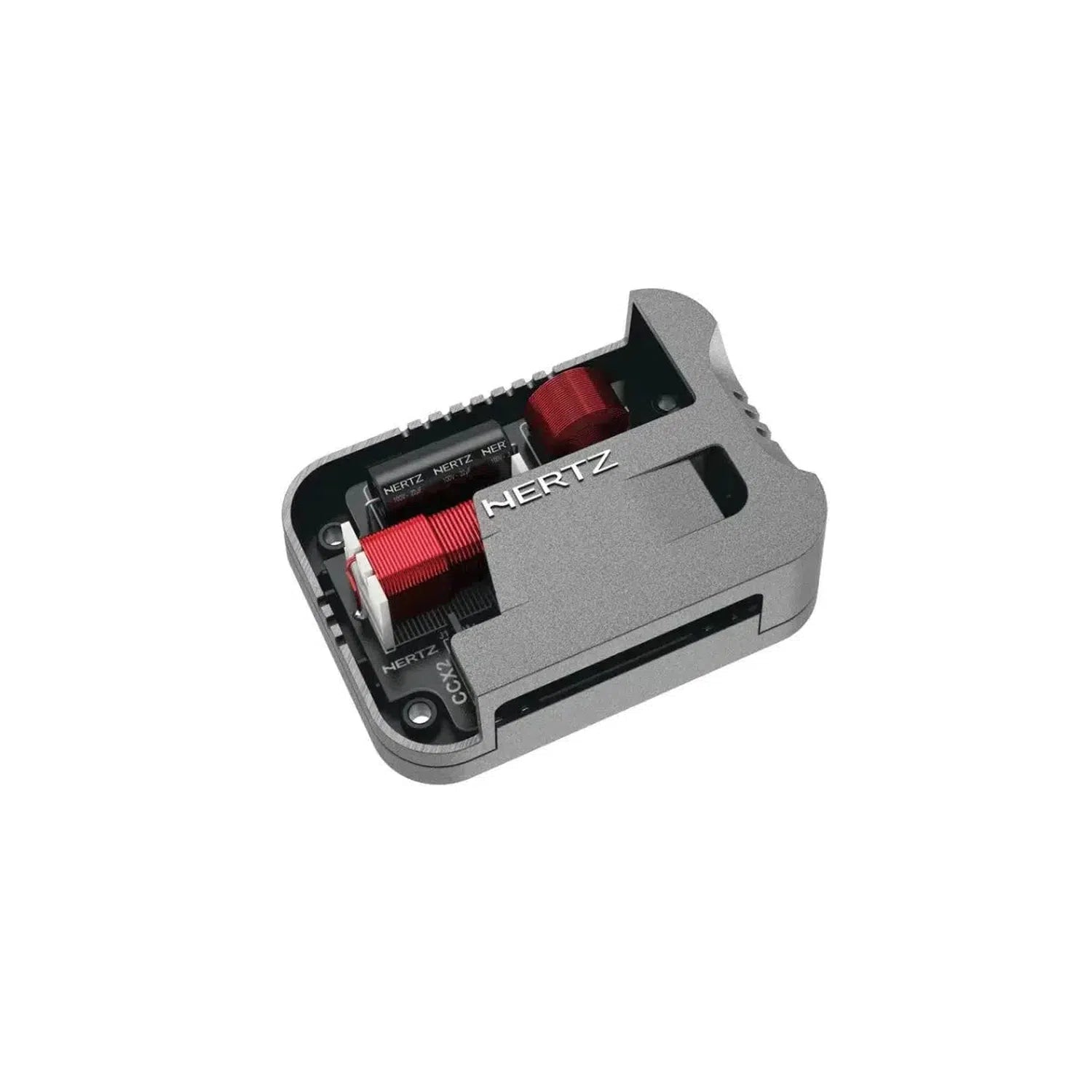

CCX 2:

Tweeter level adjustment via a three-position switch (0, +3 dB) for optimal sound balance, adjustable by the user.
Low-loss capacitors and low-resistance inductors made of pure copper for maximum sound transparency and clear high frequencies.
Compact design with metallic finish for easy installation, with ventilation slots for efficient heat dissipation.

Hertz Cento CK 165 Datenblatt

Datenblatt öffnen

Frequent questions about Cento CK 165

Was zeichnet das Cento CK 165 in Bezug auf seinen Frequenzgang aus?

The Cento CK 165 from Hertz impresses with a frequency response of 55 Hz to 22.5 kHz, allowing it to cover a wide range of audio signals. The tweeter C 26 with its 26 mm Tetolon membrane ensures clear reproduction of highs and mid-highs. Thanks to the passive 2-way crossover with a crossover point at 2.5 kHz @ 12 dB/oct., the sound distribution is optimally coordinated. The impedance of 4 Ohms and the sensitivity of 93 dB SPL contribute to the excellent sound quality and efficiency of the system by ensuring a fine balance between volume level and sound details.

Welche technische Merkmale hat der Hochtöner des Cento CK 165?

The tweeter C 26 of the Cento CK 165 features a 26 mm Tetolon membrane and a 20 mm voice coil, which together support detailed and natural sound reproduction. The Tetolon fiber® of the dome ensures accurate musical reproduction, while the neodymium magnet provides a high-density magnetic flux specifically designed for dynamic transients in the mid to high frequency range. The geometry of the front plate is optimized using FEM technology, allowing for a linear frequency response even in off-axis installations, meaning when the installation angle is not frontal.

Wie ist die Belastbarkeit des Cento CK 165 Lautsprechersystems?

The Cento CK 165 offers outstanding load capacity with an RMS load capacity of 95 W and a peak load capacity of 285 W. These specifications ensure that the speaker system is suitable for both everyday use and more intensive audio applications without distortion. The aluminum former of the voice coil in the woofer allows for high displacement, which is particularly advantageous under high power loads. Thus, the system is excellent for use in various acoustic environments where high power input is necessary.

Welche Materialien werden im Membranaufbau des Cento CK 165 verwendet?

The membrane of the midrange driver C 165 of the Cento CK 165 system is made from semi-pressed paper SPP-M, enriched with mica powder. This material composition ensures an outstanding balance between lightness and damping, resulting in lower vibrations and clearer sound reproduction. The tweeter uses a Tetolon membrane, which provides precise highs. These high-quality materials contribute to the excellent sound profile of the system by reducing unwanted resonances and increasing sound fidelity, which is particularly noticeable in the reproduction of complex musical pieces.

Wie beeinflusst der Flussferritmagnet des Cento CK 165 die Klangqualität?

The river ferrite magnet in the Cento CK 165 enables a high density of magnetic flux, which is crucial for minimizing distortion at high power levels. This property ensures that the speaker delivers clear and undistorted sound even at higher volumes. In combination with low-carbon pole plates, the magnet reduces additional interference and supports the overall sound stability of the system. This technology ensures clear and balanced audio performance across the entire frequency range, which is particularly important for audiophile users and discerning listeners.

Was sind die Abmessungen und wie hilft das Hertz Cento CK 165 bei der Installation im Fahrzeug?

The Cento CK 165 has a size of 165 mm for the mid-bass driver, which corresponds to a common standard size for integration in vehicles. The electro-acoustic specification D is 131.5 mm, and the compact design of the speaker facilitates installation in most vehicle models. The system is equipped with an elegant speaker grille made of high-strength ABS plastic structure, which supports the robustness of the installation. The designed size and the included accessories allow for easy integration, fitting into existing installation frames without extensive modifications.

Wie ist die Einstellung des Hochtönerpegels beim Cento CK 165 möglich?

The tweeter level of the Cento CK 165 can be adjusted via a three-position switch on the crossover CCX 2. You can choose between settings of 0 dB, +3 dB to achieve an optimal sound balance. This adjustment option allows the user to tailor the sound to individual listening habits and the acoustic space in the vehicle. By using capacitors with a low loss factor and low-resistance inductors made of pure copper, sound transparency is maximized, which ensures clear audio output, especially at high frequencies.

Welche Rolle spielt die Schwingspule im Tieftöner C 165 des Cento CK 165?

The voice coil of the woofer in the Cento CK 165 has a diameter of 25 mm and is equipped with an aluminum former. This construction allows for high displacement, which is crucial for powerful bass output. The coil provides the necessary mechanical power to efficiently set the diaphragm assembly in motion, thus producing deep and resonance-free bass. This enhances acoustic performance by reducing distortion at high volumes and simultaneously offers durability for different music genres, which is a clear advantage for lovers of lower frequencies.

Wie beeinflusst die Crossover-Technologie im Cento CK 165 die Klangqualität?

The Cento CK 165 uses a passive 2-way crossover that allows for a crossover cutoff at 2.5 kHz @ 12 dB/oct. This technology ensures precise allocation of frequencies to the respective speaker types. The use of high-quality components such as low-loss capacitors and low-resistance inductors made of pure copper enhances sound transparency. The crossover ensures that the tweeter and woofer are only supplied with the frequencies they can reproduce optimally, minimizing interference and ensuring clear and coherent audio output. As a result, the use in the car remains of high quality, even with particularly complex music.

Welche Bedeutung hat die Geometrie der Frontplatte im Hochtöner C 26 beim Cento CK 165?

The geometry of the front plate in the tweeter C 26 of the Cento CK 165 has been optimized using FEM technology (Finite Element Modeling). This optimization plays a crucial role in achieving a linear frequency response, especially in off-axis installations, meaning installation situations where the speaker is not directly aimed at the listener. The designed front plate reduces phase anomalies and improves the spatial representation of sound. This technique helps overcome challenges posed by various installation angles and enhances sound quality and fidelity, which is particularly beneficial in vehicles with variable seating arrangements.
