Hertz Cento CK 130 5" (13cm) speaker set

Name: Hertz Cento CK 130 5 Inch Speaker Set | Masori
Brand: Hertz
Price: 169.0 EUR
Availability: InStock
Rating: 4.84 (25 reviews)

25 Reviews

Max, Mikael and 53k+ customers already with Masori sound upgrade

Hertz Cento CK 130 5" (13cm) speaker set

25 Reviews

Power handling RMS 70 W, impedance 4 Ohm, sensitivity 92.5 dB SPL.
Frequency response 65 Hz 22.5 kHz, Tetolon tweeter 26 mm diameter.
Crossover frequency 2.5 kHz @ 12 dB/octave, optimal dispersion characteristics.
Mehr technische Details

€169,00

~~€169,00~~ €169,00

5% Rabatt mit Vorkasse

inkl. VAT , possibly plus shipping

Bequem in 12 zinsfreien Raten à €14,08 mit Klarna zahlen.

Jetzt mit kostenlosem Versand ab 50€!

Shipping cost calculator

Land/Region

PLZ

Garantie & zusätzlicher Geräteschutz für dein HiFi-System

3 Jahre Masori Garantie Kostenlos 48 Monate Plusgarantie €14,99 60 Monate Plusgarantie Am beliebtesten €19,99

Deshalb wählen uns 100.000+ Kunden

3 Jahre Garantie

Sicher & sorglos
Blitzversand

mit DHL Express
Tiefpreisschutz

Nie zu viel zahlen

Rob

Max

Unsicher, ob dieses Produkt zu deinem Auto passt?

Wir helfen dir – schnell, persönlich und unverbindlich.

Antwort on weekdays within 24h

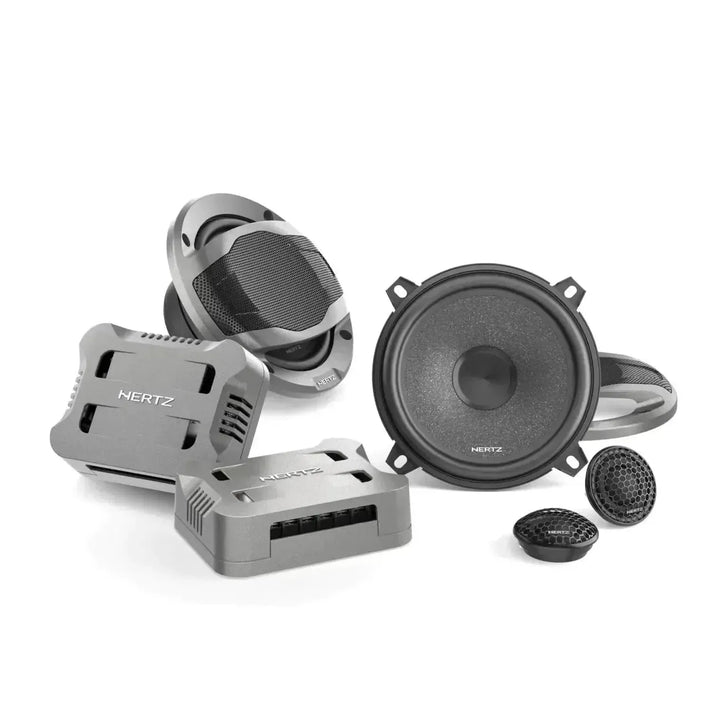

Cento CK 130 by Hertz

Dive into the world of high-end audio with the Cento CK 130, the 5-inch front system set from Hertz. It offers a 2-way system that provides an innovative interpretation of sound quality and performance. With its special Tetolon tweeter and a detail-oriented mid-bass driver, the CK 130 delivers a balanced and natural reproduction of high-mid frequencies. Thanks to the optimal dispersion characteristics and a unique diaphragm material, the set delivers excellent sound in every listening position. Additionally, the oversized ferrite magnet ensures perfect control, even at high excursion. The set also includes ultra-compact crossovers and a durable speaker grille that is more than just aesthetically pleasing.

Technical Specifications

Size mm 130
Power Handling - RMS W 70
Power Handling - Peak W 210
Impedance Ohm 4
Tweeter Diaphragm mm 26
Woofer Voice Coil Ø mm 25
Tweeter Voice Coil Ø mm 20
Sensitivity dB SPL 92.5
Frequency Response Hz 65 - 22.5k
Crossover Cutoff 2.5 kHz @ 12 dB Oct.
Crossover Type Passive 2-Way Crossover
Weight of One Component - Woofer 0.7
Weight of One Component - Tweeter kg 0.03
Weight of One Component - Crossover kg 0.185

Electro-Acoustic Specifications

D mm 110
Re Ohm 3.1
Fs Hz 80
Le mH 0.17
Vas I 6.30
Mms g 8
Cms mm/N 0.50
BL T*m 4.1
Qts 0.61
Qes 0.72
Qms 3.9
SPL dB 92.5

Hertz Cento CK 130 Datenblatt

Datenblatt öffnen

Frequent questions about Cento CK 130

Wie beeinflusst der überdimensionierte Ferrit-Magnet die Leistung des Cento CK 130?

The oversized ferrite magnet in the Cento CK 130 allows for improved control of the woofer, especially at high excursions. This results in more precise sound reproduction even at high volumes. The larger magnet size provides better control over the diaphragm movement and minimizes distortion. This feature is crucial for those who appreciate both powerful bass reproduction and fine sound details.

Welche Rolle spielt der Tetolon-Hochtöner im Cento CK 130?

The Tetolon tweeter of the Cento CK 130 sets new standards in high-frequency reproduction. With a diameter of 26 mm and a voice coil diameter of 20 mm, it offers brilliant yet smooth reproduction of high frequencies. The special diaphragm structure achieves an improved dispersion characteristic, ensuring uniform sound distribution regardless of the listening position. The combination of material and design results in a natural and balanced sound quality.

Welche technischen Daten sind für die Frequenzweichen des Cento CK 130 relevant?

The crossovers in the Cento CK 130 are ultra-compact and passive, making them suitable for numerous installation variants. They feature a cutoff at 2.5 kHz with a slope of 12 dB/octave. This configuration ensures precise separation between the tweeter and midrange driver and significantly contributes to clear sound quality. The crossovers support natural sound transitions and prevent overlaps in frequencies, resulting in a cleaner sound image.

Wie sind die Abmessungen und das Gewicht der Komponenten des Cento CK 130?

The woofer of the Cento CK 130 has a size of 130 mm, while the tweeter has a diameter of 26 mm. The weight of the woofer is 0.7 kg and the tweeter weighs 0.03 kg. The crossover has a weight of 0.185 kg. These compact dimensions and low weight facilitate installation in vehicles without compromising the vehicle's aesthetics. The careful tuning of the components ensures optimal sound performance within the specified space.

Wie sieht der Frequenzgang des Cento CK 130 aus?

The Cento CK 130 has a frequency response of 65 Hz to 22.5 kHz. This bandwidth allows for detailed reproduction of both deep bass tones and high frequencies. Especially for enthusiasts of precise and dynamic audio output, this front system is ideal as it can cover all relevant frequency ranges. The combination of the woofer and tweeter effectively supports this bandwidth, resulting in a comprehensive and balanced sound reproduction.

Welche Parameter beeinflussen die Effizienz des Cento CK 130?

The efficiency of the Cento CK 130 is significantly determined by its electroacoustic properties. With a sensitivity of 92.5 dB SPL, the system can require relatively little power to produce high volumes. The impedance is 4 ohms, which facilitates coupling to most amplifiers. Qts, Qes, and Qms values of 0.61, 0.72, and 3.9 respectively influence the resonance characteristics and overall sound, while the BL value of 4.1 T*m highlights the performance of the magnetic system.

Warum ist der Membranwerkstoff des Tiefmitteltöners des Cento CK 130 besonders?

The innovative membrane material of the mid-bass driver in the Cento CK 130 significantly contributes to the exceptional sound quality. The choice of material allows for a detailed and natural reproduction of the midrange frequencies and ensures an excellent balance across the entire frequency spectrum. The special material construction enhances the clarity of the sound while optimizing the resonance properties. These features make the mid-bass driver ideal for those who value sound precision.

Wie ist die Belastbarkeit des Cento CK 130 definiert?

The Cento CK 130 has a power handling capacity of 70 watts RMS and 210 watts peak. These values indicate the continuous and peak power levels the system can handle without damage. The high peak power handling allows for dynamic music playback, while the RMS power handling enables consistent playback at a high level. These performance specifications are crucial for selecting suitable amplifier combinations to fully exploit the potential of the speaker system.

Wie lässt sich der Cento CK 130 optimal im Auto installieren?

The Cento CK 130 can be easily integrated into the vehicle due to its compact design and the precisely specified dimensions. The front system size of 130 mm allows for versatile placement in doors or dashboards. Consider the installation depth and wiring to ensure the best possible sound experience. The straightforward connection of the crossovers facilitates system integration. These details are important to optimally unleash sound quality and protect the components from mechanical influences.

Welche Rolle spielen die Thiele-Small-Parameter bei der Abstimmung des Cento CK 130?

The Thiele-Small parameters of the Cento CK 130 – including Vas of 6.30 L, Fs of 80 Hz, and Qts of 0.61 – are crucial for acoustic tuning and enclosure calculations. These parameters help predict the efficiency and resonance behavior of the speaker system. The Vas value indicates the required volume of the installation enclosure to effectively reproduce low frequencies. These parameters should be taken into account during enclosure design to fully exploit the sound potential of the system.
