3. Vision VX1000 PRO

ESX Vision VX1000 PRO 1-Channel Amplifier

ESX Vision VX1000 PRO 1-Channel Amplifier

  • Power 1x1250 Watt RMS@1 Ω, impedance matching@4/2/1 Ω.
  • Highly efficient Ultra Class D technology with 94% efficiency.
  • Subsonic 10-100 Hz, LPF 50-20000 Hz, Bass Boost Variable 0-12 dB.
  • Mehr technische Details
€299,00
€299,00 €299,00
5% Rabatt mit Vorkasse
inkl. VAT , possibly plus shipping
Klarna Bequem in 12 zinsfreien Raten à €24,91 mit Klarna zahlen.
Delivery to Home
Dec 6, - Dec 9,
x Piece
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Twint
  • Union Pay
  • Visa

Seen cheaper?

Shipping cost calculator

Garantie & zusätzlicher Geräteschutz für dein HiFi-System

Deshalb wählen uns 100.000+ Kunden

Expert Image

Rob

Expert Image

Max

Unsicher, ob dieses Produkt zu deinem Auto passt?

Wir helfen dir – schnell, persönlich und unverbindlich.

Antwort on weekdays within 24h

Vision VX1000 PRO by ESX

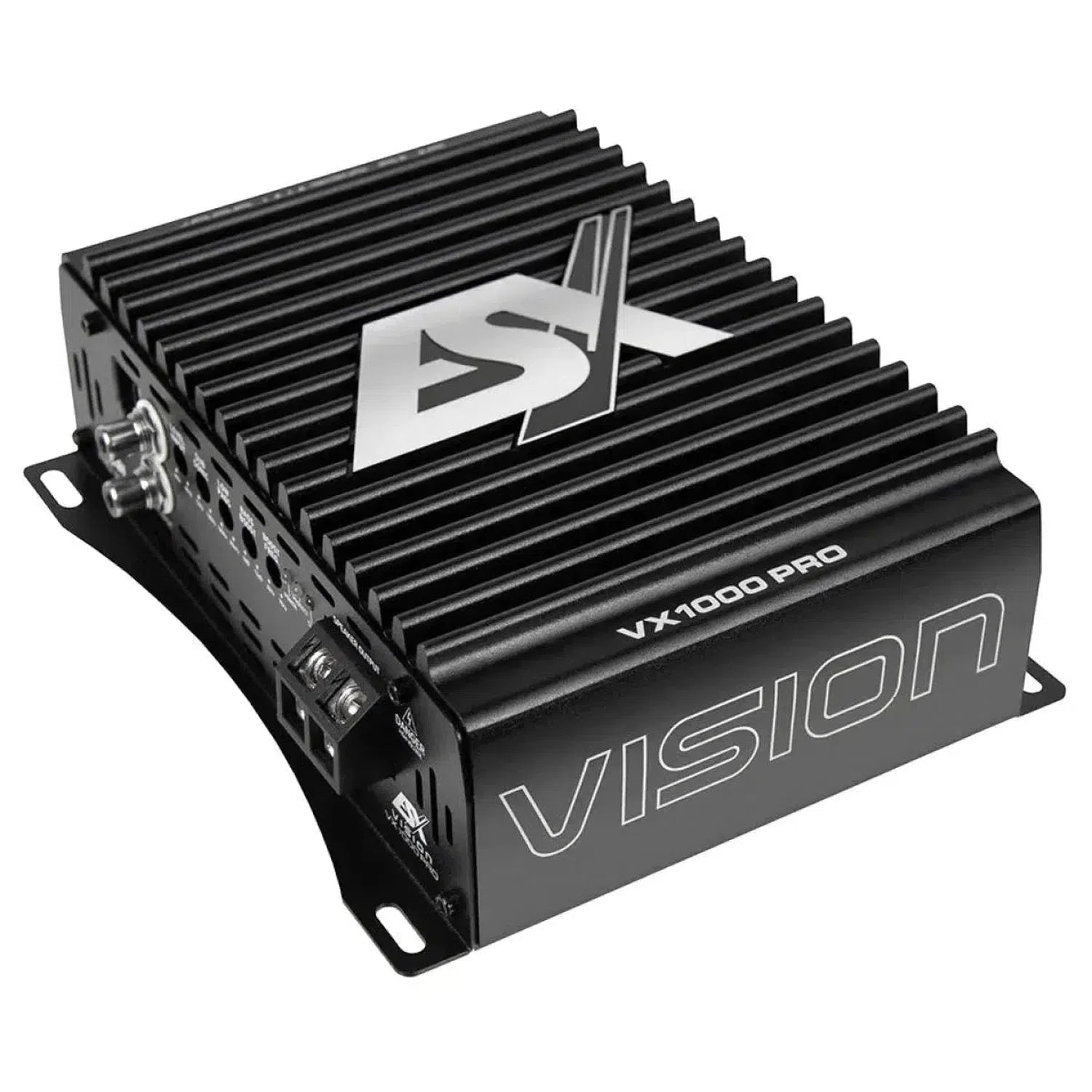

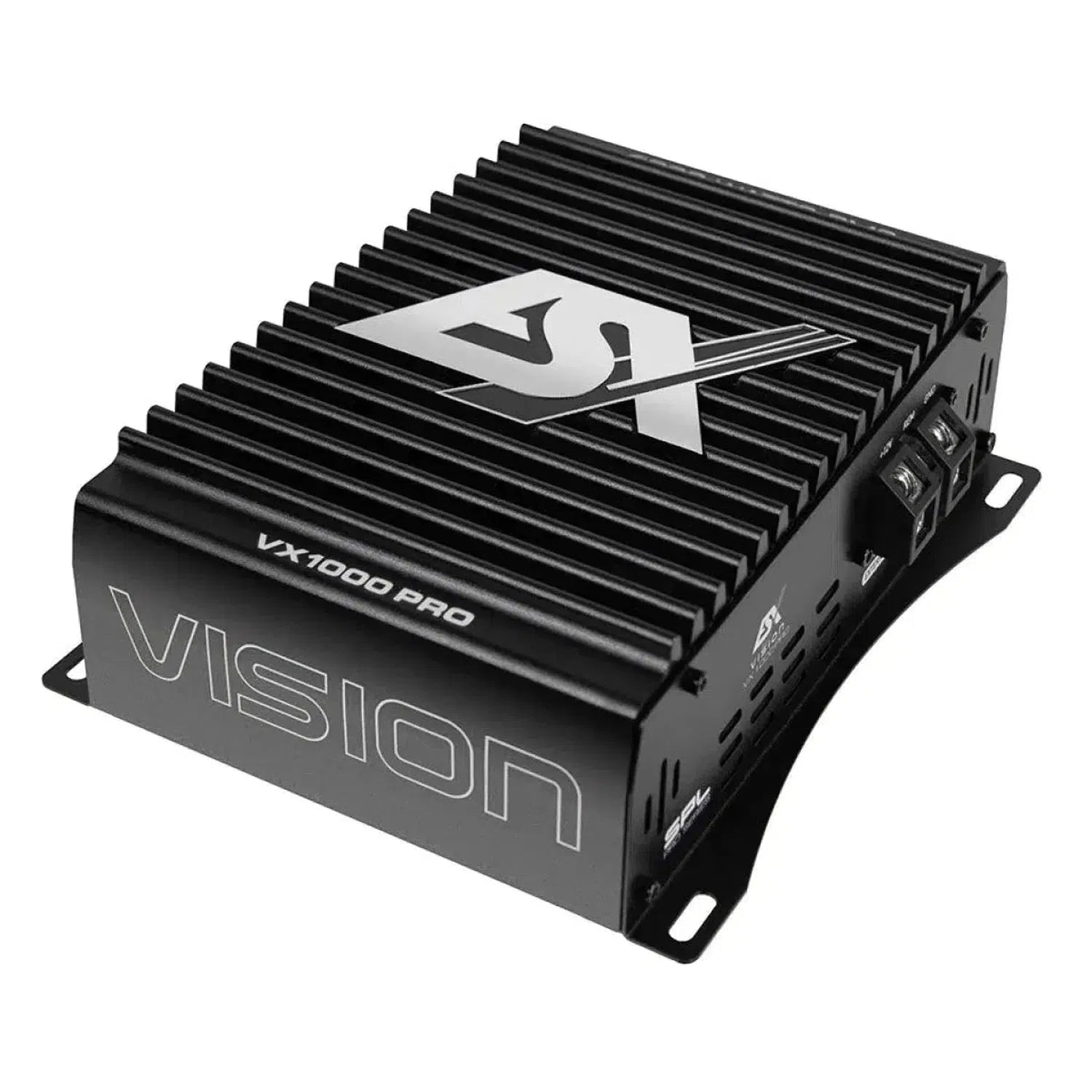

The Vision VX1000 PRO from ESX is a 1-channel amplifier like no other. From the renowned Vision VX PRO series, this model is a powerhouse that delivers values from 2200 up to 13000 watts RMS. Classically styled and equipped with two RCA inputs for more flexible adaptation, this compact powerhouse with a footprint of about 20 x 19 cm packs impressive performance. Thanks to the advanced ESX circuit technology, the amplifier can effortlessly drive even the most powerful subwoofers. Discover the combination of power, style, and technology in the Vision VX1000 PRO.

properties

  • Highly efficient Ultra Class D technology with very high efficiency
  • Classically styled aluminum heat sink with optimal thermal properties

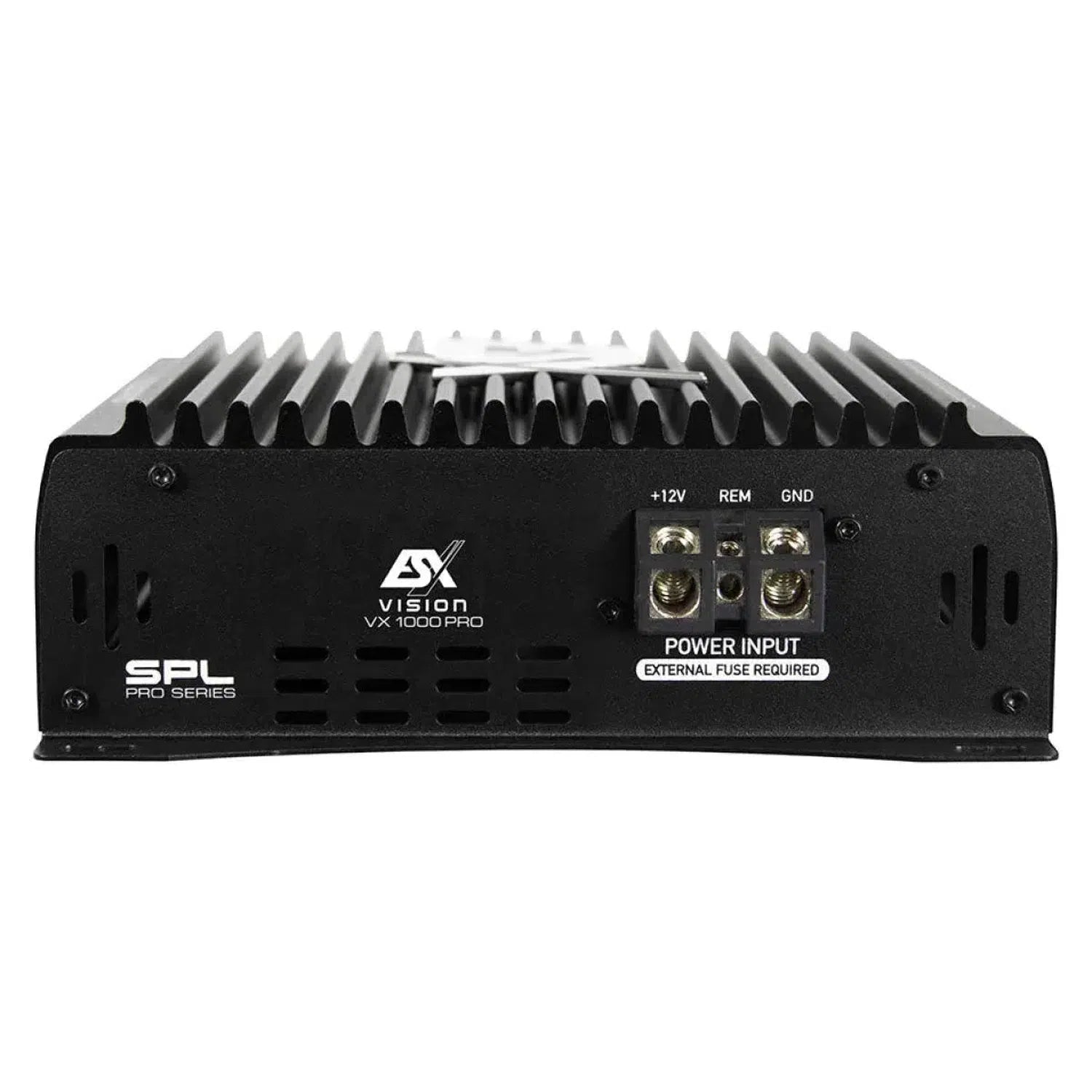

  • Screwed RCA sockets, solid power and speaker connections
  • Variable Bass Boost 0 - 12 dB @ 30 - 70 Hz
  • Clipping LED, 3-fold protection circuit

Technical Data

  • Mono Ultra Class D Digital Amplifier
  • 1 x 450/800 /1250 Watt RMS @ 4/2/1 Ω
  • Subsonic 10 - 100 Hz
  • LPF 50 - 20000 Hz
  • Bass Boost 0 - 12 dB @ 30 - 70 Hz

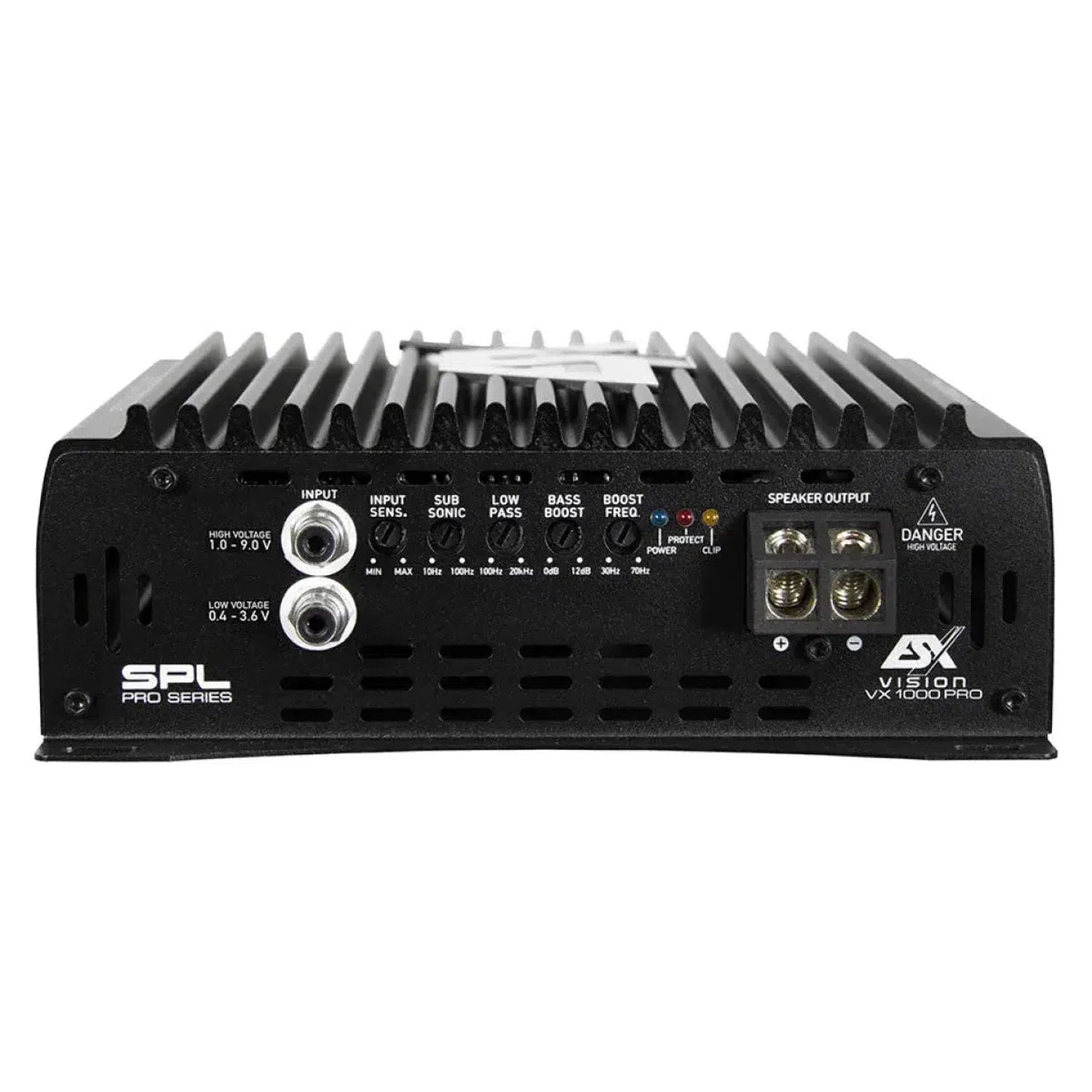

  • Cinch low-level input mono 0.4 - 3.6 V
  • Cinch high-level input mono 1.0 - 9.0 V
  • Dimensions 191 x 66 x 159 mm
  • Efficiency up to 94%

ESX Vision VX1000 PRO Datenblatt

Datenblatt öffnen

Frequent questions about Vision VX1000 PRO

Wie viel Leistung bietet der Vision VX1000 PRO Verstärker?

The Vision VX1000 PRO from ESX is a 1-channel amplifier that offers incredible power values. With an output of 2200 up to an impressive 13000 Watts RMS, this amplifier can drive even the most demanding subwoofers. It utilizes the highly efficient Ultra Class D technology, which ensures an efficiency of up to 94% and allows for high power delivery with low heat generation. Thus, the amplifier is excellent for speaker systems that require high power input.

Welche Schutzeinrichtungen hat der Vision VX1000 PRO von ESX?

The Vision VX1000 PRO is equipped with a triple protection circuit to meet maximum safety needs. These protection mechanisms include overload, overheating, and short-circuit protection, which ensure reliable operation of the amplifier. This is especially important under high power demands or in challenging environments where electrical parameters can vary significantly, and it ensures that the amplifier is not damaged.

Wie ist der Vision VX1000 PRO dimensioniert?

The Vision VX1000 PRO from ESX is very compact, measuring only 191 x 66 x 159 mm. Despite these relatively small dimensions, it offers immense power density and flexibility for installation in limited space conditions. This is particularly crucial in vehicle installations when it comes to discreetly placing the amplifier without losing valuable interior space. The efficiency of the design is also evident in the numerous mounting options within various setups.

Welche Eingänge bietet der ESX Vision VX1000 PRO?

The ESX Vision VX1000 PRO features flexible input options, including a RCA low-level input with a range of 0.4 to 3.6 V and a RCA high-level input with a range of 1.0 to 9.0 V. These variable inputs allow for excellent adaptation to different preamplifier signals and sources, enabling a wide variety of audio installations and sound requirements. This flexibility is ideal for users who need diverse signal compatibility.

Wie funktioniert der Bass Boost beim Vision VX1000 PRO von ESX?

The Vision VX1000 PRO offers a variable bass boost that can be adjusted in a range from 0 to 12 dB at frequencies between 30 and 70 Hz. This feature allows for targeted adjustment of the low frequencies to create a stronger and more voluminous sound, which is particularly beneficial for subwoofers. The enhanced bass range allows for detailed optimization of music playback according to personal taste or musical genre.

Welche Frequenzweicheinstellungen sind beim ESX Vision VX1000 PRO möglich?

The ESX Vision VX1000 PRO features adjustable crossover functions, such as the subsonic filter, which can be set from 10 to 100 Hz, and a low-pass filter (LPF) that covers a range of 50 to 20,000 Hz. These settings allow for the suppression of certain unwanted frequencies and the optimization of sound quality by tailoring the amplifier specifically to the requirements of the speakers in use. This is particularly beneficial when using subwoofers.

Was zeichnet die Ultra Class D Technik im Vision VX1000 PRO aus?

The Ultra Class D technology of the Vision VX1000 PRO amplifies the signal using digital circuits that are exceptionally efficient. The high efficiency of up to 94% ensures that the amplifier produces minimal heat and delivers a lot of power with less energy consumption. This technology makes the amplifier particularly attractive for mobile applications, where energy efficiency and performance are crucial.

Wie sind die Anschlüsse beim Vision VX1000 PRO gestaltet?

The Vision VX1000 PRO from ESX is equipped with robust connections, including screwable RCA sockets as well as solid power and speaker connections. This sturdy design ensures optimal conductivity and prevents connections from loosening under heavy stress or vibration. Such connections are ideal for anyone who needs to ensure high transparency and long-term reliability in audio connections.

Gibt es Kontrollleuchten beim ESX Vision VX1000 PRO und welche Funktionen bieten sie?

Yes, the ESX Vision VX1000 PRO is equipped with a clipping LED that provides important feedback functions. This indicator light shows when the amplifier begins to distort the input signal, which helps to avoid overdriving the speakers and maintain sound integrity. The implementation of such an LED ensures that maximum power can be achieved without overloads or impairments to sound quality.

Welche Gehäusemerkmale hat der ESX Vision VX1000 PRO?

The housing of the ESX Vision VX1000 PRO consists of a classically styled aluminum heat sink, which is not only aesthetically pleasing but also possesses excellent thermal properties. The design allows for effective heat dissipation, which increases the stability and reliability of the amplifier, especially during intensive use. This cooling property is essential for maintaining optimal operating conditions and overall extends the lifespan of the device.
