  3. Signum SXE6.2C
ESX Signum SXE6.2C 6.5" (16,5cm) Speaker Set
SKU:  SXE6-2C
EAN:  4251476401600
100 Watt

Signum SXE6.2C

SKU:  SXE6-2C
EAN:  4251476401600

Technical Highlights

  • 200 watts maximum power, 100 watts RMS, impressive performance.
  • Frequency range from 60 to 22,000 Hz, impedance at 3 Ω.
  • Installation depth of 55 mm, 16.5 cm, 2-way system, protective grille.
  • More technical details
00 d
00 h
00 m
00 s
€145,52
€149,00 €145,52
5% discount with credit card
inkl. VAT , possibly plus shipping
Delivery
Jun 2, - Jun 5,
x set
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €12,12 with Klarna .

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours

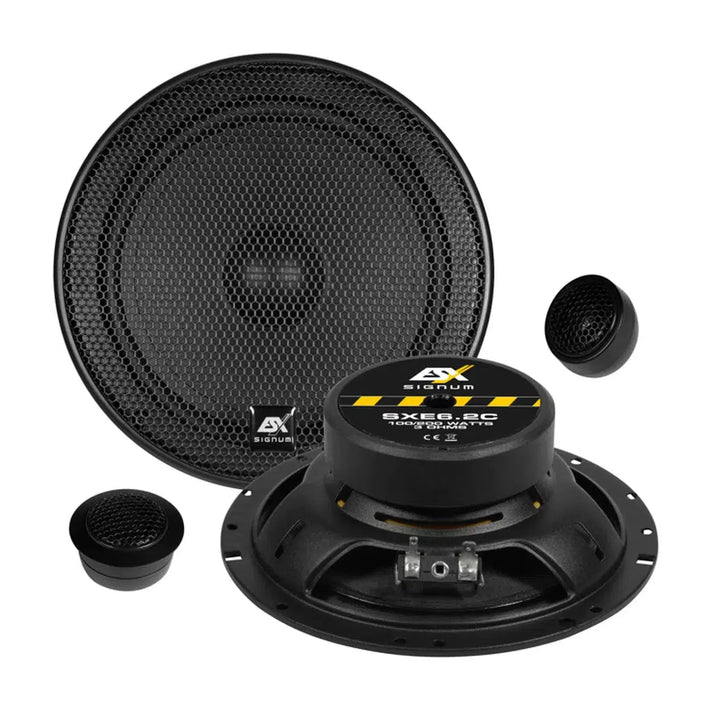

ESX-Signum SXE6.2C-6.5" (16,5cm) Lautsprecherset-masori-kaufen
€145,52
€149,00 €145,52

Signum SXE6.2C by ESX

The ESX Signum SXE6.2C is a 6.5 inch speaker set as a 2-way component system with flat construction and a mounting depth of 55 mm. The load capacity is 100 watts RMS, with a maximum power of 200 watts. The frequency range extends from 60 to 22,000 Hz with an impedance of 3 ohms. It is equipped with quartz sand coated paper membranes and a 20 mm fabric neodymium tweeter. Separate crossovers for tweeter and bass as well as a protective grille are included. The cutout diameter is 144 mm.

Features
  • 6.5 inch (16.5 cm) speaker set
  • 2-way component system
  • Flat construction
  • Mounting depth 55 mm
  • RMS power 100 watts
  • Maximum power 200 watts
  • Frequency range 60 – 22,000 Hz
  • Impedance 3 ohms
  • Quartz sand coated paper membranes
  • 20 mm fabric neodymium tweeter
  • Separate crossovers for tweeter and bass
  • Protective grille
  • Cutout diameter 144 mm
Technical specifications
  • Speaker size 165 mm
  • Mounting depth 55 mm
  • Cutout diameter 144 mm
  • Impedance 3 ohms
  • Frequency range 60 – 22,000 Hz
  • RMS power 100 watts
  • Maximum power 200 watts
  • 20 mm fabric neodymium tweeter
  • Membrane coated with quartz sand paper
  • 2-way component system
  • Flat construction
  • Separate crossovers, protective grille

Your benefits at Masori

ESX Signum SXE6.2C Datasheet

Open datasheet

Frequently Asked Questions about Signum SXE6.2C

What are the installation dimensions of the Signum SXE6.2C Speaker Set?

The Signum SXE6.2C from ESX offers an installation depth of 55 mm and requires a mounting opening with a diameter of 144 mm. This compact design makes it ideal for limited installation spaces, especially in vehicles with little room behind the door panels. The flat construction of the steel baskets allows for installation even in more complex spatial geometries without compromising the speaker's performance. Adhering to these dimensions is crucial to ensure proper mounting and optimal sound, especially when replacing or retrofitting existing audio systems.

What power does the Signum SXE6.2C Speaker Set deliver?

The Signum SXE6.2C from ESX offers an impressive power handling of 100 Watts RMS, with a maximum power of 200 Watts. The robust construction allows the speaker system to deliver clean sounds even at high volumes. This power is ideally suited for use in vehicles seeking a quality sound improvement without drastic modifications. With the high power handling, you can fully unleash the sound of the speakers with the appropriate amplifier application. Make sure that the amplifier is also suitable for 3 Ω loads to avoid damaging the speakers.

What is the frequency range of the Signum SXE6.2C Speaker System?

The Signum SXE6.2C Speaker System covers a wide frequency range from 60 Hz to 22,000 Hz. This broad spectrum ensures outstanding sound quality, reproducing both deep bass and high treble. The combination of quartz sand-coated paper membranes with the 20 mm fabric neodymium tweeters allows for clear and precise reproduction of every detail in the music. These components contribute to producing a dynamic and balanced sound that excels in both acoustically demanding and cozy listening environments. Perfect for music lovers who do not want to compromise on sound.

What type of membranes and tweeters does the ESX Signum SXE6.2C use?

The ESX Signum SXE6.2C uses quartz sand-coated paper membranes that ensure high efficiency and powerful bass reproduction. The membranes provide the necessary lightness and stiffness to accurately reproduce fast musical transients. The set is complemented by 20 mm fabric neodymium tweeters designed for precision at high frequencies, helping to fully unfold the dynamics of the music. The combination of these materials creates a vibrant and authentic sound that emphasizes both detail and musical warmth in every performance.

Are crossovers included in the Signum SXE6.2C Speaker Set?

Yes, the Signum SXE6.2C Speaker Set includes separate crossovers for the tweeter and the bass speaker. These crossovers are crucial for optimizing sound quality, as they ensure that the correct frequencies are directed to the respective speaker types. The precise separation of frequencies allows each specific speaker to operate within its optimal frequency range, minimizing distortion and enhancing crystal-clear sound. This equipment enables the full power and frequency range of ESX's Skaesystem concept to be realized.

Who is the Signum SXE6.2C Speaker Set suitable for?

The Signum SXE6.2C Speaker Set is ideal for car enthusiasts and music lovers looking for a high-performance audio system that can be easily integrated into limited installation spaces. Its flat design and sophisticated technology make this system particularly attractive for those who want to enhance their acoustic environment without making extensive modifications. It offers excellent sound for users who value detailed and dynamically balanced reproduction. Those who spend a lot of time in the car and desire an impressive musical experience will find this 2-way system an excellent choice.

What materials improve sound quality in the ESX Signum SXE6.2C?

In the ESX Signum SXE6.2C, the quartz sand-coated paper membranes and fabric neodymium tweeters significantly improve sound quality. The quartz sand-coated membranes provide increased efficiency and keep distortion in check due to their lightweight yet stiff structure, which is particularly useful for bass reproduction. The fabric neodymium tweeters contribute to producing clear and brilliant highs, with the neodymium magnets keeping the weight low while still providing sufficient magnetic force. The materials optimize acoustic performance by offering precise sound reproduction and a vibrant musical balance.

What impedance does the Signum SXE6.2C Speaker Set from ESX have?

The Signum SXE6.2C from ESX has an impedance of 3 Ω. This impedance rating is designed for use with amplifiers specifically tailored for lower impedances to achieve more power. An amplifier that supports 3 Ω can increase the wattage, resulting in a more intense and powerful sound reproduction. When integrating this speaker set into existing or new audio systems, you should ensure that the amplifier is also matched for this impedance to ensure both performance and sound fidelity, preventing any higher resistance from opposing the speaker.

Is there a protective grille included with the Signum SXE6.2C Speaker Set?

Yes, the Signum SXE6.2C Speaker Set comes with a protective grille included. This grille is not only important for aesthetics but also provides physical protection for the sensitive speaker components, especially against mechanical damage or foreign objects within the vehicle. It ensures that the membranes and tweeters maintain their flawless operation and that the sound is not distorted by unexpected interferences. The protection ensures that the speaker set retains its high acoustic performance and quality for a long time without compromising functionality.

Which car models is the Signum SXE6.2C Speaker Set suitable for?

The Signum SXE6.2C Speaker Set from ESX is versatile for use in many vehicles due to its compact design, especially in those with limited installation space. With a mounting depth of 55 mm and a cutout diameter of 144 mm, it can be placed in most standard door panels, provided they offer enough space for the installation dimensions. Although no specific car models are mentioned in the product description, it could be well-suited for popular compact cars, sedans, and even smaller SUVs that feature such specific mounting frames in the door speaker area.
