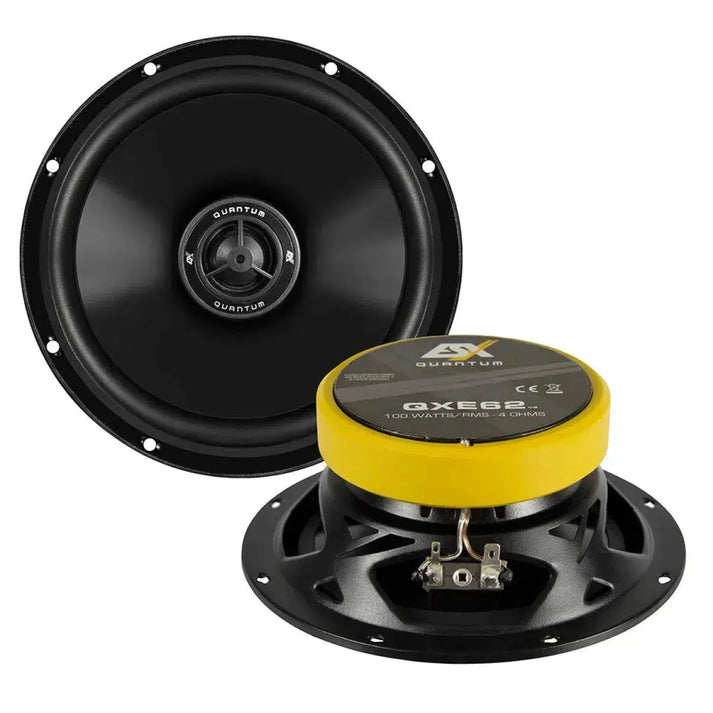

ESX Quantum QXE62V2 6.5" (16,5cm) Coaxial Speaker
SKU:  QXE62V2
EAN:  4251476409002
100 Watt

Quantum QXE62V2

SKU:  QXE62V2
EAN:  4251476409002

Technical Highlights

  • Power 100 Watt/RMS, 200 Watt/Max, impedance 4 Ω.
  • Frequency range 55 22000 Hz, 17 oz. magnet, 20 mm tweeter.
  • 16.5 cm coaxial speaker, 30.5 mm voice coils, 64 mm depth.
  • More technical details
€129,00
€129,00 €129,00
5% discount with credit card
inkl. VAT , possibly plus shipping
Delivery
May 29, - Jun 1,
x pair
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €10,75 with Klarna .

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours
ESX-Quantum QXE62V2-6.5" (16,5cm) Koaxial-Lautsprecher-masori-kaufen
€129,00
€129,00 €129,00

Quantum QXE62V2 by ESX

Quantum QXE62V2 by ESX is a 6.5 inch (16.5 cm) 2-way coaxial speaker sold as a pair. The power handling is 100 Watts RMS and 200 Watts Max at 4 Ohms. The frequency range is 55 - 22000 Hz. Equipped with a polypropylene-graphite composite diaphragm, 30.5 mm voice coil on a Kapton former, and a 20 mm textile neodymium tweeter. The magnet weighs 482 g (Y30). The mounting depth is 64 mm, and the cutout diameter is 143 mm.

Features
  • 6.5 inch (16.5 cm) 2-way coaxial speaker (pair)
  • Polypropylene-graphite composite diaphragm
  • 20 mm textile neodymium tweeter
  • 30.5 mm voice coil on Kapton former
  • Y30 magnet, 482 g
  • Impedance 4 Ohms
Technical Specifications
  • RMS power 100 Watts
  • Max power 200 Watts
  • Frequency range 55 - 22000 Hz
  • Mounting depth 64 mm
  • Cutout diameter 143 mm

Your benefits at Masori

ESX Quantum QXE62V2 Datasheet

Open datasheet

Frequently Asked Questions about Quantum QXE62V2

What is the power consumption of the Quantum QXE62V2 speaker?

The Quantum QXE62V2 from ESX is a 6.5 inch 2-way coaxial speaker with a power handling of 100 Watts RMS and a maximum power of 200 Watts. These values indicate the speaker's capacity to operate continuously and handle short-term power peaks. With these performance features, the QXE62V2 is suitable for both home use and applications in vehicles. Especially if you enjoy listening to music loudly, the Quantum QXE62V2 provides enough reserves without distorting the sound. It is important to ensure sufficient wire gauge during installation to avoid power losses.

What is the frequency range of the Quantum QXE62V2 designed for?

The ESX Quantum QXE62V2 covers a frequency range from 55 Hz to 22000 Hz. This range shows that the speaker can reproduce most frequencies important to human hearing in detail. Low frequencies like bass and high frequencies such as fine details in vocals and instruments are clearly represented. The frequency range helps create a balanced sound image that impresses at both low and high volumes. The polypropylene-graphite composite membranes work optimally with the fabric neodymium tweeters to provide a rich listening experience.

What materials are used in the Quantum QXE62V2 to enhance sound quality?

The Quantum QXE62V2 from ESX uses a combination of polypropylene-graphite composite membranes and fabric neodymium tweeters. These materials are crucial for sound quality as they are lightweight yet stiff enough to minimize distortion and produce precise sound waves. The 20 mm neodymium tweeter ensures crystal-clear highs and, due to its small mass, is capable of accurately reproducing fast sound changes. The 30.5 mm voice coils on Kapton carriers additionally contribute to high power handling and smooth performance across various frequency ranges.

What are the physical dimensions of the Quantum QXE62V2?

The Quantum QXE62V2 speaker has a mounting depth of 64 mm and a cutout diameter of 143 mm. You should consider these dimensions when planning the installation to ensure that the space in the car or the designated enclosure is sufficient. The size of 6.5 inches allows for easy integration into most vehicle doors or other speaker setups. When installing, it is important to secure the speakers so that they fit tightly and do not create unwanted vibrations that could affect the sound.

What role does impedance play in the ESX Quantum QXE62V2 speaker?

The Quantum QXE62V2 has an impedance of 4 ohms, making it compatible with most car sound systems and amplifiers, as these are often optimized for 4-ohm loads. With such impedance, you can ensure that energy is efficiently transferred from the amplifier to the speaker. For example, when you operate the speaker system with an amplifier designed for 4 ohms, the QXE62V2 achieves optimal performance without overloading the amplifier. Impedance plays an important role in tuning the overall speaker system.

How does the type of magnet affect the performance of the Quantum QXE62V2?

The Quantum QXE62V2 uses a 17 oz. Y30 material magnet and a fabric neodymium tweeter. The magnet is crucial for the speaker's performance as it generates the magnetic field necessary for the movement of the voice coil and thus the speaker diaphragm. Neodymium magnets, known for their high energy density, allow for more compact designs with a more efficient motor structure. This enables the speaker to achieve better responsiveness and higher sensitivity, which in turn leads to improved sound quality. The interplay of these components makes the QXE62V2 particularly powerful.

What special feature do the voice coils of the Quantum QXE62V2 offer?

The voice coils of the Quantum QXE62V2 from ESX are made of 30.5 mm copper wire and are wound on a Kapton carrier. Kapton is a heat-resistant material preferred in high-performance applications as it remains stable at high temperatures. This construction allows the speaker to withstand higher loads and temperatures without distortion or damage. This is a technical advantage, especially for users who enjoy listening at high volumes, as it guarantees consistent sound quality even under demanding conditions.

Which vehicle models is the Quantum QXE62V2 suitable for?

The compatibility of the Quantum QXE62V2 is particularly diverse due to its standardized size of 6.5 inches. Although not limited to specific car models, these speakers fit many vehicles that have space for 6.5-inch speakers. Vehicles with standardized speaker cutouts and sufficient mounting depth are ideal candidates. For optimal integration, you should ensure that the installation depth of 64 mm and the installation opening of 143 mm fit exactly to the existing speaker mount. Examples of compatible brand names are not provided, but universal mounting frames are optimally suited.

What is the frequency response of the Quantum QXE62V2?

With a frequency range of 55 Hz to 22000 Hz, the Quantum QXE62V2 from ESX offers a wide frequency response that covers all important audio frequencies. The lower frequency value of 55 Hz ensures sufficient bass reproduction, while the upper limit of 22000 Hz covers fine highs. The frequency response of the speaker is crucial for its ability to reproduce both powerful bass and clear highs. Combined with the specific material properties of the diaphragm and the tweeter structure, the Quantum QXE62V2 ensures a dynamic and precise audio performance.

What features of the Quantum QXE62V2 support audio performance?

The Quantum QXE62V2 from ESX is equipped with advanced technical features that contribute to improving audio performance. These include the polypropylene-graphite composite membranes, known for increased stiffness and low weight, an important property for low distortion and high sound fidelity. The fabric neodymium tweeter with a diameter of 20 mm ensures accurate and clear high-frequency reproduction. The powerful 17 oz. magnet provides the necessary power and precision in sound conversion. The 30.5 mm voice coils on Kapton carriers offer thermal stability at high power, supporting consistent sound quality. This allows the speaker to deliver precise and clear sound.
