ESX Horizon HXE750.5 5-channel amplifier

Name: ESX Horizon HXE750.5 5-Channel Amplifier | Masori
Brand: ESX
Price: 229.0 EUR
Availability: InStock
Rating: 5.0 (1 reviews)

1 Review

Max, Mikael and 53k+ customers already with Masori sound upgrade

ESX Horizon HXE750.5 5-channel amplifier

1 Review

Max. power 1500 watts, impedance 4/2 ohms, RMS up to 350 watts.
Efficiency up to 61%, HPF 32-2000 Hz, LPF 32-300 Hz.
MOSFET PWM power supply, triple protection, bass remote control.
Mehr technische Details

€229,00

~~€229,00~~ €229,00

5% Rabatt mit Vorkasse

inkl. VAT , possibly plus shipping

Bequem in 12 zinsfreien Raten à €19,08 mit Klarna zahlen.

Jetzt mit kostenlosem Versand ab 50€!

Shipping cost calculator

Land/Region

PLZ

Garantie & zusätzlicher Geräteschutz für dein HiFi-System

3 Jahre Masori Garantie Kostenlos 48 Monate Plusgarantie €24,99 60 Monate Plusgarantie Am beliebtesten €34,99

Deshalb wählen uns 100.000+ Kunden

3 Jahre Garantie

Sicher & sorglos
Blitzversand

mit DHL Express
Tiefpreisschutz

Nie zu viel zahlen

Rob

Max

Unsicher, ob dieses Produkt zu deinem Auto passt?

Wir helfen dir – schnell, persönlich und unverbindlich.

Antwort on weekdays within 24h

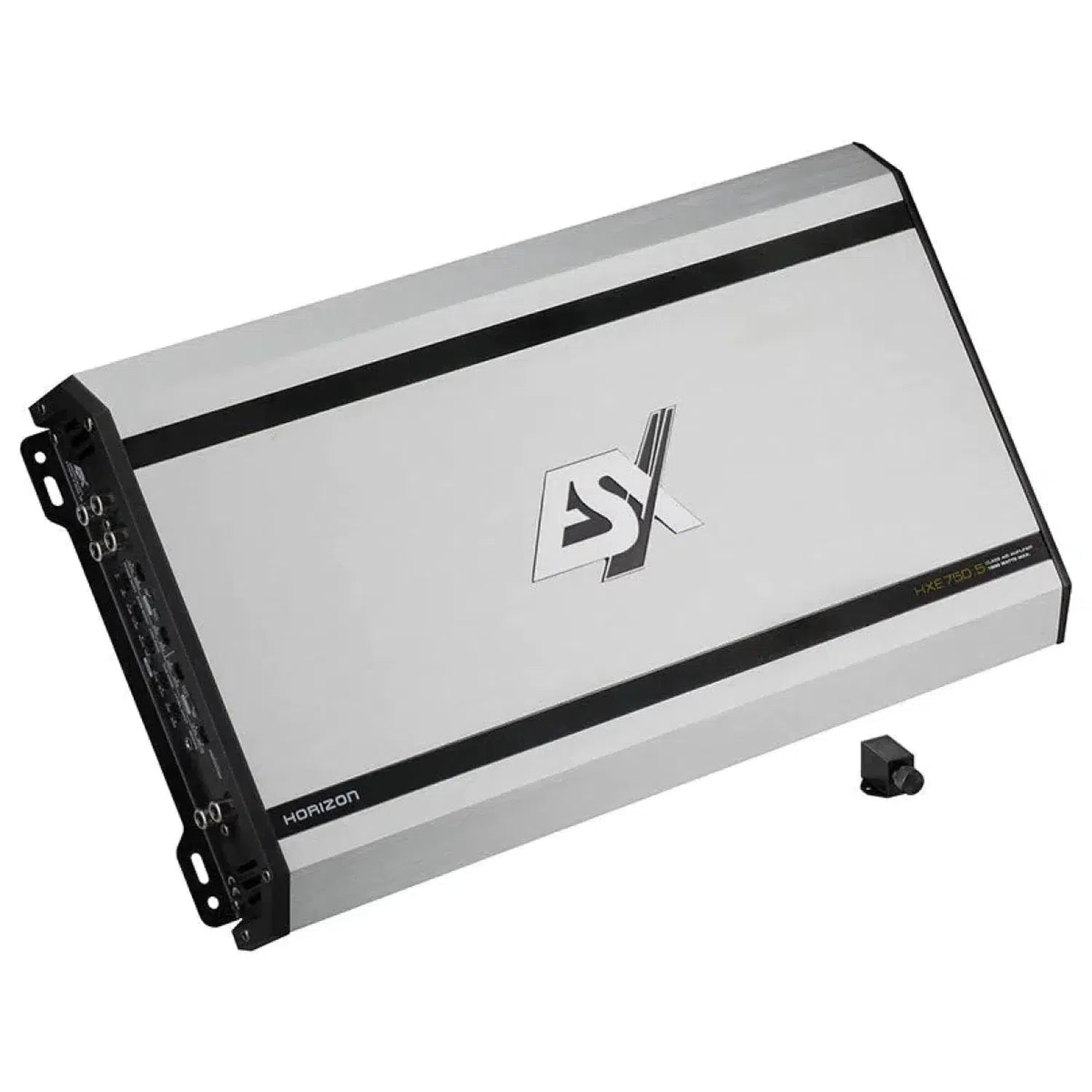

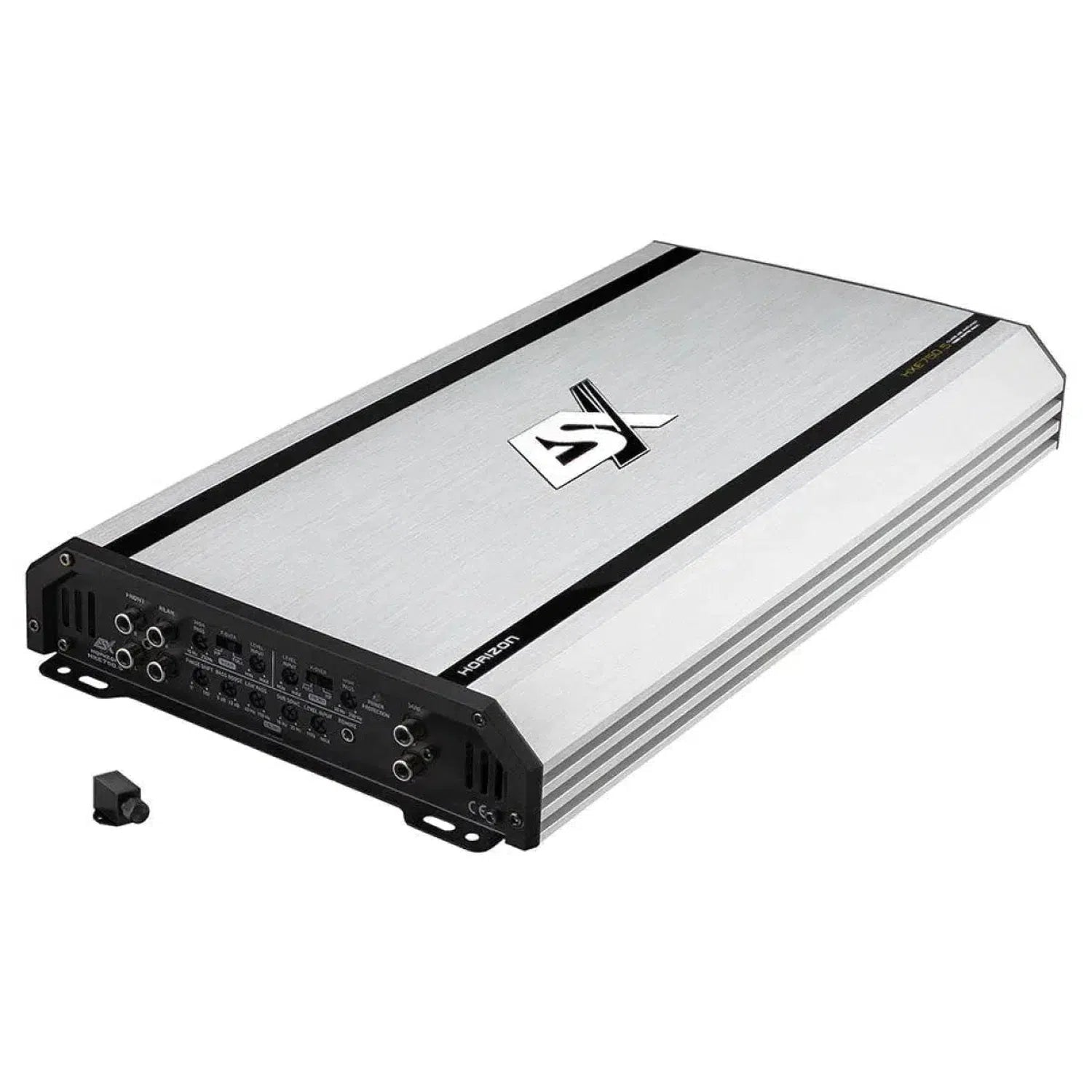

Horizon HXE750.5 by ESX

The Horizon HXE750.5 from ESX is a 5-channel amplifier that impresses both in quality and price. This model comes from the Horizon HXE series and offers excellent value for money. Its solid technology, output power, and versatile features set it apart. The sleek design with a massive aluminum heat sink exudes a high-quality elegance. With features such as a triple protection circuit, MOSFET PWM power supply, and compact bass cable remote control, the Horizon HXE750.5 amplifier offers several USPs from its manufacturer ESX.

features

Massive aluminum heat sink with acrylic glass inserts
Plan embedded diamond cut logo
Base plate with robust mounting brackets
3-fold protection circuit
MOSFET-PWM power supply
Compact bass cable remote control
5-Channel Class A/B Analog Amplifier

Data

1500 Watt Max. Output Power
4 x 120/200 Watt max. @ 4/2 Ohm
+ 1 x 400/700 Watt max. @ 4/2 Ohm
4 x 60/100 Watt RMS @ 4/2 Ohm
+ 1 x 200/350 Watt RMS @ 4/2 Ohm
HPF 32-2000 Hz, LPF 32-300 Hz
Subsonic filter 10 Hz - 60 Hz
Bass Boost 0 - 12 dB @ 40 Hz - 60 Hz
RCA/Cinch inputs
Cable remote control for bass level
Dimensions 220 x 51 x 412 mm
Efficiency up to 61%

ESX Horizon HXE750.5 Datenblatt

Datenblatt öffnen

Frequent questions about Horizon HXE750.5

Welche Kanäle bietet der Horizon HXE750.5 Verstärker?

The Horizon HXE750.5 from ESX is a 5-channel amplifier that is particularly versatile. It offers four channels with a maximum output power of 1500 watts, divided into 4 x 120/200 watts max. at 4/2 ohms, as well as an additional channel with 400/700 watts max. at 4/2 ohms. This structure not only allows for impressive audio performance but also the use of various configurations, whether for stereo setups or for subwoofers. A true highlight for audio enthusiasts who value flexibility and performance. Especially when you want to upgrade your sound system, this amplifier offers numerous customization options.

Welche Schutzmechanismen sind im ESX Horizon HXE750.5 integriert?

The ESX Horizon HXE750.5 is equipped with a triple protection circuit that is essential for both the safety of the amplifier and the entire audio system. This feature effectively protects against short circuits, overheating, and overvoltage, which is particularly important for extending the device's lifespan and ensuring smooth operation. The robust construction, combined with these protection circuits, ensures that the amplifier remains stable even under high load. This way, you can enjoy high volumes without having to worry about technical issues.

Wie beeinflussen die Frequenzweichen und Filter die Soundqualität des HXE750.5?

The built-in crossovers in the Horizon HXE750.5 allow for precise sound control. The amplifier features a high-pass filter (HPF) from 32-2000 Hz and a low-pass filter (LPF) from 32-300 Hz, which optimally adjust the frequency range. The subsonic filter, adjustable from 10 Hz to 60 Hz, helps suppress unwanted low frequencies and improves overall sound quality. With a bass boost of 0 to 12 dB at 40 Hz to 60 Hz, you can add extra depth to the bass range, which is ideal for music genres with intense low tones. These features work together to create clear and balanced sound.

Wie groß ist der ESX Horizon HXE750.5 Verstärker und wo kann er installiert werden?

The Horizon HXE750.5 measures a compact 220 x 51 x 412 mm, making it ideal for a variety of vehicle models. These dimensions allow for easy integration, whether in the trunk, under seats, or in other suitable areas of the vehicle. Its low height and robust aluminum heat sink allow it to fit well into existing systems without requiring much space or cooling performance. This opens up many installation options for you to discreetly integrate the amplifier into your car audio system while maximizing performance.

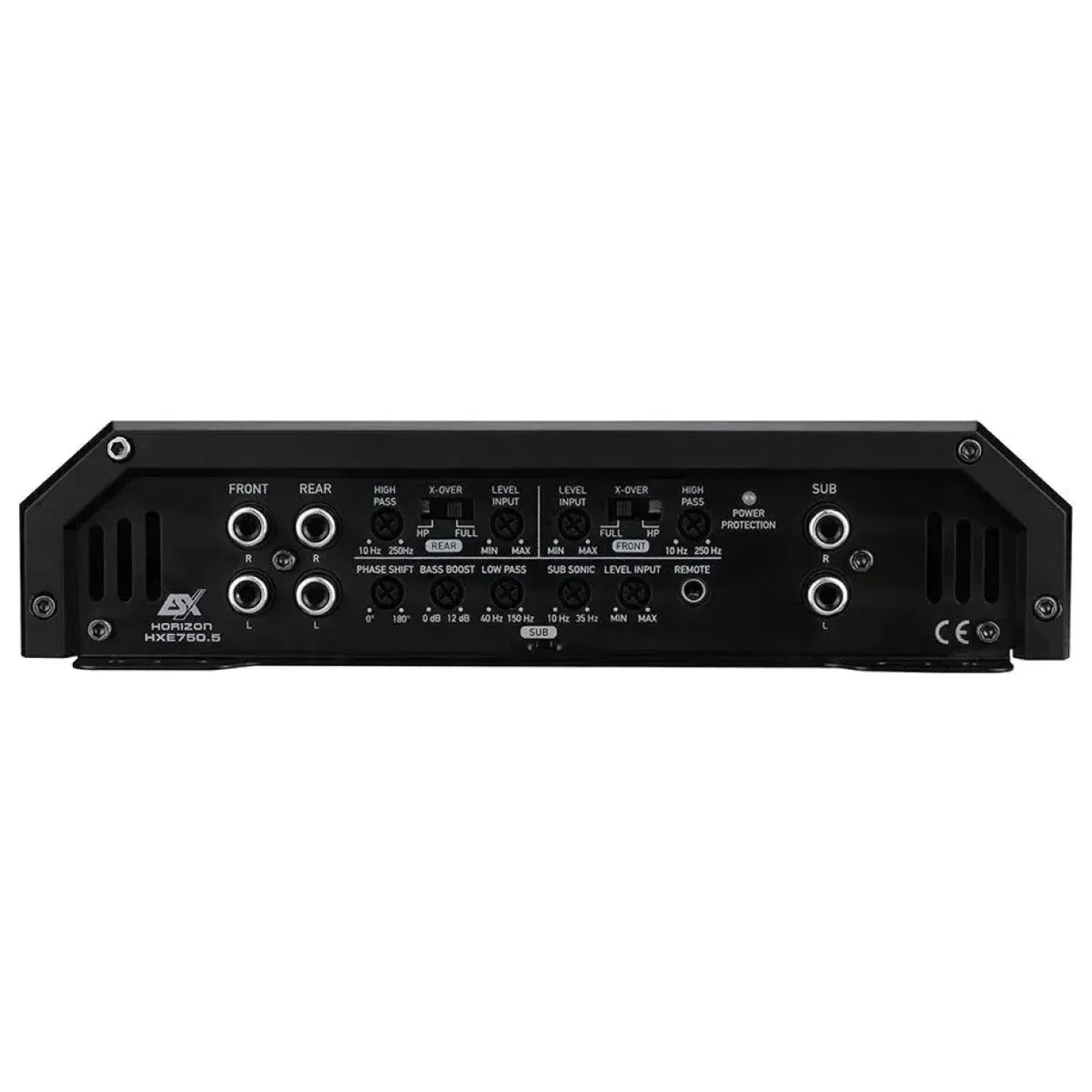

Welche Eingänge hat der ESX Horizon HXE750.5 Verstärker?

The Horizon HXE750.5 is equipped with RCA inputs that offer high compatibility with various audio sources. These standardized inputs allow for easy connection to different audio sources, such as car radios or external playback devices. The variety of connections ensures compatibility with a wide range of audio components, making the amplifier a versatile part of your audio system. Especially when upgrading or building a new system, you can ensure optimal sound and seamless integration.

Unterstützt der ESX Horizon HXE750.5 die Steuerung des Basspegels aus der Ferne?

Yes, the Horizon HXE750.5 features a compact bass cable remote control that allows you to conveniently adjust the bass level from a distance. This function is particularly useful when you want to make quick adjustments while driving, without interrupting your ride or distracting yourself from the steering wheel. This accessory, which is part of the amplifier's equipment, provides a practical way to increase or decrease the bass intensity and tailor the sound to your preferences without having to make manual adjustments directly on the amplifier.

Wie effizient ist der ESX Horizon HXE750.5?

The ESX Horizon HXE750.5 has an efficiency of up to 61%, which is a good value for an amplifier of its class. This high efficiency means that a large portion of the power fed into the amplifier is converted into audio output rather than being lost as heat. This allows for a more efficient use of your vehicle's battery capacity and a lower energy consumption, which positively affects the car's performance. High efficiency is particularly beneficial during long listening sessions, as it minimizes overheating and energy loss.

Wie ist der ESX Horizon HXE750.5 konstruiert und warum ist das Material wichtig?

The ESX Horizon HXE750.5 is equipped with a massive aluminum heat sink and acrylic glass inserts, making the design robust and elegant. The aluminum not only provides stability but also ensures efficient heat dissipation, which is particularly important under high audio loads. The acrylic glass inserts give the amplifier an aesthetic, modern appearance, while the base plate features sturdy mounting brackets for secure installation in the vehicle. This choice of materials combines functionality with appealing design and is ideal for long-lasting use.

Welche Rolle spielt das MOSFET-PWM-Netzteil im ESX Horizon HXE750.5?

The MOSFET PWM power supply in the Horizon HXE750.5 ensures efficient power distribution within the amplifier. MOSFET stands for Metal-Oxide-Semiconductor Field-Effect Transistor, which operates as a fast switching element in the amplifier. This power supply not only offers a fast response time but also provides a stable voltage supply, which is crucial for high-quality sound reproduction. Even under high loads, the sound quality remains consistent, and power spikes are balanced. This technology ensures that the maximum output power is always available, which is particularly advantageous for demanding music.

Für welche Musikarten eignet sich der ESX Horizon HXE750.5 besonders gut?

The Horizon HXE750.5 is particularly well-suited for music genres with strong bass or dynamic sound profiles due to its versatile audio customization options, such as variable crossovers and adjustable bass boost. Genres like hip-hop, electronic music, or rock benefit from the powerful bass and clear mids and highs that this amplifier can provide. By using the bass cable remote control, you can customize the sound individually, ensuring optimal audio playback across different music styles, making this amplifier a versatile choice for music lovers.
