  3. Horizon HXE2000.1Dv2
ESX Horizon HXE2000.1Dv2 1-Channel Amplifier
SKU:  HXE2000-1DV2
EAN:  4251476404427
1000 Watt

Horizon HXE2000.1Dv2

SKU:  HXE2000-1DV2
EAN:  4251476404427

Technical Highlights

  • 2000 Watt Max. Output Power, 1 x 800/1300/2000 Watt max.
  • Impedance 1/2/4 ohms, 1 x 400/650/1000 watts RMS at 4/2/1 ohms.
  • MOSFET PWM power supply, automatic power-on function, EPS.
  • More technical details
€229,00
€229,00 €229,00
5% discount with credit card
inkl. VAT , possibly plus shipping
Delivery
May 29, - Jun 1,
x piece
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa
Klarna Pay conveniently in 12 interest-free installments at €19,08 with Klarna .

Your benefits at Masori

Seen cheaper elsewhere?

Shipping cost calculator

Expert Image

Rob

Expert Image

Max

Unsure if this product fits your car?

We help you – quickly, personally, and without obligation.

Response on weekdays within 24 hours

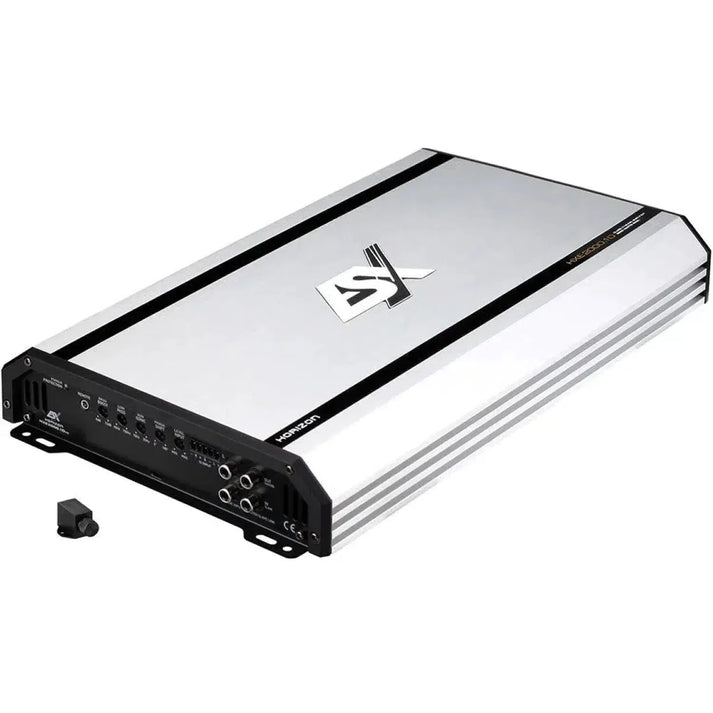

ESX-Horizon HXE2000.1Dv2-1-Kanal Verstärker-masori-kaufen
€229,00
€229,00 €229,00

Horizon HXE2000.1Dv2 by ESX

The ESX Horizon HXE2000.1Dv2 is a 1-Channel Amplifier in Mono Class D digital design. Equipped with a MOSFET-PWM power supply, triple protection circuit, high-level inputs with Error Protection System, and automatic turn-on function. The filter section includes LPF 40–150 Hz and Subsonic 15–35 Hz, complemented by Bass Boost 0–12 dB and Phase Shift 0–180°. The output power includes 2000 watts max., plus 1 x 800 watts max. @ 4 Ohm, 1 x 1300 watts max. @ 2 Ohm, and 1 x 2000 watts max. @ 1 Ohm, as well as 1 x 400 watts RMS @ 4 Ohm, 1 x 650 watts RMS @ 2 Ohm, and 1 x 1000 watts RMS @ 1 Ohm. The efficiency is up to 83%. On the housing side, there is a massive aluminum heat sink with acrylic glass inserts, a flush-mounted diamond-cut logo, and a base plate with robust mounting brackets, complemented by Master/Slave function and cable remote control for the bass level.

Features
  • 1-Channel Amplifier
  • Mono Class D Digital Amplifier
  • MOSFET-PWM power supply
  • Triple protection circuit
  • High-level inputs with Error Protection System
  • Automatic turn-on function
  • Master/Slave function
  • Compact bass cable remote control
  • Massive aluminum heat sink with acrylic glass inserts
  • Flush-mounted diamond-cut logo
  • Base plate with robust mounting brackets
Technical Specifications
  • Max. output power: 2000 watts
  • Max. power: 1 x 800 watts @ 4 Ohm
  • Max. power: 1 x 1300 watts @ 2 Ohm
  • Max. power: 1 x 2000 watts @ 1 Ohm
  • RMS power: 1 x 400 watts @ 4 Ohm
  • RMS power: 1 x 650 watts @ 2 Ohm
  • RMS power: 1 x 1000 watts @ 1 Ohm
  • LPF 40–150 Hz
  • Subsonic 15–35 Hz
  • Bass Boost 0–12 dB
  • Phase Shift 0–180°
  • Efficiency up to 83%
  • Dimensions 220 x 51 x 362 mm

Your benefits at Masori

ESX Horizon HXE2000.1Dv2 Datasheet

Open datasheet

Frequently Asked Questions about Horizon HXE2000.1Dv2

What performance specifications does the Horizon HXE2000.1Dv2 offer?

The Horizon HXE2000.1Dv2 from ESX delivers a maximum output power of an impressive 2000 watts. At different impedances, the power outputs are as follows: 800 watts at 4 ohms, 1300 watts at 2 ohms, and ultimately 2000 watts at 1 ohm. The RMS power ratings are specified as 400 watts at 4 ohms, 650 watts at 2 ohms, and 1000 watts at 1 ohm. These power levels make the amplifier ideal for intense bass applications and provide versatility in various installation scenarios. However, it is important to select a suitable Subwoofer to fully utilize its capabilities without overloading.

How does the Auto Turn-On function of the Horizon HXE2000.1Dv2 work?

The Auto Turn-On function of the Horizon HXE2000.1Dv2 facilitates integration into audio systems by automatically turning on the amplifier as soon as a signal is detected through the high-level input. This function uses voltage changes in the audio signal to activate the amplifier, simplifying installation since no additional cables are required for powering on. The advantage of this function is seamless integration into existing vehicle systems without the need for a separate power-on mechanism. This saves time during installation and minimizes wiring effort.

What does the Master/Slave function mean for the ESX Horizon HXE2000.1Dv2?

With the Horizon HXE2000.1Dv2, the Master/Slave function allows for the parallel use of multiple amplifiers in a system. This is achieved by having one amplifier act as the 'Master', controlling the audio processing, while the connected 'Slave' amplifiers amplify the same signals without their own adjustments. This function enables scaling of output power and is ideal for outstanding installations in large vehicles or when using many speakers. Users can plan more flexibly according to their needs for volume and sound profile and easily incorporate multiple power amplifiers.

How does the Bass Boost affect the sound quality of the Horizon HXE2000.1Dv2?

The Bass Boost of the Horizon HXE2000.1Dv2 offers an increase of up to 12 dB to specifically enhance the low-frequency range. This is particularly beneficial when additional bass intensity is desired, for example, when playing music with heavily emphasized bass. Combined with the phase-adjustable subsonic filter (0-180°), which reduces unwanted low-frequency elements, the Bass Boost provides a clean and powerful low-frequency foundation. This allows for high adaptability to individual sound preferences, enabling targeted control over the acoustic spectrum while reducing distortion.

What protection circuits does the Horizon HXE2000.1Dv2 offer?

The ESX Horizon HXE2000.1Dv2 features a triple protection circuit that significantly improves reliability and safety during operation. These protection mechanisms include thermal protection against overheating, overload protection to prevent voltage spikes, and short-circuit protection to prevent damage in case of wiring issues. Such protection circuits are essential to safeguard the amplifier and connected components from damage, especially at high power output. Particularly in dense installations or demanding environments, these safety measures are crucial for operation.

How does the aluminum heat sink support the performance of the Horizon HXE2000.1Dv2?

The Horizon HXE2000.1Dv2 is equipped with a massive aluminum heat sink that ensures efficient heat dissipation. Aluminum is known for its excellent thermal conductivity, which helps to quickly dissipate the heat generated from the internal components, thereby keeping the operating temperature low. This prevents thermal overload and guarantees consistent power output. In conjunction with the powerful MOSFET-PWM technology, the heat sink supports the stability of the amplifier even under high load, which is particularly important in power-intensive applications where failure risks must be minimized.

How are the dimensions of the Horizon HXE2000.1Dv2 relevant for installation?

The dimensions of the Horizon HXE2000.1Dv2 are 220 x 51 x 362 mm, making it a compact amplifier for integration into various vehicle types. These measurements should be carefully considered to ensure that the available installation space in the vehicle provides sufficient room. The installation requires a stable attachment to the mounting surface, for which the robust mounting brackets on the amplifier's base plate are intended. A correct space assessment and installation planning prevent later adjustments or errors, especially in tight or specific vehicle areas.

What role does the MOSFET-PWM power supply play in the Horizon HXE2000.1Dv2?

The MOSFET-PWM power supply in the Horizon HXE2000.1Dv2 ensures efficient voltage regulation, which is crucial for the amplifier's high output power. MOSFET components (Metal-Oxide-Semiconductor Field-Effect Transistors) provide a fast response time to frequency changes, while PWM (Pulse Width Modulation) ensures precise control of the power supply, minimizing distortion and optimizing audio quality. This technology makes the amplifier particularly suitable for dynamic music applications, as it not only ensures higher sound fidelity but also reduces power loss, contributing to better efficiency.

What frequency ranges can be set on the Horizon HXE2000.1Dv2?

The Horizon HXE2000.1Dv2 offers versatile adjustment options for the low-pass filter (LPF) and the subsonic filter to make precise sound adjustments. The LPF can be set between 40 and 150 Hz, making it adaptable for various subwoofers and sound preferences. Additionally, the subsonic filter ranges from 15 to 35 Hz and removes unwanted, inaudible frequencies from the signal, protecting the subwoofer and improving the clarity of bass reproduction. This frequency modulation provides great flexibility to best adapt the system to the acoustic space and individual preferences.

Is the Horizon HXE2000.1Dv2 compatible with common car brands?

The ESX Horizon HXE2000.1Dv2 is compatible with most vehicle types due to its universal design and flexible installation options. The dimensions of 220 x 51 x 362 mm allow for installation considering the available space in common car models. However, it is important to check the installation space in advance to ensure that no adjustments will be necessary. The amplifier is designed for integration into various audio systems, making it suitable for a wide range of applications in popular car brands without highlighting specific models.

Manufacturer information / responsible person

Audio Design Loudspeaker Sales GmbH
Am Breilingsweg 3
76709 Kronau
Germany

Authorized Managing Director:
Bruno Dammert

Contact: info@audiodesign.de
